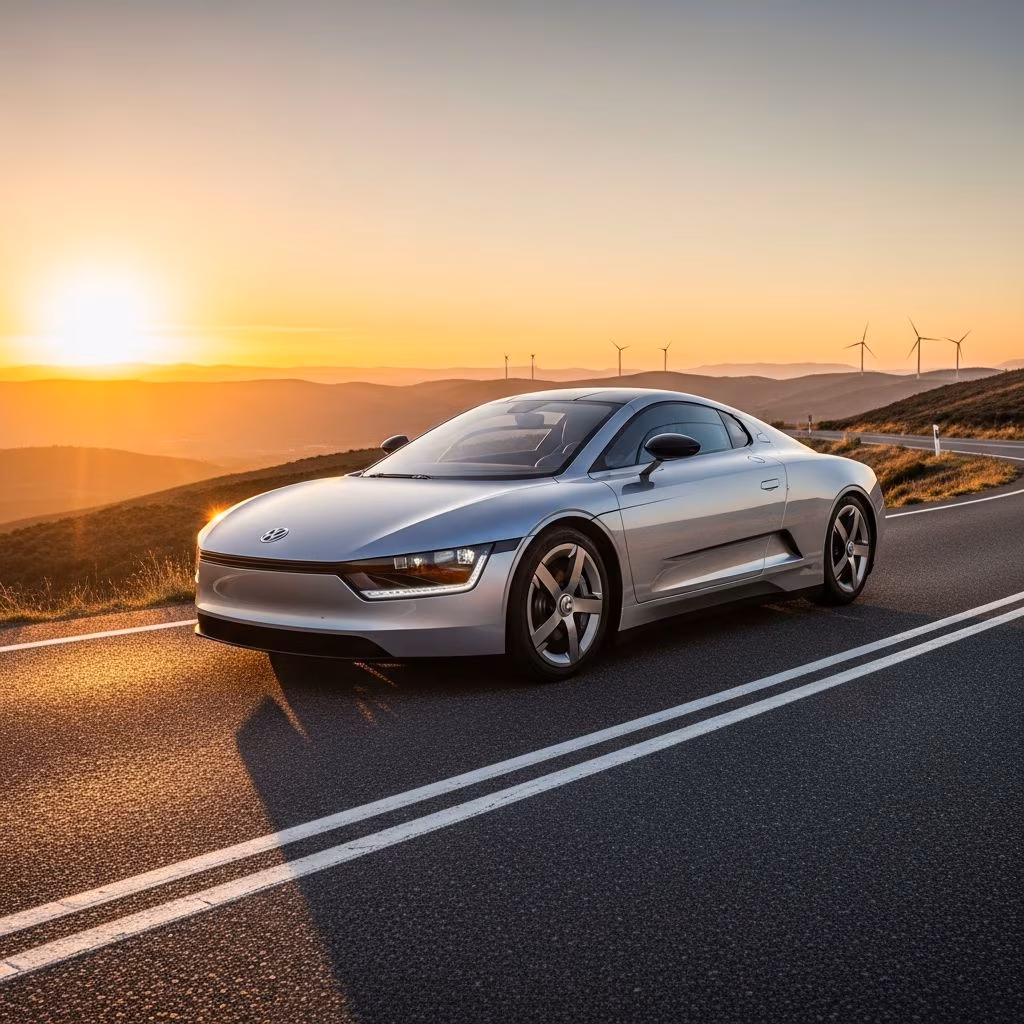

Volkswagen XL1: 261 MPG And Lightweight Aerodynamic Design

The Volkswagen XL1 stands as a landmark in automotive innovation, embodying a vision of extreme fuel economy without sacrificing drivability. Launched as a production-ready concept, this two-seater plug-in hybrid diesel-electric vehicle pushed the boundaries of lightweight engineering, aerodynamics, and powertrain integration to deliver an extraordinary **261 mpg** (0.9 liters/100 km) on the European driving cycle.

Genesis of a Visionary Project

Volkswagen’s pursuit of the ultimate efficient car traces back to the early 2000s, inspired by then-Chairman Prof. Dr. Ferdinand Piëch’s ambitious goal: a practical vehicle consuming just one liter of fuel per 100 kilometers. This “1-liter car” strategy evolved through prototypes, culminating in the XL1, which not only met but exceeded that target at 0.9 l/100 km. Unlike earlier tandem-seating concepts like the 2002 and 2009 L1 models, the XL1 adopted side-by-side seating for better usability, blending futuristic efficiency with everyday appeal.

Production was limited and handcrafted in Osnabrück, Germany, emphasizing high-tech processes for its carbon fiber reinforced polymer (CFRP) components. This approach allowed Volkswagen to realize Piëch’s dream in a vehicle that cruised at 62 mph using only 8.4 PS (6.2 kW), showcasing the synergy of low weight, sleek aerodynamics, and smart hybridization.

Revolutionary Powertrain Design

At the heart of the XL1’s efficiency is its plug-in hybrid system, pairing a compact **0.8-liter two-cylinder TDI turbo-diesel engine** (48 PS / 35 kW) with a **27 PS (20 kW) electric motor**. Connected via a seven-speed DSG dual-clutch transmission, the setup delivers combined torque of up to 140 Nm (103 lb-ft), with the electric motor providing instant boost from standstill.

• Diesel Engine: 800 cc TDI, optimized for low-end torque and minimal fuel use.
• Electric Motor: Supports pure EV mode for up to 31 miles (50 km), using less than 0.1 kWh per km.
• Battery: Lithium-ion pack rechargeable in about one hour, enabling zero-emission driving.
• Transmission: DSG operates solely in automatic mode for seamless power delivery.

In hybrid mode, the system emits just **21 g/km CO2**, setting a benchmark for production cars. The diesel takes over like a range extender when batteries deplete, ensuring reliability akin to the Chevrolet Volt but with diesel efficiency.

Lightweight Engineering Marvel

Weighing a mere **795 kg (1,753 lbs)**, the XL1’s curb weight rivals lightweight sports cars, achieved through extensive use of CFRP for the monocoque chassis and body panels. Developed with Austrian firm Carbo Tech—also behind McLaren’s MP4-12C—this rapid resin-transfer molding process was faster and more cost-effective than traditional methods.

The low center of gravity at 1,153 mm enhances handling, while the overall design prioritizes mass reduction: polycarbonate side glass saved 3 kg, and door-mounted cameras replaced mirrors for further streamlining. This featherweight build means the powertrain propels the car effortlessly, contributing to its record-breaking economy.

Aerodynamic Supremacy

The XL1 boasts the lowest drag coefficient ever for a production car: **Cd 0.189** (Cw 0.19), making it more slippery than any contemporary vehicle. Measuring 153.1 inches long, 65.6 inches wide, and just 45.4 inches tall, it’s lower than a Porsche Boxster and sleeker than most sedans, including the Volkswagen Polo.

Key aero features include flush door cameras, optimized underbody panels, and a teardrop shape that minimizes turbulence. This allows sustained 100 km/h cruising on minimal power, proving that pure design principles can yield sports-car-like presence with hypermiling credentials.

Performance and Drivability

Despite its efficiency focus, the XL1 offers respectable performance: **0-62 mph (0-100 km/h) in 12.7 seconds**, top speed electronically limited to **99 mph (160 km/h)**. In EV mode, it reaches 50 mph for short urban jaunts, blending fun with frugality.

Reviewers note its racy looks and surprising usability, with familiar VW controls like keyless entry and climate systems. A small Garmin screen handles infotainment, keeping the cockpit simple and driver-focused. The offset seating provides decent space for two, a step up from tandem prototypes.

Environmental and Practical Impact

With **261 mpg** and ultra-low emissions, the XL1 demonstrated feasible paths to sustainability in 2013, influencing modern EVs and hybrids. Its 22-31 mile EV range covers daily commutes emission-free, while the diesel extender prevents range anxiety.

Though not mass-produced, the XL1 proved high-tech manufacturing scalability, paving the way for VW’s lighter platforms in models like the ID series. It remains a testament to balancing radical efficiency with real-world utility.

Legacy and Modern Relevance

Over a decade later, the XL1’s achievements hold up: its Cd record endures, and lightweight hybrids inform today’s push for net-zero transport. As electrification accelerates, the XL1 reminds us that diesel-electric synergy can bridge to full EVs, especially in efficiency metrics.

Comparisons to rivals highlight its uniqueness—no other production car matched its mpg or aero at launch.
