Unshielded twisted pair (UTP) cables form the invisible highways that carry data across homes, offices, and data centers worldwide. These simple yet ingenious wires have revolutionized how we connect devices, enabling everything from basic internet access to high-speed enterprise networks. Unlike more complex alternatives, UTP relies on a clever physical design to combat signal degradation, making it affordable and versatile for countless applications.
In this comprehensive guide, we’ll delve into the mechanics of UTP cables, their evolution through various performance categories, practical deployment strategies, and key considerations for optimal performance. Whether you’re a network administrator upgrading infrastructure or a curious tech enthusiast, understanding UTP unlocks better decisions for reliable connectivity.
Core Principles of UTP Cable Design

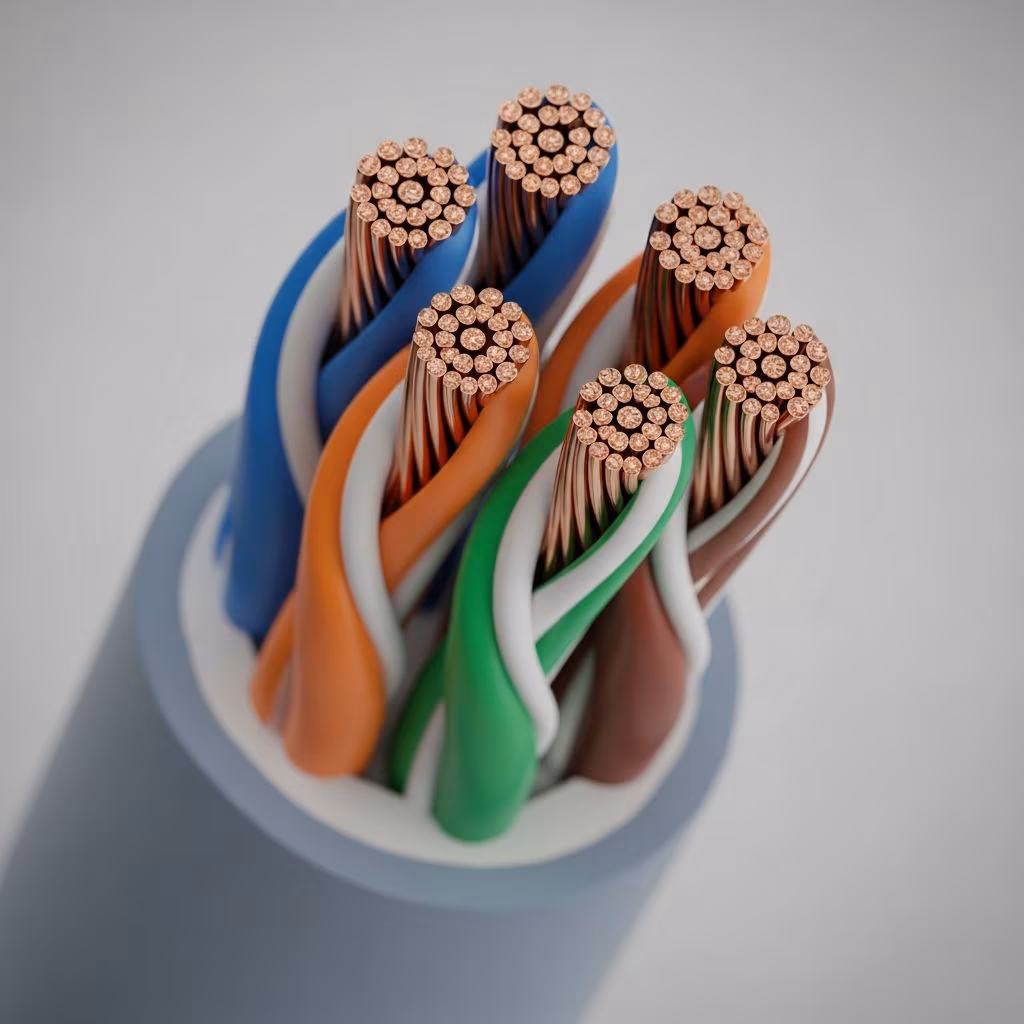

At its heart, a UTP cable is a bundle of copper wires organized into pairs, each pair meticulously twisted around itself. This twisting isn’t arbitrary—it’s a deliberate engineering choice rooted in electromagnetism. When electrical signals pulse through the wires, they generate magnetic fields that can interfere with neighboring signals, a problem known as crosstalk or electromagnetic interference (EMI).
The twist pattern ensures that any external noise picked up by one wire in a pair is mirrored on its partner, allowing the receiving end to subtract the noise effectively. This differential signaling method boosts signal integrity over distances that would otherwise corrupt data. Typically, a UTP cable houses four such pairs (eight wires total) encased in a flexible plastic jacket, keeping the overall diameter slim for easy routing through walls and conduits.
- Wire Composition: Solid or stranded copper conductors, insulated with polyethylene or PVC for durability.
- Color Coding: Standardized schemes (e.g., blue-white/blue pair) simplify identification during termination.
- Twist Rates: Vary between pairs to further suppress crosstalk, with higher categories featuring more twists per inch.
Without metallic shielding—hence ‘unshielded’—UTP avoids the bulk and grounding needs of shielded variants, prioritizing cost-effectiveness and simplicity.
Evolution of UTP Categories and Speed Capabilities
UTP cables are classified into categories (Cat) by the Electronic Industries Alliance (EIA) and Telecommunications Industry Association (TIA), each denoting improved specs for bandwidth and frequency. These standards ensure interoperability across devices.
| Category | Max Speed | Frequency (MHz) | Typical Use |
|---|---|---|---|
| Cat 5 | 100 Mbps | 100 | Basic Ethernet (legacy) |
| Cat 5e | 1 Gbps | 100 | Gigabit LANs |
| Cat 6 | 10 Gbps (55m) | 250 | High-speed offices |
| Cat 6a | 10 Gbps (100m) | 500 | Data centers |
| Cat 7 | 10 Gbps+ | 600 | Future-proofing |
| Cat 8 | 40 Gbps (30m) | 2000 | Server rooms |
Advancements like Cat 6 introduced spline separators—plastic dividers between pairs—to enhance isolation. Cat 8, the pinnacle, supports 25/40 Gbps over short runs, rivaling fiber in niche setups. Choosing the right category aligns cable capabilities with network demands, preventing bottlenecks.
Mechanisms for Interference Mitigation
UTP’s prowess lies in its passive noise rejection. External EMI from power lines or fluorescent lights induces equal interference on both wires of a twisted pair. Receivers exploit this by amplifying the voltage difference between wires, nullifying common noise while preserving the data signal.
Crosstalk, where signals from one pair bleed into another, is curtailed by alternating twist rates and precise pair spacing. In demanding environments, factors like cable bends (beyond 4x diameter) or proximity to motors can compromise these defenses, underscoring proper handling.
- Near-End Crosstalk (NEXT): Measures interference at the transmit end.
- Attenuation: Signal loss over distance, lower in higher categories.
- Return Loss: Reflectivity from impedance mismatches.
Testing with certification tools verifies compliance, ensuring links meet TIA-568 standards.
Comparing UTP to Shielded Twisted Pair (STP)
While UTP shines in low-interference settings, STP adds foil or braided shields around pairs or the bundle for superior EMI rejection, ideal for industrial sites with heavy machinery. However, STP demands grounding to drain interference, increasing complexity and cost—up to 50% more expensive with larger bend radii.
UTP wins for 90% of deployments due to flexibility, lighter weight, and no grounding hassles. Hybrid scenarios might use STP in risers and UTP horizontally.
Deployment Best Practices and Installation Tips
Success with UTP hinges on meticulous installation. Pull cables with steady tension (<25 lbs), avoiding kinks or staples that crush pairs. Maintain 12-inch separation from power cables to curb induction.
Termination to RJ45 connectors requires stripping jackets cleanly, untwisting minimally (under 0.5 inches), and punching down in T568A/B configurations. Patch panels and keystone jacks streamline organized setups.
- Plan pathways for future scalability.
- Use cable management trays for airflow.
- Label endpoints meticulously.
- Test every link post-install.
In PoE applications (e.g., IP cameras), Cat 5e+ handles 30-90W safely, with heat dissipation aided by unshielded designs.
Real-World Applications Across Industries
UTP’s ubiquity spans telephony (Cat 3 for POTS) to cutting-edge 10GBASE-T in universities. Home networks leverage Cat 6 for Wi-Fi backhaul, while enterprises deploy Cat 6a for unified communications. Even AV systems use balanced UTP for audio/video distribution.
Backward compatibility ensures seamless upgrades—Cat 8 supports legacy 100 Mbps flawlessly.
Future Directions and Emerging Standards
As networks chase 100 Gbps, UTP evolves with Cat 8.2/8.3 for 40G over 30m. Sustainability drives recyclable jackets, while alien crosstalk specs pave for denser deployments. Fiber looms for ultra-long hauls, but UTP’s copper economics endures.
Frequently Asked Questions (FAQs)
What is the maximum length for UTP Ethernet?
100 meters (328 feet) per segment for most categories, including Cat 6 at 1 Gbps.
Can UTP handle Power over Ethernet (PoE)?
Yes, up to PoE++ (90W) on Cat 5e and above, with proper ventilation.
Is Cat 6 sufficient for 10 Gbps home networks?
For runs under 55m, yes; opt for Cat 6a beyond that.
How do I distinguish UTP categories visually?
Check markings on the jacket (e.g., ‘Cat6’) or test with a verifier.
Does UTP work outdoors?
Use direct-burial or UV-resistant variants; standard indoor UTP degrades in weather.
