Understanding CVT Gearboxes: Technology and Benefits

What Makes CVT Technology Different

A continuously variable transmission, commonly abbreviated as CVT, represents a significant departure from conventional automatic gearbox design. Unlike traditional automatic transmissions that rely on a fixed number of gears—typically between six and eight discrete ratios—a CVT operates on an entirely different principle. This innovative system eliminates the mechanical gears altogether, instead employing a belt and pulley mechanism that continuously adjusts to provide an infinite range of gear ratios.

The fundamental distinction lies in how power is transmitted from the engine to the wheels. Where a standard automatic transmission uses interlocking toothed wheels that engage and disengage through clutch packs, a CVT maintains seamless power delivery through a continuous adjustment process. This engineering approach results in a transmission that never truly \”shifts\” in the traditional sense, instead smoothly varying its ratio to match driving demands.

The Mechanical Mechanics Behind CVT Operation

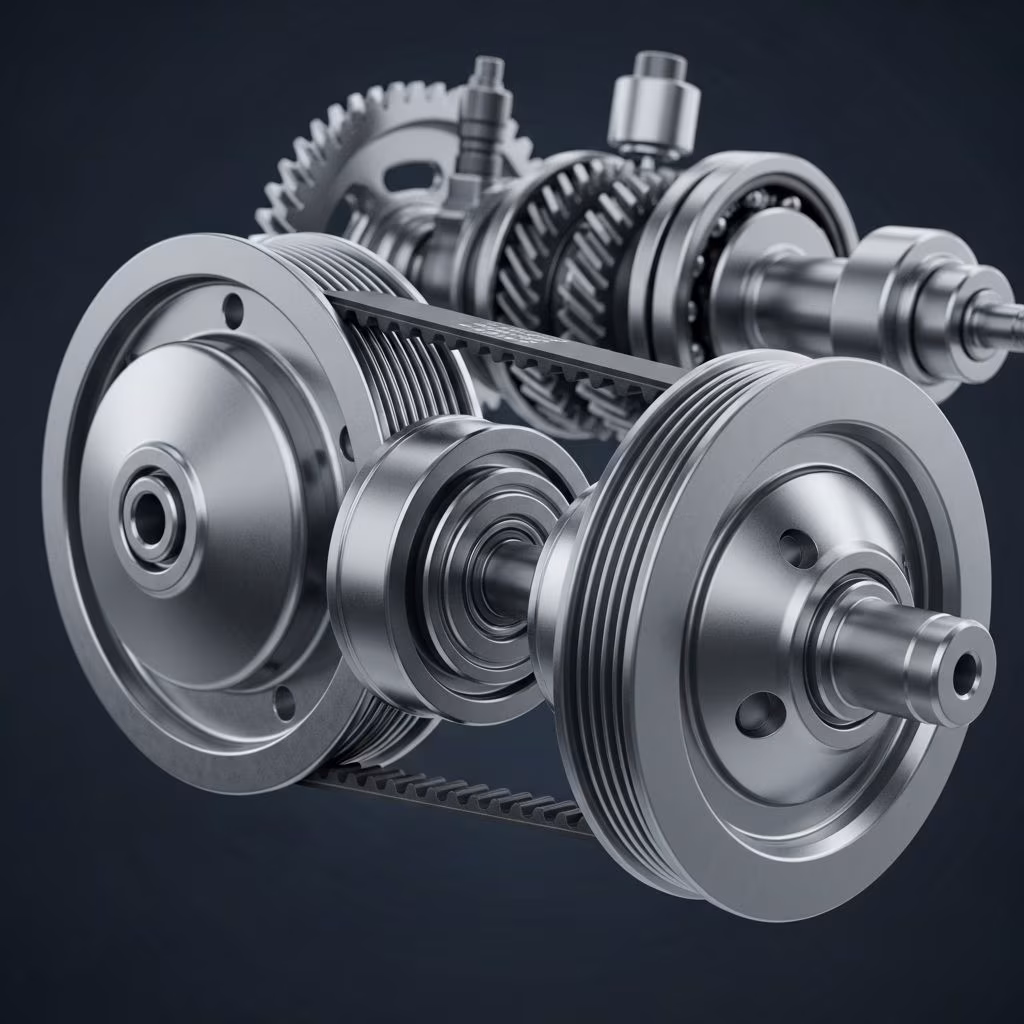

Understanding how a CVT functions requires examining its core components and their interaction. The system relies on two conical pulleys connected by a specialized belt or chain. One pulley—termed the input or drive pulley—connects directly to the engine’s crankshaft, receiving rotational power from the combustion process. The second pulley, known as the output or driven pulley, transfers processed power through the driveshaft to the vehicle’s wheels.

The ingenious aspect of CVT design lies in how these pulleys achieve variable ratios. Each pulley consists of two movable cone-shaped halves that can adjust their distance from one another. By controlling the gap between these cone halves, the system changes the effective diameter of each pulley, which in turn alters where the connecting belt sits on the pulleys. When the input pulley expands and the output pulley contracts, the belt rides lower on one and higher on the other, modifying the gear ratio.

Hydraulic pressure systems regulate these pulley adjustments, responding to engine load, vehicle speed, and driver input. Advanced electronic control units continuously monitor driving conditions and modify pulley positioning thousands of times per minute, ensuring the engine operates at its optimal efficiency point regardless of vehicle speed.

How Power Delivery Works in Real Driving Scenarios

The practical operation of a CVT becomes apparent when examining different driving situations. During acceleration from a standstill, the transmission automatically adjusts to favor torque delivery—the rotational force needed for rapid acceleration. The input pulley becomes smaller while the output pulley expands, creating a lower gear ratio comparable to first gear in a manual transmission. This configuration multiplies engine torque, allowing the vehicle to overcome inertia efficiently.

As the vehicle gains speed, the transmission continuously adjusts pulley diameters to maintain optimal engine efficiency. The system progressively increases the gear ratio, raising engine efficiency and reducing fuel consumption. At cruising speeds, the pulleys settle into ratios that keep the engine operating within its most efficient rpm range, delivering smooth power while minimizing fuel use.

This continuous adjustment capability means the CVT experiences no interruption in power delivery—there are no moments where the engine briefly loses power during gear changes, as occurs with traditional automatic transmissions. The result feels like an entirely smooth acceleration curve rather than a series of discrete steps.

Performance Advantages of CVT Systems

Fuel Economy Improvements

One of the most compelling reasons manufacturers have adopted CVT technology involves fuel efficiency gains. By keeping the engine operating within its narrow optimal efficiency band, CVTs reduce fuel consumption compared to traditional automatics. The absence of discrete gear shifts eliminates brief moments of reduced efficiency that occur during conventional transmission shifts. Studies and real-world testing indicate fuel economy improvements of 5-15% depending on driving patterns and vehicle design.

Refined Driving Experience

The continuous nature of CVT power delivery creates a noticeably smoother driving sensation. Without traditional shift shocks—the brief jolts that occur when gears change—CVT vehicles accelerate with uniform, predictable responsiveness. Passengers rarely notice transmission operation, as the system works imperceptibly to adjust ratios. This refinement particularly benefits highway driving and congested urban conditions where frequent acceleration changes would normally produce noticeable transmission engagement.

Extended Component Longevity

CVT systems incorporate fewer moving parts than traditional automatic transmissions, and the components that do exist experience less stress. Without the impact forces generated by gear engagement, CVT parts wear more slowly theoretically, potentially extending transmission lifespan. The absence of multiple clutch packs and planetary gear sets reduces the number of potential failure points.

Understanding CVT Limitations and Considerations

Engine Noise Characteristics

One distinctive characteristic of CVT-equipped vehicles is their engine noise signature during acceleration. Because engine speed doesn’t directly correlate with vehicle speed—the engine can maintain high rpm while the vehicle accelerates gradually—CVT cars produce a distinctive high-revving sound during spirited acceleration. This occurs because the transmission maintains the engine at peak power rpm while continuously varying the output ratio, creating an unfamiliar driving sensation for those accustomed to traditional automatic behavior.

Maintenance and Repair Considerations

CVT transmissions require specialized fluid formulations that differ significantly from conventional automatic transmission fluid. Regular fluid changes become essential maintenance items to preserve component longevity and ensure proper pulley adjustment responsiveness. While manufacturer maintenance intervals typically range from 30,000 to 60,000 miles, CVT service should never be neglected, as fluid degradation directly impacts transmission performance.

Comparing CVT to Traditional Automatic Transmissions

Modern CVT Variations and Hybrid Applications

Contemporary CVT technology extends beyond traditional belt-and-pulley designs. Hybrid vehicles, particularly those manufactured by Toyota and Ford, employ electronic CVT systems known as eCVTs or Power Split Devices. These systems replace mechanical pulleys with electric motors connected through planetary gearsets. The electric motors can rotate at different speeds or in opposite directions, achieving the same infinite gear-ratio variability as conventional CVTs while integrating seamlessly with hybrid powertrains.

Electronic CVT systems provide additional advantages in hybrid applications, allowing the transmission to distribute power between internal combustion engines and electric motors with exceptional precision. This integration enables superior fuel economy in hybrid vehicles, often exceeding 50 mpg in real-world conditions.

Why Vehicle Manufacturers Prefer CVT Technology

The automotive industry has increasingly adopted CVT systems across diverse vehicle segments, from economy cars to luxury sedans. The primary driver remains fuel economy regulation compliance—government standards worldwide require progressively lower average fleet emissions, achievable partly through transmission efficiency improvements. CVTs represent one of the most straightforward methods to reduce fleet fuel consumption without requiring fundamental powertrain redesigns.

Beyond regulatory compliance, manufacturers recognize the consumer appeal of refined, smooth driving experiences. CVT vehicles produce fewer transmission-related complaints than traditional automatics, with owners appreciating the seamless acceleration and reduced mechanical feedback. Extended maintenance intervals and simplified service procedures also reduce ownership costs.

Future Development and Environmental Impact

As vehicle electrification accelerates, CVT technology remains relevant for conventional and hybrid powertrains. The environmental benefits of improved fuel economy during the internal combustion era extend CVT utility even as electric vehicles increase market share. Research continues into advanced CVT designs offering greater durability and efficiency improvements.

The transition toward electric-only vehicles may eventually reduce CVT prevalence in new car production. However, the installed base of CVT-equipped vehicles will remain substantial for decades, ensuring continued service demand and parts availability.

Frequently Asked Questions

How long do CVT transmissions typically last?

Modern CVT systems, when properly maintained with appropriate fluid changes, routinely reach 150,000 miles or longer. Some vehicles exceed 200,000 miles without major transmission service. Lifespan depends significantly on maintenance compliance and driving habits, with aggressive driving reducing component longevity.

Are CVT transmissions more expensive to repair than traditional automatics?

CVT repairs typically cost similarly to automatic transmission service, though specialty knowledge requirements may limit available service providers in some areas. Major transmission rebuilds on either system represent significant expenses, though CVT failures occur less frequently statistically.

Can you tow with a CVT transmission?

Most vehicles equipped with CVTs carry towing capacities of 1,500-3,500 pounds, though CVTs generate more heat during sustained towing than conventional automatics. Heavy-duty towing applications generally employ traditional automatics rather than CVTs, though modern transmission coolers effectively manage thermal loads.

Why do CVT cars sound different during acceleration?

The engine maintains high rpm throughout acceleration while the transmission varies output ratios, creating the characteristic high-revving sound unfamiliar to traditional automatic drivers. This occurs because the transmission separates engine speed from vehicle speed, optimizing each independently.

Do all hybrid vehicles use CVTs?

Most hybrid vehicles employ CVT or eCVT technology, though some hybrid systems use conventional automatics paired with electric motors. Toyota’s Hybrid Synergy Drive famously uses eCVT technology, while some manufacturers employ traditional automatics in hybrid applications.
