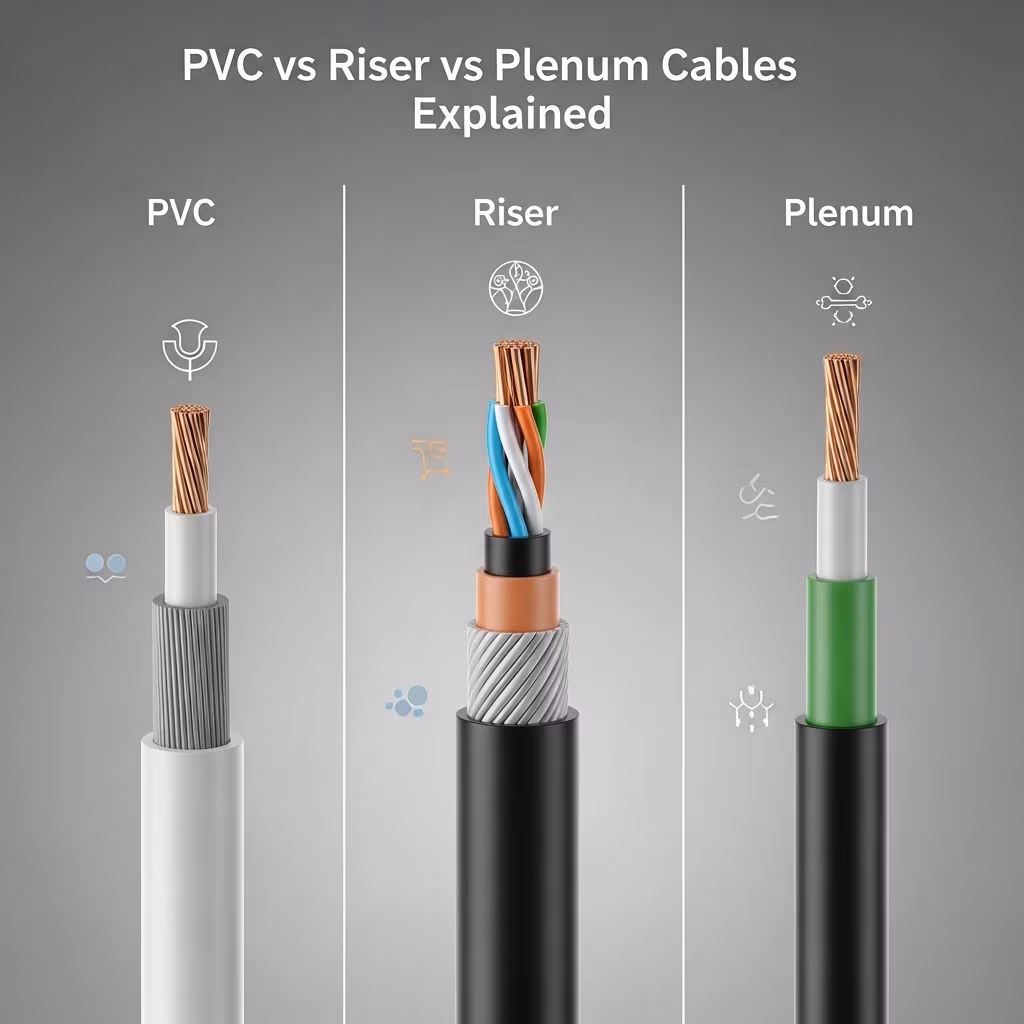

Undefined: Plenum, Riser, And PVC Cable Jacket Guide For Safety

Selecting the correct type of network cable is essential for both performance and safety in modern buildings. While all Ethernet cables transmit data effectively, their outer jackets determine where they can be safely installed. The three primary categories—PVC, riser, and plenum—each serve distinct purposes based on fire resistance, smoke production, and building architecture. This guide breaks down their compositions, applications, regulatory requirements, and practical considerations to help IT professionals, electricians, and facility managers make informed decisions.

Understanding Cable Jacket Materials and Their Role in Safety

The jacket surrounding the copper conductors in Ethernet cables acts as the first line of defense against fire hazards. Different materials respond uniquely to heat, flames, and airflow, which directly impacts their suitability for various building spaces.

• Standard PVC Jackets: Made from polyvinyl chloride, these are the most basic and affordable. They provide good protection against moisture and physical damage but melt and burn rapidly when exposed to fire, releasing thick, toxic smoke.
• Riser-Approved Materials: Typically use enhanced PVC formulations or low-smoke compounds that resist flame propagation vertically between floors without spreading to adjacent levels.
• Plenum-Grade Jackets: Employ fluorinated ethylene propylene (FEP) or other low-smoke zero-halogen (LSZH) materials that maintain integrity in high-airflow areas, minimizing toxic emissions even under intense heat.

These material differences stem from rigorous testing standards that simulate real-world fire scenarios, ensuring cables don’t exacerbate emergencies.

Defining Key Building Spaces: Plenum, Riser, and General Areas

Building design incorporates specific zones with unique fire risks, dictating cable requirements.

Plenum spaces pose the greatest risk because circulating air can rapidly distribute smoke and flames throughout a building. Risers focus on containing vertical fire spread, while general areas have lower restrictions.

Fire Performance and Testing Standards for Each Cable Type

Cable ratings follow the National Electrical Code (NEC) hierarchy: CMP (Communications Multipurpose Plenum) > CMR (Riser) > CM (General Purpose, often PVC). Testing bodies like UL evaluate these under controlled conditions.

• CMP/Plenum Cables pass the strictest UL 910 Steiner Tunnel test, producing minimal smoke and not propagating flames more than 5 feet.
• CMR/Riser Cables meet UL 1666 standards, containing flames within one floor during vertical burn tests.
• CM/PVC Cables comply with UL 1581 for horizontal flames but fail in vertical or plenum scenarios.

Plenum cables excel in oxygen-rich environments, charring rather than dripping molten material that could ignite nearby surfaces.

Regulatory Framework: NEC, NFPA, and Local Codes

The National Fire Protection Association (NFPA) sets the standards enforced by the NEC Article 800. Key documents include:

• NFPA 70 (NEC): Governs all communications cabling installations.
• NFPA 90A: Regulates HVAC plenums, prohibiting combustible cables unless plenum-rated.

Per NEC 800.179, “Cables installed in ducts, plenums, or other spaces used for environmental air shall be plenum-rated (CMP) unless in metal conduit.”NFPA 70

Local authorities having jurisdiction (AHJs) may impose stricter rules, especially in high-rise or commercial structures. Always consult building inspectors early in planning.

Cost Comparison and Installation Practicalities

Budget plays a significant role, but safety violations carry steeper penalties.

Plenum cables cost 2–3x more due to premium materials but offer versatility—CMP can substitute anywhere CMR or CM is allowed. Hybrid strategies, like using CMR for risers and CMP only in plenums, optimize expenses.

When to Choose Each Cable Type: Practical Scenarios

Use PVC/CM for:

• Residential installations
• Single-floor offices without air returns
• Short horizontal runs in walls

Opt for Riser/CMR when:

• Running vertical shafts between floors
• Budget-constrained multi-story buildings
• Non-plenum horizontal distribution

Select Plenum/CMP in:

• Commercial spaces with drop ceilings
• Data centers with raised floors
• Any air-handling pathway

A common mistake is using CMR in plenum spaces, which voids insurance and risks fines up to $50,000 per violation in some jurisdictions.

Substitution Rules and Conduit Exceptions

Understanding the rating hierarchy simplifies design:

• CMP works everywhere (plenums, risers, general)
• CMR for risers and general only
• CM/PVC strictly general purpose

Metal conduit provides alternatives: fully enclosed CMR or CM may substitute in plenums per NEC exceptions, though this increases labor costs. Never use PVC without conduit in risers.

Future-Proofing: Cat6a, Fiber, and Emerging Standards

Higher-speed cables like Cat6a and fiber optics follow the same jacket ratings. Plenum fiber uses OFNP jackets with similar fire properties. As buildings adopt smart HVAC and IoT, plenum-rated infrastructure becomes even more critical.

Frequently Asked Questions

Can I use riser cable in plenum spaces?

No. Riser (CMR) cables lack the low-smoke properties required for air-handling areas and violate NEC codes.

Is plenum cable worth the extra cost?

Yes, for compliance and safety in commercial buildings. It can be used universally, avoiding mix-ups.

What markings should I look for on cable jackets?

Seek “CMP,” “CMR,” or “CM” printed on the jacket, plus UL listing. Avoid generic “CAT6” without ratings.

Do residential buildings require rated cables?

Typically PVC suffices unless plenums exist. Check local codes for multi-family dwellings.
