Undefined Front Suspension Arm Replacement Guide

The front suspension system plays a critical role in vehicle handling, ride comfort, and overall safety. Over time, suspension components experience wear and degradation due to road conditions, driving habits, and environmental factors. When front suspension arms or ball joints deteriorate, replacement becomes necessary to maintain proper vehicle dynamics and prevent further damage to connected systems. This guide walks through the complete process of replacing these essential components, offering practical insights for those tackling this maintenance task.

Understanding Suspension Arm Architecture

Front suspension arms connect the wheel hub assembly to the vehicle chassis, serving as the primary link in the suspension geometry. The lower suspension arm, in particular, bears significant loads during driving and must maintain precise alignment with other suspension components. Ball joints embedded within these arms allow for rotational movement while transmitting forces between the arm and the steering knuckle.

When these components wear, symptoms become noticeable through steering response changes, vibration during braking, or clunking sounds from the front end. In many cases, manufacturers design suspension arms as complete assemblies with ball joints and bushings already installed, making full-arm replacement more cost-effective and time-efficient than attempting to service individual ball joints separately.

Preparation and Safety Considerations

Successful suspension work begins long before tools touch the vehicle. Proper preparation significantly reduces frustration and ensures the work proceeds smoothly. The first step involves placing the vehicle in access mode, which typically means positioning the suspension to provide adequate working clearance underneath the vehicle.

Using a two-post lift provides secure, reliable support for the duration of the repair. Before beginning disassembly, apply penetrating oil to all fastener threads and allow adequate soaking time. This simple step dramatically reduces the likelihood of seized bolts requiring aggressive removal techniques that might damage surrounding components.

Wire brushing bolt threads and surrounding areas removes corrosion and allows better visibility during the repair process. This preparation work may seem tedious but prevents numerous complications that arise when working with corroded fasteners in confined spaces.

Axle Shaft Clearance Assessment

One critical consideration when removing suspension arms involves axle shaft positioning within the hub assembly. Different vehicle models and configurations provide varying amounts of space between the CV joint on the axle shaft and the ball joint mounting point on the suspension arm.

Some models, particularly earlier Discovery variants and certain manual transmission configurations, feature only approximately 25mm of clearance between these components. In these cases, insufficient space exists for the ball joint to clear the steering knuckle when removing the suspension arm without first releasing the axle shaft. Other vehicles, such as the Range Rover Sport, typically provide 40mm or more of clearance, allowing arm removal without disturbing the axle shaft.

Determining which category your vehicle falls into requires careful measurement before beginning work. If clearance proves inadequate, the axle shaft stake nut must be removed, allowing gentle inward movement of the axle through the hub. This modest repositioning provides the additional space needed for ball joint extraction without risk of CV joint separation.

Cam Bolt System Understanding

Land Rover suspension arms utilize a distinctive cam bolt attachment system that enables suspension geometry adjustment without removing components. These specialized bolts incorporate eccentric cam washers both at the bolt head and beneath the mounting nut. The cam washers contact raised sections on the chassis plate, allowing suspension angle adjustment through bolt rotation.

Understanding this system matters during removal and installation because the cam washer orientation affects reassembly complexity. When reinstalling suspension arms, cam bolts must be treated with anti-seize grease before insertion. This treatment protects threads from corrosion and facilitates easier removal during future service intervals.

Step-by-Step Removal Procedure

Once preparation is complete and clearance assessment confirms your approach, the actual removal begins. Start by disconnecting the damper or spring strut bolt that secures the suspension arm to the strut assembly. Next, remove the inner bolts holding the suspension arm to the chassis at its attachment points.

If axle shaft clearance proves insufficient for your model, proceed to remove and set aside the stake nut on the axle shaft. Apply steady inward pressure to push the axle slightly into the hub, creating additional working space. Avoid excessive force that might separate the CV joint completely.

With these fasteners removed and adequate clearance established, the final step involves separating the ball joint from the steering knuckle. A pry bar inserted on each side of the joint, combined with vibration from a pneumatic hammer, typically proves effective for stubborn joints. Persistent joints may require specialized ball joint separator tools designed specifically for this task.

Once the ball joint breaks free from the knuckle, the suspension arm can swing clear of the hub assembly, allowing full removal from the vehicle.

Installation of Replacement Components

When the new suspension arm assembly arrives, inspect it thoroughly before installation. Verify that all bushings, ball joints, and attachment points match the original configuration. The replacement arm should include a complete fitting kit with new bolts, nuts, and cam washers.

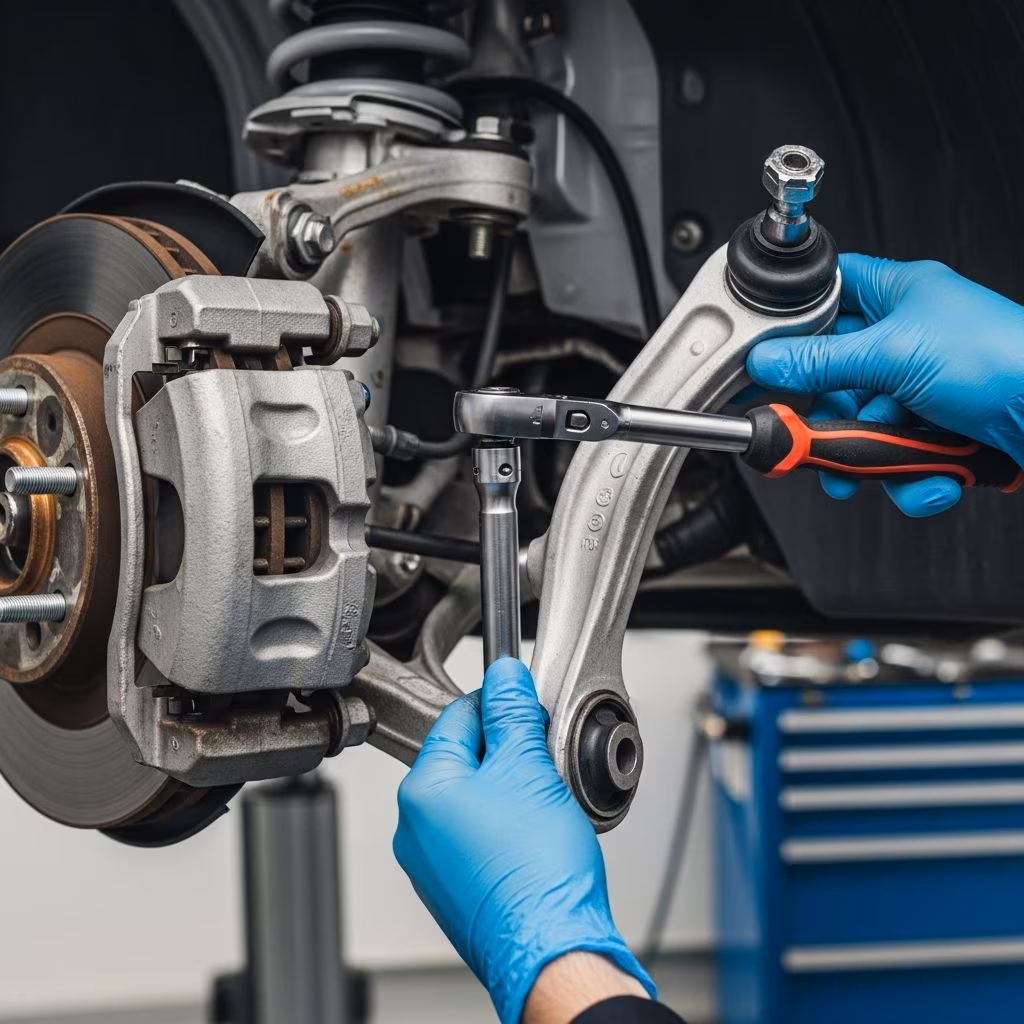

Position the new arm carefully, first engaging the ball joint into the steering knuckle. Insert the securing nut and hand-tighten initially. Next, align the chassis attachment points and insert the cam bolts through the arm mounting holes.

Before fully tightening any bolts, ensure all fasteners are properly seated and aligned. Apply anti-seize grease to all bolt threads before final tightening, following manufacturer specifications for bolt torque values. Proper torque application ensures adequate clamping force without over-tightening, which might strip threads or distort components.

If the axle shaft was released during removal, reinstall the stake nut and tighten to specification. Verify that the axle seats properly within the hub and moves freely without excessive play.

Specialized Tools and Equipment

While many suspension repairs can proceed with basic workshop tools, certain specialized equipment significantly improves success and safety. The following tools prove particularly valuable:

• Two-post vehicle lift for secure support and working clearance
• Transmission jack for supporting suspension components during work
• Circlip pliers for removing and reinstalling retaining clips on CV joints or shaft assemblies
• Ball joint separator tool for safely disconnecting stubborn joints from steering knuckles
• Pneumatic hammer for vibration-assisted joint separation
• Wire brush for corrosion removal from fasteners and mounting areas
• Full set of metric spanners ranging from 10mm to 32mm
• Torque wrench for accurate fastener tightening

Time and Cost Assessment

Front suspension arm replacement typically requires approximately two hours of labor for experienced technicians working with standard tools and facilities. This timeline accounts for all removal, replacement, and reinstallation steps, assuming no significant complications with seized fasteners or other obstructions.

Individual component costs vary by vehicle model and parts supplier, but replacement suspension arms complete with ball joints and bushings typically range from £120 to £150 per side. Fitting kits containing bolts, nuts, cam washers, and axle shaft hardware usually cost £25 to £35 per side. Total material investment per side typically falls between £150 and £185, making this a relatively economical repair compared to addressing secondary damage that results from operating with failed suspension components.

Common Complications and Solutions

Seized fasteners represent the most frequent complication encountered during suspension removal. Applying penetrating oil well in advance and allowing extended soaking time resolves most stuck bolts. If bolts remain stubbornly fixed despite these efforts, pneumatic cutting tools may become necessary to separate the arm from its mounting points. While this approach requires careful technique to avoid damaging surrounding components, it remains preferable to stripping threads or fracturing mounting bosses through excessive force.

Ball joints that refuse to separate from steering knuckles sometimes require ball joint separator tools specifically designed for controlled force application. These hydraulic or mechanical tools distribute separation forces more effectively than manual pry bars alone, reducing risk of component damage.

In cases where cv joints show signs of separation or damage during arm removal, replacement cv joints or complete axle shafts may become necessary. This possibility should be anticipated when budgeting for the repair, particularly if the vehicle shows signs of suspension neglect or advanced wear.

Quality Assurance After Replacement

Once installation is complete, several verification steps ensure the repair was successful and components are properly secured. Check all fasteners once more with a torque wrench to confirm they meet manufacturer specifications. Inspect the ball joint for any play or movement by grasping the suspension arm and attempting slight perpendicular movement relative to the steering knuckle.

Before returning the vehicle to service, test the steering system through its full range of motion while the vehicle remains lifted. Listen for any unusual sounds and verify that steering effort feels normal and consistent. Lower the vehicle carefully and perform a test drive on a quiet road, listening for clunks or squeaks from the front suspension during turns and over road imperfections.

Properly executed suspension arm replacement restores ride quality, handling response, and steering precision while eliminating the safety concerns associated with worn suspension components.

Frequently Asked Questions

Can I replace just the ball joint without replacing the entire suspension arm?

Ball joints can be serviced individually through pressing, but complete arm replacement typically proves more cost-effective and time-efficient. Many aftermarket suspension arms cost only slightly more than individual ball joint replacement services, justifying full-arm replacement.

What warning signs indicate suspension arm failure?

Clunking noises from the front end, uneven tire wear, steering wheel vibration, and changes in vehicle handling often signal suspension arm problems. Professional inspection can confirm the diagnosis.

How often should suspension arms be replaced?

Suspension arm lifespan depends on driving conditions, road surfaces, and maintenance practices. Most components last 80,000 to 150,000 miles before requiring replacement.

Is this repair suitable for home mechanics?

With proper equipment, adequate workspace, and mechanical aptitude, home mechanics can successfully complete this repair. A vehicle lift and appropriate tools are essential for safe, efficient work.
