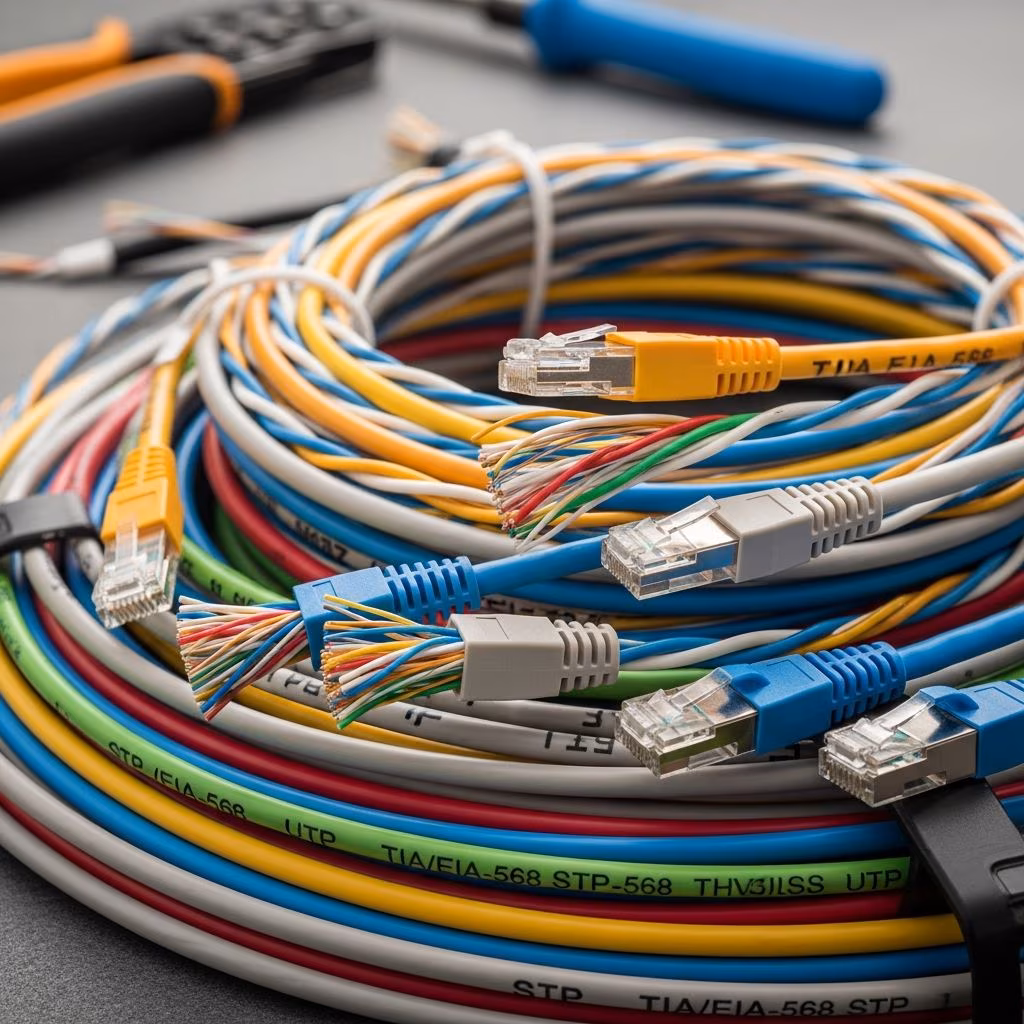

Twisted pair cables form the backbone of most local area networks, offering a cost-effective solution for data transmission in homes, offices, and data centers. These cables consist of pairs of copper wires twisted together to minimize electromagnetic interference, ensuring stable connectivity. Understanding how to properly configure them is crucial for network administrators and IT professionals aiming to achieve high-speed, reliable performance. This guide delves into the nuances of twisted pair cabling, from selecting the right category to mastering installation techniques and avoiding common pitfalls.
Understanding Twisted Pair Cable Fundamentals
At their core, twisted pair cables work by canceling out noise through the twisting of wire pairs. This design reduces crosstalk and external interference, making them ideal for Ethernet networks. Available in unshielded (UTP) and shielded (STP) variants, they support speeds from 10 Mbps up to 40 Gbps depending on the category.
UTP cables, the most common type, lack additional shielding and are easier to install, suiting most indoor environments. STP cables, with foil or braided shielding around pairs or the entire bundle, provide superior protection in high-interference areas like industrial settings or near heavy machinery.
- Key Benefits: Affordable, flexible, and backward compatible with older standards.
- Common Applications: LANs, VoIP phones, security cameras, and Power over Ethernet (PoE).
Categories of Twisted Pair Cables Explained
Twisted pair cables are categorized by performance levels defined by the Telecommunications Industry Association (TIA) and Electronic Industries Alliance (EIA). Each category specifies bandwidth, maximum data rate, and supported distances.
| Category | Max Speed | Bandwidth | Max Distance | Typical Use |
|---|---|---|---|---|
| Cat5e | 1 Gbps | 100 MHz | 100m | Fast Ethernet, Gigabit Ethernet |
| Cat6 | 10 Gbps (55m) | 250 MHz | 100m | Enterprise LANs |
| Cat6a | 10 Gbps | 500 MHz | 100m | High-speed data centers |
| Cat7 | 10 Gbps (100m), 40 Gbps (50m) | 600 MHz | 100m | Server rooms, future-proofing |
| Cat8 | 40 Gbps | 2000 MHz | 30m | 25G/40G Ethernet in data centers |
Choosing the correct category ensures your network meets current and future demands. For instance, Cat5e suffices for basic home networks, while Cat6a or higher is essential for 10Gbps enterprise setups.
Adhering to Cabling Standards and Specifications
Compliance with standards like TIA/EIA-568 guarantees interoperability and performance. These standards outline pin assignments for T568A and T568B wiring schemes, with T568B being more prevalent in North America.
Structured cabling systems organize infrastructure into subsystems: horizontal cabling (workstation to telecom room), backbone cabling (building-to-building), and patch panels. This modular approach simplifies maintenance and upgrades.
- T568A: Green/Orange pairs swapped; common in government installations.
- T568B: Standard for commercial use; aligns with older AT&T schemes.
Always verify patch panel and jack compatibility to prevent signal degradation.
Critical Installation Guidelines for Optimal Performance
Proper installation is paramount to avoid attenuation, crosstalk, and return loss. Key rules include:
- Maximum Length: 100 meters channel length (90m horizontal + 10m patch cords).
- Bend Radius: 4x cable diameter for fixed installs, 8x when pulling.
- Un-twisting: Limit to 0.5 inches at terminations to preserve noise cancellation.
- Separation: Maintain 12 inches from power lines; use dividers in shared trays.
Pull cables with approved lubricants, avoid kinks, and use tone generators for tracing. In plenum spaces, opt for plenum-rated cables to meet fire safety codes.
Power over Ethernet: Enhancing Twisted Pair Capabilities
PoE delivers power and data over the same cable, powering devices like access points and IP cameras. IEEE standards define power levels:
- 802.3af (PoE): 15.4W
- 802.3at (PoE+): 30W
- 802.3bt (PoE++): Up to 90W
Higher categories like Cat6 support greater PoE budgets due to lower resistance. Ensure switches and injectors match device requirements to prevent overheating.
Troubleshooting Common Twisted Pair Issues
Network problems often trace back to cabling faults. Use a certification tester to measure:
- Length: Exceeding 100m causes attenuation.
- Crosstalk (NEXT/FEXT): Poor pair separation.
- Return Loss: Impedance mismatches from bad terminations.
- Wiremap: Detects opens, shorts, or miswires.
Visual checks for damage, swapping patch cables, and segment isolation help isolate faults. For intermittent issues, monitor during peak usage.
Selecting Cables for Backbone and Horizontal Runs
Horizontal cabling uses Cat6 or higher for 100m runs to outlets. Backbone cabling, aggregating traffic between floors or buildings, often transitions to fiber for distances beyond 100m or high bandwidth needs. Fiber’s immunity to EMI makes it ideal for campus backbones connecting to ISPs.
A hybrid approach—twisted pair horizontally, fiber vertically—balances cost and performance. Ensure sufficient bandwidth headroom for growth.
Termination Techniques: Punch-Down and RJ45 Crimping
Accurate termination maintains signal integrity. For punch-down blocks:
- Strip jacket 2 inches, untwist minimally, arrange in color order.
- Punch with 110 or Krone tool, trim excess.
For RJ45 connectors:
- Strip 1 inch, insert straight, crimp firmly.
- Test immediately with a cable tester.
Practice on scrap cable; poor crimps cause up to 70% of cabling errors.
Future-Proofing Networks with Advanced Cabling
As networks evolve to 25G/40G Ethernet, Cat8 and emerging categories prepare infrastructure. Consider alien crosstalk in bundled cables and plan for PoE++ in IoT-heavy environments.
Modular jacks allow category upgrades without rewiring. Label everything meticulously for scalability.
FAQs on Twisted Pair Cable Configuration
Q: Can I mix T568A and T568B in the same network?
A: No, it creates crossover effects. Stick to one scheme end-to-end.
Q: What’s the difference between Cat6 and Cat6a?
A: Cat6a doubles bandwidth to 500 MHz, fully supporting 10Gbps over 100m with better alien crosstalk rejection.
Q: How do I test cable performance?
A: Use Level IIIe or higher certifiers compliant with TIA-1152 for comprehensive diagnostics.
Q: Is STP always better than UTP?
A: Not necessarily; STP is bulkier, costlier, and requires grounding. Use UTP unless EMI is severe.
Q: Can twisted pair support Wi-Fi 6?
A: Yes, Cat6 handles 10Gbps backhaul for access points.
Conclusion
Mastering twisted pair cable configuration empowers IT pros to deploy resilient networks. By prioritizing standards compliance, meticulous installation, and proactive testing, you minimize downtime and maximize ROI. Whether prepping for CompTIA Network+ or upgrading enterprise infrastructure, these principles ensure enduring performance.
