Tyre tread depth determines how effectively your vehicle’s tyres grip the road, especially in adverse conditions. The legal minimum in the UK stands at 1.6mm across the central three-quarters of the tread, but experts advise replacing tyres sooner for optimal safety.
Understanding Tyre Tread and Its Critical Role
Tyre treads feature patterned grooves and blocks engineered to channel water, snow, or debris away from the contact patch. This design maintains friction between the tyre and road surface. New tyres typically start with depths of 8-10mm, gradually wearing down through friction and heat.
As tread diminishes, key functions degrade:
- Wet weather traction: Grooves displace water to prevent hydroplaning, where tyres lose contact with the road.
- Braking distance: Deeper patterns bite into surfaces for shorter stops.
- Fuel efficiency: Optimal depth balances rolling resistance without excess deformation.
Manufacturers balance initial depth to maximize lifespan while minimizing energy loss from rubber flexing. Research shows that below 4/32 inch (about 3mm), friction drops significantly on wet roads, even before full aquaplaning.
Legal Requirements for Tyre Tread Depth
In the UK, the Road Traffic Act mandates at least 1.6mm of tread over the central 75% of the tyre’s breadth for cars, light vans, and trailers. This applies to all four tyres—no exceptions for fronts or rears. Breaching this can result in fines up to £2,500 per tyre, three penalty points, or vehicle seizure.
Compare this globally:
| Region | Passenger Car Minimum | Notes |
|---|---|---|
| UK/EU | 1.6mm (2/32 inch) | Central 3/4 width |
| USA (most states) | 2/32 inch (~1.6mm) | Treadwear bars indicate limit |
| US Commercial Trucks (Steer) | 4/32 inch | Stricter for safety |
While 1.6mm meets the law, safety bodies like the RAC recommend 3mm minimum, as grip plummets below this threshold. PubMed research confirms that 2/32 inch offers inadequate friction at highway speeds on wet surfaces, with up to 50% loss.
Step-by-Step Guide to Measuring Tread Depth
Regular checks prevent violations and accidents. Inspect monthly and after long trips. Focus on the thinnest areas, often shoulders or centre ribs.
- Visual scan: Look for treadwear indicators—raised bars across grooves. When level with surrounding rubber, depth hits 1.6mm.
- Coin tests (quick checks):
- 20p coin: Edge aligns with 3mm; if outer yellow shows fully, replace soon.
- Penny (US equivalent): Lincoln’s head visible means under 2/32 inch.

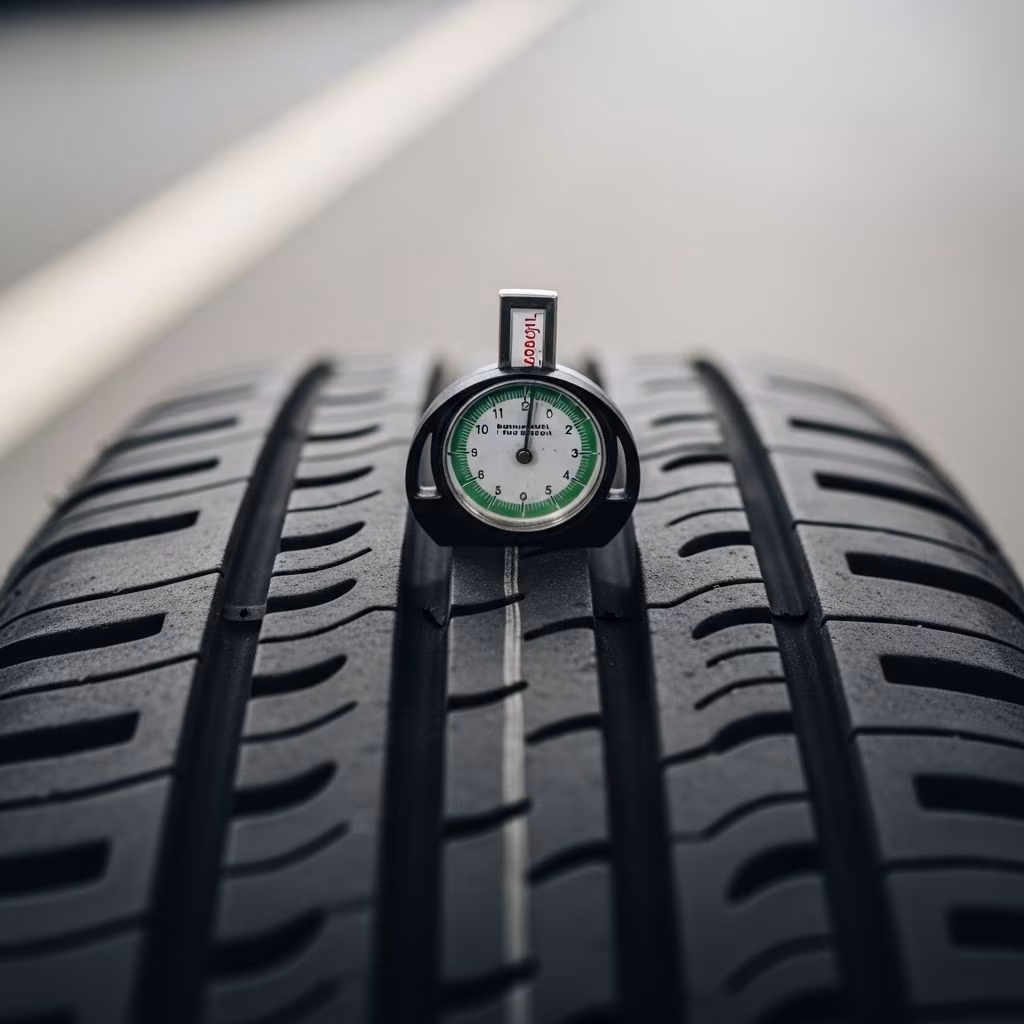

- Gauge method (precise): Use a £2-10 depth gauge. Insert into multiple grooves (5-7 points per tyre), record lowest reading.
- Under/over-inflation: Causes edge or centre wear.
- Misalignment/camber: Uneven contact patches.
- Aggressive driving: Hard acceleration/braking.
- Road conditions: Potholes, gravel.
- Vehicle load: Overloading stresses treads.
- Monitor pressure weekly (placard values).
- Balance after fitting.
- Store spares inflated, cool/dry.
- Choose tread-suited tyres (e.g., all-season for mixed climates).
- Tyre tread depth and legal limit — Michelin Middle East. 2023. https://middle-east.michelin.com/en/auto/advice/tyre-basics/tyre-tread-depth
- Tire Tread Depth Guide: DOT Tire Regulations — Motive. 2024. https://gomotive.com/blog/tire-tread-depth-dot-regulations/
- How to check your car’s tyre tread – expert advice from the RAC — YouTube (RAC). 2022.
- What is Tire Tread Depth? Everything You Need to Know — Utires. 2023. https://www.utires.com/articles/what-is-tire-tread-depth-everything-you-need-to-know/
- Legal minimum tread depth for passenger car tires in the U.S.A. — PubMed (PubMed ID: 16854703). 2006-01-01. https://pubmed.ncbi.nlm.nih.gov/16854703/
- Check Tire Tread Depth — Goodyear Auto Service. 2024. https://www.goodyearautoservice.com/en_US/learn/tread-depth.html
Tyre pros use digital gauges for accuracy. Check all tyres, including spares, as uneven wear signals alignment issues.
Performance Impacts of Worn Treads
Tread depth directly influences handling. Here’s a breakdown by depth:
| Depth | Grip Level | Risks |
|---|---|---|
| 8-10mm (New) | Excellent | Optimal all conditions |
| 6mm+ | Very Good | Strong wet/snow traction |
| 4-5mm | Good | Monitor; wet braking extends |
| 3mm | Fair | Recommended replacement |
| 1.6-2mm | Poor | Legal min; 50% friction loss wet |
| <1.6mm | Dangerous | Hydroplaning, fines, seizures |
Shallow grooves reduce water evacuation, raising hydroplaning speed threshold but increasing likelihood. Braking distances can double on wet roads at minimal depths. Winter tyres lose snow grip by 6/32 inch.
Factors Accelerating Tyre Wear
Beyond mileage, these hasten tread loss:
Rotate tyres every 8,000-10,000km to even wear. Align wheels annually.
When to Replace Tyres Proactively
Don’t wait for 1.6mm. Plan swaps at 3mm for safety margins. Signs include vibrations, pulling, or noise. Premium tyres like Michelin retain performance longer via durable compounds.
Budget for sets: Matching tread across axles prevents imbalance. Mixing types (summer/winter) compromises handling.
Advanced Tyre Maintenance Strategies
Enhance longevity:
Digital apps track depth via photos, alerting to changes.
FAQs on Tyre Tread Depth
Q: Is 2mm tread legal?
A: No, UK requires 1.6mm minimum across central 3/4, but 2mm offers minimal safety.
Q: How often check treads?
A: Monthly, plus pre-winter/summer. Use gauges for precision.
Q: Do rear tyres need same depth?
A: Yes, all four must comply; rears prevent fishtailing.
Q: What’s ideal depth for rain?
A: 4mm+ for reliable water dispersion.
Q: Can I drive on bald tyres?
A: Avoid—risks aquaplaning, fines. Replace immediately.
Conclusion
Maintaining proper tread depth safeguards lives, complies with law, and optimizes performance. Invest time in checks to avoid hazards.
