Thinkware U1000 Plus Review: 4K Front And Advanced Parking

The Thinkware U1000 Plus stands out in the crowded dash cam market as a dual-channel system promising **4K front recording** paired with robust parking surveillance features. Designed for drivers seeking reliable evidence capture without a bulky screen, it introduces enhancements like Bluetooth connectivity and improved cloud services while navigating some hardware trade-offs compared to its predecessor.

Design and Build Quality

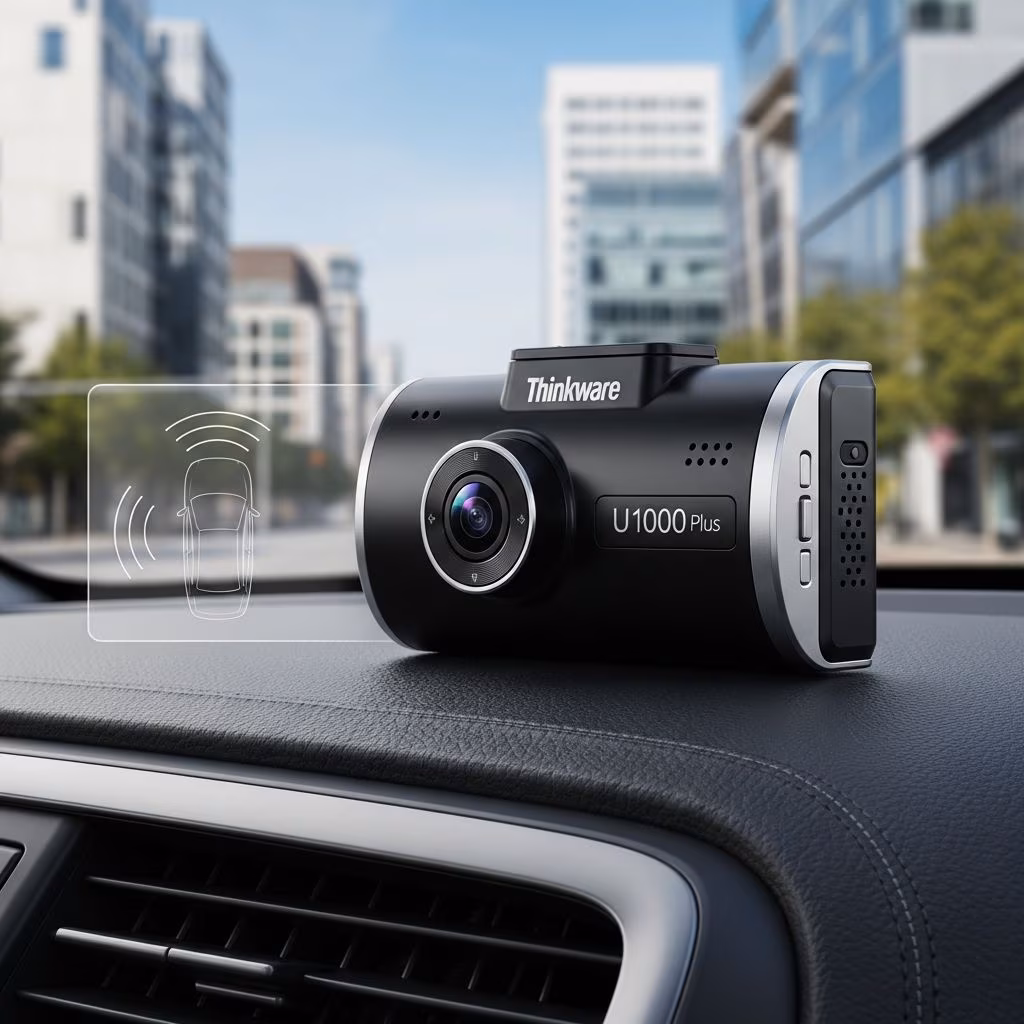

Compact and discreet, the U1000 Plus front unit measures roughly the size of a matchbox, mounting seamlessly behind the rearview mirror via adhesive. Its matte black finish with subtle trim ensures it blends into most vehicle interiors, avoiding distractions. The rear camera, connected by a slim cable, attaches similarly for comprehensive coverage.

Installation requires basic tools: peel-and-stick mounts for cameras, and optional hardwiring or OBD-II cable for parking mode. No onboard display means reliance on a smartphone app for setup and playback, promoting a cleaner windshield view. Durability includes heat-resistant materials suitable for extreme temperatures, with IP-rated components for basic weather resistance in exposed installs.

Core Recording Capabilities

At its heart, the U1000 Plus employs a Sony Starvis IMX515 sensor for the front camera, capturing **4K UHD (3840×2160) at 30fps**. This resolution excels in daytime conditions, rendering license plates and road signs with sharp detail up to 50 feet ahead. A 135.6-degree wide-angle lens minimizes blind spots without excessive fisheye distortion, aided by dewarping technology for natural perspectives.

The system supports 2K (2560×1440) at 60fps as an alternative, prioritizing smoothness over resolution for dynamic drives. HDR processing balances high-contrast scenes, such as oncoming headlights or shadowed areas, improving readability during dawn or dusk transitions.

Rear Camera Performance

The rear unit drops to **Full HD 1080p at 30fps**, using a Silicon Optronics sensor rather than premium Sony Starvis units found in prior models. Daytime footage remains adequate for close-range incidents, but low-light clarity suffers with noisier images and muted colors. This resolution suits most parking lot scenarios, covering a 140-degree view to capture tail-end approaches.

Low-Light and Night Vision Technology

Thinkware’s Super Night Vision 3.0 leverages the Starvis sensor’s back-illuminated design to reduce noise in dim conditions. Front camera night clips show improved plate capture under streetlights, though not class-leading compared to competitors with larger sensors. HDR activates automatically based on time-of-day settings (non-adjustable currently), aiding headlight glare scenarios but occasionally softening details.

Rear night performance lags, with duller tones and less definition in shadows, making distant object identification challenging. For urban drivers with ample ambient light, it’s functional; rural or garage parking may reveal limitations.

Advanced Parking Surveillance Options

Parking mode shines with multiple energy-efficient configurations, accessible via hardwire kit or OBD-II adapter for constant power. Key modes include:

• Buffered Motion/Impact Detection: Pre-records 10-20 seconds before triggers, ensuring full event capture.
• Time-Lapse Recording: 2fps silent video conserves storage during idle periods.
• Energy Saving Mode: Camera sleeps post-lock, waking only for impacts to extend battery life up to weeks.
• Radar Module Compatibility: Optional add-on detects approaching vehicles, enabling front buffered clips even in low-power states.
• Smart Thermal Management: Auto-switches to low-power if overheating, preventing shutdowns.

Cloud integration via Thinkware’s app sends real-time notifications for impacts or geo-fence breaches, with live view streaming over WiFi/Bluetooth. GPS logging overlays speed, location, and safety camera alerts on footage.

Smart Features and Driver Aids

Integrated ADAS (Advanced Driver Assistance Systems) provide lane departure warnings, forward collision alerts, and traffic sign recognition, customizable via app. While not as refined as dedicated systems, they add safety value without overwhelming alerts.

Bluetooth pairing simplifies firmware updates and quick file downloads, faster than WiFi alone. The Thinkware Dash Cam app (iOS/Android) offers intuitive playback, event categorization, and cloud backups, though occasional connectivity hiccups occur in fringe areas.

Installation and Power Management

DIY-friendly with fuse-tap hardwiring diagrams in the manual. OBD-II option (sold separately) plugs into the diagnostic port for plug-and-play parking power, ideal for leased vehicles. Super capacitors replace lithium batteries for safer, longer-lasting operation in heat.

Storage and File Management

Supports microSD cards up to 256GB (Class 10+ recommended), with loop recording overwriting old files. 4K demands ample space—expect 1-2GB per hour front-only. Auto event-lock protects clips from deletion, with cloud upload for remote access. No built-in CPL filter due to curved front lens, but software glare reduction suffices.

Pricing and Value Proposition

Retailing around $400/£339 for the dual-channel kit, it undercuts the original U1000 while adding features like HDR and Bluetooth. Value hinges on priorities: excellent for parking-focused users; less ideal if rear night quality is paramount. Accessories (radar, OBD cable) add $50-100.

Pros and Cons Overview

User Experiences and Reliability

Owners praise seamless app integration and reliable event detection, with few heat-related failures thanks to smart modes. Some note rear low-light shortcomings in tests, but overall satisfaction runs high for the price. Firmware updates address bugs promptly via Bluetooth.

Alternatives Comparison

Versus Viofo A229 Pro: Better dual HDR but bulkier. BlackVue DR970X: Superior night vision at higher cost. U1000 Plus wins on parking smarts and affordability.
