The Legendary X-Shaped Xbox Prototype Lives Again

Before the first Xbox reached living rooms in 2001, Microsoft briefly toyed with a concept that seemed almost too outrageous to be real: a huge, polished metal console literally shaped like a giant letter “X,” glowing green at the center. For decades it remained more myth than machine, a museum piece known only from photos, stories, and trade-show memories. Now, a quarter of a century later, that audacious prototype hasn’t just resurfaced in the public consciousness—it has been reborn as a fully functioning console through an ambitious fan project.

This article explores the origins of the X-shaped prototype, how a dedicated modder painstakingly rebuilt it as a working system, and what the entire endeavor tells us about the evolution of console design and the passion of gaming preservationists.

From PC Giant to Console Challenger

At the turn of the millennium, Microsoft was best known for Windows and Office. The gaming world, however, was being defined by Sony’s PlayStation 2, Nintendo’s long legacy of consoles, and Sega’s Dreamcast. Microsoft’s decision to enter this crowded market with the original Xbox was a major strategic gamble.

The early concept that would become the original Xbox began as a powerful PC-like system adapted for the living room. Internally, it featured hardware that felt closer to a compact gaming PC than a traditional game console, with a hard drive and a modified PC architecture. But as the project took shape, Microsoft’s leadership understood that hardware specs alone wouldn’t be enough—they needed a bold visual identity that could announce the Xbox as something entirely new.

The answer, at least in the early design phase, was as literal as it was extravagant: a console that looked like a giant three-dimensional “X.” This prototype became a physical manifestation of Microsoft’s intent to break into the console space with something impossible to ignore.

The Iconic X-Shaped Prototype: More Sculpture Than Console

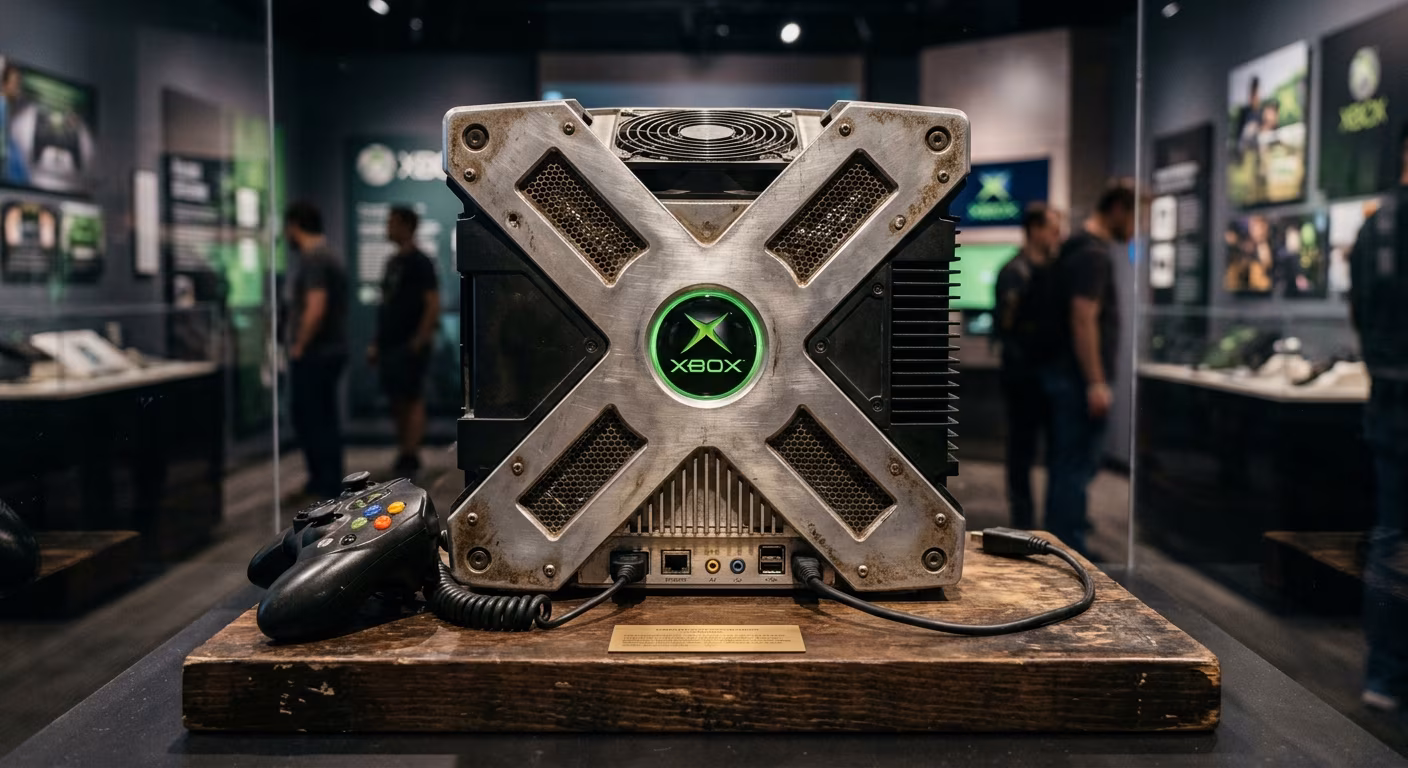

The original X-shaped prototype was less a practical consumer device and more a statement piece designed for events, press demos, and executive show-and-tell. Several distinctive characteristics made it unforgettable:

• Massive machined metal body – The prototype’s shell was milled from heavy aluminum, giving it an industrial, almost sci-fi presence.
• 40-pound weight class – Reports and interviews describe the unit weighing around 40 pounds, making it far heavier than any consumer console of its era.
• Glossy mirror finish – The highly polished exterior reflected light and surroundings, emphasizing its sculptural qualities.
• Glowing green “jewel” core – At the center of the X sat a translucent green insert, internally lit to highlight the Xbox logo and the futuristic aesthetic.

While the X-shaped machine looked spectacular, it was never meant to be a retail product. It was expensive, challenging to manufacture, and ergonomically awkward for everyday use. Contemporary commentary and later interviews suggest that each prototype cost tens of thousands of dollars to produce when adjusted for inflation, far beyond the budget of any mass-market console.^1,2

Why It Never Reached Store Shelves

The production version of the original Xbox ultimately adopted a far more conventional rectangular design. That change was driven by several practical concerns:

• Manufacturing cost – Machining a thick block of aluminum into a complex X shape is vastly more expensive than stamping or molding plastic shells.
• Thermal management – While metal conducts heat well, a dense, enclosed aluminum block can make airflow and cooling more complicated without careful internal design.
• Usability and footprint – A gigantic, 40-pound cube-plus-X is difficult to place in typical TV cabinets, which favored flatter, lighter devices.
• Safety and shipping – Sharp points, heavy weight, and fragile polished surfaces are a nightmare for logistics and consumer handling.

Nevertheless, the prototype achieved its purpose—it made people talk about Xbox. In photos and marketing, it visually signaled that this was a brand-new platform rather than just another PC.

How the Prototype Became a Gaming Urban Legend

After the retail Xbox launched with its more practical design, the original X-shaped prototype faded into the background, confined to company displays and rare public showings. Over the years, a handful of units appeared at events such as trade shows, promotional tours, and later in Microsoft’s flagship retail locations.

Images circulated online, often accompanied by rumors that the device was fully functional. In reality, sources close to the project and later coverage have suggested that the original units were either empty shells or non-playable concepts, serving purely visual roles.^1,3 This gap between appearance and capability helped fuel the mythos: the world had seen the console that “could have been,” but no one had ever played on it.

That mythic status made the X-shaped prototype a dream project for console modders and hardware preservation enthusiasts. Recreating it wouldn’t just be a cosmetic exercise; it would mean turning a legendary showpiece into a real gaming machine.

Enter the Modder: Reimagining the X as a Real Console

Years after the original prototype’s debut, modder and YouTuber Tito Perez (Macho Nacho Productions) set out to do what Microsoft never did: build a fully functional X-shaped Xbox that could actually run games. His project drew significant attention from the tech and gaming community, including coverage from specialist outlets.^1,3

Unlike Microsoft’s original, which was designed mainly for appearance, Perez’s goal was a console that not only looked correct but performed reliably, used real Xbox hardware, and integrated modern conveniences like HDMI output and solid-state storage.

Reverse-Engineering the Look

The first challenge was capturing the original prototype’s proportions and geometry with enough precision to satisfy fans and historians. According to coverage of the project, the process involved:

• Photogrammetry and measurement – Using detailed photos and measurements of the prototype on display in a Microsoft Store and other reference materials.
• CAD modeling – Collaborating with a 3D design expert to produce a high-fidelity computer model, including the unique bevels and slopes of the arms of the X.
• Iterative refinements – Adjusting the digital model to accommodate real hardware, ventilation, and internal mounting points while keeping the external silhouette faithful.

One of the most intricate parts of the design was the central cavity that houses the glowing jewel—now upgraded from static plastic to a fully animated display.

Engineering a Playable X: Hardware and Modifications

Inside the replica X-shaped shell lies heavily modified original Xbox hardware. Rather than building an entirely new system, Perez used authentic components, then adapted them to fit the unconventional chassis and contemporary display standards.

Core Hardware Configuration

While exact internal layouts vary with modders, a typical configuration for this project includes:

• Original Xbox motherboard – Preserving the authentic architecture and compatibility with classic Xbox software.
• Modern storage – Replacing the original spinning hard drive with a SATA solid-state drive, typically paired with adapter hardware to interface with the older system bus.
• HDMI video mod – Installing a custom modification board that converts the Xbox’s analog output into digital HDMI, providing sharper visuals on modern displays.
• USB-C power input – Some builds relocate power conversion outside the console shell, using a modern USB-C PD (Power Delivery) adapter to provide clean, efficient power while reducing heat inside the unit.

Modern Touch: An Animated Central “Jewel”

One of the most distinctive upgrades is the transformation of the green jewel into a small display driven by a microcontroller. In Perez’s build, a low-cost microcontroller board runs a custom animation that mimics or reinterprets the classic Xbox logo sequence every time the system powers on.

This upgrade accomplishes three things at once:

• Pays homage to the original – The jewel still glows green and focuses attention at the center of the X.
• Showcases modern maker tech – The use of microcontrollers and small LCD or OLED panels is emblematic of contemporary DIY electronics.
• Adds personality – The animation can be customized, turning each build into a one-of-a-kind showpiece.

What the Replica Can—and Can’t—Do

Despite its faithful exterior and modernized internals, the recreated X-shaped Xbox still has limitations:

• No physical disc drive – Fitting an optical drive into the dense, angular chassis would have required major compromises, so the console typically runs games from digital images on its SSD.
• Custom firmware and dashboards – To manage digital game libraries and mods, the console usually relies on homebrew dashboards rather than stock software.
• Not an official product – Though built from authentic hardware, the project is entirely unofficial and falls squarely in the enthusiast and preservationist realm.

Still, the result is a machine that achieves what the original never did: it boots, runs games, outputs crisp HDMI video, and embodies the design legend that drew fans in the first place.

Cost, Craft, and the Reality of Building a Metal X

Recreating the X-shaped prototype is neither cheap nor simple. Reports indicate that the aluminum shell alone cost several thousand US dollars to machine, with much of that expense stemming from custom CNC milling.^1,2 Machining shops must carve away large volumes of material, then perform finishing processes like sanding and polishing to achieve the signature mirror-like surface.

When contrasted with the original prototype’s estimated cost—around US$18,000 at the time (roughly double that adjusted for inflation today)^2,4—the modern replica remains expensive but more attainable for a highly motivated enthusiast. Modern fabrication services, better CAD tools, and widespread community knowledge about Xbox modding all help keep the project within reach of dedicated builders.

From Aluminum Blocks to 3D Printing

Heavy metal machining isn’t the only way to recreate the X-shaped Xbox. As the community’s interest has grown, alternative approaches have emerged, especially using large-format 3D printing. Instead of carving from a solid aluminum billet, creators can print the shell in segments using reinforced plastic filament and then sand, paint, and assemble the pieces.

Some of the advantages of this approach include:

• Lower cost – A spool or two of filament is far cheaper than custom machined metal blocks.
• Weight reduction – A printed shell is significantly lighter, easing handling and shipping.
• Easier iteration – Modders can tweak designs, add vents, or rework internal mounts and print new parts without paying a machining shop for each change.

Of course, a plastic replica lacks the physical heft and cold, metallic feel of the original design. For many fans, however, the visual fidelity and the satisfaction of building a working homage outweigh the material differences.

Why This Recreation Matters for Game Preservation

At first glance, the functional X-shaped Xbox might seem like a niche curiosity, a luxury mod for hardcore collectors. But it also highlights broader themes in game history and preservation:

• Capturing lost design directions – The finished retail Xbox is well documented, but early prototypes like the X-shaped console reveal paths that could have been taken but weren’t.
• Community-led conservation – As console makers focus on future products, hobbyists and historians increasingly shoulder the responsibility of preserving hardware history.
• Blending nostalgia with modern tech – Upgrades like HDMI and SSDs allow older systems to remain playable and convenient on current displays, extending their lifespan.

Industry observers and academic researchers have underscored the importance of preserving both software and hardware to maintain cultural memory of games as a medium.⁵ Projects like the recreated X-shaped Xbox prototype contribute to that effort not only by keeping hardware alive but by turning myth back into a tangible, interactive object.

What the X-Shaped Xbox Tells Us About Design Risks

Looking back, the X-shaped prototype now reads like a design manifesto from an era when console makers were willing to experiment openly with form. Today’s consoles tend to prioritize minimalism and home-friendly aesthetics; the X-shaped prototype, in contrast, was brash and unapologetically “gamer.”

For modern hardware designers, the story offers several lessons:

• Bold concepts attract attention – Even if they never ship, daring prototypes can shape how a brand is perceived.
• Feasibility must eventually win out – Manufacturing realities, thermals, and consumer habits inevitably narrow wild concepts into shippable products.
• Fans remember risks – The enduring fascination with the X-shaped Xbox shows that players appreciate when companies dream big, even if the final product looks more subdued.

In an industry now dominated by sleek black and white rectangles, the restored X-shaped Xbox stands as a reminder that consoles can also be sculptures—objects designed to provoke reaction, not just disappear into a media cabinet.

FAQs About the Recreated X-Shaped Xbox Prototype

Is the recreated X-shaped Xbox an official Microsoft product?

No. The recreated unit is a fan-built project based on the original concept. It uses authentic Xbox hardware but was not manufactured, sold, or endorsed as a retail product by Microsoft.

Can the functional replica play original Xbox game discs?

Most documented builds do not include a disc drive due to space constraints inside the dense X-shaped shell. Instead, they typically run games from digital copies stored on an internal SSD or hard drive, managed via custom dashboards.

How close is the replica to the original prototype in appearance?

The goal of the project has been high visual accuracy, using measurements and reference images from the original units displayed by Microsoft. Externally, the proportions, angles, and central jewel are designed to closely match the historic prototype, while internal layouts differ to accommodate real hardware and cooling.

Could someone else build their own X-shaped Xbox today?

In principle, yes—but it requires advanced skills and resources. Builders would need access to CAD files or create their own, then either contract an expensive CNC machining job or rely on large-format 3D printing. They would also need expertise in console modding, electronics, and safe power integration.

Why not just emulate the original Xbox instead of building custom hardware?

Software emulation is a powerful tool for preserving and playing older games, but it doesn’t replace the physical experience of the hardware itself. For many enthusiasts, projects like the recreated X-shaped Xbox are about preserving industrial design, tactile interaction, and the aesthetics of a particular era in gaming history.

Looking Ahead: The Legacy of a Once-Impossible Console

The X-shaped Xbox prototype began as a spectacle: a dramatic, almost impractical symbol of Microsoft’s entry into console gaming. For years, it remained just that—an icon rather than a machine you could actually use. Through meticulous reverse-engineering, modern fabrication techniques, and a deep love for Xbox history, modders have finally turned that symbol into a working console.

In doing so, they haven’t just built a curious collector’s item. They’ve created a bridge between past and present—between the wild imagination of early 2000s hardware design and the maker culture of today. Whether you view it as a museum piece brought to life, a technical flex, or a tribute to a turning point in gaming, the functional X-shaped Xbox stands as proof that some of the most ambitious ideas in hardware never fully die. They just wait for the right fan to pick up the tools and finish the job.
