The Engineering Marvel Behind Stretch Limousine Manufacturing

The transformation of an ordinary luxury sedan into an elegant stretch limousine represents one of the most intricate processes in the automotive customization industry. What appears as a simple vehicle extension on the road involves hundreds of hours of skilled labor, precision engineering, and meticulous attention to safety and quality standards. This comprehensive exploration reveals the fascinating journey from conception to the final product that graces red carpets and special occasions worldwide.

Starting with Premium Foundation Vehicles

The limousine manufacturing process begins not with an empty chassis, but with a complete, brand-new luxury automobile. Manufacturers select vehicles known for their superior engineering and comfort characteristics, such as Mercedes-Benz models, Rolls-Royce vehicles, Cadillac sedans, BMW luxury cars, or Lincoln platforms. These foundation vehicles are chosen because they already possess the refined suspension systems, powerful engines, and quality interiors necessary to support the demanding requirements of an extended frame.

Once a vehicle arrives at the conversion facility, it undergoes a comprehensive inspection and initial preparation. The entire interior is carefully removed and catalogued, as these components will either be relocated or replaced during the transformation process. The exterior is stripped and protected with coverings to maintain the pristine condition of the original paint and bodywork during the intensive modifications ahead.

The Critical Cutting Phase

The most visually dramatic moment in limousine manufacturing occurs when the vehicle is cut precisely in half. This step requires absolute accuracy, as the cutting determines the vehicle’s structural integrity and final proportions. Modern facilities employ laser-guided cutting systems that maintain tolerance levels as tight as 1/16-inch across vehicles ranging from six to 120 inches in final length.

Before the cut begins, the vehicle is positioned on a specialized rolling trolley and securely locked into place, then hoisted to an optimal working height. The cutting team uses state-of-the-art equipment to slice through the entire vehicle body, precisely separating the front section from the rear. Once the cut is complete, workers carefully wheel the rear half away from the front section and position it at the exact location where the limousine assembly will occur.

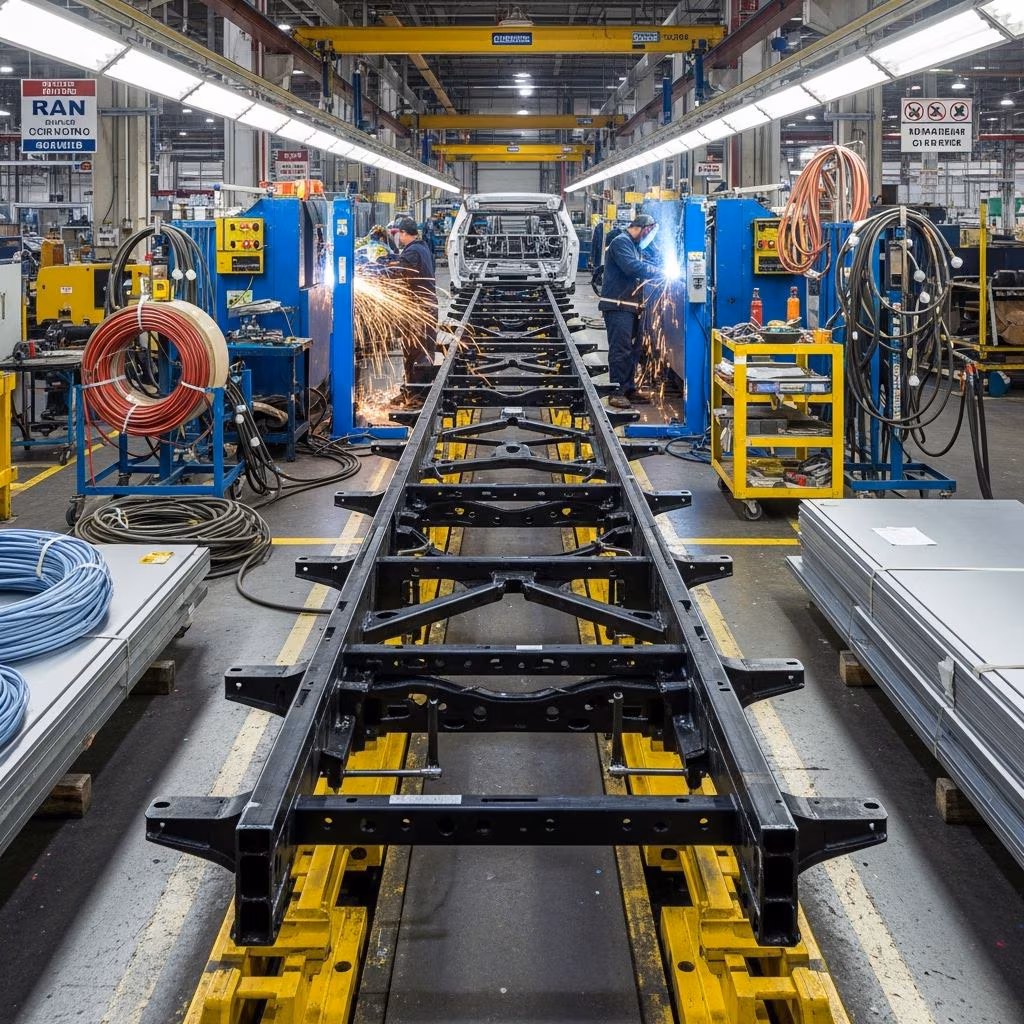

Frame Extension and Structural Reinforcement

With both halves separated, the real engineering begins. Construction specialists insert high-strength steel frame rails into the front half of the vehicle, positioning them carefully on both sides before extending these rails into the rear section. These frame rails serve as the backbone of the extended vehicle, distributing the additional weight and stress that will be created by the elongated structure.

Precision measurement is critical at this stage. Workers use specialized tools to verify the frame rail length and ensure that the frame remains perfectly square, with the front and rear halves positioned at exactly the correct distance apart. Once measurements are confirmed, experienced welders securely weld the rails to the frames of both the front and rear vehicle sections, creating a unified structural foundation.

The drive shaft tunnel, which houses the engine’s steel drive shaft and exhaust pipes, must be carefully repositioned and welded to the original vehicle tunnel to maintain proper alignment and function. A new floor, constructed from galvanized steel, is then positioned and welded to the frame rails and tunnel system. Steel roof rails are welded into place and connected to the roof rails in the original vehicle, ensuring the entire structure forms one cohesive unit.

Vertical Support Systems and Structural Integrity

To handle the additional stresses created by the extended frame, vertical side posts made of hardened steel must be installed at precise intervals. Workers position each post vertically and use levels to ensure perfect alignment before welding the base of each post firmly to the floor frame. These posts serve as critical load-bearing elements that prevent flexing and maintain the vehicle’s structural rigidity during operation.

Additional reinforcement comes through the installation of structural foam adhesive applied strategically throughout the extension points. Advanced facilities also employ proprietary cross-member frame designs that are engineered to deliver superior crash performance and distribute impact forces effectively throughout the extended structure.

For maximum safety in larger 120-inch extended models, manufacturers weld eight-gauge rectangular tubing to the front, center, and rear OEM (Original Equipment Manufacturer) pillars, with smaller models receiving reinforcement at the front and rear pillars. This comprehensive reinforcement strategy ensures the elongated vehicle maintains structural integrity comparable to or exceeding original manufacturer standards.

Exterior Panel Installation and Body Work

Once the structural framework is complete and verified, workers install outer body panels equipped with hardened steel crash bars. These panels are screwed into place temporarily, and the screws remain until the panel has bonded solidly to the limousine frame. The use of OEM body mounts ensures consistency and quality, with manufacturers typically adding eight connection points to every stretch ranging from 85 to 120 inches in final length.

The roof receives special attention during this phase. A new roof panel, typically constructed from galvanized steel, is positioned and secured according to the vehicle’s new proportions. Some facilities employ proprietary roof bracing systems that bond high-strength, hot-galvanized steel onto the existing roof panel at 16-inch centers, creating exceptional rigidity and weather resistance.

Advanced Paint and Protective Coating Systems

The painting process represents a critical quality checkpoint in limousine manufacturing. Workers apply three distinct coats of paint to establish consistent color and coverage across the entire extended body. Following the paint application, two protective coats of clear lacquer are applied to shield the finish from environmental damage and UV exposure.

Premium facilities employ sophisticated seven-step epoxy-urethane coating systems that are specifically formulated to resist acid rain damage and paint chipping while maintaining an exceptional gloss finish. After the painting process reaches completion, workers install laminated safety side glass specifically designed to withstand the unique stresses of an extended vehicle structure.

Vinyl Roof Application and Exterior Finishing

Many stretch limousines feature distinctive vinyl roof coverings that add to their luxury aesthetic. Contact cement is carefully sprayed onto the newly painted roof in preparation for the vinyl installation. Specialized technicians stretch the vinyl material across the entire roof surface, using hand pressure to press the fabric firmly into roof crevices and contours. Any excess material is carefully trimmed away, creating clean, professional edges that contribute to the vehicle’s refined appearance.

Electrical System Integration and Components

Converting a standard luxury vehicle into a stretch limousine requires comprehensive electrical system modifications. Manufacturers use OEM connectors to extend the electrical body harnesses throughout the newly created extension sections. These extended harnesses are then carefully loomed and protected from incision, humidity, and temperature extremes to ensure long-term reliability. A single Lincoln MKT conversion, for example, incorporates over 355 new electronic components to support the expanded vehicle’s requirements.

All interior electrical systems, including climate control, lighting, and entertainment systems, must be extended and integrated seamlessly. The sophisticated wiring harnesses ensure that all vehicle systems function flawlessly despite the structural modifications and extended distances between components.

Drive Shaft Extension and Drivetrain Modifications

The drive shaft must be extended to reach the rear axle of the elongated vehicle. Manufacturers assemble these extensions from OEM materials and carefully balance each unit to eliminate vibration, ensuring a smooth, comfortable ride quality despite the vehicle’s increased length. Some conversions require approximately 800 pounds of additional steel components to support the mechanical systems throughout the extended frame.

Interior Customization and Luxury Features

Once the structural work and mechanical systems are complete, workers begin installing the luxurious interior that defines the stretch limousine experience. Steel seat frames are positioned and secured according to the vehicle’s extended dimensions and the customer’s specifications. The limousine’s signature bar is installed, complete with premium fixtures and custom lighting that creates an ambiance of sophistication and elegance.

Leather upholstery covers seats and interior panels, selected from premium materials that complement the vehicle’s exterior finish. Disco lights and ambient lighting systems are installed throughout the cabin, transforming the interior into an entertainment space suited for celebrations and special occasions. Every interior element is customized according to the client’s exact specifications, with no two limousines featuring identical configurations.

Suspension and Handling Refinements

To accommodate the additional weight of the extended structure, suspension systems must be substantially upgraded. Manufacturers select heavy-duty springs specifically engineered for limousine applications, chosen based on each vehicle model’s characteristics and the final extended length. These premium suspension components provide superior ride quality while maintaining vehicle stability and handling characteristics appropriate for the vehicle’s increased mass and dimensions.

Quality Control and Final Inspections

Before delivery to the customer, every completed limousine undergoes comprehensive quality inspections. All units are fully inspected prior to production commencement and again following completion. Technicians verify that all systems function properly, all welds are secure, all electrical systems operate correctly, and the vehicle meets or exceeds established safety standards.

The manufacturing timeline typically spans several weeks to several months, depending on the extent of customization and the complexity of the conversion. A standard Lincoln MKT conversion, for example, requires approximately 1,080 hours of work performed by 45 elite technicians and mechanics, distributed across multiple specialized teams working simultaneously on different aspects of the vehicle.

Material Science and Quality Standards

Limousine manufacturers prioritize materials that ensure durability, safety, and longevity. Low-alloy, high-strength steel components used for floor, rocker panel, and header extensions are two-sided, hot-dipped, galvanized to exceed OEM standards, providing exceptional resistance to weather damage and corrosion. All interior panels receive primer etching for rust protection prior to the installation of side panels, ensuring structural integrity beneath visible surfaces.

Regulatory Compliance and Safety Standards

Professional limousine manufacturers maintain QVM and CMC certifications, indicating compliance with rigorous quality and safety standards established for the custom vehicle industry. These certifications require adherence to stringent manufacturing protocols, material specifications, and safety requirements that exceed many standard vehicle production standards. The proprietary engineering designs employed by leading manufacturers have been rigorously tested to deliver crash performance and structural integrity that protect passengers during emergency situations.

The Final Product

The completed stretch limousine emerges from the manufacturing facility as a bespoke luxury vehicle capable of extending up to 27 feet in length and weighing over 3 tons, yet maintaining the refined driving characteristics and performance expectations associated with its luxury foundation vehicle. Every component has been carefully engineered, precisely installed, and thoroughly inspected to create a vehicle that delivers both comfort and reliability for years of service.

The transformation from ordinary luxury sedan to extraordinary stretch limousine represents the convergence of advanced engineering, skilled craftsmanship, and meticulous attention to detail. This complex process ensures that each completed vehicle meets the exacting standards demanded by discerning clients who expect nothing less than perfection in their luxury transportation experiences.
