Spanning Tree Protocol (STP): 2025 Guide For Network Engineers

Modern Ethernet networks rely on switches interconnected through multiple paths for redundancy and resilience. However, this redundancy introduces a critical risk: Layer 2 loops. When loops form, broadcast frames circulate endlessly, causing broadcast storms that overwhelm network resources and bring connectivity to a standstill. Enter Spanning Tree Protocol (STP), the foundational Layer 2 protocol designed to detect and eliminate these loops while preserving redundant paths for failover.

Invented by Radia Perlman in 1985 at Digital Equipment Corporation, STP has evolved from its original IEEE 802.1D specification into a family of standards that power today’s data centers, enterprise LANs, and campus networks. This article dives deep into STP’s mechanics, variants, configuration best practices, and advanced troubleshooting techniques, providing network engineers with actionable insights to deploy and maintain robust switched environments.

Why STP is Essential in Switched Environments

Switches operate at Layer 2 of the OSI model, using MAC addresses to forward frames within a broadcast domain. In a flat network with multiple interconnected switches, frames can traverse redundant links, creating loops. A single broadcast frame entering a loop will be duplicated infinitely, consuming all available bandwidth and CPU cycles on switches as they process the storm.

• Broadcast Storms: Exponential frame replication leads to 100% link utilization.
• MAC Table Instability: Switches learn the same MAC address via multiple ports, causing erratic forwarding.
• Multiple Frame Copies: End devices receive duplicate packets, disrupting applications.

STP solves this by logically transforming the physical topology into a tree structure—a single active path between any two devices—while blocking redundant ports. Blocked ports remain ready to activate if the primary path fails, ensuring high availability.

Core Components of STP Operation

STP runs on every switch port connected to another switch, exchanging Bridge Protocol Data Units (BPDUs) to build a shared view of the network topology. These BPDUs contain critical information like bridge IDs, path costs, and timers.

Bridge ID and Root Bridge Election

Each switch generates a unique Bridge ID (BID), comprising a 16-bit priority (default: 32768) and 48-bit MAC address. The switch with the lowest BID becomes the Root Bridge—the central reference point for all path calculations.

To influence elections, lower the priority on core switches (multiples of 4096). Cisco’s official documentation emphasizes manual root bridge designation for predictable topologies.¹

Path Cost and Root Port Selection

Non-root switches calculate the Root Path Cost (RPC)—cumulative bandwidth-based cost to the Root Bridge. Each port has a predefined cost:

• 10 Gbps: 2
• 1 Gbps: 4
• 100 Mbps: 19
• 10 Mbps: 100

The port with the lowest RPC becomes the Root Port. Ties are broken by lowest sender BID, then lowest sender Port ID.

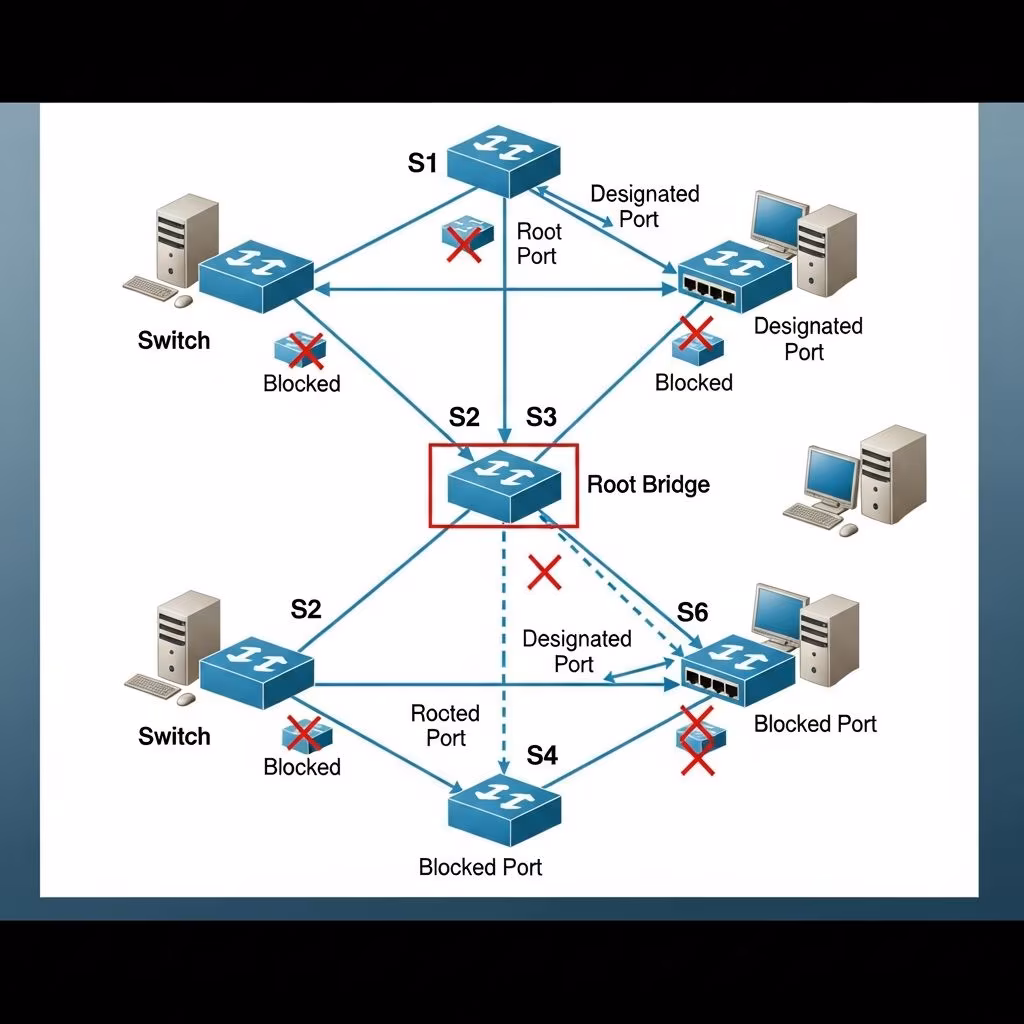

Designated and Blocked Ports

For each LAN segment, the switch sending the best BPDU becomes Designated, forwarding traffic toward the Root. All other ports block to prevent loops. Port roles include:

• Root Port: Best path to Root Bridge.
• Designated Port: Best path to segment.
• Blocked Port: Redundant, receives BPDUs but drops data.

STP Port States and Convergence Process

Ports transition through five states to prevent temporary loops during topology changes:

1. Blocking: Discards data, listens for BPDUs (20 seconds).
2. Listening: No data forwarding, learns topology (15 seconds).
3. Learning: Builds MAC table, no forwarding (15 seconds).
4. Forwarding: Full operation.
5. Disabled: Port down.

Classic STP convergence takes 30-50 seconds after link failure—adequate for many environments but slow for VoIP/video. Hello timers (2s BPDUs) and Max Age (20s) govern stability.

Evolution: Rapid STP (RSTP / 802.1w)

RSTP addresses STP’s convergence delays with proactive role negotiation and simplified states (Discarding, Learning, Forwarding). Key improvements:

• 50ms Convergence: Edge ports bypass Listening.
• Proposal/Agreement: Direct link activation without timers.
• Backward Compatible: Falls back to STP timers.

Meraki’s configuration guide highlights RSTP’s automatic enablement on modern switches.²

Multiple Spanning Tree (MSTP / 802.1s)

MSTP scales STP across VLANs by grouping them into instances. Benefits:

• VLAN Load Balancing: Different Root Bridges per instance.
• Reduced Overhead: Single BPDU carries multiple topologies.
• Region-Based: Configured via name, revision, instances.

Cisco-Specific Enhancements

Cisco extends STP with:

• PVST+: Per-VLAN STP instances.
• Rapid-PVST+: RSTP per VLAN.
• PortFast: Immediate forwarding for access ports.
• BPDU Guard: Disables rogue BPDU ports.
• Root Guard: Prevents inferior Root elections.

Configuration Best Practices

Deploy STP systematically:

1. Enable RSTP globally: spanning-tree mode rapid-pvst
2. Set core switch as Root: spanning-tree vlan 1-4094 priority 4096
3. Apply PortFast: spanning-tree portfast default
4. Enable guards: spanning-tree portfast bpduguard default
5. Monitor: show spanning-tree

Troubleshooting Common STP Issues

STP vs. Modern Alternatives

While STP remains vital, TRILL, SPB, and fabric technologies offer loop-free designs. However, STP’s ubiquity ensures its relevance in hybrid environments.

FAQs

What happens if all switches have the same priority?

STP uses MAC addresses as tiebreakers; lowest MAC wins Root election.

Is STP enabled by default?

Yes on Cisco switches, but verify with show spanning-tree summary.

Can STP run over trunks?

Absolutely—trunk ports participate fully in STP calculations.

What’s the difference between STP and RSTP?

RSTP converges in seconds vs. STP’s 30-50s, using fewer states.
