Shielded twisted pair (STP) cables represent a robust solution in network infrastructure, designed to deliver reliable data transmission in challenging conditions. By combining the inherent noise-canceling properties of twisted wire pairs with additional protective layers, STP outperforms standard cabling in environments plagued by electrical interference. This guide delves into the mechanics, variations, advantages, and strategic uses of STP, equipping network professionals with the knowledge to optimize their setups.
Fundamentals of Twisted Pair Wiring
At its core, twisted pair cabling consists of pairs of copper conductors intertwined to counteract electromagnetic interference (EMI). The twisting equalizes the exposure of both wires to external fields, causing induced voltages to cancel out and preserve signal clarity. Each pair supports a single communication channel, making this design efficient for balanced signaling in Ethernet standards.
This foundational technique dates back to telephony but has evolved for high-speed data networks. In unshielded variants, the focus remains solely on this twisting mechanism. STP elevates this by incorporating metallic barriers, essential for high-density or industrial deployments where ambient noise threatens performance.
Engineering Behind STP Shielding

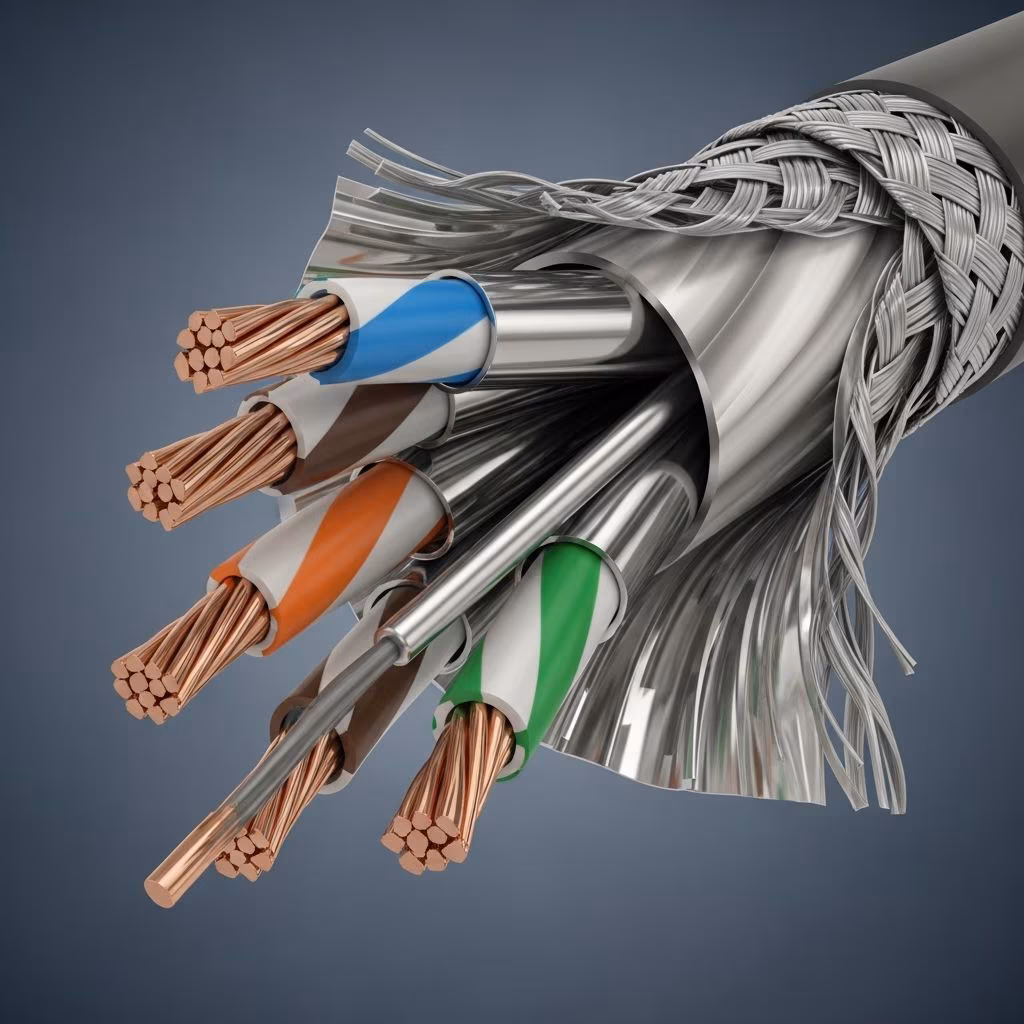

STP’s defining feature is its conductive shielding, typically aluminum foil or braided copper, enveloping the twisted pairs. This layer intercepts EMI from sources like motors, fluorescent lighting, or nearby power cables, channeling it to ground rather than allowing penetration into the signal path. Proper grounding is critical; without it, the shield can inadvertently amplify noise.
Shielding also combats crosstalk, where signals from adjacent pairs bleed into each other, especially at gigabit speeds. By isolating pairs, STP maintains signal-to-noise ratios, enabling longer runs and higher bandwidths without degradation.
Categories of Shielded Twisted Pair
STP comes in diverse configurations, each tailored to specific interference profiles. The nomenclature, such as F/UTP or S/FTP, denotes shielding placement: ‘F’ for foil, ‘S’ for braid, ‘UTP’ for unshielded pairs, and ‘FTP’ for foiled pairs.
| Type | Shielding Description | Key Strengths | Typical Use |
|---|---|---|---|
| F/UTP | Foil over overall cable | External EMI block | General office networks |
| U/FTP | Foil per pair | Crosstalk reduction | High-density bundles |
| S/UTP | Braided overall shield | Durability, flexibility | Industrial settings |
| SF/UTP | Braid + foil overall | Superior external protection | Data centers |
| F/FTP | Foil overall + per pair | Balanced protection | 10G Ethernet |
| S/FTP | Braid overall + foil per pair | Comprehensive shielding | Broadcast facilities |
| SF/FTP | Braid + foil overall + foil per pair | Maximum isolation | Mission-critical apps |
Selecting the right type hinges on environmental factors. Foil offers precise coverage but is prone to tears during installation, while braids provide mechanical resilience at the cost of slight flexibility loss.
STP Versus Unshielded Twisted Pair
- Interference Resistance: STP excels in EMI-heavy zones; UTP suffices for clean spaces like modern offices.
- Cost Implications: STP’s added materials and grounding needs inflate prices by 20-50%, but ROI materializes in reduced errors.
- Installation Demands: STP requires meticulous handling to avoid shield damage and mandates grounded outlets.
- Performance Ceiling: Both support Cat6/7 speeds, but STP sustains integrity over distance in adverse conditions.
In low-noise scenarios, UTP’s simplicity wins; elsewhere, STP prevents costly downtime.
Prime Applications for STP Deployment
STP shines in factories with heavy machinery, hospitals near diagnostic equipment, and broadcast studios amid RF signals. Data centers bundle STP to minimize alien crosstalk in 40G/100G links. For aerospace, specialized STP with Teflon insulation ensures reliability under vibration and extremes, as noted in industry patterns.
Emerging 5G edge networks and IoT clusters also leverage STP for stable backhaul amid urban RF clutter.
Deployment Best Practices
Success with STP demands precision:
- Adhere to minimum bend radii (typically 4x cable diameter) to preserve shielding.
- Use certified tools for termination; improper crimping compromises foil integrity.
- Ensure end-to-end grounding via shielded RJ45 connectors and panels.
- Test with EMI simulators to validate performance post-install.
Avoid mixing STP and UTP in bundles, as impedance mismatches induce noise.
Future Horizons for STP Technology
As networks push 400G Ethernet and beyond, STP evolves with slimmer profiles and advanced alloys for lighter weight. Integration with fiber optics in hybrid cables addresses distance limits while retaining EMI immunity. Standards bodies like TIA continue refining categories for PoE++ and Wi-Fi 7 backbones.
Frequently Asked Questions
Is STP necessary for home networks?
Generally no; UTP Cat6 handles gigabit speeds adequately unless near high-power devices.
How does STP affect PoE performance?
Shielding dissipates heat better, supporting higher PoE budgets without signal loss.
Can STP runs exceed 100 meters?
Not for standard Ethernet; extend via switches or fiber for longer spans.
What’s the grounding requirement for STP?
Both ends must connect to a common ground plane to drain interference effectively.
Does STP support 10GBASE-T?
Yes, Cat6A STP is optimized for 500MHz, ensuring low-latency 10G performance.
