Serial Digital Interface: Professional Video Transmission Standard

The evolution of digital video technology has fundamentally transformed how broadcast professionals, production companies, and media organizations deliver content. At the heart of this revolution lies Serial Digital Interface, a standardized technology that enables the transmission of high-quality video signals across professional environments. Unlike consumer-grade video connections, SDI provides broadcast professionals with the reliability, quality, and compatibility necessary for mission-critical applications where content integrity is non-negotiable.

Understanding the Foundation of Digital Video Standards

Serial Digital Interface emerged as a response to the broadcasting industry’s need for a unified approach to digital video transmission. Before SDI became standardized, various manufacturers employed proprietary solutions, creating incompatibility issues across equipment and systems. The Society of Motion Picture and Television Engineers (SMPTE) recognized this fragmentation and established the first formal SDI specification in 1989, introducing ITU-R BT.656 and SMPTE 259M standards that defined how digital video signals should be formatted and transmitted over coaxial cables.

The fundamental principle behind SDI involves transmitting completely uncompressed digital video signals, which stands in stark contrast to consumer technologies that heavily rely on compression algorithms. This uncompressed approach preserves every detail of the video signal, ensuring that quality degradation does not occur during transmission or processing. The decision to transmit uncompressed data reflects the broadcasting industry’s requirement for content that maintains pristine quality throughout the production pipeline.

Technical Architecture and Signal Characteristics

SDI operates on a straightforward yet elegant technical principle. The interface encodes data using NRZI (Non-Return-to-Zero Inverted) format, a method that ensures reliable transmission of digital information. To prevent long sequences of identical bits—which can cause synchronization issues—the system employs a linear feedback shift register to scramble data. This scrambling process doesn’t compromise the signal quality; rather, it optimizes transmission reliability by distributing bit patterns more evenly.

A critical feature of SDI technology involves its self-synchronizing and self-clocking characteristics. Unlike systems that require separate synchronization signals, SDI embeds timing information directly within the signal stream. This integration simplifies installation and reduces the number of cables required, as engineers don’t need to route dedicated clock signals alongside video data. Framing information is established through special synchronization patterns that appear as recognizable bit sequences impossible to occur naturally within the video payload, allowing receivers to maintain lock with transmitters automatically.

Signal Parameters and Data Rates

• Standard Definition SDI (SD-SDI): Operates at approximately 270 Megabits per second, supporting standard television resolutions and frame rates
• High Definition SDI (HD-SDI): Delivers 1.485 Gigabits per second through SMPTE 292M specification, enabling 1080p resolution transmission
• 3G-SDI: Provides 2.970 Gigabits per second data rates for enhanced definition requirements and advanced production applications
• 6G-SDI and 12G-SDI: Support even higher data rates enabling 4K resolution and frame rates at 60 frames per second
• 24G-SDI: Latest generation supporting 8K resolution and extended color sampling capabilities

Physical Implementation and Cable Infrastructure

SDI implementations rely on standardized physical interfaces that have remained consistent throughout the technology’s evolution. The standard 75-ohm coaxial cable serves as the transmission medium, the same cable type used in residential television installations for decades. This compatibility simplifies procurement and installation, as broadcast facilities can leverage existing cable infrastructure in many cases. The widespread availability of 75-ohm cables ensures that SDI equipment remains economically accessible compared to proprietary cable solutions.

Distance considerations vary depending on SDI specification and cable quality. Standard definition SDI signals can typically travel up to 300 meters through high-quality coaxial cable before signal degradation necessitates repeaters or equalization. Higher data rate variants like HD-SDI and 3G-SDI generally operate over shorter distances due to increased bandwidth requirements, though quality cabling and equipment optimization can extend these ranges. For applications requiring transmission beyond coaxial cable limitations, fiber optic variants such as SMPTE 297M provide virtually unlimited distance capabilities, limited only by fiber length and the presence of optical repeaters.

Comprehensive Signal Content and Data Integration

SDI’s architecture accommodates more than video information alone. The standard enables embedding of multiple independent audio channels—typically up to four stereo pairs—directly within the video signal. This integration eliminates the need for separate audio cables and synchronization circuits, as video and audio remain inherently locked through the unified data stream. Additionally, SDI signals can carry embedded timecode, metadata, and control information, all synchronized to the video frame rate.

The ability to transmit diverse data types within a single SDI stream represents a significant advantage over systems requiring parallel cable runs. A complete video production feed might include stereoscopic or three-dimensional video signals alongside high-resolution color information and precise timing data, all traveling through one coaxial connection. This consolidation dramatically reduces cable complexity in master control rooms and production facilities where dozens of video feeds require routing.

Dual Link Architecture for Premium Applications

Specialized applications demanding exceptional fidelity employ dual link HD-SDI architecture, formalized in SMPTE 372M during 1998. This configuration pairs two simultaneous SMPTE 292M connections, effectively doubling the data rate to 2.970 Gigabits per second. Dual link implementation enables transmission of extended color sampling, higher bit depths, and enhanced resolution signals that single connection systems cannot accommodate. Digital cinema production and HDTV 1080p applications with stringent quality requirements often depend on dual link configurations to maintain data integrity and color accuracy.

Reliability and Environmental Resilience

Professional broadcast environments present challenges that consumer video systems rarely encounter. Facilities often contain extensive electromagnetic equipment, power distribution systems, and radio frequency sources that generate interference. SDI’s design inherently resists electromagnetic interference through its digital nature and carefully engineered signal characteristics. Digital signals maintain integrity even when noise appears on the transmission medium, as receivers reconstruct data from transmitted patterns rather than relying on precise voltage levels vulnerable to interference.

Built-in error correction mechanisms further enhance reliability. These systems detect and correct transmission errors caused by noise, interference, or signal degradation, maintaining video quality even in electrically hostile environments. The combination of robust signal design and error correction provides the stability necessary for live broadcasts and critical production workflows where signal loss or degradation becomes unacceptable.

Diverse Applications Across Industries

Television Broadcasting and Live Events

Television stations employ SDI throughout their facilities for routing video signals between master control rooms, studios, transmission equipment, and distribution systems. Live event coverage relies on SDI’s real-time capabilities and synchronization properties, enabling directors to switch between camera feeds seamlessly without experiencing signal loss or sync disruptions. Major sporting events, news broadcasts, and entertainment programming depend on SDI infrastructure to deliver reliable feeds to audiences worldwide.

Film Production and Digital Cinema

The motion picture industry has increasingly adopted SDI standards for on-set monitoring, post-production workflows, and digital cinema distribution. Dual link configurations support the color depth and resolution requirements of contemporary cinematography while maintaining the uncompressed signal quality necessary for color grading and visual effects work. Professional monitor manufacturers have standardized SDI connectivity, making it the primary monitoring interface on professional film sets.

Medical and Scientific Applications

Surgical environments, diagnostic imaging facilities, and research institutions employ SDI for transmitting high-resolution medical imagery without compression artifacts that might compromise diagnostic accuracy. The deterministic latency and reliability of SDI make it suitable for applications where signal failure could have serious consequences.

Security and Surveillance Systems

Advanced surveillance installations utilize SDI for distribution of high-resolution video feeds across facility control systems. The ability to embed metadata and multiple audio channels within SDI signals enables integration of synchronized audio recording with video capture, creating comprehensive security records.

Comparative Analysis with Alternative Technologies

While HDMI has become ubiquitous in consumer environments, it fundamentally differs from SDI in design philosophy and capabilities. HDMI prioritizes consumer electronics compatibility and cost reduction, employing compression techniques and shorter cable runs. SDI, conversely, prioritizes professional requirements including uncompressed transmission, longer distances, multiple audio channels, and broadcast-grade reliability. The technologies serve different market segments; HDMI dominates residential and light commercial applications while SDI remains the professional standard.

IP-based video transmission represents an emerging frontier, with SMPTE 2110 standards defining how SDI signals can be transmitted across Ethernet networks. This evolution addresses modern facility requirements for flexible routing, remote production capabilities, and integration with IT infrastructure. However, implementation complexity and latency considerations mean traditional SDI infrastructure will remain prevalent in many facilities for years.

Evolution and Future Trajectory

SDI standardization has successfully kept pace with resolution increases and production technique evolution. The progression from standard definition through high definition, 4K, and emerging 8K standards demonstrates the framework’s flexibility. Future developments likely involve expanded IP-based transmission, enhanced metadata capabilities, and integration with advanced production workflows including virtual production environments and real-time compositing systems.

The fundamental design principles established in 1989 have proven remarkably resilient. Rather than obsolescence, SDI has demonstrated adaptability, with each new standard building upon previous infrastructure investments while enabling access to emerging capabilities. This backward compatibility approach has contributed to SDI’s longevity as a professional standard.

Implementation Considerations for Modern Facilities

Broadcast facilities planning infrastructure upgrades must consider both current requirements and anticipated future capabilities. While initial SDI implementation costs might exceed consumer video solutions, the longevity and professional capabilities justify investment in mission-critical applications. Equipment compatibility becomes paramount; ensuring that facility infrastructure supports current and anticipated production standards prevents premature obsolescence.

Cable management represents a practical consideration in large facilities. Proper labeling, routing practices, and regular maintenance preserve signal quality and prevent degradation from physical damage or impedance mismatches. Professional installation practices ensure that coaxial cable specifications match application requirements, with consideration for shielding, connector quality, and environmental factors.

Frequently Asked Questions

Q: Can SDI signals travel indefinitely through fiber optic cable?

A: While fiber optics eliminate distance limitations imposed by coaxial cable attenuation, practical considerations include maximum fiber segment lengths (typically several kilometers) and the need for optical repeaters at intervals. Signal regeneration through repeaters prevents quality degradation over extended distances.

Q: Is SDI still relevant with emerging IP-based video standards?

A: Yes, SDI remains the dominant professional standard in most broadcast facilities. IP-based standards complement rather than replace traditional SDI, with many facilities operating hybrid infrastructures during transition periods.

Q: Can SDI accommodate stereoscopic 3D video transmission?

A: Yes, SDI standards specifically define formats for stereoscopic video, with left and right eye signals transmitted as separate data streams within the SDI signal architecture.

Q: What connector types does SDI employ?

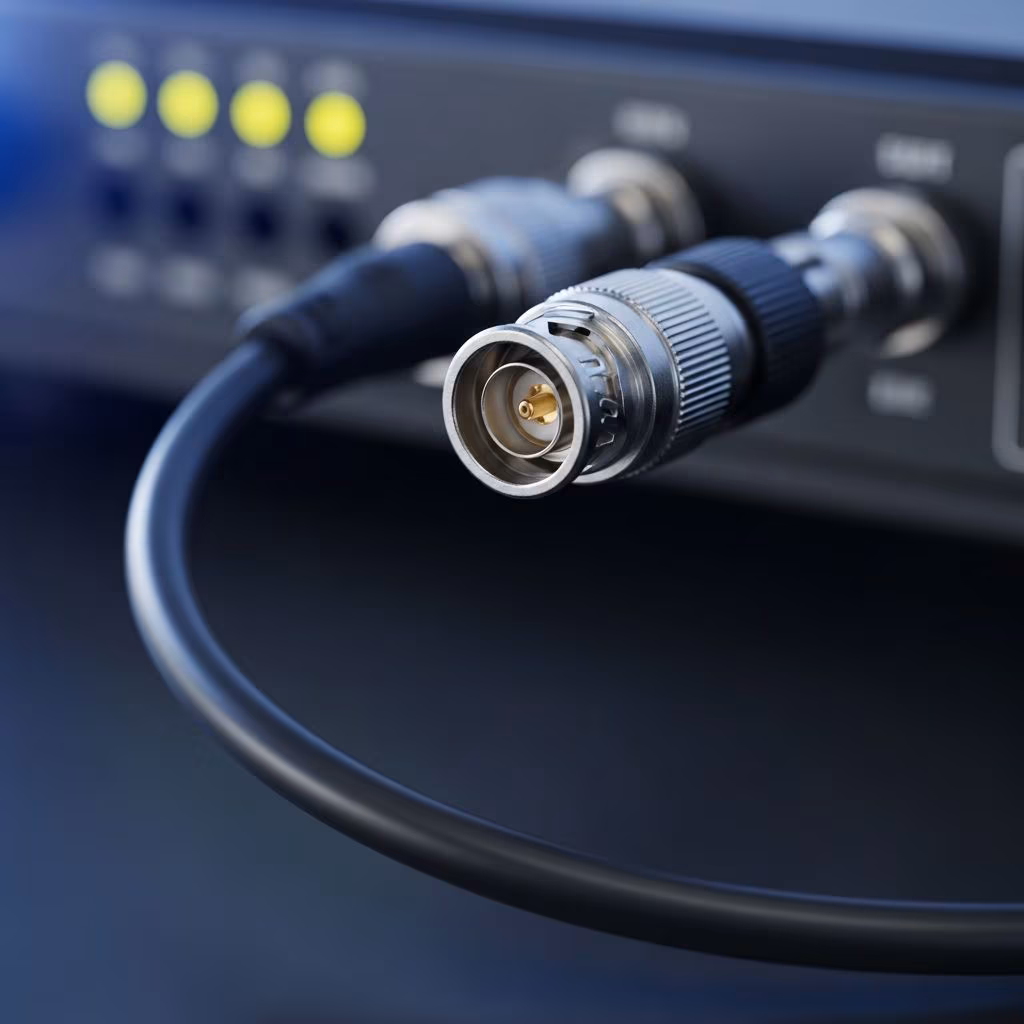

A: SDI primarily uses BNC connectors, a standardized connector type that ensures consistent interfaces across equipment from different manufacturers. This standardization facilitates rapid equipment reconfiguration in professional environments.
