Sealey AK4120 Antifreeze Tester: 5-Step Accuracy Guide

The Sealey AK4120 is a reliable disc-type tester designed specifically for assessing the condition of ethylene glycol-based antifreeze in vehicle cooling systems. This compact tool provides quick readings on freeze protection levels, whether the coolant is hot or cold, by observing the number of floating discs in a sample.

Understanding Coolant and Its Critical Role

Vehicle coolant, commonly known as antifreeze, serves multiple essential functions beyond preventing freezing. It regulates engine temperature by absorbing, transferring, and dissipating heat from the engine block and cylinder head to the radiator. Ethylene glycol, the primary active ingredient in most formulations, lowers the freezing point of water and raises its boiling point, protecting against both cold snaps and summer overheating.

Inadequate antifreeze strength can lead to severe issues. During winter, weak coolant may freeze, expanding and cracking engine blocks or radiator components. In hot conditions, it can boil over, causing overheating that warps cylinder heads or blows gaskets. Regular testing ensures the mixture maintains optimal protection, typically down to -35°C or lower depending on regional climates.

Key Features of the Sealey AK4120

This tester stands out for its straightforward design and robust construction. Made from virtually unbreakable plastic, it withstands workshop drops and rough handling. The body includes an integrated temperature table for instant interpretation of results without needing charts or apps.

• Disc-Based Reading System: Six large, colored discs float based on antifreeze concentration, directly indicating protection levels.
• Versatile Testing: Works on both hot and cold coolant samples, ideal for roadside checks or pre-winter prep.
• Compact and Lightweight: Weighs just 0.11kg net, with a rubber bulb for easy suction.
• Durability: Tough plastic casing resists cracks and chemicals.
• Warranty: Backed by a 1-year guarantee from Sealey.

These attributes make it a staple for mechanics and DIY enthusiasts alike, offering precision without complexity.

Step-by-Step Guide to Using the Tester

Testing coolant takes under a minute with proper precautions. Always prioritize safety: ensure the engine is cold to avoid burns from pressurized hot coolant.

1. Prepare the Vehicle: Park on a level surface, turn off the engine, and let it cool completely. Open the hood and locate the expansion tank or radiator cap.

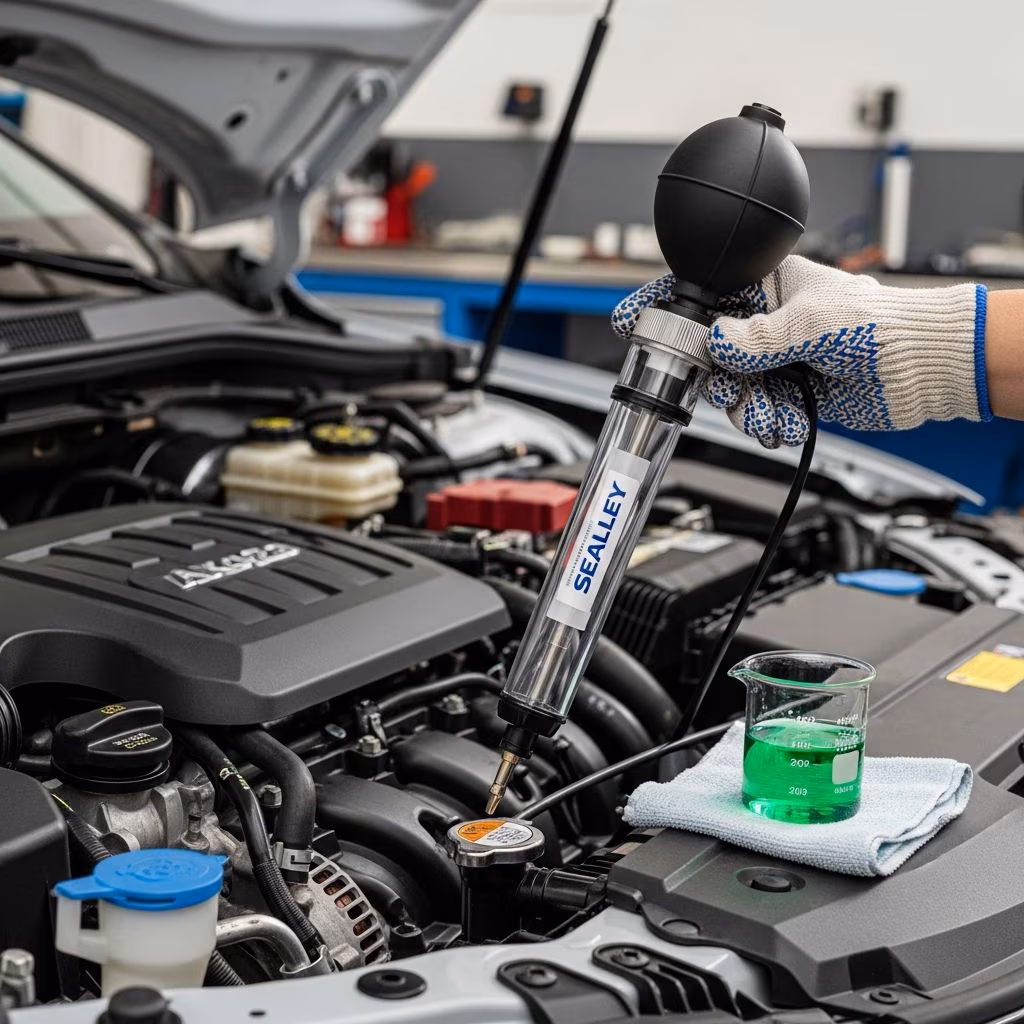

2. Draw a Sample: Remove the tester’s protective cap. Insert the suction tube into the coolant reservoir. Squeeze the rubber bulb several times to pull fluid into the viewing chamber, filling it past the discs.
3. Observe the Discs: Hold the tester level against a light source. Count the number of discs that float to the top. Each floating disc corresponds to a specific freeze protection temperature printed on the scale.
4. Interpret Results: Match the count to the table: 4 discs might indicate -15°C protection, while 6 discs show -50°C capability. For UK winters, aim for at least 4-5 discs (-20°C or better).
5. Clean and Store: Empty the sample into a drain pan, rinse with water, dry thoroughly, and recap. Dispose of coolant responsibly per local regulations.

Practice on known good coolant builds confidence. Videos demonstrate the process clearly, showing how air bubbles affect readings and how to purge them.

Interpreting Test Results Accurately

The disc count directly correlates to antifreeze-to-water ratio. Here’s a typical scale:

Note: Results assume ethylene glycol coolant. Propylene glycol or OAT/HOAT types may require different testers. Overly strong mixtures (all 6 discs) can reduce heat transfer, so balance is key.

Why Regular Antifreeze Testing Matters

Coolant degrades over time due to contamination, electrolysis, and chemical breakdown. Additives deplete, allowing corrosion, scale buildup, and cavitation in the water pump. Testing every 6 months or 10,000 miles prevents these issues. Pre-winter checks are crucial, as undetected weakness leads to 20% of winter breakdowns.

Besides freeze protection, strong antifreeze inhibits rust in aluminum radiators and iron blocks, lubricates the pump, and prevents silicate dropout. Neglect it, and repair bills soar: a cracked block can cost thousands.

Maintenance Tips for Longevity

To maximize the AK4120’s lifespan:

• Rinse after each use to remove residue.
• Store in a dry, moderate-temperature area.
• Inspect the bulb for cracks; replace if soft.
• Avoid dropping on concrete to preserve disc alignment.

Sealey’s 1-year warranty covers defects, but proper care extends usability for years.

Comparing Disc Testers to Alternatives

Disc testers like the AK4120 excel in simplicity and portability over hydrometers (which measure specific gravity) or refractometers (light-based). No calibration needed, and they’re cheaper (£10-15). Refractometers offer digital precision but cost more and require cleaning fluids. For garage use, discs suffice 90% of the time.

Frequently Asked Questions (FAQs)

Can I use the AK4120 on hot coolant?

Yes, it’s designed for hot or cold samples, but wear gloves and eye protection to avoid splashes.

What if no discs float?

The coolant is mostly water; flush and refill with 50/50 antifreeze mix immediately.

Does it test boiling point?

Primarily freeze protection, but strong mixtures inherently raise boiling point too.

Is it compatible with all coolants?

Optimized for ethylene glycol; check for propylene or hybrid types.

How often should I test?

Twice yearly or before extreme weather. Change coolant every 2-5 years.

Advanced Tips for Optimal Coolant Management

Beyond testing, use distilled water for top-ups to avoid minerals. Monitor pH (8.5-10 ideal) with strips. For high-performance engines, consider extended-life coolants tested annually. Track service history to predict degradation.

In fleet operations, integrate AK4120 checks into PM schedules, reducing downtime by 30%. Pair with pressure testers for comprehensive diagnostics.

Investing time in coolant health yields reliable starts every morning, regardless of weather.
