Replace Your Car Battery: 10-Step Guide To Swap And Maintain

Your car’s battery powers everything from the starter motor to infotainment systems. When it fails, you’re stranded. This guide empowers you to diagnose problems, select a compatible replacement, perform the swap yourself, and keep future batteries healthy. With basic tools, most owners can handle this task in under an hour, avoiding mechanic fees.

Spotting Battery Failure Early

Batteries typically last 3-5 years, but signs appear sooner. Slow engine cranking signals weak power delivery. Dim headlights or interior lights that fade quickly indicate low charge capacity. Frequent jump-starts or dashboard warnings like a battery icon point to end-of-life issues.

• Slow cranking: Engine turns over sluggishly, often below 300 RPM needed for ignition.
• Electrical glitches: Radio resets, power windows hesitate, or accessories fail intermittently.
• Visible damage: Bulging case, leaks, or white/blue/green corrosion on terminals.
• Age factor: Most degrade after 48 months, especially in extreme heat or cold.

Test at auto parts stores for free—voltmeter readings under 12.4V at rest or poor load performance confirm replacement needs.

Understanding Battery Specs for Your Ride

Not all batteries fit every vehicle. Modern cars demand precise matches for size, power output, and technology. Owner’s manuals list requirements: group size (e.g., 35, 65), cold cranking amps (CCA for winter starts), reserve capacity (RC in minutes), and terminal layout.

Examine your old battery’s label for codes like 096R—first digits denote length/width in tenths of inches, letter indicates position (L= left positive). Online fitment tools or parts store lookups by year/make/model simplify matching.

Types of Batteries: Flooded, AGM, and Beyond

Choose based on vehicle needs. Flooded lead-acid (wet cell) are cheapest but require venting and occasional water top-ups. Absorbed Glass Mat (AGM) batteries seal electrolyte in mats for vibration resistance, deeper discharges, and no maintenance—ideal for luxury cars, hybrids, or stop-start tech.

• Flooded: Affordable ($100-150), but spill-prone; side terminals common.
• AGM: Premium ($200+), faster recharge, 2x lifespan; supports high electronics draw.
• EFB (Enhanced Flooded): Mid-tier for mild start-stop; bridges flooded and AGM.
• Lithium-Ion: Emerging for racing/lightweight apps; not yet mainstream due to cost.

Upgrade to AGM if your car supports it, but verify charging system compatibility to avoid under/overcharge. Avoid undersized units—they trigger errors or fail prematurely.

Gathering Tools and Safety Prep

Safety first: batteries contain corrosive acid and explosive hydrogen gas. Park on level ground, engage parking brake, and let engine cool.

• Essentials: Gloves, safety glasses, socket wrench (8-10mm common), wire brush, baking soda/water mix for cleaning.
• Optional: Battery terminal grease, anti-corrosion washers, carry strap for heavy lifting (40-60 lbs).
• Pro tip: Cover non-working accessories with rags to prevent shorts.

Work in well-ventilated areas; no smoking or sparks.

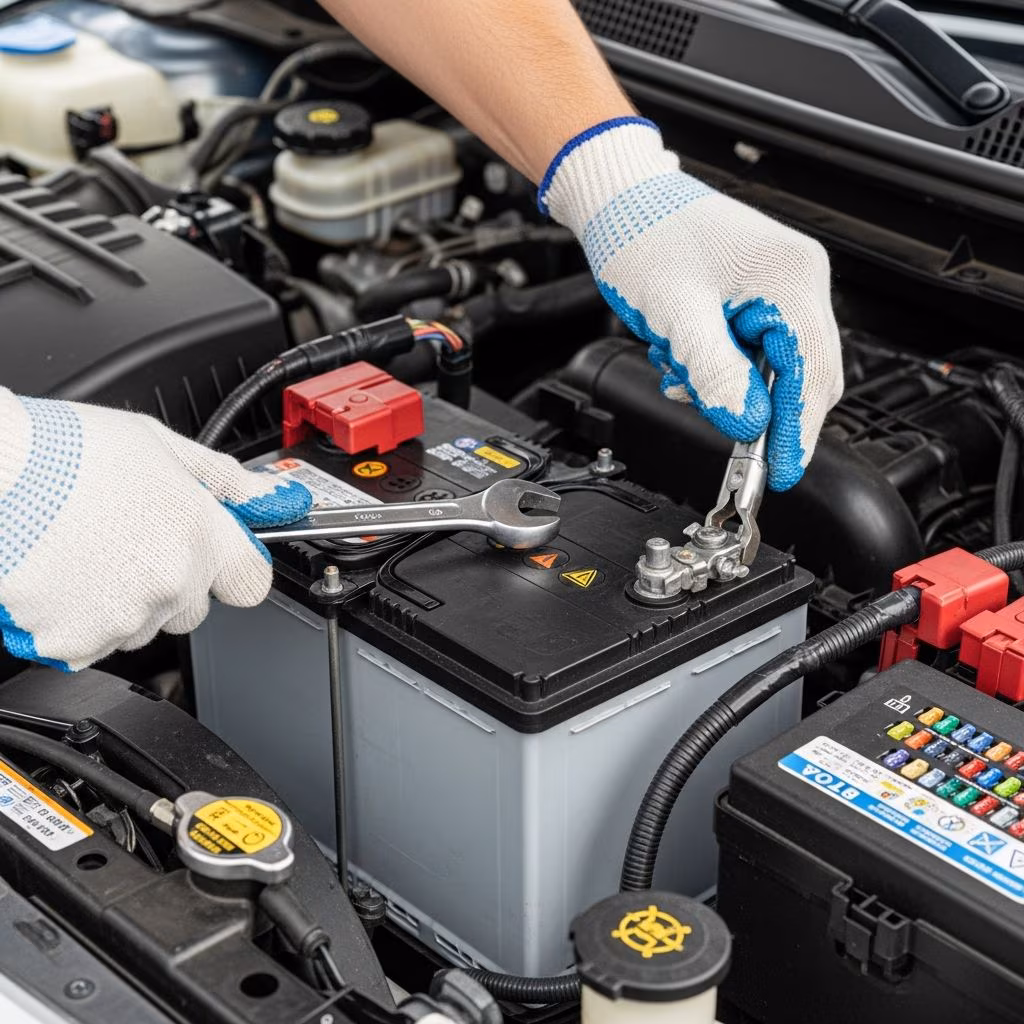

Step-by-Step Removal Process

Follow this sequence to minimize risks.

1. Locate battery: Usually engine bay; check manual for boot/undercarriage variants. Remove covers/clamps.
2. Disconnect negative (- black) first: Loosen nut, wiggle off, tuck cable away.
3. Disconnect positive (+ red) second: Same process; insulate if nearby metal.
4. Release hold-down: Unscrew bracket/rod; avoid bending tray.
5. Lift out: Use handles or strap; place on cardboard to catch drips.

Clean tray and cables: scrub corrosion with baking soda solution, rinse, dry. Inspect for damage.

Installing the Fresh Battery

Reverse removal with care.

6. Position new unit: Align terminals correctly; seat firmly.
7. Secure hold-down: Tighten to spec (avoid over-crush).
8. Attach positive first: Firm connection, then negative.
9. Apply protection: Coat terminals with grease/washers.
10. Test start: Run engine, check lights/accessories. Volt meter should read 13.7-14.7V charging.

Reset clock/radio codes if needed. Drive 20+ minutes to recharge.

Maximizing Battery Longevity

Prevent repeats with habits.

• Inspect quarterly: Tighten connections, clear corrosion.
• Avoid deep drains: Don’t leave lights on; use trickle charger for storage.
• Climate tweaks: Insulate in cold; shade in heat.
• Parasitic draw test: Unplug negative, use multimeter (<50mA normal).
• Annual check: Free at chains; before trips.

AGM lasts 5-7 years; flooded 3-4.

Responsible Disposal and Recycling

Old batteries are hazardous waste: lead and acid pollute. Never trash—return to retailer for core credit ($5-20). Auto parts stores/recyclers process 99% materials safely. Local hazardous waste sites accept free. Laws mandate recycling; contributes to 2M tons yearly U.S. recovery.

Common Pitfalls and Fixes

Frequently Asked Questions

Can I replace with higher CCA?

Yes, if size fits; extra cold-start power doesn’t harm.

Why won’t my car start after swap?

Check polarity, tightness, fuses. ECU may need reset.

AGM vs. flooded: when to choose?

AGM for advanced features; flooded for basics.

How often test battery?

Yearly or before winter/long drives.

Cost range?

$100-300; cores refundable.
