Real Driving Emissions Test: 2025 Guide For Drivers And Buyers

The Real Driving Emissions (RDE) test represents a pivotal shift in automotive regulation, designed to capture a vehicle’s true environmental impact under everyday driving scenarios rather than artificial lab conditions. Introduced to address discrepancies between official figures and on-road reality, RDE complements lab-based protocols like WLTP, enforcing stricter accountability on manufacturers.

Origins and Necessity of Real-World Emission Testing

Prior to 2017, emission certifications relied heavily on the New European Driving Cycle (NEDC), a 20-minute lab simulation that often understated pollutants like nitrogen oxides (NOx) and particulate matter (PM) by factors of up to 10 times in real use. This led to widespread scandals, highlighting how vehicles optimized for tests performed poorly in traffic, cold starts, or highways.

The transition to World Harmonised Light Vehicle Test Procedure (WLTP) in 2017 marked progress with longer, dynamic 30-minute cycles, but regulators recognized lab limits. Enter RDE: mandatory from 2018 for new vehicle approvals in the EU, it mandates on-road validation to confirm WLTP data translates to public roads.

Core Mechanics of the RDE Protocol

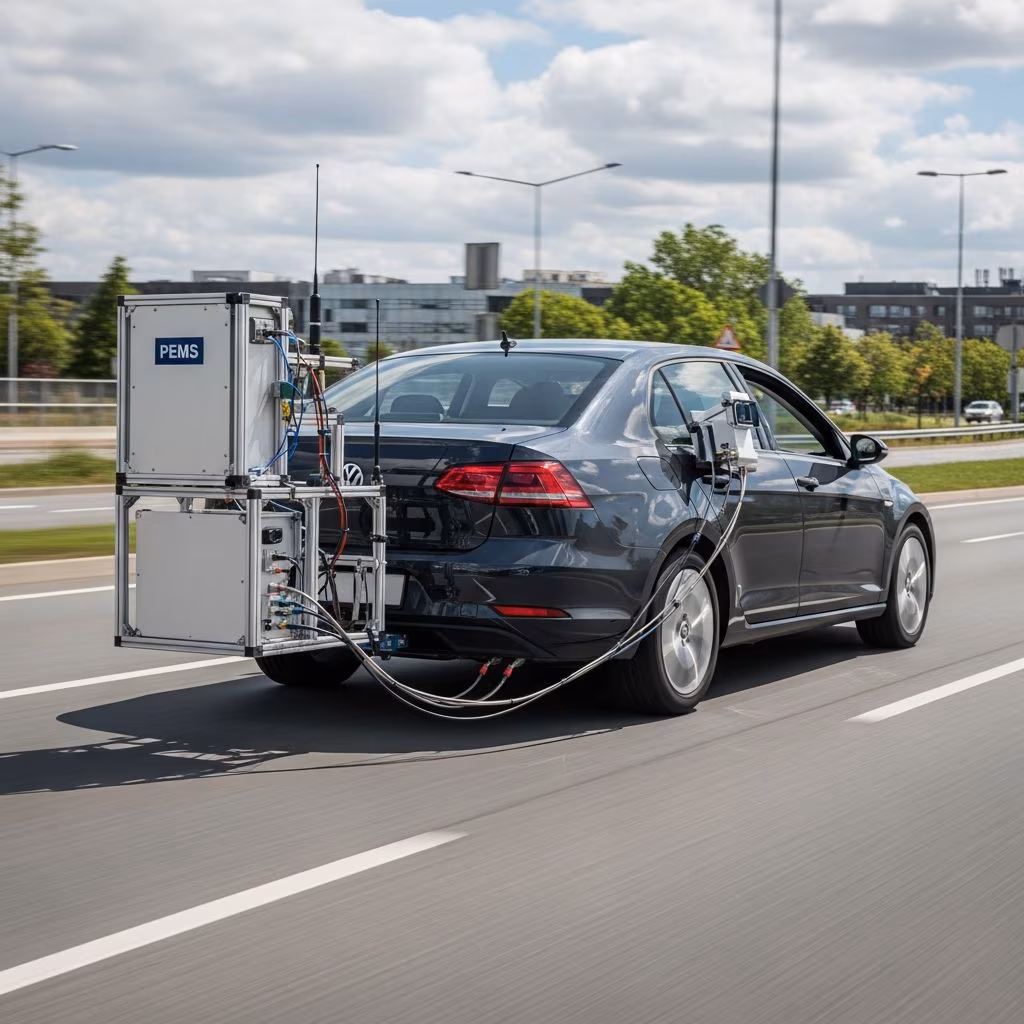

RDE employs Portable Emissions Measurement Systems (PEMS), compact devices strapped to the vehicle’s exhaust, tailpipe, and onboard computer. These units sample gases continuously, logging NOx, PM, CO2, hydrocarbons, and particle numbers in real-time.

Tests span 90-120 minutes, mimicking diverse routines:

• Urban phase: Low speeds (23 km/h average), frequent stops for congestion simulation.
• Rural phase: Moderate speeds (45 km/h average) on secondary roads.
• Motorway phase: High speeds over 62 mph (100 km/h) for sustained cruising.

Variables like payload (extra 100kg), temperatures (-7°C to 35°C), altitudes up to 1,300m, and weather are factored in via correction algorithms. Data undergoes post-processing with conformity factors (CF): initially 2.1 for NOx (2017-2019), tightened to 1.5 under RDE Phase 2 from 2020, aiming for 1.0 by 2025-2027 with a 0.5 margin for uncertainties.

This table summarizes evolution, sourced from regulatory frameworks.

Technical Depth: PEMS Operation and Data Analysis

PEMS integrates sensors for exhaust flow, gas analyzers (NDIR for CO2, chemiluminescence for NOx), and particle counters. Raw data converts to distance-specific mass emissions (mg/km), normalized by CO2 ratios to WLTP baselines via evaluation factors (RF). The formula ensures fairness: emissions must stay below Not-To-Exceed (NTE) limits, NTE = CF × Euro 6 threshold.

For hybrids and EVs, adaptations focus on tailpipe-only for ICE components, excluding grid emissions. In-service conformity (ISC) extends RDE to post-sale monitoring for market surveillance.

Accuracy Gains Over Legacy Methods

RDE’s edge lies in variability capture: NEDC ignored cold engines (40% of NOx), aggressive acceleration, or idling, inflating ‘clean’ ratings. WLTP improved dynamism but stayed indoors. RDE’s two-hour road loops, while not lifetime proxies, yield comparable cross-vehicle metrics, slashing real-lab gaps to under 50%.

Limitations persist—short duration misses long-term degradation, extreme climates, or driver styles—but statistical averaging from multiple trips (min 4 per model) boosts reliability. Studies confirm diesels now emit 70-90% less NOx on-road versus pre-RDE eras.

Global Reach and Regulatory Evolution

While EU-centric (Regulation 2016/427), RDE influences worldwide: UK post-Brexit aligns, China explores PEMS for China 6, US EPA eyes real-world for HDVs. Euro 7 proposals (2025+) integrate RWE for all pollutants, including ammonia and non-exhaust PM from brakes/tires.

• EU: Mandatory for M1/N1 vehicles >2021.
• HDVs: In-Service RWE via ISM.
• Non-road: NRMM adaptations.

Manufacturer Adaptations and Consumer Benefits

Compliance demands advanced tech: selective catalytic reduction (SCR) for NOx, gasoline particulate filters (GPF), cylinder deactivation. Brands like Kia, Mercedes publish RDE data via ACEA portals, fostering transparency.

Buyers gain realistic MPG/CO2 for tax, leasing; fewer lemons as ‘test-cheaters’ fail. Cleaner fleets cut urban PM2.5, NOx—linked to 400k premature EU deaths yearly pre-reforms.

Challenges and Ongoing Refinements

Critics note PEMS costs (£50k/unit), test route gaming, or over-correction. Phase 3 eyes colder weather, longer trips. Digital PEMS (model-based) promise scalability.

Effectiveness shines: post-RDE, compliant diesels rival petrols on NOx, petrols need GPFs—market shift to hybrids/EVs accelerates.

Frequently Asked Questions

What pollutants does RDE measure?

Primarily NOx, PN (particles), CO, HC; CO2 for normalization.

Does RDE apply to electric vehicles?

No direct tailpipe, but hybrids tested in charge-depleting modes; focus on ICE components.

How has RDE changed car prices?

Indirectly via tech adds (5-10% for diesels), but efficiencies offset.

Can I access my car’s RDE results?

Yes, via manufacturer sites or ACEA database for EU models.

Is RDE replacing WLTP?

No, it validates it—dual certification required.
