Range Rover Steering Swivels: 7-Step Overhaul Guide

Steering swivels are vital components in Range Rovers, especially models with solid front axles, enabling smooth wheel articulation during off-road maneuvers and precise handling on roads. Over time, these assemblies endure heavy stress from mud, water, impacts, and corrosion, leading to wear that compromises safety and performance. This guide provides a thorough approach to diagnosing issues, overhauling worn parts, or fully replacing the swivel assembly, empowering owners to restore their vehicle’s front-end integrity.

Understanding Steering Swivel Mechanics

The steering swivel, often called the swivel hub or ball joint housing, connects the stub axle and hub to the front axle beam. It houses bearings and seals that allow vertical wheel movement while transmitting steering inputs from the track rod and drag link. Key elements include the inner swivel ball, outer housing, upper and lower swivel pins, oil seals, and grease fittings. In Range Rovers like the Classic and early Defenders with similar setups, the exposed ball joint is prone to pitting from road salt, dirt ingress, and insufficient lubrication, which erodes seals and causes play or leaks.

Regular maintenance prevents catastrophic failure. Swivels pivot on tapered roller bearings lubricated by grease, with oil seals protecting against contaminants. Neglect leads to bearing seizure, steering vagueness, or hub wobble, signaling immediate attention. Manufacturers recommend annual inspections, particularly for off-road use, as environmental exposure accelerates degradation.

Spotting Swivel Wear and Failure Signs

Early detection saves costs. Common symptoms include:

• Excessive steering play or wandering, felt as looseness in the wheel.
• Oil or grease leaks from the swivel housing, indicating seal failure.
• Clunking noises over bumps, from worn bearings or loose pins.
• Uneven tire wear or pulling, due to misalignment from swivel play.
• Visible corrosion or pitting on the swivel ball, confirmed by jacking the wheel and checking for up-down or side-to-side movement exceeding 2-3mm.

To diagnose, safely jack the front axle, support with stands, and grasp the tire at 12 and 6 o’clock positions, rocking it to check vertical play. Repeat at 3 and 9 o’clock for horizontal movement. Any noticeable freedom points to swivel issues. Inspect seals for tears and housings for cracks.

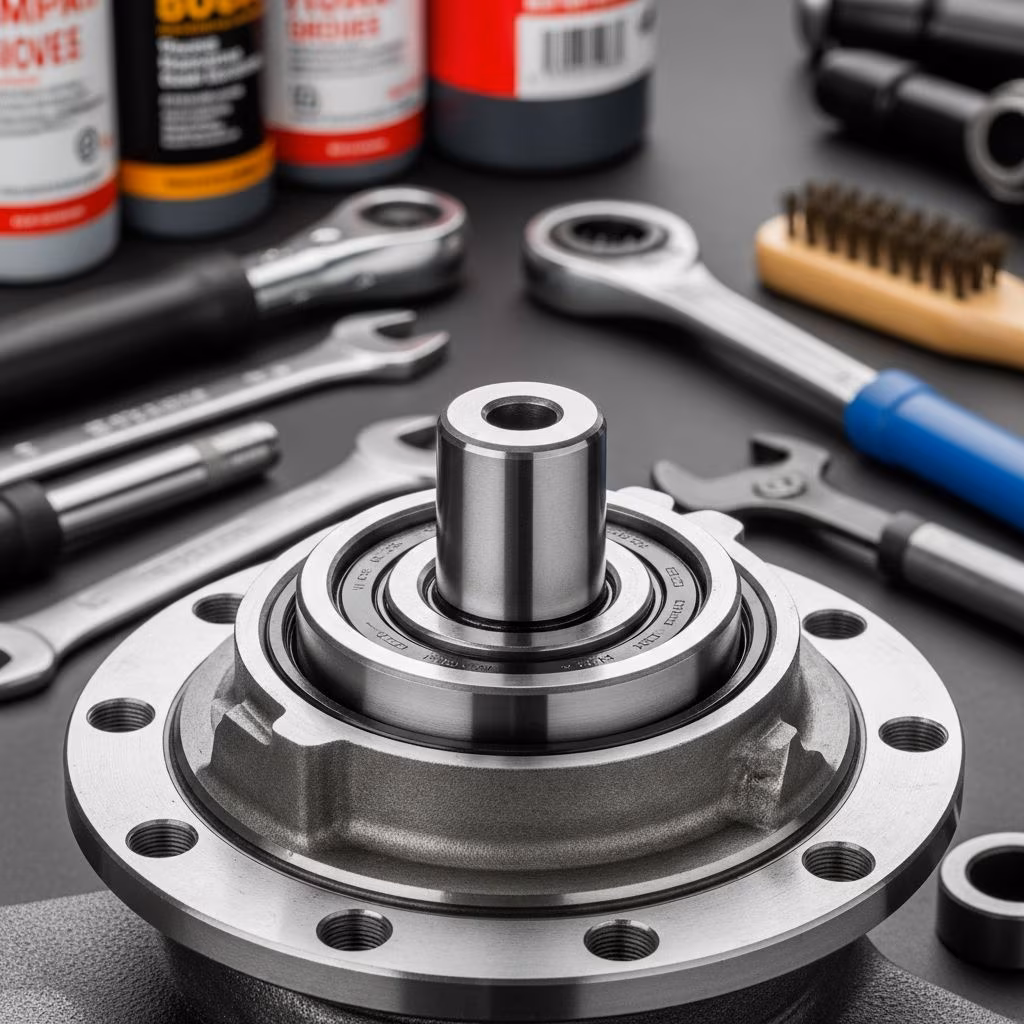

Essential Tools and Parts for the Job

Gathering the right equipment streamlines the process. Expect 4-6 hours for both sides if working methodically.

Required Tools

Parts List

Opt for a complete rebuild kit (e.g., equivalent to DA3179 for compatible VINs), costing around £110, including housing, bearings, seals, pins, shims, gaskets, and grease. Use high-strength thread locker like Loctite 270 on critical bolts. Additional items: new split pins, O-rings, and swivel grease. Verify compatibility with your model’s VIN, as ABS and non-ABS variants differ.

Preparation and Safety Protocols

Park on level ground, chock rear wheels, and disconnect the battery. Wear gloves and eye protection. Drain any residual oil from hubs. Work one side at a time to use the opposite as reference. Label bolts for reinstallation. Torque specs are critical: swivel bolts (73-78Nm), hub nut (210Nm), drive flange (82Nm).

Step-by-Step Disassembly Process

Begin with the wheel off, caliper secured aside after removing its bolts.

1. Detach Steering Links: Remove split pins and castellated nuts from track rod and drag link ball joints. Use a separator tool to pop them free without damage.
2. Remove Brake Components: Unbolt caliper (two bolts), hang it safely. Detach brake pipe bracket.
3. Extract Driveshaft: Pry off dust cap, remove circlip and shim. Undo five drive flange bolts, pry flange from hub.
4. Hub Removal: Loosen hub nut (210Nm reverse), pull hub and disc off stub axle. Extract bearings and spacer.
5. Stub Axle Separation: Undo six bolts on stub axle carrier plate, slide stub axle out. Clean mating faces.
6. Swivel Housing Detachment: Remove seven bolts from inner swivel ball to axle tube. Extract assembly.
7. Internal Breakdown: Unscrew upper swivel pin bolts, remove retaining plate. Lift inner ball from outer housing. Press out lower bearing, clean debris.

Inspect all components: replace pitted balls, scored pins, or damaged seals. Discard old bearings.

Reassembly and Overhaul Techniques

Clean housings meticulously with degreaser.

1. Install New Bearings: Press outer races into inner swivel ball squarely using a drift. Pack bearings with swivel-specific grease.
2. Seal Fitting: Drive new oil seal into flange, lip outward. Lubricate thoroughly.
3. Reunite Housings: Align lower pin/bearing, insert inner into outer housing. Fit upper pin, shims, gasket; torque bolts to 78Nm with thread locker.
4. Mount to Axle: New gasket on axle tube, apply thread locker to seven bolts, torque to 73Nm evenly.
5. Stub Axle and Hub: Slide halfshaft into differential, position stub axle (flat up). Refit hub, bearings, nut; torque to 210Nm, stake nut. Check end float (<0.15mm).
6. Drive Components: Reinstall flange, circlip, shim; torque bolts to 82Nm.
7. Final Assembly: Brake caliper, steering links (new split pins), filler plug. Grease swivel via zerk fitting until purge.

Test for smooth rotation and no binding.

Common Challenges and Pro Tips

Seized bearings may require heat or penetrating oil. Use a slide hammer for stubborn hubs. Ensure shims adjust preload correctly—too tight binds, too loose wears prematurely. Post-rebuild, perform a wheel alignment. For off-roaders, upgrade to heavy-duty bearings and synthetic grease for extended life.

Avoid over-greasing, which blows seals. Monitor torque after 100 miles. Pair swivel work with tie rod end replacement for completeness.

Cost Breakdown and Time Estimates

Frequently Asked Questions

How often should I service Range Rover swivels?

Inspect annually or every 10,000 miles; overhaul at signs of wear or every 5 years for heavy use.

Can I drive with worn swivels?

No—play risks steering failure. Address immediately.

What’s the difference between overhaul and replacement?

Overhaul reuses serviceable housing with new bearings/seals; replacement uses full new assembly for severe damage.

Do I need special tools for Land Rover swivels?

Standard workshop tools suffice, plus hub socket and torque wrench.

Will this fix death wobble?

Often yes, if swivel play contributes; check other components too.

Long-Term Maintenance Strategies

Prevent recurrence with monthly grease checks, underbody washes post-off-road, and polyurethane bush upgrades. Track service history to predict failures. Professional alignment post-repair ensures even wear. Enthusiasts report rebuilt swivels lasting 50,000+ miles with care.

Investing time here enhances safety, resale value, and adventure readiness for your Range Rover.
