PC Airflow: Positive vs Negative Pressure Guide

Air pressure management inside a PC case determines cooling efficiency, dust accumulation, and overall system longevity. Positive pressure pushes fresh air in through filtered intakes, minimizing unfiltered dust entry, while negative pressure creates a vacuum effect to rapidly exhaust hot air, though it risks pulling in more debris. This guide breaks down both approaches for gaming PC builders seeking the best balance.

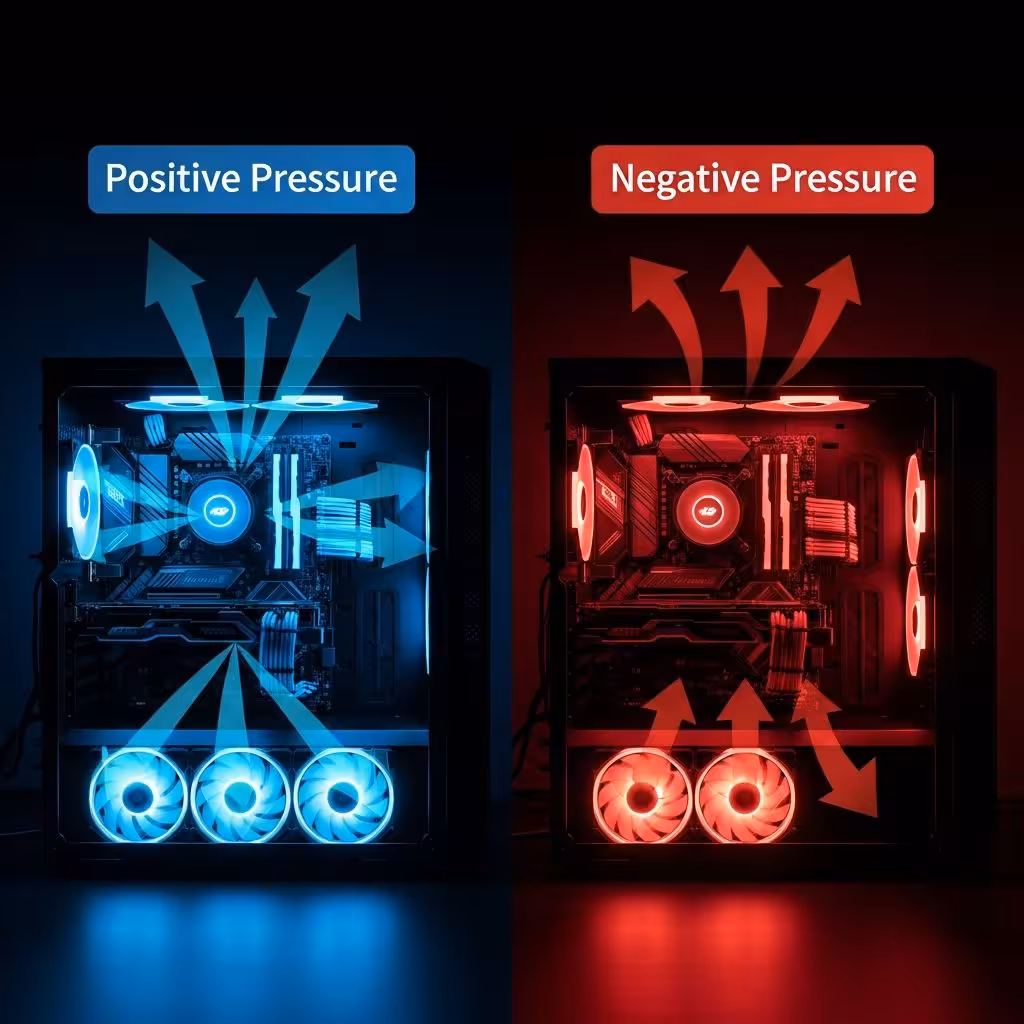

Understanding Air Pressure Basics in PC Cases

Air pressure in a PC refers to the balance between incoming and outgoing airflow created by case fans. Fans can be configured as intake (drawing cool air in) or exhaust (expelling hot air out). The net effect—whether more air enters, exits, or balances—defines the pressure type: positive, negative, or neutral.

• Positive pressure: More intake than exhaust, creating higher internal pressure that forces excess air out through gaps.
• Negative pressure: More exhaust than intake, lowering internal pressure and sucking air in from any openings.
• Neutral pressure: Balanced intake and exhaust for steady flow without extremes.

This dynamic directly influences how heat dissipates from components like CPUs, GPUs, and motherboards, as well as how dust infiltrates the system.

How Positive Pressure Works and Its Core Benefits

In a positive pressure setup, intake fans—often front-mounted—outnumber or overpower exhaust fans at the rear and top. This floods the case with cool external air, pressurizing the interior and pushing stale, heated air out via minor vents or seams.

Key advantages include reduced dust buildup, as incoming air passes primarily through filtered panels, blocking particles from entering unfiltered cracks. Systems stay cleaner longer, requiring less maintenance and sustaining cooling performance over time.

Additionally, positive setups promote quieter operation. Fans can spin at lower speeds since fresh air supply is abundant, minimizing noise during gaming sessions. For high-performance rigs with power-hungry GPUs and CPUs, this maintains lower sustained temperatures without aggressive fan curves.

Negative Pressure Explained: Mechanics and Advantages

Negative pressure flips the script: exhaust fans dominate, evacuating air faster than intakes replenish it. This generates lower-than-atmospheric pressure inside, drawing air through every available opening—front panels, PCIe slots, and cable gaps—like a vacuum.

Despite dust concerns, negative pressure excels in heat evacuation. Hot air from GPUs and CPUs gets swiftly pulled away, preventing stagnation and hotspots. Smoke tests reveal turbulent airflow that scrubs heat from surfaces efficiently, benefiting passively cooled parts like SSDs or RAM.

For GPUs in restrictive cases or small form factor (SFF) builds, negative setups shine. Air enters near the GPU via bottom or side vents, and nearby exhaust fans remove heat promptly, often yielding lower GPU temps than positive configurations.

Drawbacks of Each Air Pressure Setup

No approach is perfect. Positive pressure can lead to uneven cooling if intake paths don’t align with heat sources, potentially creating dead zones. Dust still enters eventually, though slower.

Negative pressure’s Achilles’ heel is dust ingress. Unfiltered air from cracks accelerates buildup on heatsinks and boards, choking airflow and risking corrosion if neglected. Fans may run louder and faster to compensate.

Neutral pressure avoids extremes but may underperform in demanding gaming scenarios, where rapid heat removal matters.

Building a Positive Pressure Gaming PC

Start with a mesh-front case for optimal intake. Install 3x 120mm or 140mm intake fans upfront, 1x rear exhaust, and optionally 1-2 top exhausts. Ensure intake CFM (cubic feet per minute) exceeds exhaust by 20-30%.

1. Mount largest fans as intakes.
2. Use dust filters on all intakes.
3. Test with software like HWInfo; adjust curves for balance.

This suits most gamers prioritizing low maintenance and silence.

Configuring Negative Pressure for Maximum Cooling

Opt for cases with GPU-proximate vents. Use 2x front/top intakes, but 3x+ exhausts (rear, top, bottom if available). Aim for 20% more exhaust CFM.

Schedule bi-monthly cleanings with compressed air. Pair with high-static-pressure fans for restricted paths. Excellent for overclocked GPUs or hot climates.

Case Selection: Matching Pressure to Design

Case design dictates viability. Mesh-heavy cases like Lian Li Lancool favor positive; solid-panel or SFF like NR200 suit negative.

• Positive-friendly: High intake area, filters included.
• Negative-friendly: Multiple exhaust mounts, bottom/side vents.

Test empirically: Run benchmarks, monitor temps/dust after weeks.

Fan Choices and Airflow Optimization Tips

Select fans by static pressure (mmH2O) for radiators/meshes, airflow (CFM) for open spaces. Noctua, Arctic, or be quiet! models balance noise/performance.

• Prioritize PWM fans for dynamic control.
• Reverse non-standard mounts if needed.
• Combine with good cable management to avoid turbulence.

Tools like FanControl software fine-tune curves post-build.

Real-World Performance Comparisons

Tests show positive setups 2-5°C warmer on GPUs but 30-50% less dust after months. Negative excels in peaks (e.g., 5-10°C GPU edge) but demands upkeep. Hybrid (slight positive/negative) often wins for versatility.

Common Myths About PC Air Pressure

Myth 1: Negative always dustier—true, but manageable.
Myth 2: Positive always better—fails in restrictive cases.
Myth 3: Pressure irrelevant—benchmarks prove otherwise.

FAQs

What is the best air pressure for gaming PCs?

Slight positive for most; negative for GPU-heavy/SFF.

Does negative pressure cool better?

Often yes for GPUs, but dust offsets long-term.

How to measure case pressure?

Compare intake/exhaust CFM; use smoke tests or anemometers.

Can I mix positive and negative?

Yes, hybrids (e.g., equal CFM) work well.

How often clean negative pressure builds?

Every 1-2 months.
