In the complex world of modern networking, maintaining order amid a web of cables is crucial for reliability and efficiency. Patch panels serve as the unsung heroes in this domain, providing a centralized hub for terminating and connecting network cables. These devices transform chaotic wiring into a structured system, making it easier to manage connections, perform maintenance, and scale operations. Whether in a bustling data center, a corporate wiring closet, or a home office setup, understanding patch panels empowers IT professionals to build robust networks.
Understanding the Core Role of Patch Panels in Networking
At its heart, a patch panel is a hardware frame designed to house multiple ports for cable termination. It acts as an intermediary between permanent building wiring and active network equipment like switches and routers. Incoming cables from various locations—such as offices, floors, or even campus buildings—are securely fastened to the rear of the panel. Short, flexible patch cords then link the front ports to network devices, creating temporary yet reliable connections.
This setup decouples the fixed infrastructure from changeable equipment, allowing quick reconfigurations without disrupting the entire cabling system. For instance, when adding a new workstation or troubleshooting a faulty line, technicians simply swap patch cords rather than rewiring the whole building. This modularity is especially valuable in dynamic environments where moves, adds, and changes (MACs) are routine.
Key Components and Design Features

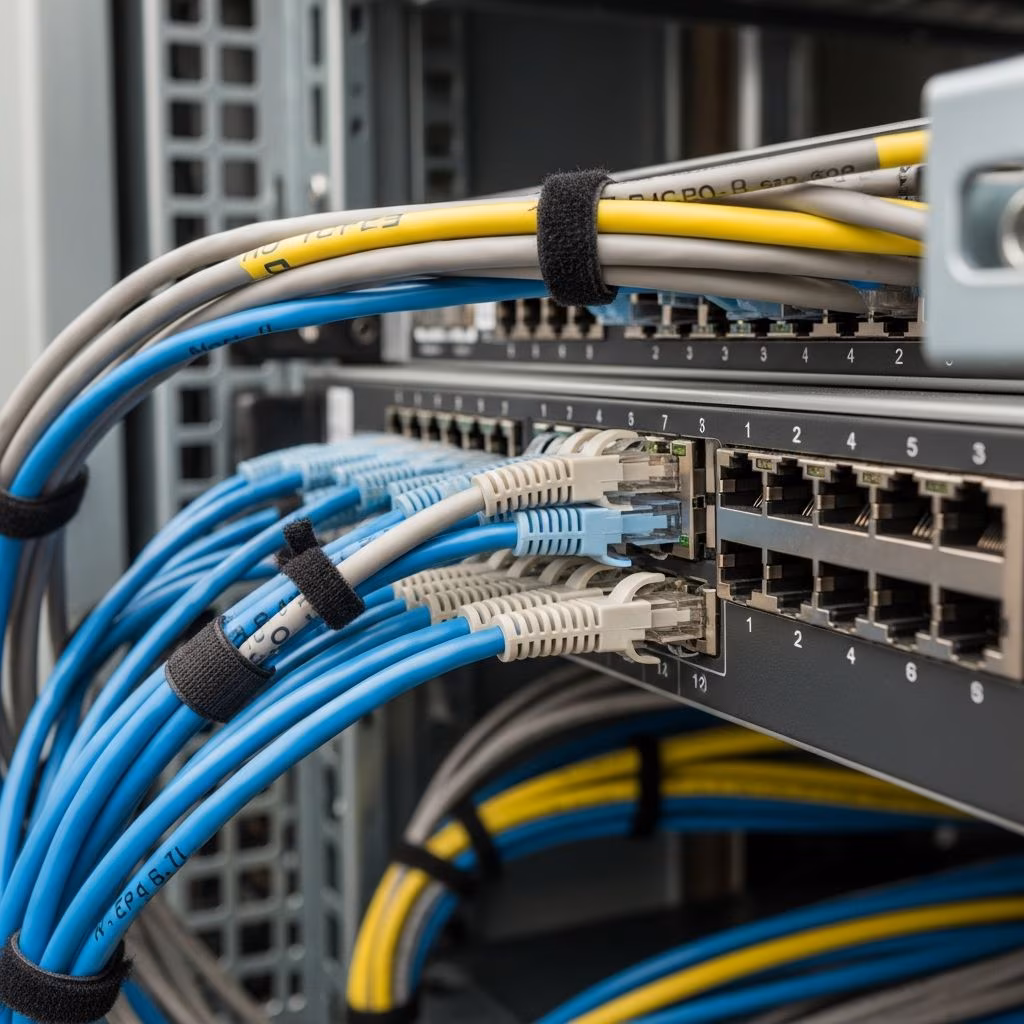

Patch panels typically feature a rack-mountable chassis, often 1U or 2U in height, fitting standard 19-inch server racks. The front side boasts numbered RJ-45 jacks or fiber optic couplers, each corresponding to a labeled termination point on the back. Insulation-displacement connectors (IDCs) are common for copper cables, enabling tool-based punching down of twisted-pair wires without stripping insulation fully.
- Port Density: Ranges from 12 to 96 ports per panel, scalable via stacking.
- Labeling Systems: Integrated slots for port labels ensure traceability.
- Shielding Options: Shielded variants reduce electromagnetic interference (EMI) in high-density setups.
- Locking Mechanisms: Some models include port locks to prevent accidental disconnections.
Modern panels also incorporate color-coding aligned with TIA/EIA-568 standards, aiding in quick identification of wire pairs (e.g., T568A or T568B configurations).
Types of Patch Panels for Diverse Applications
Patch panels aren’t one-size-fits-all; they vary by cable type and use case to match specific network demands.
| Type | Cable Support | Common Uses | Key Advantages |
|---|---|---|---|
| Cat5e/Cat6 Copper | Twisted-pair Ethernet up to 10Gbps | LANs, offices | Cost-effective, high port density |
| Fiber Optic | Single-mode/multimode LC/SC connectors | Data centers, long-haul links | Low latency, immunity to EMI |
| Coaxial | BNC/F-type connectors | Legacy video, CCTV | Robust for analog signals |
| Hybrid | Mixed copper/fiber | AV rooms, converged networks | Versatile integration |
Copper panels dominate enterprise LANs due to their compatibility with standard Ethernet, while fiber panels excel in backbone connections requiring high bandwidth over distance.
Installation Best Practices for Optimal Performance
Proper installation is key to longevity and signal integrity. Begin by selecting a panel matching your cable category and rack space. Mount it at eye level in the rack for easy access, typically above or below switches.
- Prepare Cables: Measure runs, avoiding excessive bends (minimum bend radius: 4x cable diameter).
- Terminate Rear Ports: Use a punch-down tool for IDCs, following color codes precisely.
- Label Everything: Apply machine-printed labels on ports and cable ties.
- Test Connections: Employ a cable certifier to verify continuity, length, and crosstalk.
- Dress Cables: Use horizontal managers and velcro ties to prevent strain.
Avoid common pitfalls like over-tightening punch-downs, which can damage wires, or mixing T568A/B schemes, leading to polarity issues.
Benefits Driving Adoption in IT Infrastructure
Patch panels deliver tangible ROI through enhanced organization and reduced downtime.
- Cable Management: Eliminates spaghetti wiring, improving airflow and aesthetics.
- Scalability: Easily expand by adding panels without major rewiring.
- Troubleshooting Efficiency: Isolate faults by unplugging suspect ports.
- Compliance: Supports audits with clear documentation.
- Cost Savings: Extends active gear lifespan by minimizing direct plugs.
In large deployments, they centralize management, enabling a single technician to oversee hundreds of connections.
Integration with Active Network Equipment
Patch panels bridge passive cabling to active devices seamlessly. A typical topology places the panel between wall outlets and a top-of-rack switch. Patch cords—pre-terminated with RJ-45 plugs—form the final links, often 1-3 meters long to minimize latency.
For redundancy, dual-feed panels connect to stacked switches. In PoE environments, ensure panels support power passthrough without voltage drop.
Advanced Features in Next-Gen Patch Panels
Today’s panels go beyond basics with intelligent capabilities. Managed patch panels integrate LCD screens or RFID for automated port tracking. Software like DCIM tools monitors usage, alerting on unused ports or unauthorized changes.
Modular designs allow hot-swappable cassettes, reducing downtime during upgrades. Eco-friendly options use recyclable plastics and low-halogen materials.
Common Challenges and Troubleshooting Tips
Despite reliability, issues arise. Intermittent connectivity often stems from loose punch-downs—re-punch with proper tension. High crosstalk? Check for split pairs via certification testing.
For fiber panels, clean connectors meticulously to avoid attenuation. Dust caps and inspection scopes are must-haves. In dense racks, monitor temperature; panels aid cooling by organizing cables away from vents.
Real-World Applications Across Industries
Beyond IT, patch panels shine in broadcasting (video patch bays), telephony (PBX terminations), and security (CCTV matrices). In smart buildings, they unify IoT, AV, and data networks.
Case in point: A mid-sized firm reduced MAC times by 70% post-patch panel deployment, per industry benchmarks.
Future Trends Shaping Patch Panel Evolution
As 400G Ethernet and 5G converge, panels will support higher densities and SFP-DD modules. AI-driven cable management predicts failures via vibration sensors. Sustainability pushes for modular, repairable designs.
Frequently Asked Questions
What is the difference between a patch panel and a switch?
A patch panel is passive, organizing cables without signal processing. Switches actively route data between ports.
Can I use patch panels for home networks?
Yes, compact 12-24 port panels suit home labs or small offices, simplifying wall-to-router connections.
How do I choose between shielded and unshielded panels?
Use shielded (STP) in noisy environments like factories; unshielded (UTP) suffices for offices.
Are blank patch panels customizable?
Absolutely—add modules for specific connectors post-purchase.
What’s the lifespan of a patch panel?
10-20 years with proper care; ports withstand 750+ insertions.
