OSI Model: 7 Layers Explained, A Complete Guide For Engineers

The Open Systems Interconnection (OSI) model stands as a cornerstone in the field of computer networking. Developed by the International Organization for Standardization (ISO), this conceptual framework divides the complexities of network communication into seven distinct layers. Each layer serves a unique purpose, ensuring that data moves seamlessly from one device to another across diverse networks.

Understanding the OSI model is crucial for network engineers, IT professionals, and anyone involved in telecommunications. It provides a standardized way to analyze, design, and troubleshoot networks, regardless of the underlying hardware or software. By breaking down communication into manageable components, the model promotes interoperability between different vendors’ equipment and simplifies complex problem-solving.

Why the OSI Model Matters in Today’s Networks

In an era of cloud computing, IoT devices, and 5G networks, the OSI model remains relevant. It acts as a universal language that transcends specific protocols like TCP/IP. When a connection fails, professionals can systematically check each layer to pinpoint issues—whether it’s a faulty cable at Layer 1 or a misconfigured application at Layer 7.

The model’s layered approach also facilitates modular development. Changes in one layer rarely affect others, allowing innovations in routing algorithms without overhauling physical infrastructure. This modularity has influenced standards bodies and protocol designers worldwide.

Core Principles of Layered Network Architecture

At its heart, the OSI model relies on two key processes: encapsulation and de-encapsulation. When data originates from an application, it travels downward through the layers, gaining headers (and sometimes trailers) at each step. This wrapping process prepares the data for transmission. Upon reaching the destination, the data ascends the layers, shedding headers until the original message is reconstructed.

• Encapsulation: Adding protocol-specific information as data descends the stack.
• De-encapsulation: Removing headers as data ascends, verifying integrity at each layer.
• Peer-to-Peer Communication: Layers communicate with their counterparts on remote devices via protocol data units (PDUs).

This structured methodology ensures reliability, error detection, and efficient routing across global networks.

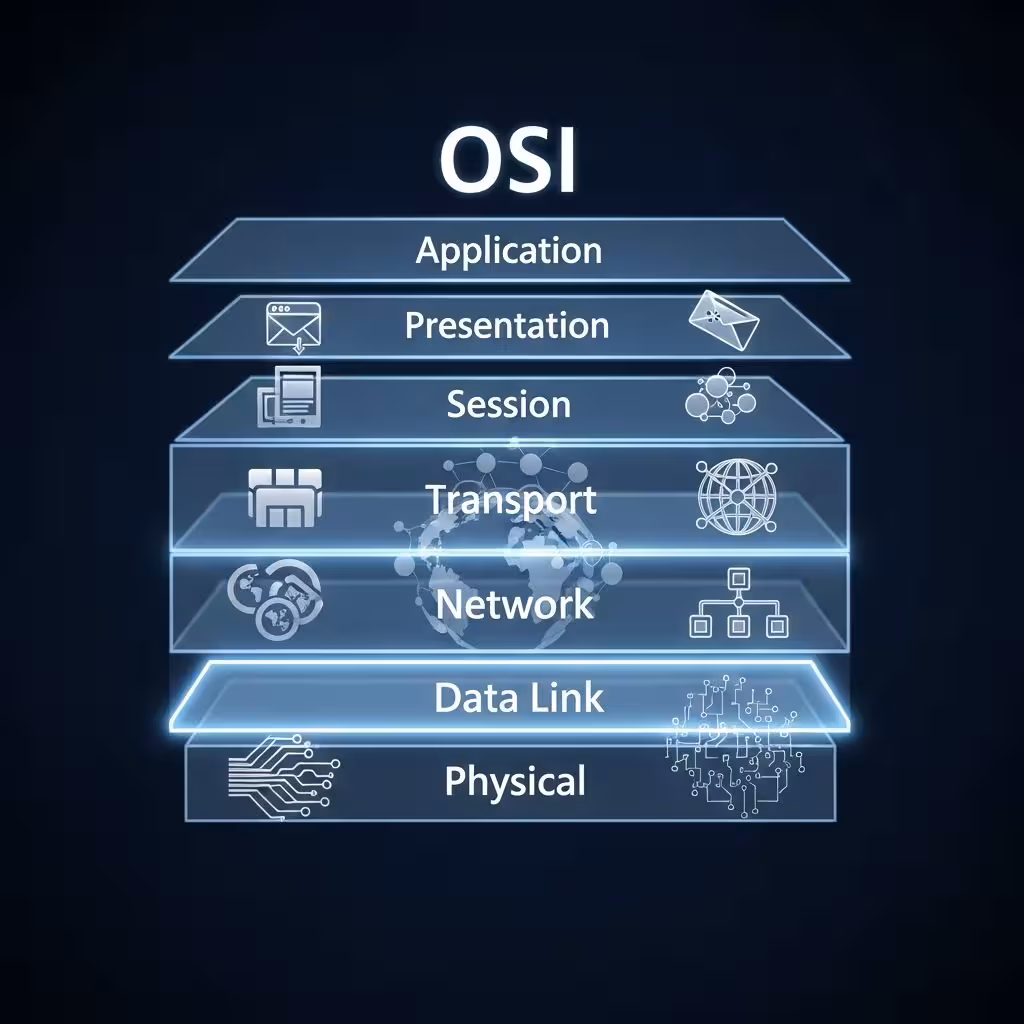

Breaking Down the Seven Layers

The OSI model organizes functions into lower layers (focused on hardware and local delivery) and upper layers (handling software and user-facing tasks). Here’s a detailed examination of each.

Layer 1: Physical Layer – The Foundation of Transmission

The Physical layer deals with the raw transmission of bits over physical media. It defines electrical, mechanical, and functional specifications for activating, maintaining, and deactivating physical links. Think of it as the cables, connectors, and signals that carry data.

Key responsibilities include:

• Bit synchronization and transmission rates.
• Physical topologies like star, bus, or ring.
• Signal encoding (e.g., Manchester or NRZ).

Devices: Hubs, repeaters, network interface cards (NICs). Common issues: Cable faults or electromagnetic interference.

Layer 2: Data Link Layer – Reliable Local Delivery

Building on Layer 1, the Data Link layer ensures error-free transfer between directly connected nodes. It frames data into manageable units and handles addressing via MAC addresses.

Subdivided into Logical Link Control (LLC) and Media Access Control (MAC) sublayers, it performs:

• Error detection and correction using CRC.
• Flow control to prevent overwhelming receivers.
• Access control in shared media (e.g., CSMA/CD).

Devices: Switches, bridges. Protocols: Ethernet, PPP.

Layer 3: Network Layer – Global Routing and Addressing

The Network layer enables communication between devices on different networks. It uses logical addresses (IP addresses) for routing packets across routers.

This layer is pivotal for internet-scale connectivity.

Layer 4: Transport Layer – End-to-End Reliability

The Transport layer provides reliable data transfer services between hosts. It segments data, manages congestion, and ensures delivery.

• Connection-Oriented (TCP): Reliable, with acknowledgments and retransmissions.
• Connectionless (UDP): Faster, best-effort delivery.

Features: Port addressing, multiplexing, flow control. Critical for applications requiring data integrity.

Layer 5: Session Layer – Managing Connections

The Session layer establishes, manages, and terminates communication sessions. It handles dialog control, synchronization, and recovery from disruptions.

Functions include checkpointing for long transfers and token management for half-duplex scenarios. Protocols: NetBIOS, RPC.

Layer 6: Presentation Layer – Data Translation

This layer translates data between application format and network format. It manages syntax, encryption, compression, and character encoding (e.g., ASCII to EBCDIC).

Ensures that diverse systems interpret data consistently, handling JPEG compression or SSL encryption transparently.

Layer 7: Application Layer – User Interface

The topmost layer interfaces directly with user applications. It provides network services like file transfer, email, and web browsing.

Protocols: HTTP, FTP, SMTP, DNS. Not the applications themselves, but the protocols they use.

Data Flow Through the OSI Layers: A Practical Example

Imagine sending an email from New York to Tokyo:

1. Application (7): Email client composes message.
2. Presentation (6): Encrypts and compresses.
3. Session (5): Establishes session with server.
4. Transport (4): Segments into TCP packets with ports.
5. Network (3): Adds IP addresses for routing.
6. Data Link (2): Frames with MAC addresses for local hops.
7. Physical (1): Converts to bits over fiber optic cable.

At the receiver, the process reverses, rebuilding the email.

OSI vs. TCP/IP: Complementary Frameworks

The TCP/IP model, with four layers, maps closely but combines OSI’s Session/Presentation/Application into one. OSI offers granular detail for learning; TCP/IP reflects real-world implementation.

• OSI: Theoretical, 7 layers.
• TCP/IP: Practical, 4-5 layers (Link, Internet, Transport, Application).

Troubleshooting with the OSI Model

Systematic diagnosis starts at Layer 1 (check cables) and moves up. Tools like ping (Layer 3), Wireshark (all layers), and traceroute aid isolation.

Security Implications Across Layers

Threats target specific layers: DDoS at Layer 3/4, SQL injection at Layer 7. Defenses like firewalls (Layer 3-4) and WAFs (Layer 7) align with OSI.

Common FAQs

What is the main purpose of the OSI model?

It standardizes network functions into seven layers for better interoperability and troubleshooting.

How does encapsulation work in OSI?

Data gains headers descending layers; headers are stripped ascending at the destination.

Which layer handles IP addressing?

Layer 3, the Network layer.

Is OSI used in real networks?

As a reference; TCP/IP is primary, but OSI guides design.

What devices operate at Layer 2?

Switches and bridges.

Future Relevance of the OSI Model

With emerging tech like 6G and quantum networks, OSI’s principles will evolve but endure, providing a timeless structure for innovation.
