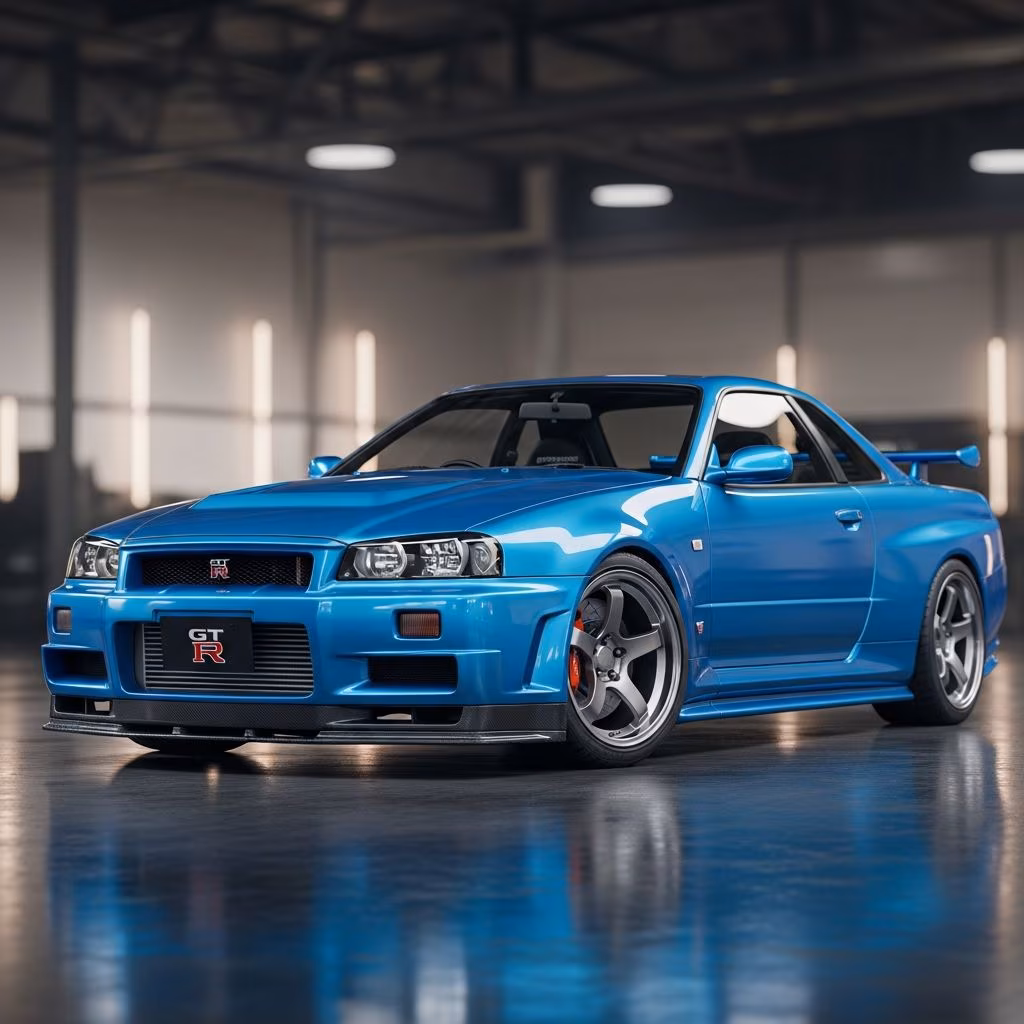

Nissan Skyline GT-R Z-Tune: 20 Hand-Built Nismo Masterpieces

The Nissan Skyline GT-R Z-Tune stands as one of the most revered modifications in automotive history, transforming the already legendary R34 GT-R into a street-legal supercar capable of dominating circuits worldwide. Crafted by Nismo, Nissan’s performance division, this machine pushed the boundaries of engineering with a bespoke engine, advanced aerodynamics, and race-bred components, all while maintaining road usability.

Origins of a Masterpiece

Development of the Z-Tune began in the early 2000s as Nismo sought to create the definitive version of the R34 Skyline GT-R. Starting with carefully selected low-mileage donor cars, engineers stripped them down to rebuild them with technology derived from Nissan’s GT500 racing program. The project aimed to deliver unparalleled performance without sacrificing the GT-R’s renowned all-wheel-drive handling characteristics.

Only 19 customer cars were produced between 2004 and 2005, plus a single prototype, making it one of the rarest production vehicles ever. Each Z-Tune was hand-assembled, with rigorous testing on both road and track to ensure reliability under extreme conditions.

Revolutionary Z2 Powerplant

At the heart of the Z-Tune lies the hand-built Z2 engine, an evolution of the iconic RB26DETT straight-six. Enlarged to 2.8 liters from the standard 2.6 liters, it features a GT500-derived cast-iron block with thicker cylinder walls for enhanced rigidity. Bore increased to 87mm and stroke to 77.7mm, yielding 2,771cc displacement—a 203cc gain over stock.

Key internals include lightweight forged pistons with cooling channels, a long-stroke forged crankshaft, and high-strength SNCM439 connecting rods. The cylinder head boasts optimized combustion chambers, high-lift camshafts, a metal head gasket, and a GT plenum intake manifold. Twin turbochargers, upgraded ECU, and a 8.5:1 compression ratio deliver 500 horsepower at 6,800rpm and 398 lb-ft of torque at 5,200rpm—nearly double the original GT-R’s output.

This power surge is managed through a Super Coppermix twin-plate clutch, carbon fiber driveshaft, and transmission/differential oil coolers with electric pumps for sustained high-speed operation.

Chassis and Suspension Mastery

The Z-Tune’s chassis retains the R34’s multi-link independent suspension but elevates it with three-way adjustable Sachs racing dampers, thicker anti-roll bars, and stiffer rubber bushings. Recalibrated camber settings optimize tire contact during cornering.

Braking is handled by massive Brembo-Nismo mono-block 6-piston front calipers with 365mm two-piece rotors and 355mm rear rotors. A tuned ABS system maximizes stopping power while preserving the ATTESA E-TS Pro all-wheel-drive system’s prowess, including mechanical front LSD, active rear LSD, and refined traction control.

Aerodynamic Body Enhancements

• Front Bumper: Carbon fiber reinforced plastic (CFRP) with enlarged brake cooling ducts, side vents, and chin splitter for improved downforce and cooling.
• Hood: GT500-inspired CFRP unit with five central vents feeding the airbox.
• Underbody: Smooth CFRP panels directing airflow to reduce drag and lift.
• Overall: Extensive CFRP usage offsets added weight from the robust engine and luxury touches, resulting in a 1,600kg kerb weight.

These modifications not only enhance stability at triple-digit speeds but also contribute to the car’s track credentials, with lap times rivaling contemporary supercars like the Porsche 996 GT2.

Performance Benchmarks

The Z-Tune shatters stock GT-R figures: 0-62mph in 3.8 seconds (vs. 5.4s), top speed of 203mph (electronically uncapped from 156mph). Independent tests confirm 0-100km/h in 3.9s, 0-200km/h in 12.9s, and top speed around 310km/h, though real-world limits may hover at 193-203mph due to aerodynamics and gearing.

Tsukuba circuit records highlight its prowess: 1:03.44 for the standard Z-Tune, improving to 1:01.15 for the rarer R-Tune variant with GT500-level upgrades.

Luxury Interior Upgrades

Despite its race focus, the Z-Tune indulges with Recaro carbon-backed seats, Alcantara trim, and white-faced Nismo gauges including an 11,000rpm tachometer and 320km/h speedometer. A titanium shift knob and included carbon fiber briefcase add exclusivity.

Exclusivity and Market Legacy

With production capped at 20 units, Z-Tunes command astronomical values today, often exceeding $1 million at auction. The project’s influence endures in modern GT-Rs and JDM culture, symbolizing Nismo’s pursuit of perfection.

Track vs. Road Balance

What sets the Z-Tune apart is its dual nature: circuit weapon and compliant road car. Upgraded emissions, durability tweaks, and refined ride quality make it livable daily, unlike full race prototypes.

Comparisons with Contemporaries

• Porsche 996 GT2: Similar lap pace but Z-Tune’s AWD offers superior traction.
• Ferrari 360 CS: Matches power but lacks Z-Tune’s handling tech.
• Modern GT-R: Builds on Z-Tune DNA with more power but less raw analog feel.

FAQs

How many Z-Tunes were made?

19 customer cars plus one prototype, all hand-built by Nismo.

What’s the Z-Tune’s engine displacement?

2.8 liters (2,771cc) from the Z2 variant of the RB26.

Can you drive a Z-Tune on public roads?

Yes, it was homologated as a road-legal vehicle with emissions and comfort refinements.

What’s the top speed?

Officially 203mph, with tested figures up to 310km/h.

How does it compare to stock R34 GT-R?

81% more power, 1.6s quicker to 62mph, uncapped top speed.

Technical Deep Dive: Drivetrain Innovations

The ATTESA E-TS Pro system was retuned for the Z2’s torque, optimizing front-rear distribution. Carbon prop shaft sheds 5.26kg, while oil coolers prevent fade during prolonged sessions. Super Coppermix clutch handles 600ps peaks effortlessly.

Evolution to R-Tune

The ultra-rare R-Tune variant pushed further with GT500 tires, brakes, and suspension, achieving sub-1:02 Tsukuba laps—near LM/GT500 territory. Only 1-2 exist.
