Network Switches: 4 Essential Types And Key Concepts For 2025

In the realm of computer networking, few devices are as indispensable as the network switch. These intelligent hardware components serve as the central hubs that link multiple devices within a local area network (LAN), ensuring seamless data exchange while minimizing congestion and enhancing security. Unlike older technologies that broadcast information indiscriminately, modern switches intelligently direct traffic to specific destinations, making them essential for homes, offices, and data centers alike.

At its core, a network switch operates by receiving data packets from one connected device and forwarding them only to the intended recipient based on hardware addresses. This targeted approach not only boosts performance but also reduces unnecessary network chatter, allowing for higher throughput and better resource utilization. As networks grow more complex with the rise of IoT devices, cloud computing, and high-bandwidth applications, understanding switches becomes crucial for any IT professional or enthusiast.

Core Principles of Network Switch Functionality

Network switches function primarily at the data link layer of the OSI model, known as Layer 2. They use Media Access Control (MAC) addresses—unique identifiers assigned to network interfaces—to build a dynamic table that maps these addresses to specific ports. When a data frame arrives, the switch examines the destination MAC address and consults its MAC address table (also called a content-addressable memory or CAM table) to determine the correct output port.

If the destination MAC is unknown, the switch floods the frame to all ports except the incoming one, a process called unknown unicast flooding. Over time, as responses come back, the switch learns and updates its table, reducing future floods. This learning mechanism is store-and-forward switching in action: the entire frame is buffered, checked for errors via cyclic redundancy check (CRC), and then forwarded only if valid.

• Cut-through switching: Forwards frames as soon as the destination MAC is read, minimizing latency but risking error propagation.
• Fragment-free switching: Waits for the first 64 bytes to check for collisions before forwarding, balancing speed and reliability.
• Store-and-forward: Buffers the full frame, performs error checking, then sends—ideal for mixed-speed networks.

These methods allow switches to handle varying traffic patterns efficiently. In full-duplex mode, devices can send and receive simultaneously over separate paths, doubling effective bandwidth without collisions.

Distinguishing Switches from Hubs and Routers

To appreciate a switch’s value, compare it to its predecessors and cousins. Hubs, operating at Layer 1, simply repeat incoming signals to all ports, creating a single collision domain that leads to frequent bottlenecks as device count increases. Switches, by contrast, create dedicated micro-segments per port, eliminating shared collision domains and enabling simultaneous conversations.

Routers connect disparate networks using IP addresses and perform path determination via routing tables, handling tasks like NAT and firewalling. While basic switches stay at Layer 2, advanced multilayer switches blur lines by incorporating Layer 3 capabilities, routing within a LAN without a dedicated router.

Types of Network Switches for Diverse Needs

Switches come in various flavors tailored to deployment scenarios. Unmanaged switches are plug-and-play, requiring no setup—perfect for home offices or small teams needing extra ports without configuration overhead. They auto-negotiate speeds (10/100/1000 Mbps) and duplex modes but lack customization.

Managed switches, conversely, offer granular control via web interfaces, CLI, or SNMP. Administrators can configure VLANs, Quality of Service (QoS) for prioritizing voice/video traffic, port mirroring for diagnostics, and spanning tree protocol (STP) to prevent loops. Smart switches strike a middle ground with limited web-based management.

• Unmanaged: Cost-effective, zero-config for SOHO.
• Managed: Enterprise-grade with VLANs, ACLs, and monitoring.
• PoE switches: Deliver power over Ethernet to devices like IP cameras and VoIP phones.
• Stackable: Link multiple units into a single logical switch for scalability.

Layer 3 switches extend this with IP routing, supporting protocols like OSPF and BGP for dynamic path selection within large campuses.

Advanced Capabilities: VLANs, Trunking, and Spanning Tree

Virtual LANs (VLANs) partition a physical switch into logical networks, isolating broadcast domains for security and efficiency. For instance, separate VLANs for HR, finance, and guests prevent unauthorized access while optimizing bandwidth. Trunk ports carry multiple VLAN-tagged traffic using IEEE 802.1Q, enabling inter-switch connectivity.

Loop prevention is vital in redundant topologies. Spanning Tree Protocol (STP) elects a root bridge and blocks redundant paths, recalculating if failures occur. Rapid Per-VLAN Spanning Tree (PVST+) and Multiple STP (MSTP) enhance convergence speed. Link Aggregation Control Protocol (LACP) bundles ports for fault-tolerant, high-bandwidth links.

Switch Architectures: From Fixed to Modular

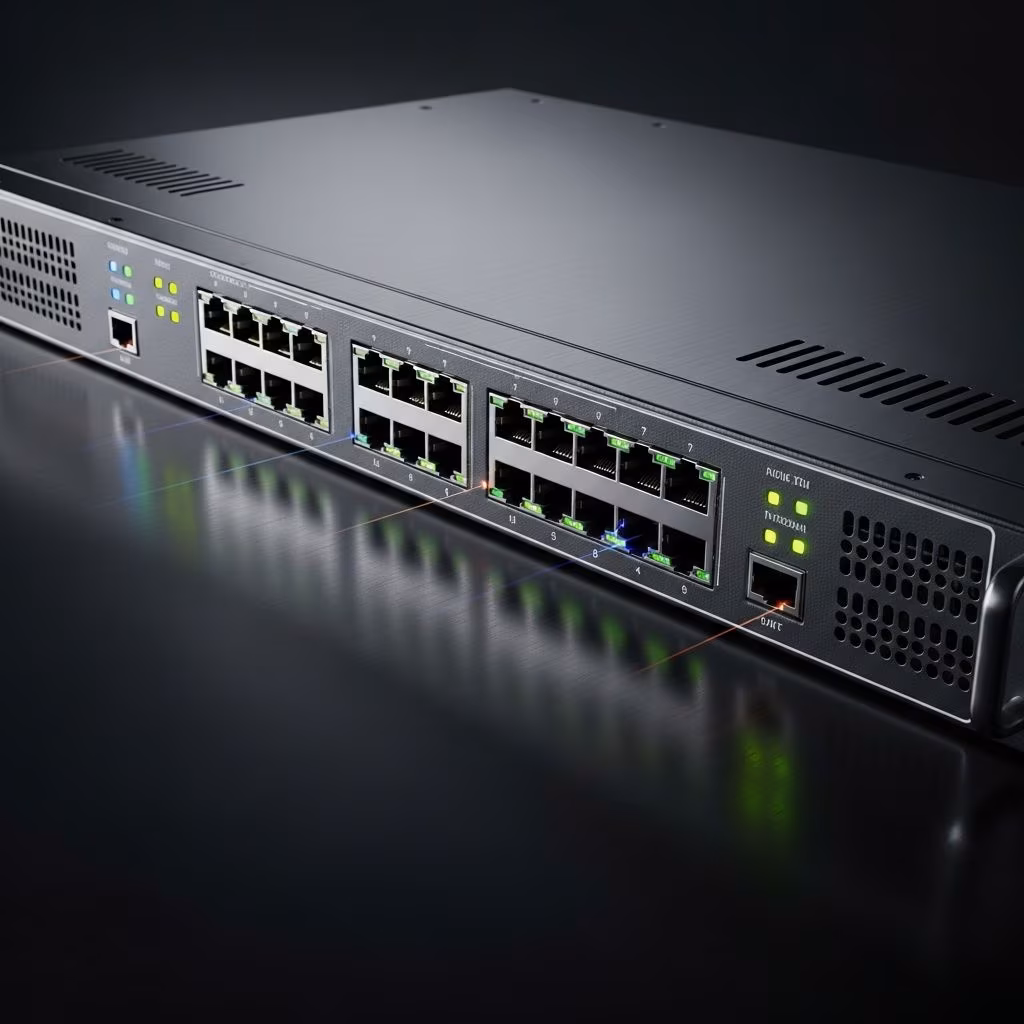

Fixed-configuration switches have a set number of ports (e.g., 24x Gigabit Ethernet), affordable for access layers. Modular chassis-based switches allow hot-swappable line cards, supervisors for control planes, and fabric modules for backplane switching—suited for core/aggregation in data centers handling terabits per second.

Modern 10/40/100 Gbps switches support spine-leaf architectures in cloud-scale environments, with non-blocking fabrics ensuring all ports access full bandwidth simultaneously.

Deployment Best Practices and Troubleshooting

When deploying, match switch capacity to traffic forecasts—calculate oversubscription ratios (e.g., 20:1 for access layers). Enable port security to limit MACs per port, thwarting attacks. Monitor via syslog, SNMP traps, or tools like NetFlow for anomalies.

Common issues include STP loops causing broadcast storms (fix: enable BPDU guard), duplex mismatches (symptom: late collisions), and VLAN misconfigurations. Cable diagnostics and LED indicators aid quick resolution.

Future Trends in Switching Technology

Switches evolve with 400 Gbps Ethernet, AI-driven automation via Intent-Based Networking (IBN), and integration with SD-WAN for branch offices. Wi-Fi 6/7 access switches handle denser environments, while silicon photonics promises lower-latency optical switching.
