Network Hardware Installation: Comprehensive Guide For IT Teams

Setting up network hardware is a foundational task for any IT environment, whether you’re outfitting a small office or a large enterprise data center. Done correctly, it creates a robust backbone that supports seamless data flow, scalability, and minimal disruptions. Poor execution, however, can lead to frequent failures, security vulnerabilities, and escalating costs. This guide dives into comprehensive strategies drawn from industry standards and real-world applications to help you deploy network components effectively.

Strategic Planning for Network Deployments

Effective network hardware installation begins long before any cables are pulled or devices are powered on. Thorough planning aligns the infrastructure with current needs and future expansions, preventing expensive retrofits down the line.

Start by assessing your organization’s bandwidth requirements, user count, and application demands. For instance, video conferencing and cloud services necessitate higher throughput than basic email systems. Create detailed network diagrams using tools like Visio or Lucidchart, mapping out device locations, cable runs, and redundancy paths. These visuals serve as blueprints for installers and troubleshooting references later.

• Conduct a site survey to identify obstacles like walls, ceilings, and existing wiring.
• Forecast growth: Plan for at least 20-30% additional capacity to accommodate expansions.
• Define redundancy: Incorporate failover links and backup power supplies for critical segments.

Budgeting is equally crucial. Allocate funds for quality components rather than cutting corners on cabling or switches, as subpar materials often result in higher long-term expenses due to replacements and downtime.

Selecting Optimal Network Components

Choosing the right hardware is pivotal for performance and compatibility. Focus on components certified to standards like TIA/EIA-568 for cabling and IEEE 802.3 for Ethernet.

Opt for vendors with strong support ecosystems, such as those compliant with BICSI guidelines. Test samples in a lab environment before bulk procurement to verify interoperability.

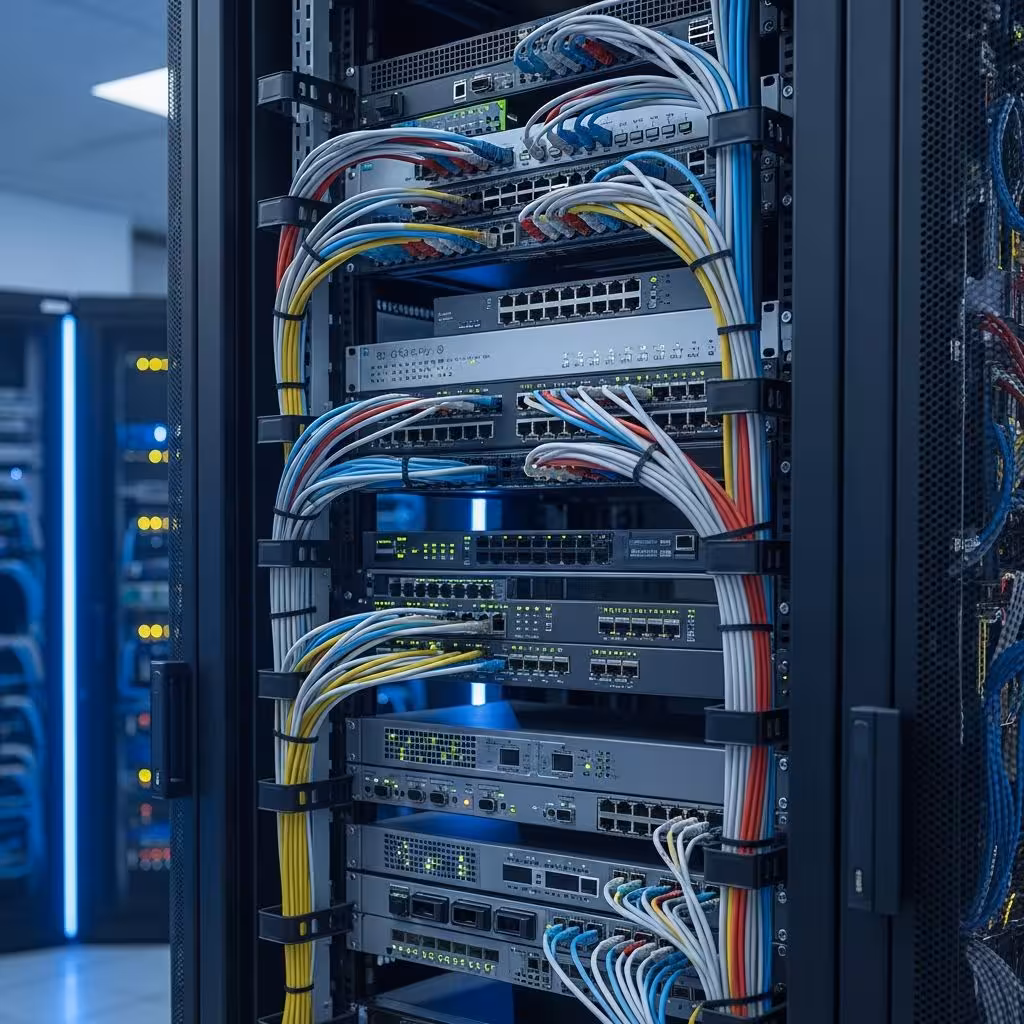

Mastering Cable Organization Techniques

Cable management isn’t just aesthetic—it’s essential for airflow, signal integrity, and ease of maintenance. Disorganized wiring leads to overheating, electromagnetic interference (EMI), and prolonged outage resolutions.

Maintain minimum bend radii (4x cable diameter for copper) to avoid attenuation. Use color-coded cables and trays: blue for data, red for voice, separating them by at least 12 inches from power lines to mitigate EMI per NEC Article 800.

• Employ Velcro ties over zip ties to prevent over-tightening and cable damage.
• Install vertical and horizontal managers in racks for structured routing.
• Label every endpoint with durable, machine-printed tags including source, destination, and length.

In ceiling runs, secure cables to J-hooks spaced no more than 4.5 feet apart, ensuring no sagging that could stress connections.

Precise Physical Mounting and Placement

Proper device placement optimizes performance and safety. Mount racks on level, reinforced floors capable of supporting 1000+ lbs per unit. Maintain 36-inch aisles for access and use seismic bracing in earthquake-prone areas.

For wall plates, position at 18-48 inches above floor level, at least 6 inches from electrical outlets to comply with NEC separation rules. Centralize core switches and routers in climate-controlled rooms to minimize latency.

1. Secure wall plates between studs using low-voltage brackets.
2. Run cables through conduits or fire-rated pathways in plenum spaces.
3. Anchor racks with bolts to prevent tipping during maintenance.

Environmental Controls for Longevity

Heat is a silent killer of network gear. Adhere to ASHRAE guidelines for data centers: 64-80°F (18-27°C) with 40-60% relative humidity. Deploy precision cooling units and hot/cold aisle containment to boost efficiency.

Monitor with environmental sensors linked to SNMP for alerts. Power protection via UPS systems rated for at least 10 minutes of runtime prevents surges and brownouts.

Accurate Termination and Connectivity

Flawless terminations ensure low insertion loss. Use T568B configuration for consistency. Precision crimping tools and modular plugs rated for the cable category are non-negotiable.

Patch panels streamline connections: Punch down with 110-style tools, verifying each with a certification tester like Fluke DSX-8000, which measures length, wire map, and crosstalk.

Comprehensive Testing and Validation Protocols

Post-installation testing confirms compliance. Perform Tier 1 (wire map), Tier 2 (length, loss), and Tier 3 (advanced diagnostics) tests per ISO/IEC 11801.

• OTDR for fiber: Detect bends and breaks.
• Packet loss and throughput tests with iPerf.
• Document results in as-built diagrams for warranty claims.

Baseline performance under load to establish benchmarks for ongoing monitoring.

Configuration Essentials for Stability

Bootstrap devices with secure defaults: Disable unused ports, enable STP/RSTP for loop prevention, and configure VLANs for segmentation. Use AAA for authentication and ACLs for traffic control.

Firmware updates from official repositories patch vulnerabilities—schedule during maintenance windows.

Ongoing Maintenance and Scalability

Regular audits prevent degradation. Quarterly visual inspections, semi-annual certifications, and annual load tests keep networks resilient. Modular designs with empty rack units facilitate upgrades without downtime.

Frequently Asked Questions

What is the maximum length for Cat6 cable?

100 meters (328 feet) including patch cords, per TIA standards.

How far should data cables be from power cables?

At least 12 inches parallel, 2 inches crossed, to reduce EMI.

Why label network cables?

Labels cut troubleshooting time by 50-70% and aid in audits.

What tools are essential for testing?

Certification tester, toner/probe, OTDR for fiber.

Can I mix Cat5e and Cat6?

Not recommended; limits performance to Cat5e specs.
