Network Cabling Documentation: 5 Essential Components And Tools

Effective documentation of network cabling forms the backbone of any robust IT infrastructure. Without accurate records, troubleshooting becomes a nightmare, expansions are risky, and compliance efforts falter. This guide dives deep into creating, maintaining, and leveraging cabling documentation to transform your network management. Whether you’re overseeing a small office setup or a sprawling enterprise data center, these principles will help you build a resilient, easy-to-manage system.

Why Comprehensive Cabling Documentation Matters

In today’s fast-paced digital landscape, networks underpin everything from daily operations to critical business functions. Yet, cabling—the physical layer often hidden behind walls or in racks—remains a common blind spot. Poor documentation leads to hours wasted tracing cables during outages, costly errors in upgrades, and headaches for new IT staff onboarding.

Consider this: according to industry benchmarks, well-documented networks can reduce mean time to repair (MTTR) by up to 50%. It also aids in capacity planning, security audits, and even insurance claims for damaged infrastructure. By prioritizing cabling records, organizations gain visibility into their physical assets, enabling proactive maintenance and seamless scalability.

Essential Components of Cabling Documentation

A complete cabling documentation suite includes multiple interconnected elements. Start with visual aids, then layer in textual details and dynamic trackers. Here’s a breakdown of core components:

• Physical Layout Maps: Detailed floor plans showing cable runs, patch panels, and outlet locations.
• Rack and Device Schematics: Visual representations of server racks, including port assignments and power connections.
• Connection Inventories: Tables listing every cable’s endpoints, types, and lengths.
• Labeling Protocols: Standardized tags for quick identification during maintenance.
• Change Logs: Timestamps and notes on all modifications to track evolution.

Integrating these creates a holistic view, making it simple to pinpoint issues or plan changes.

Building Visual Diagrams for Clarity

Diagrams are the cornerstone of intuitive documentation. They transcend spreadsheets by illustrating relationships at a glance.

Layer 1 Physical Diagrams

Focus on the tangible: cables, ports, and devices. Use lines of varying thickness to denote bandwidth—thicker for 10Gbps+ links—and colors to differentiate copper from fiber. Include port numbers, such as “Switch1-Port24 to PatchPanelA-Port15.” Tools like Microsoft Visio, Lucidchart, or open-source Draw.io excel here. For complex sites, embed these in interactive PDFs for zooming and annotations.

Layer 2 and Logical Overlays

Extend physical views with VLANs, trunks, and switch stacks. Show how traffic segments flow, highlighting redundancies like link aggregation groups (LAGs). These prove invaluable for diagnosing broadcast storms or STP issues.

Incorporating Wireless and Cloud Elements

Modern networks blend wired and wireless. Map access point placements against cable drops, noting PoE budgets. For hybrid setups, diagram cloud interconnects, such as direct connects to AWS or Azure, with circuit IDs and bandwidth allocations.

Structuring Data Tables for Precision Tracking

While diagrams visualize, tables provide searchable details. Use spreadsheets or databases for these.

Maintain these in shared tools like Google Sheets or Airtable for real-time collaboration, with version history enabled.

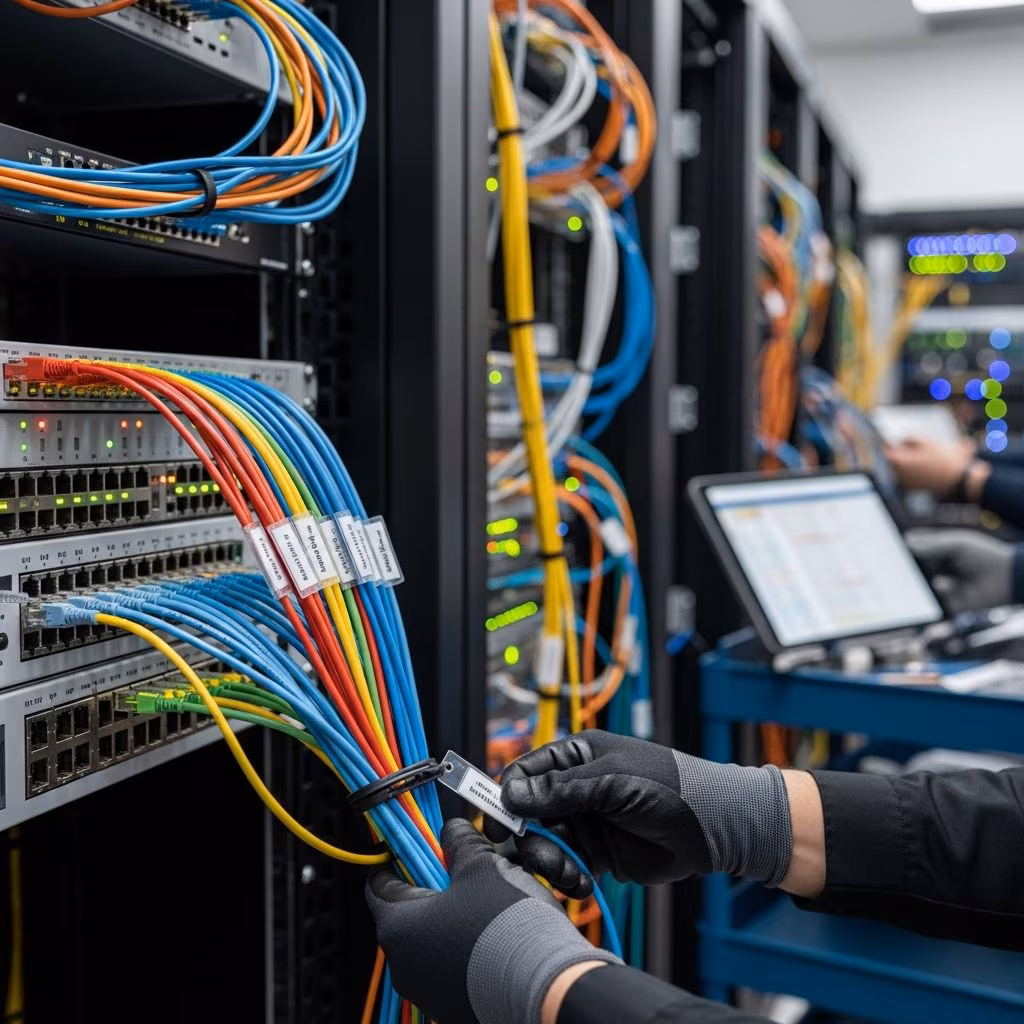

Labeling Strategies for Hands-On Efficiency

Labels bridge documentation and reality. Adopt a consistent scheme: combine location codes, function, and sequence, e.g., “FL2-R1-P12-DATA” for Floor 2, Rack 1, Port 12, Data network.

• Cable Tags: Heat-shrink sleeves or wrap-around labels resistant to wear.
• Panel Charts: Printed directories inside enclosures listing all connections.
• Color Coding: Blue for data, red for voice, yellow for fiber—standardized across the site.

During installs, test each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each each<|control704|>System:

Implement barcode or QR codes on labels, linking directly to digital records for mobile access during fieldwork.

Establishing Policies and Procedures

Documentation thrives under governance. Draft clear policies outlining:

• Who updates records (e.g., installers post-change).
• Review cadence (quarterly audits).
• Format standards (naming conventions, tools).
• Storage and access (central repo with permissions).

Train teams via workshops, emphasizing “document as you go” to avoid backlog. Tie compliance to performance metrics for accountability.

Leveraging Automation and Tools

Manual methods scale poorly; automate where possible. DCIM software like Sunbird or NetBox auto-discovers connections via SNMP or LLDP. Cable testers (e.g., Fluke DSX) generate cert reports with wiremaps. Integrate with CMDBs like ServiceNow for end-to-end visibility.

For diagramming, AI-assisted tools like those from Cisco or Lucidchart suggest layouts from device inventories. Password managers (e.g., LastPass) secure credential docs without plaintext exposure.

Overcoming Common Challenges

Legacy networks pose hurdles—undocumented spaghetti cabling. Tackle via phased audits: scan with OTDR for fiber, toners for copper. Budget for retro-labeling during low-traffic windows.

Staff turnover? Mandate handover checklists with doc walkthroughs. Remote sites? Use photo uploads tied to GPS metadata in records.

Best Practices for Ongoing Maintenance

Sustainability demands discipline:

1. Post-change verification: Test and document before closing tickets.
2. Annual full audits: Cross-check physical vs. records.
3. Version control: Git-like branching for proposed changes.
4. Disaster prep: Offsite backups, printed master copies.
5. Scalability focus: Design for 20% growth in diagrams.

Color-code by age or criticality—fading labels trigger replacements.

FAQs on Network Cabling Documentation

Q: How often should I update cabling docs?
A: After every change, with formal reviews every 3-6 months.

Q: What’s the best tool for beginners?
A: Start with Draw.io for free diagrams and Excel for tables.

Q: How do I handle multi-site networks?
A: Centralize in cloud tools with site-specific folders and global search.

Q: Are physical labels still necessary with digital docs?
A: Yes—digital aids planning, but labels enable rapid onsite action.

Q: What standards should I follow?
A: TIA-606 for labeling, BICSI for cabling practices.

Case Study: Transforming a Mid-Sized Firm’s Network

A 500-employee company faced frequent outages due to undocumented cabling. They implemented layered diagrams, automated IP tracking, and strict labeling. Result: 70% faster MTTR, zero errors in a major upgrade, and smoother audits. Key: cross-training all IT on the system.
