In today’s networking landscapes, many organizations still operate with a blend of legacy 10 Mbps Ethernet devices alongside newer 100 Mbps Fast Ethernet hardware. This heterogeneity raises a critical question: what truly dictates the overall speed of such a LAN? The answer lies not just in individual device capabilities but in how these components interact through switches, hubs, cabling, and negotiation protocols. This comprehensive guide delves into the mechanics of mixed-speed networks, offering insights to help network administrators achieve reliable performance without costly overhauls.
Core Principles of Ethernet Speed Determination
Ethernet speeds are fundamentally governed by the weakest link in the chain. In a LAN comprising both 10 Mbps and 100 Mbps nodes, the network’s effective throughput is shaped by point-to-point negotiations between devices and infrastructure. Each connection operates independently, meaning a 100 Mbps-capable computer might link at full speed to a switch, while a legacy printer negotiates down to 10 Mbps on the same segment.
The IEEE 802.3 standard underpins these interactions, defining how Ethernet frames traverse media. For mixed environments, compatibility hinges on backward support: modern 100 Mbps ports typically detect and adapt to slower 10 Mbps peers. However, aggregate LAN speed—measured as total bandwidth available for all traffic—remains constrained by shared infrastructure and collision domains in older hub-based setups.
Auto-Negotiation: The Heart of Speed Matching
Auto-negotiation, formalized in IEEE 802.3u for Fast Ethernet, is the primary mechanism for speed and duplex resolution. When a device powers on or links up, it sends Fast Link Pulses (FLPs) advertising its capabilities—10 Mbps half/full duplex or 100 Mbps half/full duplex.
- Priority Resolution: If capabilities mismatch, the highest common speed and preferred duplex (full over half) are selected.
- Parallel Detection: For non-negotiating 10 Mbps devices, 100 Mbps ports fall back via normal link pulses (NLPs), ensuring 10 Mbps half-duplex operation.
- Failure Modes: Forced settings or faulty cabling can lock links at suboptimal speeds, like 10 Mbps half-duplex.
In practice, a 100 Mbps NIC connected to a 10 Mbps hub will negotiate to 10 Mbps, preserving compatibility without data loss. This per-port autonomy means LAN-wide speed isn’t uniformly throttled; high-speed segments remain fast.
Duplex Modes and Their Impact on Performance
Beyond raw speed, duplex configuration—half or full—multiplies effective throughput. Half-duplex enforces collision detection via CSMA/CD, halving bandwidth due to shared transmit/receive paths. Full-duplex dedicates channels for simultaneous bidirectional flow, doubling capacity.
| Mode | 10 Mbps Effective | 100 Mbps Effective | Common Pitfalls |
|---|---|---|---|
| Half-Duplex | 5-7 Mbps | 50-70 Mbps | Collisions in busy networks |
| Full-Duplex | 10-20 Mbps | 100-200 Mbps | Mismatched settings cause errors |
In mixed LANs, duplex mismatches often stem from one-sided forcing (e.g., switch port at full, legacy device at half), triggering late collisions and speed drops to 10 Mbps as a safeguard.

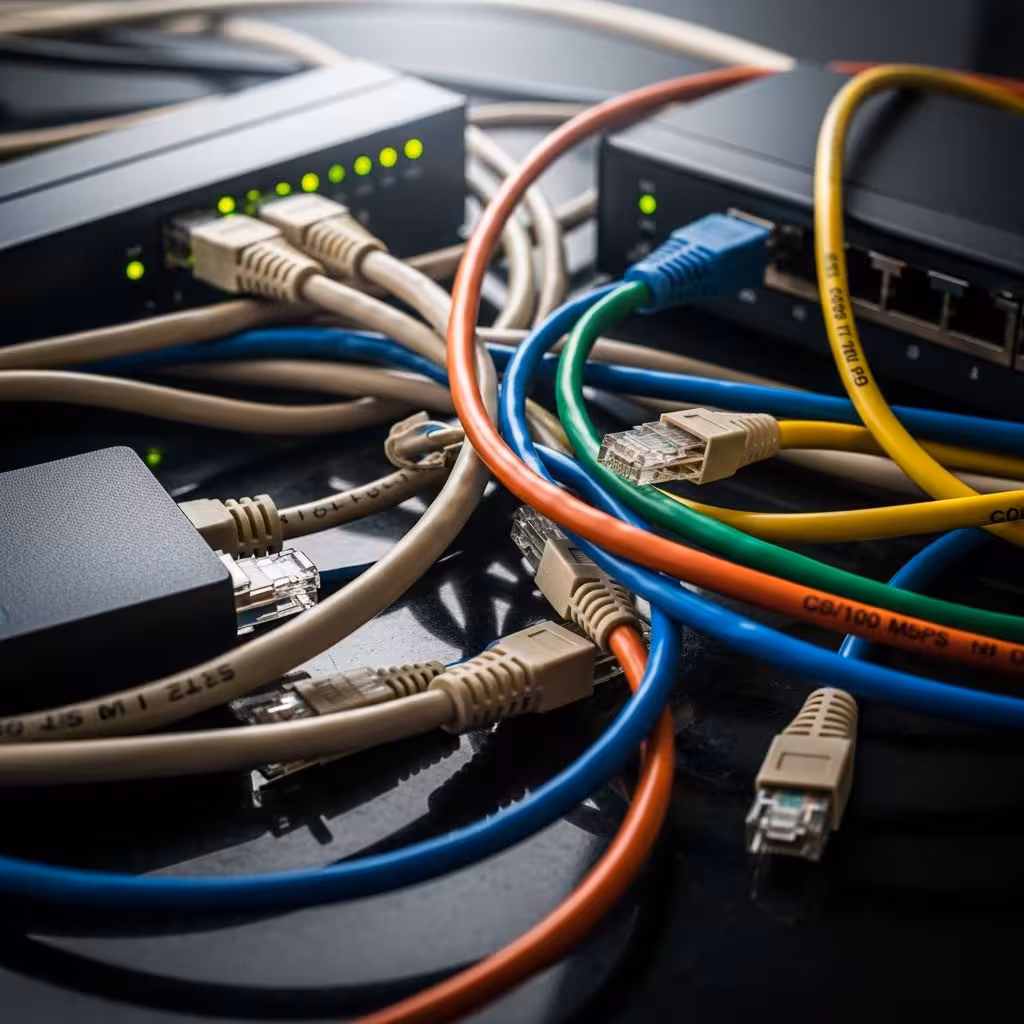

Hardware Components: Hubs vs. Switches
Legacy hubs create shared collision domains, where all devices contend for bandwidth. A single 10 Mbps device floods the hub with slow traffic, dragging down the entire segment to 10 Mbps half-duplex. Conversely, switches provide dedicated full-duplex links per port, isolating speeds.
- 10/100 Hubs: Rare today; force segment-wide lowest speed.
- 10/100 Switches: Standard; each port negotiates independently, enabling 100 Mbps uplinks alongside 10 Mbps peripherals.
- Multi-Rate Switches: Aggregate backplanes (e.g., 1 Gbps) handle mixed traffic without bottlenecks.
Upgrading from hubs to switches often yields the biggest speed gains in mixed environments, as verified by IEEE 802.3 standards.
Cabling Standards and Speed Limitations
Physical layer constraints are pivotal. Category 3 cabling supports only 10 Mbps reliably, while Cat5/Cat5e enables 100 Mbps up to 100 meters.
- Cat3/UTP: 10 Mbps max; prone to crosstalk at higher speeds.
- Cat5: 100 Mbps; 100-ohm impedance for Fast Ethernet.
- Cat5e/Cat6: Future-proof for Gigabit, but backward-compatible.
A common issue: damaged Cat5 runs forcing fallback to 10 Mbps. TIA/EIA-568-B standards mandate testing for NEXT, attenuation, and length to sustain rated speeds.
Troubleshooting Speed Degradation
When LAN speeds disappoint, systematic diagnosis is key:
- Check link lights and OS status (e.g., Windows Device Manager shows negotiated speed).
- Test with known-good Cat5e cables; swap ports.
- Disable auto-negotiation temporarily to force 100 Mbps (risky).
- Monitor for errors via SNMP or CLI (e.g., Cisco ‘show interfaces’ counters).
- Update NIC drivers; legacy chipsets may mishandle negotiation.
Real-world example: A 10 Mbps drop often traces to four-pair wiring errors or MDI/MDIX mismatches, resolvable by crossovers or auto-MDIX ports.
Performance Optimization Strategies
To maximize mixed LANs:
- Segment Traffic: VLANs isolate slow devices on dedicated switches.
- Prioritize Upgrades: Replace 10 Mbps endpoints first (printers, IoT).
- Leverage PoE Switches: 10/100 PoE for IP phones without speed loss.
- Monitor Utilization: Tools like PRTG reveal if 10 Mbps nodes bottleneck apps.
For bandwidth-hungry apps, bridge to Gigabit backbones while maintaining legacy support.
Future-Proofing: Beyond 10/100 Mbps
As Gigabit Ethernet dominates (IEEE 802.3ab), mixed 10/100 setups persist in warehouses, retail POS, and industrial controls. Transition via 10/100/1000 switches ensures seamless evolution. Note: Power over Ethernet (PoE) standards like 802.3af limit to 100 Mbps, suiting most VoIP/video needs.
Frequently Asked Questions (FAQs)
Why does my 100 Mbps NIC connect at 10 Mbps?
Typically cable faults, negotiation failure, or duplex mismatch. Verify Cat5e integrity and enable auto-negotiation on both ends.
Can a 10 Mbps device slow the entire LAN?
Only on hubs; switches isolate it to one port, preserving 100 Mbps elsewhere.
Is full-duplex always better in mixed networks?
Yes, if supported; mismatches degrade performance worse than half-duplex uniformity.
How far can 100 Mbps Ethernet run?
100 meters over Cat5e; extend via fiber media converters.
Should I force speeds manually?
Avoid unless troubleshooting; auto-negotiation optimizes compatibility.
