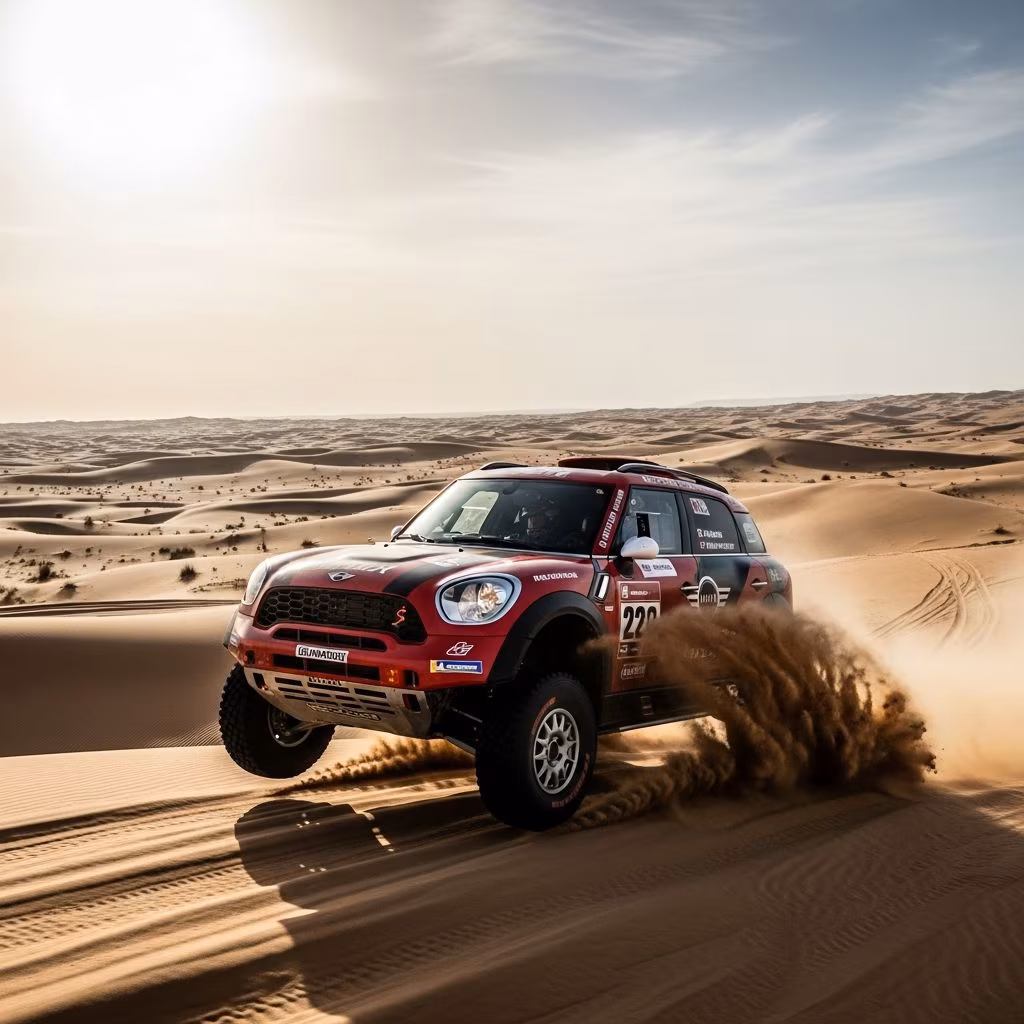

MINI Countryman ALL4 Racing: Dakar 2016 Conqueror

The MINI Countryman ALL4 Racing stands as a testament to engineering ingenuity, transforming a compact crossover into a desert-dominating rally machine. Designed for the grueling Dakar Rally, this vehicle blends lightweight construction with immense power, proving its mettle in the 2016 edition by securing top 4×4 honors and multiple top-10 finishes.

Birth of a Rally Legend: From Street Car to Desert Warrior

The evolution of the MINI Countryman ALL4 Racing began with the brand’s ambition to revive its rally heritage. Drawing inspiration from MINI’s 1960s Mexican Rally successes, engineers at X-raid collaborated with MINI to create a bespoke racer loosely based on the production Countryman. Unlike its road-going counterpart, this version ditches conventional unibody construction for a tubular steel spaceframe wrapped in carbon-fiber bodywork, slashing weight to around 4200 pounds while enhancing rigidity.

Key production parts like the windshield, door handles, taillights, and MINI badges provide a nod to its civilian roots, but everything else is purpose-built in French and German workshops. This hybrid approach allows the car to retain MINI’s iconic styling while delivering rally-ready performance. The result? A machine capable of top speeds over 130 mph across sand dunes, rocks, and rough tracks, all while carrying 95 gallons of diesel for up to 500-mile stages.

Powertrain Mastery: BMW Diesel Heart

At the core lies a 3.0-liter BMW inline-six turbo-diesel engine, tuned to produce 300 horsepower and a staggering 516 lb-ft of torque. This powerhouse propels the ALL4 Racing through punishing terrains, where low-end grunt matters more than outright speed. Paired with a six-speed sequential manual gearbox, power delivery is precise and instantaneous, ideal for the rally’s high-speed dune sections and technical rocky paths.

Cooling is paramount in desert conditions, so the engine bay brims with multiple radiators, reservoirs, and auxiliary systems resembling high-tech medical gear. Three lockable differentials ensure traction across varied surfaces, from loose sand to sheer cliffs. Water-cooled brakes and an eight-inch suspension travel further bolster its endurance, allowing it to withstand the Dakar’s extreme temperatures and impacts.

Dakar 2016: A Battle of Endurance and Strategy

The 2016 Dakar Rally, spanning 9,000 km through South America’s harshest landscapes, tested the MINI ALL4 Racing to its limits. Driver Nasser Al-Attiyah and co-pilot Mathieu Baumel piloted the #300 entry to second overall (pending appeal) and best 4×4 finisher, outpacing Toyota’s efforts in the AWD category. Despite Peugeot’s Stéphane Peterhansel claiming victory, MINI’s reliability shone through.

• Four MINI ALL4 Racings in the top 10, with seven in the top 15.
• Al-Attiyah’s consistent pacing led to third after Stage 4, climbing steadily.
• Team strengths: Versatility in open deserts and WRC-style technical sections.

Marcel Terranova and Antonio Roma fought back from setbacks, reclaiming positions and securing nine MINIs in the top 20 by mid-rally. The car’s ability to push hard across all stages without major failures underscored its design edge.

Chassis and Suspension: Engineered for Chaos

The tubular steel frame forms the backbone, providing a lightweight yet bombproof platform. Carbon-fiber panels not only reduce mass but also allow quick repairs in the field. Suspension features long-travel double-wishbone setups front and rear, tuned for high-speed stability over dunes and precise control in rocky hairpins.

Puncture-proofing includes three onboard spares and a hydraulic jack system that swaps tires in under three minutes—a lifesaver when sandstorms shred rubber. Air-conditioned cabins keep crews sharp during 40°C+ heat, with power steering easing the physical toll of marathon stages.

Inside the Cockpit: Pilot’s Perspective

Crews face isolation akin to lunar explorers, navigating vast Atacama-like deserts with GPS and roadbooks. The cockpit prioritizes functionality: sequential shifter on the dash, prominent differential locks, and reservoirs at arm’s reach. Seats are six-point harnessed racing buckets, built for six-day punishment.

Visibility is excellent despite the compact footprint, aiding dune crests where sudden 30-mph sand blasts can blind drivers. The MINI’s smaller size versus rivals like Toyota Hilux offers agility advantages in tight sections.

Training and Preparation: Ice, Snow, and Sand

Pre-Dakar prep includes extreme sessions like the MINI ALL4 Racing Ice Experience, honing skills on frozen lakes. Videos capture the car devouring snow and ice, showcasing its all-terrain prowess. Desert training emphasizes dune navigation and pace management, vital for multi-stage survival.

Comparisons: ALL4 Racing vs. Production Countryman

While the road Countryman offers urban versatility with AWD and compact dimensions, the ALL4 Racing is a full custom racer. Production models seat five with practical cargo space, but lack the diesel torque and rally suspension.

Rally Legacy and Future Impact

MINI’s Dakar efforts boosted brand prestige, echoing past glories. The ALL4 Racing’s 2014 Atacama win and 2016 top finishes highlight sustained competitiveness. Post-2016, tech trickles down to production models, enhancing AWD systems and durability.

Challenges like Peugeot’s dominance pushed innovations in reliability and strategy, benefiting future campaigns.

Technical Deep Dive: What Makes It Tick

Beyond basics, the ALL4 Racing packs auxiliary fuel pumps, intercoolers for the turbo, and dust-proof seals. Brakes use massive ventilated discs with cooling ducts. Electronics are minimized to avoid failures, relying on mechanical robustness.

Fuel efficiency shines: pump diesel sustains long hauls, unlike thirstier petrol rivals. This efficiency, combined with torque, allows aggressive pacing without refueling risks.

Driver Insights and Team Dynamics

Al-Attiyah praised the car’s balance: “It pushes in all stages—open areas and technical WRC sections—giving us the edge to fight for wins.” X-raid’s support ensured rapid fixes, from tire changes to suspension tweaks.

FAQs

What engine powers the MINI ALL4 Racing?

A 3.0-liter BMW turbo-diesel inline-six delivering 300 HP and 516 lb-ft.

Did MINI win the 2016 Dakar overall?

No, but secured best 4×4 and four top-10 finishes.

How does it handle punctures?

Three spares and hydraulic jacks enable sub-3-minute changes.

What’s the top speed?

Over 130 mph on open terrain.

Is it based on a stock Countryman?

Only visually; it’s a custom tubular-frame racer.

Why the ALL4 Racing Matters Today

Even years later, the MINI Countryman ALL4 Racing inspires off-road enthusiasts. Its blend of compact agility and brute force redefines crossover potential, influencing modern rallycross and adventure vehicles. For fans, it embodies MINI’s daring spirit—small package, massive heart.
