Mastering CPU Fan Speed Control

Effective management of CPU fan speeds is essential for maintaining optimal temperatures, minimizing noise, and extending hardware lifespan in modern PCs. By fine-tuning fan behavior, users can achieve a perfect balance between cooling efficiency and acoustic comfort, whether during intensive gaming sessions or everyday tasks.

Understanding Fan Control Fundamentals

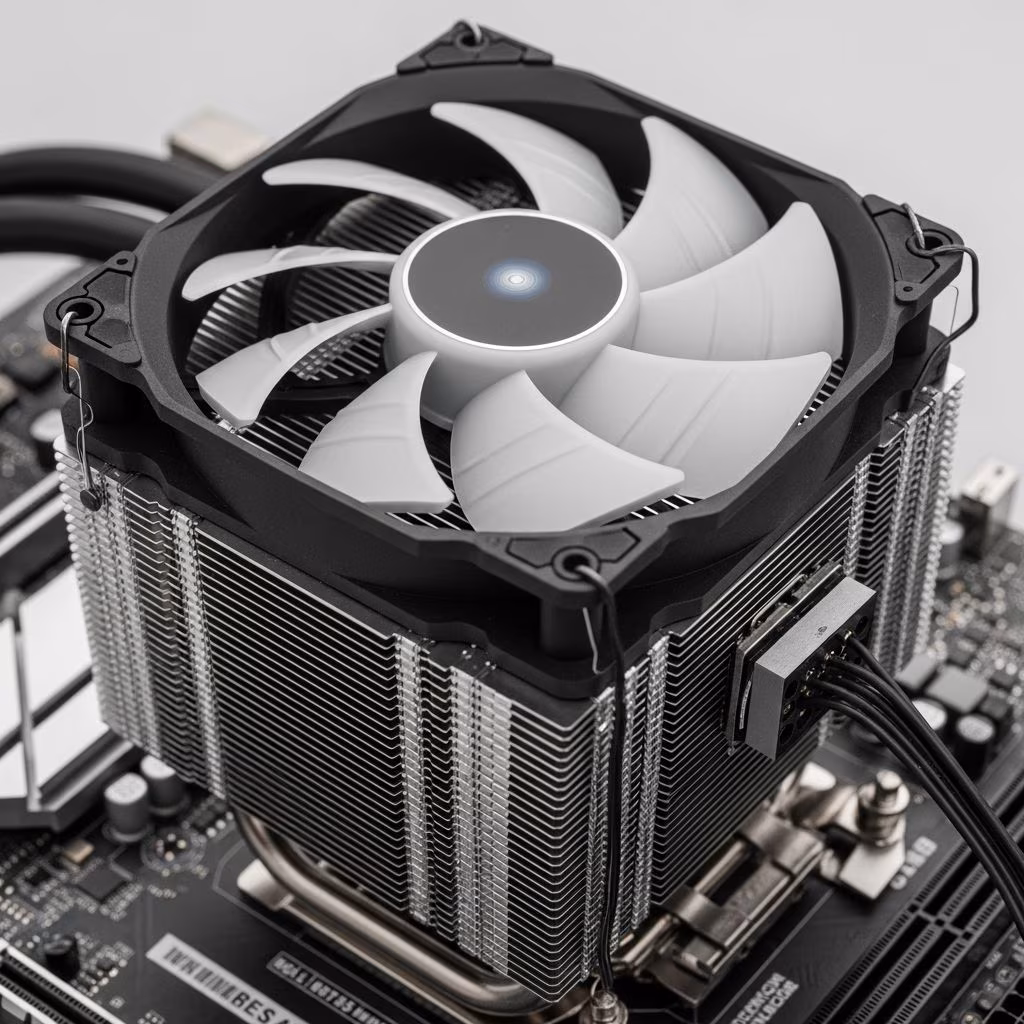

CPU fans regulate speed primarily through two methods: DC voltage modulation and PWM signaling. DC control varies the supply voltage to adjust speed, where lower voltages result in slower rotation. PWM, or Pulse Width Modulation, uses a square wave signal with a duty cycle—expressed as a percentage—to dictate speed, allowing 100% duty cycle for full speed operation.

Fan curves represent the relationship between temperature and speed. The x-axis typically shows CPU temperature, while the y-axis indicates fan speed percentage. Customizing these curves enables proactive cooling, ramping up speeds before thermal throttling occurs.

BIOS and UEFI: The First Line of Defense

Most motherboards provide built-in fan control via BIOS or UEFI interfaces. Access this by restarting your PC and pressing the designated key (often Delete, F2, or F10) during boot.

• Navigate to hardware monitoring or fan control sections.
• Identify CPU fan headers and set modes to PWM if supported.
• Enable manual or curve-based profiles for precise adjustments.

For example, on ASUS boards, users can echo values to sysfs paths for direct control, such as echo 255 > /sys/devices/platform/asus_fan/hwmon/hwmon*/pwm1 for full CPU fan speed (0 stops it entirely). ASRock users might leverage A-Tuning for instant tweaks, though third-party tools often enhance flexibility.

ThinkPad laptops offer procfs controls: echo level 7 > /proc/acpi/ibm/fan sets maximum regulated speed, with ‘auto’ as default. Always test changes to avoid overheating.

Leveraging Third-Party Software for Advanced Control

While BIOS provides basics, software like SpeedFan, Fan Control, and Open Hardware Monitor unlock granular adjustments.

SpeedFan: Versatile Temperature-Based Tuning

SpeedFan monitors multiple sensors (CPU, GPU, HDD) and automates fan responses. Setup involves configuring PWM modes (e.g., Manual for Nuvoton sensors) and plotting aggressive curves for gaming.

• Download and install from official sources.
• Calibrate sensors via trial-and-error for headers like CHA-Fan2 (PWM5).
• Set auto-start for persistent control.

Fan Control: Modern, Feature-Rich Option

Fan Control excels with calibration, hysteresis, and custom curves. It supports 0 RPM logic for supported fans, ensuring silence during idle.

1. Install with the latest driver (e.g., Porn.io replacing Ring 0).
2. Run calibration to detect RPM limits—fans will ramp during tests.
3. Create graph curves based on core max temps or flat lines for pumps.

GetFanControl offers a beginner-friendly interface, auto-detecting controllable fans post-install and allowing startup minimization.

Other Notable Tools

Optimizing Fan Curves for Different Scenarios

Start with a silent baseline: Set initial nodes to max tolerable speed (e.g., 40-50% at low temps). Ramp progressively—40% at 40°C, 70% at 60°C, 100% at 80°C.

• Gaming: Aggressive curves prioritizing CPU/GPU temps.
• Office: Conservative profiles for minimal noise.
• Overclocking: Hysteresis prevents oscillation; step-up/down logic smooths transitions.

On Windows, tweak Power Options first: Select balanced or power-saver plans to reduce baseline CPU load, indirectly lowering fan needs.

Troubleshooting Common Issues

Problems like full-speed or minimal-only operation often stem from BIOS locks or incompatible fans.

• Verify fan types (3-pin DC vs 4-pin PWM).
• Update BIOS/firmware for better support.
• Check headers: Ensure PWM mode enabled.
• Test with software overrides if BIOS fails.

For laptops, WMI modules like asus-nb-wmi allow thermal policy tweaks: 0 (default), 1 (overboost), 2 (silent).

Best Practices for Long-Term Stability

Monitor temps with tools like Core Temp alongside fans. Aim for <80°C under load. Clean dust regularly, as buildup forces constant high speeds.

PWM fans support 0-100% granularity; DC caps at ~20-100%. Mix cautiously—prefer PWM for precision.

FAQs

Is it safe to run CPU fans at 0 RPM?

Only if supported and temps remain low; use software with start/stop logic.

Why won’t my fans respond in BIOS?

Check PWM/DC mode, header connections, or BIOS version.

Can I control GPU fans too?

Yes, via tools like SpeedFan or MSI Afterburner, linking to GPU sensors.

What’s hysteresis in fan control?

A buffer preventing rapid speed changes; e.g., 3°C delay before ramp-down.

Does fan control affect warranty?

Generally no, as it doesn’t alter hardware—revert to BIOS defaults if needed.

Advanced Techniques for Enthusiasts

Linux users: Use pwmconfig to generate configs, then lm-sensors for monitoring. Script sysfs for automation, e.g., bash loops tying PWM to temp inputs.

Custom watercooling? Set AIO pumps to flat 50-60% curves for consistency. Multi-fan sync via motherboard software (e.g., ASUS AI Suite) aggregates curves.

For silent builds, Noctua recommends starting curves at ambient +10°C for subtle ramps.
