LoRa Vs. LoRaWAN: Technical Differences, Security, Use Cases

Low-power wide-area networks (LPWANs) have revolutionized Internet of Things (IoT) connectivity by enabling devices to communicate over vast distances with minimal energy consumption. At the heart of many such deployments are two complementary technologies: LoRa and LoRaWAN. While often mentioned together, they serve distinct roles. LoRa provides the foundational radio signal mechanism, whereas LoRaWAN builds a complete communication framework on top of it. This article delves into their technical foundations, operational differences, network designs, security features, and real-world applications to clarify how they enable efficient IoT ecosystems.

Understanding LoRa: The Physical Layer Foundation

LoRa, short for Long Range, is a proprietary spread spectrum modulation technique developed by Semtech Corporation. Operating primarily in unlicensed sub-GHz ISM bands such as 868 MHz in Europe, 915 MHz in North America, and 433 MHz in Asia, it excels in transmitting small data packets over extended ranges—up to 15 km in rural settings and 2-5 km in urban environments under optimal conditions.

The magic of LoRa lies in its chirp spread spectrum (CSS) modulation. Unlike traditional frequency-shift keying (FSK), CSS uses a sweeping frequency signal that resembles a chirp, allowing receivers to capture signals even amidst interference and noise. Key parameters include spreading factor (SF), bandwidth (BW), and coding rate (CR). Higher SF values (e.g., SF12) boost range and receiver sensitivity but reduce data rates to as low as 0.3 kbps. Conversely, lower SF (e.g., SF7) supports rates up to 20 kbps but shortens range.

LoRa’s adaptability shines through adaptive data rate (ADR), where devices dynamically adjust these parameters based on link quality. This physical layer (PHY) efficiency makes it ideal for battery-powered sensors that transmit infrequently, such as environmental monitors or asset trackers.

LoRaWAN: Building a Complete Network Protocol

LoRaWAN extends LoRa beyond mere signal transmission by defining a media access control (MAC) layer protocol standardized by the LoRa Alliance, a non-profit with over 500 members including Semtech and major telecoms. It operates at OSI layers 2 and above, specifying how LoRa-modulated signals are formatted, authenticated, and routed in a star-of-stars topology.

At its core, LoRaWAN manages device classes: Class A for ultra-low power (two receive windows post-uplink), Class B for scheduled downlinks, and Class C for continuous receiving. This flexibility suits diverse IoT needs, from infrequent metering to real-time control. Security is embedded via AES-128 encryption for keys (AppKey, NwkKey) and end-to-end payload protection, preventing eavesdropping and replay attacks.

Unlike LoRa’s point-to-point potential, LoRaWAN enforces a structured architecture: end devices connect to gateways, which forward data via IP to network servers for deduplication and processing, then to application servers. This separation scales networks to millions of devices without direct device-to-device chatter.

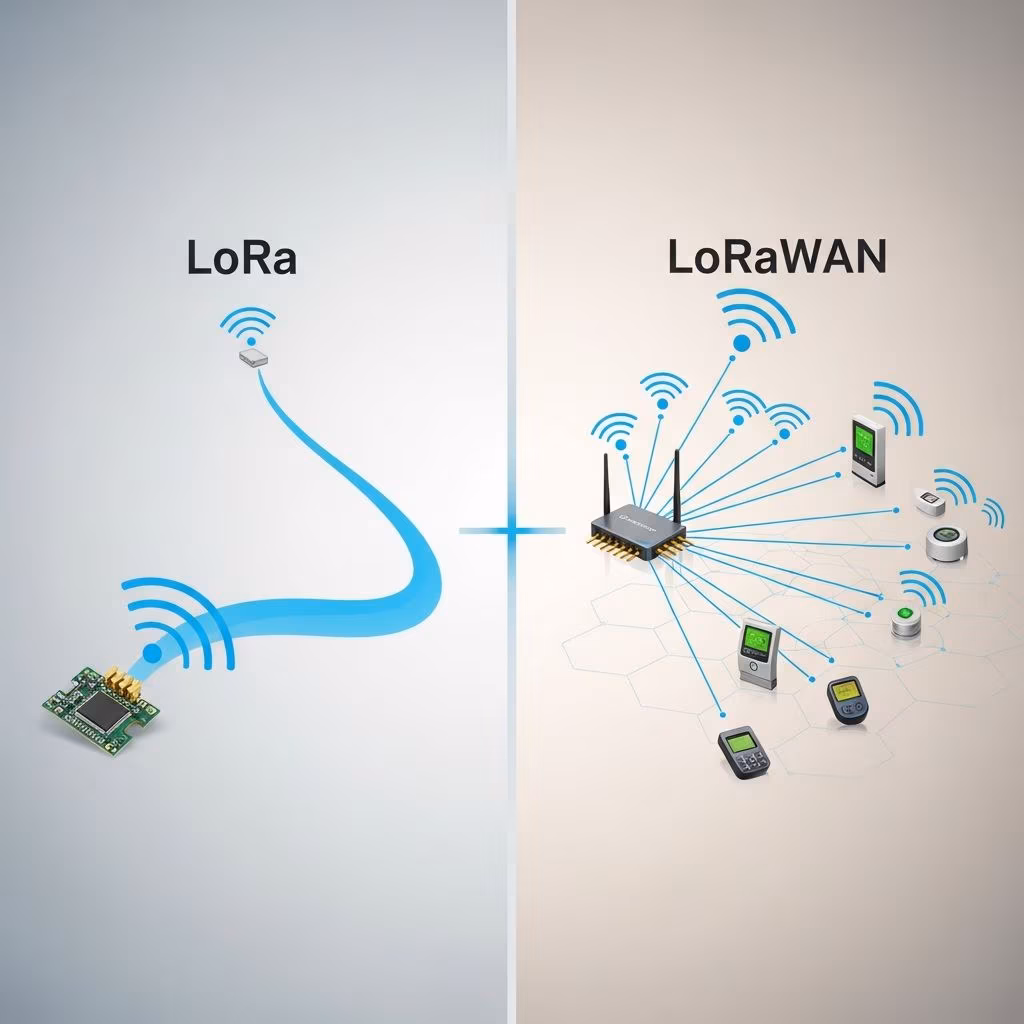

Core Technical Distinctions: LoRa vs LoRaWAN

To highlight contrasts, consider these fundamental aspects:

• Layer of Operation: LoRa is PHY-only, handling bit-level modulation. LoRaWAN spans MAC, network, and application layers.
• Range and Power: Both leverage LoRa’s strengths, but LoRaWAN optimizes via duty cycle limits (e.g., 1% in EU868) and ADR for 10+ year battery life.
• Data Handling: LoRa transmits raw bits; LoRaWAN adds headers for addressing, frame counters, and MIC for integrity.
• Topology: LoRa supports mesh or peer-to-peer; LoRaWAN mandates centralized star topology for managed scalability.

Network Architecture Deep Dive

LoRaWAN’s architecture is multi-tiered for reliability. End nodes use LoRa modulation to reach gateways, which act as transparent bridges checking only CRC before IP tunneling to the network server. The server handles duplicates (from multi-gateway reception), ADR, and MAC commands, forwarding payloads to cloud-based application servers.

This design yields high redundancy: a single uplink can be heard by multiple gateways, minimizing packet loss to under 1% in dense deployments. Private networks suit enterprise control, while public ones like The Things Network offer community coverage. Contrastingly, pure LoRa setups require custom firmware for routing, lacking native multi-hop or server orchestration.

Security and Reliability Enhancements in LoRaWAN

LoRa alone offers no inherent security, leaving encryption and authentication to developers—a vulnerability in exposed deployments. LoRaWAN mandates two key pairs: over-the-air activation (OTAA) for session keys or activation by personalization (ABP). Frame counters prevent replays, and device-specific quotas enforce fair airtime.

Geolocation via time-difference-of-arrival (TDoA) adds value without GPS drain. Firmware over-the-air (FUOTA) enables remote updates, crucial for long-lived deployments.

Real-World Applications and Deployment Scenarios

LoRaWAN dominates IoT: smart agriculture (soil sensors over farms), smart cities (parking, waste), logistics (trackers), and utilities (meters). Its low cost—gateways cover 1000s of nodes—and license-free operation accelerate adoption.

Pure LoRa fits proprietary, simple links like remote controls or mesh sensors where protocol overhead is unnecessary. Hybrid uses emerge, e.g., LoRa for PHY in custom protocols.

Implementation Considerations and Challenges

Deploying LoRaWAN requires gateway hardware (e.g., Semtech-based), compliant chips (SX126x), and servers like ChirpStack (open-source). Challenges include regional regulations (duty cycles), interference in 915 MHz, and scaling join requests.

LoRa implementations are simpler but demand full-stack development. Interoperability certified by LoRa Alliance ensures ecosystem reliability.

Future Evolution and Standards Alignment

LoRaWAN 2.0+ introduces satellite integration, higher rates at 2.4 GHz, and relay modes for extended coverage. Alignment with 5G non-terrestrial networks positions it for massive IoT growth, projected at 75 billion devices by 2025 per Statista-informed forecasts.

Frequently Asked Questions (FAQs)

What frequencies does LoRa use?

Primarily sub-GHz ISM bands: 433/868/915 MHz, plus 2.4 GHz globally.

Can LoRaWAN devices communicate directly?

No, all traffic routes via gateways in star topology.

Is LoRa open source?

LoRa PHY is proprietary; LoRaWAN spec is open.

How does LoRa compare to NB-IoT?

LoRaWAN offers longer range/battery in unlicensed spectrum; NB-IoT provides higher reliability in licensed cellular.

What is the typical data rate?

0.3-50 kbps, depending on SF/BW.
