Land Rover Defender Rear Crossmember Replacement Guide

The rear crossmember is a critical structural component in any Land Rover Defender, providing essential support to the chassis and body framework. Over time, exposure to moisture, salt, and road contaminants can cause significant rust deterioration, compromising the vehicle’s structural integrity and safety. When replacement becomes necessary, the process requires careful planning, proper tools, and mechanical knowledge. This comprehensive guide walks you through every phase of replacing a damaged rear crossmember, from initial preparation through final welding and reassembly.

Understanding the Rear Crossmember’s Role and Common Failure Points

The rear crossmember serves as a vital connection point between the chassis rails and supports the vehicle’s load-bearing structure. This component experiences constant stress from vehicle weight distribution, suspension movement, and external environmental factors. The rear section of a Defender is particularly vulnerable to rust because it’s exposed to road spray, moisture accumulation in enclosed spaces, and limited air circulation that prevents proper drying.

Common failure indicators include visible rust perforation, structural weakening visible as body misalignment, corrosion around welded joints, and movement or flexing in the rear frame area. Early detection of deterioration can prevent more extensive damage to surrounding structural components and avoid expensive repairs down the road.

Pre-Work Preparation and Safety Considerations

Before beginning any crossmember replacement work, establish a safe working environment and gather essential equipment. Your workspace should have adequate ventilation, proper lighting, and a level surface suitable for vehicle support. Never rely solely on a vehicle’s standard jack for extended work periods—invest in professional-grade jack stands rated for your vehicle’s weight.

Essential tools and materials you’ll need:

• Complete set of metric sockets and wrenches
• Reciprocating saw or power saw with metal-cutting blades
• Angle grinder with cutting and grinding wheels
• MIG welder or stick welder with appropriate safety equipment
• Wire brushes and abrasive pads for surface preparation
• Automotive primers, protective coatings, and underseal products
• Heavy-duty jack and professional-grade jack stands
• Safety equipment including welding mask, gloves, and fire-resistant clothing

Plan the timing of this project carefully, as complete crossmember replacement typically requires two to four days depending on rust severity and your experience level. Arrange for alternative transportation during this period.

Fuel Tank and Preliminary Component Removal

The fuel tank positioned directly above the rear crossmember represents the first major obstacle to removing the old component. Ensure the fuel tank is as empty as possible before beginning work—ideally run the vehicle until the fuel gauge reads below one-quarter tank, then drain any remaining fuel completely using a fuel transfer pump. This critical safety step prevents fuel spillage, eliminates fire hazards during grinding and welding operations, and provides safer working conditions throughout the project.

After fuel drainage, carefully disconnect the fuel filler cap, vent lines, and supply lines. Support the empty tank with a hydraulic jack placed on a wooden block to distribute pressure evenly. Unbolt the tank mounting straps and supports, then slowly lower and remove the tank from its location. This creates the workspace access necessary for all subsequent crossmember work.

With the fuel tank removed, disconnect electrical harnesses running to rear lights and components. Unclip wiring looms carefully and secure them away from cutting and welding work areas to prevent accidental damage to electrical systems.

Accessing and Removing the Damaged Crossmember

Removing body floor components provides necessary access to bolt connections and provides space for component removal. The rear floor is typically secured using a combination of raised rivets and flush rivets that must be drilled out or removed with a cutting disc and angle grinder. Exercise caution during this process to avoid damaging the floor panel itself, as these can be refinished or repainted after work completion.

Once floor panels are removed, address any remaining fasteners securing the crossmember to the chassis. Inspect mounting brackets and support points carefully. You may encounter corroded or seized fasteners—applying penetrating oil thirty minutes before removal attempts often helps break corrosion and prevents bolt breakage. If bolts cannot be removed by conventional methods, carefully drill them out and tap new threads in the chassis afterward.

The old crossmember must be sectioned for removal rather than extracted as a single piece. A reciprocating saw or power hacksaw works effectively for most sectioning work, but an angle grinder with appropriate metal-cutting discs provides faster material removal. Work methodically from one end toward the center, making careful cuts to separate the component into manageable pieces. This approach prevents damage to surrounding structures and wiring harnesses.

Measuring, Cutting, and Preparing the New Crossmember

Replacement crossmembers typically arrive as full-length components requiring custom cutting to fit your specific Defender model and configuration. Precise measurements are essential for proper fit and structural integrity. Most installation procedures allow approximately 100 millimeters of adjustment margin where the new component interfaces with existing chassis rails.

Identify fixed reference points on your chassis—typically the anti-roll bar bracket locations and the tops of the chassis side rails. These serve as measurements anchors for determining correct cutting positions. Measure from these fixed points to establish cutting line positions on the replacement crossmember. Mark cutting lines clearly using layout fluid or soapstone to ensure accurate cuts.

After establishing cutting positions, remove protective paint and primer coatings from the new crossmember in areas designated for welding. A wire wheel on a power drill or rotary tool effectively removes paint and creates a clean surface necessary for quality welds. All welding surfaces must be completely clean and free of contaminants to ensure proper penetration and structural strength.

Trial Fitting and Alignment Procedures

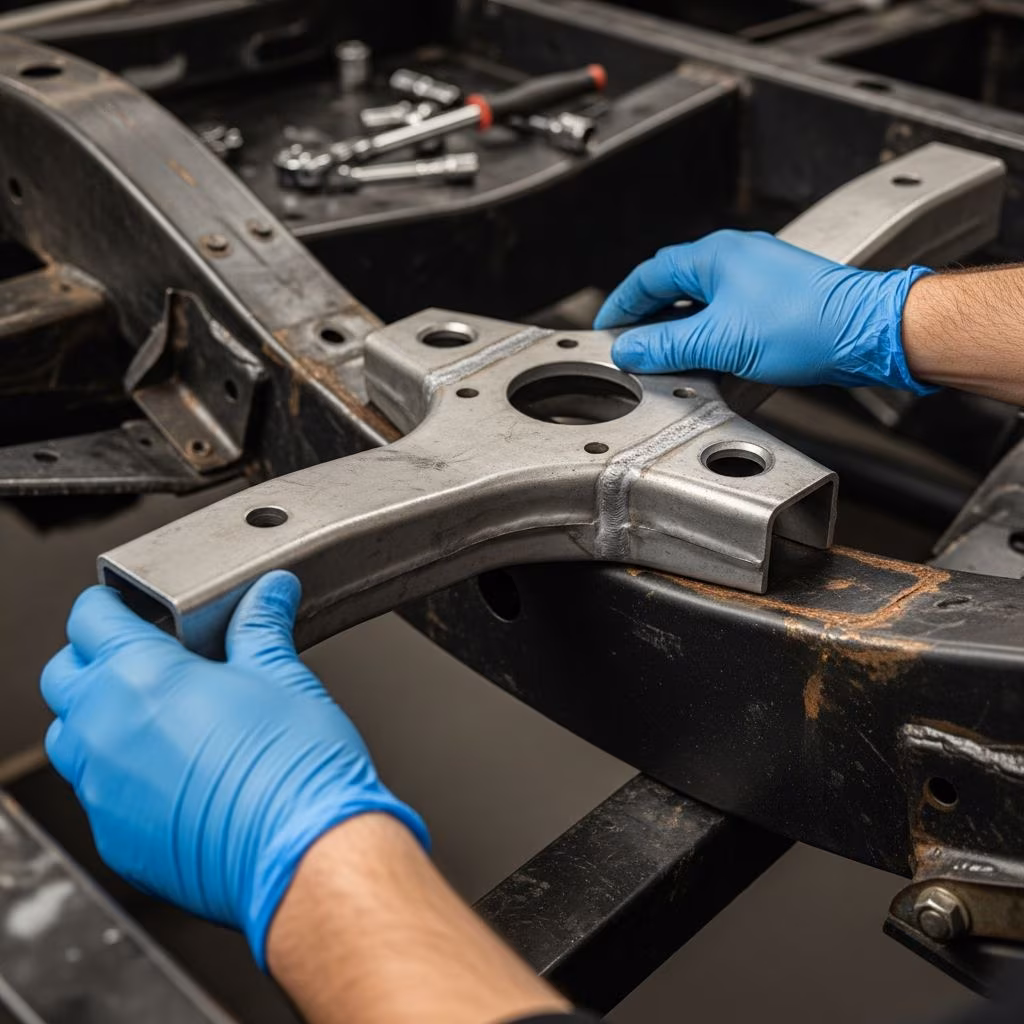

Before committing to permanent welding, perform a complete dry fit of the new crossmember. Position it carefully and secure using clamps or temporary fasteners to verify correct alignment and positioning. Check that mounting plates align properly with chassis rails, that no components contact electrical harnesses or fuel lines, and that the structure sits level relative to both sides of the vehicle.

Document measurements between the new crossmember and fixed reference points on both sides of the vehicle. These measurements ensure balanced positioning and prevent the unintended misalignment that can cause handling problems and accelerated tire wear later. If discrepancies exist, adjust the component position and recheck measurements before proceeding to welding.

Body supports and mounting brackets that secure the vehicle body to the crossmember should be test-fitted at this stage. Minor adjustments to the replacement component or body mounting positions can often be made before permanent welding begins, eliminating the need for corrections after welding is complete.

Welding and Structural Joining Techniques

Quality welding represents the most critical phase of this restoration work, as the structural strength of your finished project depends directly on weld integrity. MIG welding offers advantages in speed and ease of learning but stick welding provides excellent results on thick materials and works reliably in outdoor conditions where wind can affect shielding gas performance.

Establish adequate surface preparation before welding begins. All rust, paint, and contaminants must be ground away from welding areas. Edges should be squared or beveled appropriately for your welding method to ensure full penetration and minimum defects. Visual inspection of prepared surfaces is essential—if you can see any discoloration or surface imperfection, continue grinding until the surface appears clean and uniform.

Begin welding from one end of the crossmember and work systematically toward the opposite end. Use short tack welds initially to secure the component in position, then perform complete structural welds that join the crossmember to the chassis rails. Multiple passes often produce stronger, more reliable results than attempting full penetration in a single pass. Allow adequate cooling time between passes to prevent heat distortion that can compromise alignment.

Protect nearby components during welding operations. Fuel pipes, electrical harnesses, and other flammable or sensitive items should be covered with protective aluminum shields or wet rags to prevent accidental damage from sparks or heat radiation.

Post-Welding Finishing and Protective Coating

After welding is complete and the structure has cooled sufficiently to handle safely, begin finish work on welded areas. An angle grinder with a grinding disc removes weld spatter and dressing, creating a smooth appearance and removing any surface irregularities. Smooth transitions between the new crossmember and existing chassis surface are not only aesthetically pleasing but also reduce stress concentration points that can lead to cracking during vehicle operation.

Clean finished welding areas thoroughly with a wire brush to remove any residual grinding dust or loose particles. Apply rust inhibitor solutions to exposed bare metal to prevent immediate oxidation. This is particularly important in concealed areas where air circulation is limited and moisture can accumulate.

Apply protective coatings in layers to ensure complete coverage and long-term rust prevention. Red oxide primers provide excellent adhesion and rust inhibition properties on bare steel surfaces. After primer curing, apply a topcoat of black paint or equivalent protective coating. Some restorers prefer heavy-duty underbody sealers that provide both protective coating and sound dampening benefits in these concealed areas.

Reassembly and Component Reinstallation

With the new crossmember permanently installed and protective coatings fully cured, reverse the removal process to reassemble the vehicle. Install body support brackets and mounting points first, ensuring secure attachment and proper alignment. Install the fuel tank support cradle or mounting system, verifying that all fasteners are secure and corrosion-resistant materials are used.

Reposition the fuel tank carefully and secure mounting straps. Reconnect all fuel lines and electrical connections to rear components. Verify that all connections are secure and that electrical harnesses are routed safely away from sharp edges, moving components, and hot surfaces.

Reinstall floor panels and secure them with appropriate fasteners. If the original rivets were removed or damaged, consider replacing them with modern fastening methods such as bolt-on plates or stainless steel rivets that offer improved durability and easier future maintenance access.

Perform a complete safety check before returning the vehicle to regular operation. Verify that all fasteners are tight, that no fluid leaks are present, and that the rear suspension and chassis components operate smoothly through their complete range of motion.

Frequently Asked Questions About Rear Crossmember Replacement

How can I determine if my Defender’s rear crossmember actually needs replacement?

Visual inspection revealing rust perforation, structural movement, or body misalignment indicates deterioration requiring professional evaluation. If you can push a screwdriver through the material or observe structural deformation, replacement is likely necessary.

Can the rear crossmember be repaired instead of completely replaced?

Minor surface corrosion can be addressed through grinding and protective coating, but structural rust with material loss typically requires replacement to maintain vehicle safety and integrity.

What welding method is preferred for crossmember installation—MIG or stick welding?

Both methods work effectively. MIG welding offers faster operation and easier control for beginners, while stick welding provides superior performance in outdoor conditions and on thick materials.

Is it necessary to remove the vehicle body for crossmember replacement?

While not always mandatory, removing the body provides superior access for welding and finishing work, particularly around the full circumference of weld joints, though floor removal alone may be sufficient for some installations.

How long does the protective coating last after replacement?

Quality undercoating and paint systems typically provide five to seven years of protection under normal conditions. Regular inspections and touch-ups extend this period significantly.

Final Considerations and Long-Term Maintenance

Rear crossmember replacement represents a significant restoration investment that substantially improves your Defender’s structural integrity and safety characteristics. Following proper procedures throughout the replacement process ensures that your completed work will provide reliable service for many years. Schedule regular inspections of the newly installed component, paying particular attention to the welded joints and painted surfaces. Prompt attention to any rust or damage that appears minimizes repair costs and maintains the structural quality you’ve carefully restored.
