Land Rover Defender Radius Arm Bush Replacement Guide

The Land Rover Defender’s robust suspension system relies heavily on radius arm bushes to maintain axle alignment and absorb road shocks. Over time, these critical components wear out, leading to clunks, poor steering response, and alignment issues. Replacing them restores the vehicle’s legendary off-road capability and on-road stability. This guide provides a complete walkthrough for DIY enthusiasts, drawing from proven methods used by Defender owners worldwide.

Understanding Radius Arm Bushes in Defender Suspension

Radius arms, also known as trailing arms, connect the front axle to the chassis on Land Rover Defenders. They control axle movement longitudinally while allowing vertical travel. Each arm features bushes at both ends: the axle end (front) and chassis end (rear). These rubber or polyurethane components isolate vibrations, reduce noise, and prevent metal-to-metal contact.

Worn bushes exhibit symptoms like excessive play in the suspension, visible cracks, or a loose center sleeve that moves by hand. Early Defenders (pre-1990s) use 39mm-wide bushes, while later models require 43mm versions—always verify your model’s specs to avoid fitment errors. Neglecting replacements can accelerate wear on other components, such as ball joints or track rods, potentially failing MOT tests.

Signs Your Defender Needs New Radius Arm Bushes

• Play in the arms: Excessive movement when jacking the axle, often noticeable during MOT prep.
• Steering vagueness: Wandering handling due to misalignment.
• Noises: Clunking over bumps from deteriorated rubber.
• Visual wear: Cracked or split bushes; center metal part pushes out easily.
• Vibration: Transmitted through the steering wheel from failed isolation.

Inspect by supporting the axle and prying the arms. If movement exceeds 2-3mm, replacement is essential for safety and performance.

Essential Tools and Materials for the Job

Gathering the right tools prevents frustration and ensures precision. Expect 2-4 hours for both sides, depending on experience.

Bush Options: Polyurethane (e.g., Super Pro kits ~£145-£200) for durability and easy install with included grease; OEM rubber for stock feel. Avoid mismatched sizes.

Preparation Steps Before Starting Work

1. Park on level ground, chock rear wheels, and disconnect battery for safety.
2. Jack front axle, support with stands—never work under unsupported vehicles.
3. Remove wheels (if needed for access) using 19mm socket.
4. Label all parts and take photos for reassembly reference.
5. Apply penetrating oil to bolts/nuts 24 hours prior if seized.

Wear protective gear; radius arms are heavy and can drop unexpectedly.

Detailed Removal Process for Radius Arms

Work on one side at a time to maintain axle centering.

Step 1: Disconnect Steering Track Rod

The track rod spans behind the axle, blocking arm removal. At the rear track rod end (steering arm), remove nuts and strike the taper with a hammer to free it—replace bent arms if damaged. Swing the rod aside and secure with zip ties.

Step 2: Detach Axle End Bolts

Each arm secures to the axle with two M16 bolts. Use 24mm socket/spanner to loosen and remove. Pry the arm down carefully from the mount—support to prevent dropping.

Step 3: Release Chassis End

Loosen the M20 Nyloc nut at the chassis bracket (do not fully remove yet). Pry the arm forward out of the bracket using a large screwdriver. Lower and remove the arm—it’s heavy, so use help or a jack.

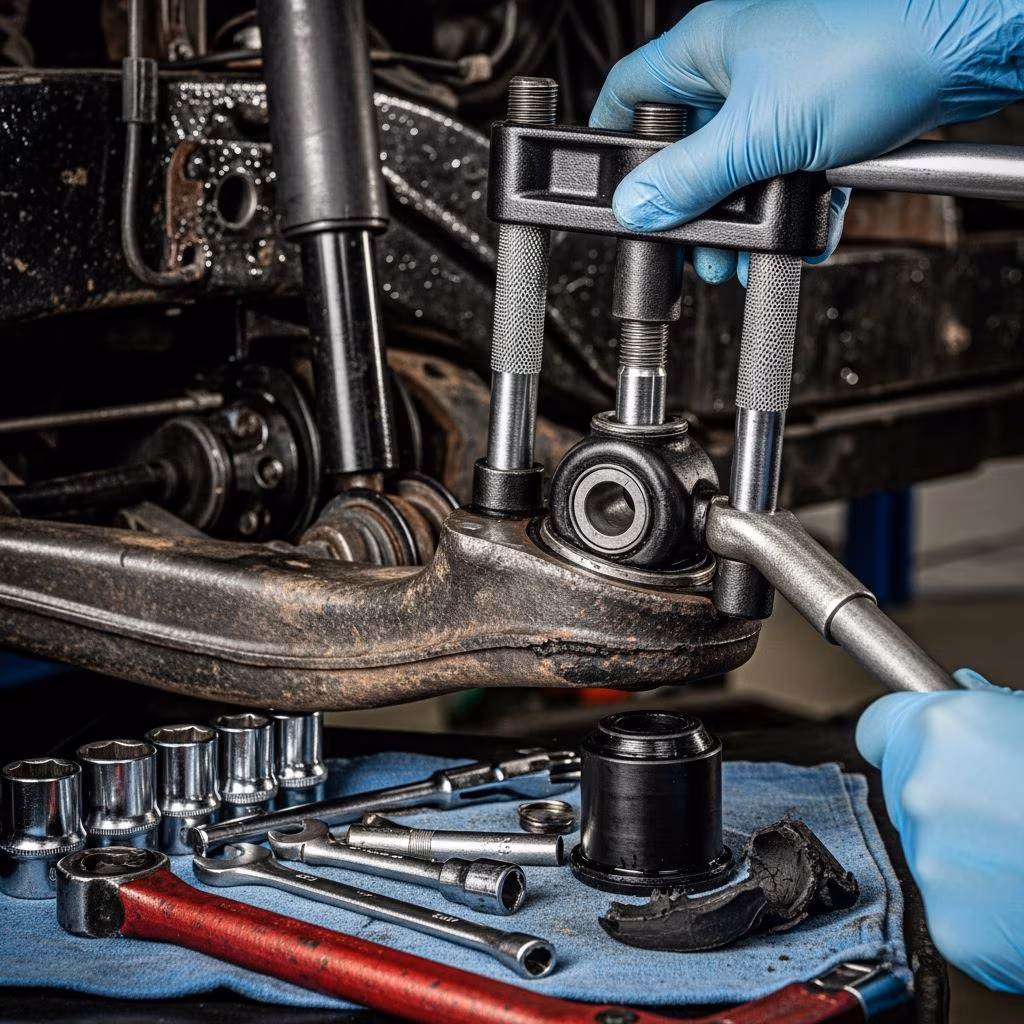

Step 4: Extract Old Bushes

On the bench, inspect bushes. For metal-sleeved types, use a chisel or air chisel to split the outer rubber. Press out with a hydraulic press (7 tons for stubborn ones) or improvise with stacked sockets/pipe. Rear chassis bushes may pry off easily with a screwdriver. Clean residue thoroughly.

Repeat for the second arm, which goes faster with practice.

Installing New Radius Arm Bushes

Poly bushes install easily; OEM may require more pressure.

Bush Fitting Techniques

• Axle End (Front): Press in outer shell first, ensure centered. Use grease on metal interfaces for polyurethane.
• Chassis End (Rear): Split bushes—fit one half during arm install. Press or tap into place.

Align perfectly; misalignment complicates reassembly. No press? Use vice, threaded rod, or socket stacks.

Reinstallation and Torque Specifications

Reverse removal with care for alignment.

Step 1: Chassis End First

Insert arm rear into bracket with half bush pre-installed. Add second half, greased washer, new M20 Nyloc nut. Hand-tighten.

Step 2: Align and Mount Axle End

Jack the arm front into axle bracket—tap sides with mallet if needed. Install new greased M16 bolts/Nyloc nuts. Do both sides loosely first for axle centering.

Step 3: Final Torquing

Reattach track rod with new split pins. Lower vehicle, bounce suspension, and test drive.

Common Pitfalls and Pro Tips

• Seized Bolts: Copper grease prevents future issues; heat if necessary.
• Alignment: Loose fit both sides before torquing.
• Bush Sizing: Confirm 39mm vs 43mm.
• MOT Pass: Fresh bushes eliminate play.
• Upgrade Path: Poly kits reduce NVH long-term.

Budget: £145-£200 for bushes + £50 tools if needed. Total time: 2-4 hours.

FAQs

Can I replace bushes without removing the radius arm?

No, full removal is required for proper access and pressing.

Polyurethane or OEM bushes—which is best?

Poly for longevity and off-road; OEM for quiet stock ride.

How often should I replace them?

Every 50,000-100,000 miles or at wear signs.

Do I need a press for installation?

Ideal, but vice or improvised tools work for poly.

Will this affect wheel alignment?

Possibly—check caster after; poly bushes may alter geometry slightly.

Advanced Maintenance: Beyond Bushes

While replacing bushes, inspect radius arms for cracks, track rod ends for play, and axle mounts for wear. Consider full suspension refresh with A-frame bushes or shocks for optimal performance. Regular greasing extends life in harsh conditions.

For Defenders in daily use, polyurethane upgrades transform handling without sacrificing capability. Track progress with before/after play measurements.
