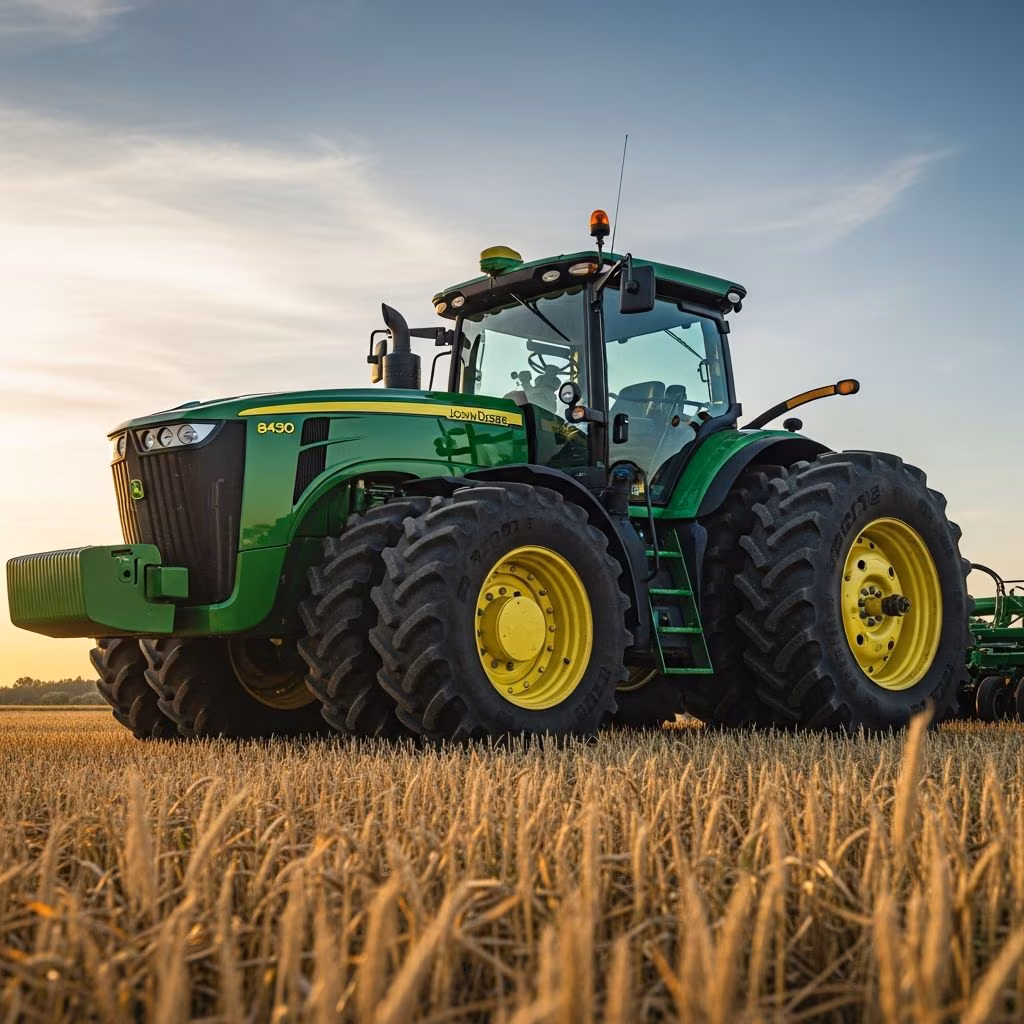

John Deere 8430 Tractor: 305 HP Power And Key Specs

The John Deere 8430 stands out as a versatile row-crop tractor engineered for demanding farming tasks. With its potent engine and durable build, it excels in large-scale operations, delivering reliable performance across tillage, planting, and hauling.

Engineering Excellence: Core Powertrain Features

At the heart of the John Deere 8430 lies a 9.0L John Deere PowerTech Plus diesel engine, a six-cylinder powerhouse rated at 305 horsepower. This engine operates at 2,100 RPM, providing 175 PTO horsepower and a remarkable 43% PTO torque rise for sustained power under load.

Advanced technologies like high-pressure fuel injection, variable geometry turbocharging, air-to-air aftercooling, and exhaust gas recirculation optimize combustion. These features ensure efficient fuel use, reduced emissions, and consistent torque, making it ideal for prolonged fieldwork or transport.

• Bore and Stroke: 4.66 x 5.40 inches for optimal displacement of 549 cubic inches.
• Compression Ratio: 16.3:1, enhancing thermal efficiency.
• Cooling and Lubrication: Liquid-cooled with full-pressure filtration and bypass for reliability.

Transmission Versatility for Every Task

The 8430 offers flexible transmission choices, including a 16-speed full powershift or infinitely variable transmission (IVT). The powershift provides smooth gear changes and durability, while the IVT delivers precise speed control without clutching, perfect for variable-rate planting or heavy hauling.

Both options support forward speeds up to 20 mph and reverse up to 11 mph, with wet disc brakes and hydraulic wet disc clutch for confident stopping power, especially on roads.

Hydraulic and Hitch Capabilities

Hydraulic performance is a highlight, featuring a closed-center pressure-and-flow compensated (PFC) system with 44 gallons per minute implement flow and 2,900 psi maximum pressure. Up to five remote valves and joystick SCV control enable seamless multi-implement operation.

The Category 3/3N rear hitch (optional Category 4N/3) lifts up to 11,000 lbs, accommodating heavy tillage tools or planters. Power steering and optional Independent Link Suspension (ILS) on the front axle improve maneuverability and reduce compaction with dual wheels.

Cab Comfort and Operator Productivity

The CommandView cab prioritizes long-hour comfort with ergonomic seating, excellent visibility, and intuitive controls. Sound levels stay low, and air suspension seats minimize fatigue during extended shifts.

Daily maintenance is ground-level accessible without tools, with extended service intervals cutting downtime. A 180-gallon fuel tank supports all-day operations, backed by a 200-amp alternator and 925 CCA batteries.

Dimensions and Field Mobility

Built for row-crop agility, the 8430 measures 219.1 inches long, 122.9 inches high, with a 120.1-inch wheelbase and 17.4-inch ground clearance. Tread ranges from 60-144 inches, and maximum ballast reaches 33,650 lbs for traction.

Ideal Applications in Contemporary Farming

This tractor shines in mid-to-large operations handling tillage, planting, grain cart pulling, and transport. Its balance of power and efficiency suits row-crop farms, minimizing soil compaction with optional duals and full-locking electrohydraulic differentials.

For primary tillage replacing older models like the 4640, the 8430 offers superior power and traction. Users praise its road manners, stopping power, and maneuverability even with dual wheels.

Comparing the 8430 to Similar Models

Versus the more powerful 8530 (330 HP engine, 278 PTO HP), the 8430 is cost-effective for standard tasks. It uses a partial powershift versus the 8530’s IVT but matches hydraulic capacity at 9.5-14.5 gallons.

Choose the 8430 for budget-conscious mid-sized farms needing dependable power without premium extras.

Durability and Long-Term Ownership

Manufactured in Waterloo, Iowa, as a row-crop tractor, the 8430 features robust axles: standard 120x3010mm rear with inboard planetary final drives and optional MFWD front axles with limited-slip or full-locking diffs.

Owners report strong longevity, even after storage, with good tires and 50-series motors holding value. Its design emphasizes serviceability, reducing costs and maximizing uptime.

Frequently Asked Questions (FAQs)

What is the engine power of the John Deere 8430?

The 8430 delivers 305 rated horsepower and 175 PTO horsepower from its 9.0L six-cylinder diesel engine.

What transmission options are available?

Options include 16-speed powershift or IVT for smooth, efficient operation.

How much can the rear hitch lift?

Up to 11,000 lbs with Category 3/3N hitch.

Is the cab comfortable for long days?

Yes, the CommandView cab offers ergonomic design, low noise, and superior visibility.

What fuel capacity does it have?

180 gallons, enabling extended fieldwork without refueling.

Why the 8430 Remains Relevant Today

In an era of precision agriculture, the John Deere 8430’s proven reliability, power, and versatility keep it competitive. It bridges traditional robustness with modern efficiency, serving as a workhorse for progressive farms.
