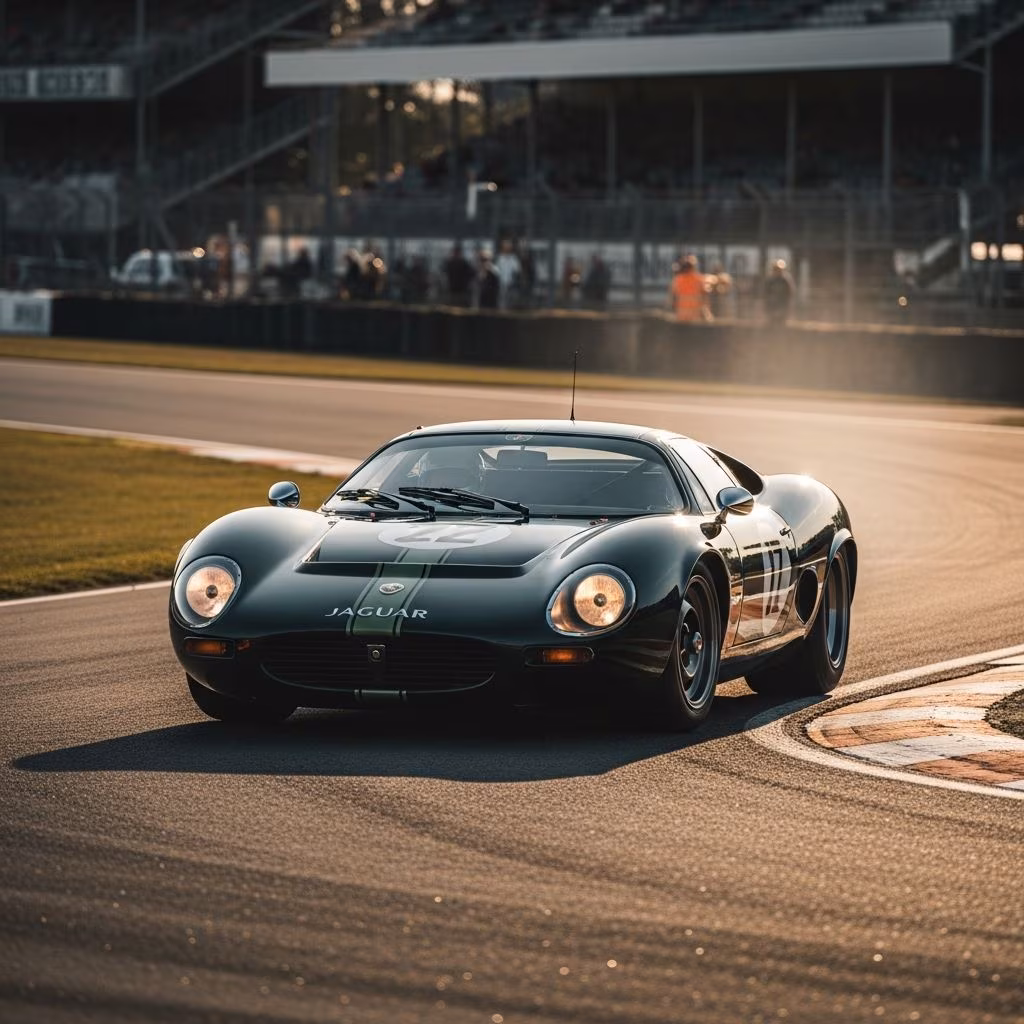

Jaguar XJ13: History, Engineering, And Legacy

The Jaguar XJ13 stands as one of the most poignant “what ifs” in motorsport history. Conceived in the early 1960s as Jaguar’s bid to reclaim dominance at the 24 Hours of Le Mans, this mid-engined prototype packed a revolutionary 5-litre V12 engine and aerodynamic mastery. Yet, despite its breathtaking potential, it never turned a competitive wheel in anger, becoming a victim of shifting regulations, corporate mergers, and misfortune. This article delves into the XJ13’s origins, technical brilliance, testing triumphs, dramatic downfall, and its lasting influence on Jaguar’s legacy.

Genesis of a Racing Dream

In the wake of Jaguar’s triumphant 1950s Le Mans era—marked by multiple victories with the C-Type and D-Type—the British marque eyed a return to prototype racing. The idea for a mid-engined contender surfaced around 1960, but formal development didn’t kick off until 1964-1965. Jaguar’s experimental department, led by figures like Keith Duckworth and Bob Hayden, saw an opportunity to showcase a new V12 powerplant originally intended for both racing and road cars.

The timing was ambitious. Jaguar had officially stepped back from factory racing in 1956, but privateers like Ecurie Ecosse kept the flame alive with D-Type and E-Type successes. By the mid-1960s, rivals like Ferrari’s P-series and Ford’s GT40 loomed large. Jaguar’s response was bold: a purpose-built racer to challenge these giants at La Sarthe, leveraging aerodynamic genius from designer Malcolm Sayer, famed for the E-Type’s curves.

• Key Motivations: Revive Le Mans glory post-1950s dominance.
• Strategic Shift: Move from front-engined straight-sixes to mid-engined V12 layout for better balance and speed.
• Corporate Context: Align with upcoming production V12 for the E-Type Series 3.

Revolutionary Engineering Under the Skin

At the heart of the XJ13 beat a 5.0-litre DOHC V12 engine, a technological marvel for its era. Initially dyno-tested in 1964, early versions produced around 425 bhp with carburettors, but Lucas mechanical fuel injection boosted output to 503 bhp at 7,600 rpm and 382 lb-ft of torque at 6,300 rpm. Engineers believed further tuning could yield 700 bhp. Seven prototype engines were built, evolving from chain-driven to gear-driven cams for reliability.

The chassis was a bespoke monocoque of riveted aluminum panels, lighter and stiffer than tubular frames of the time. Suspension featured independent double wishbones all around with adjustable dampers, while massive ventilated disc brakes—borrowed from racing tech—ensured stopping power. The mid-engine placement promised superior handling, with a sleek aluminum body channeling airflow for downforce and minimal drag. Weight hovered around 2,000 lbs (900 kg), optimizing the power-to-weight ratio.

This setup positioned the XJ13 as a theoretical GT40 killer, with projections of 180+ mph on Le Mans’ Mulsanne Straight.

From Workshop to Track: Development Hurdles

Work accelerated in 1965 despite the British Motor Corporation (BMC) merger with Jaguar, which diverted resources to the critical XJ6 saloon. A skeleton crew toiled evenings and weekends; the sole prototype ran under its own power by March 1966. Testing was sparse until 1967, hampered by budget cuts and management skepticism amid Ford GT40’s rise.

Professional drivers like David Hobbs and Richard Attwood shook down the car at MIRA and Silverstone. Hobbs set a UK lap record at MIRA: 161.6 mph (260 km/h), even as development continued. Norman Dewis, Jaguar’s veteran tester, handled shakedowns. Yet, Le Mans 1966 rule changes doomed it: prototypes capped at 3.0 litres, or 5.0 litres required 50-unit production homologation—impossible for a one-off.

The Fateful Film Shoot and Rebirth

Mothballed in 1967, the XJ13 gathered dust until 1971, when Jaguar revived it for a promotional film ahead of the V12 E-Type launch. At MIRA on January 20, 1971, with Dewis at the wheel, disaster struck: a rear tire failure at 170 mph sent it crashing. The monocoque split, but the V12 survived intact. Jaguar rebuilt it using original parts where possible, though purists note it’s not 100% authentic.

Post-rebuild, the XJ13 became a museum piece, preserved by the Jaguar Daimler Heritage Trust. Its Le Mans dreams faded, but the V12 tech powered production icons like the XJ saloon.

Modern Echoes and Replicas

The XJ13’s legend endures through replicas like Ecurie Ecosse’s LM69, which recreates its essence after 53 years. These homages capture the original’s silhouette and fury, allowing enthusiasts to experience what might have been. The prototype’s influence lingers in Jaguar’s DNA, from the XJ220 to modern supercars.

• LM69 Replica: Faithful rebuild using period-correct methods.
• Legacy Impact: V12 tech in road cars; inspiration for track-day specials.
• Cultural Status: Star of films, games, and collector lore.

Why the XJ13 Still Captivates

Six decades on, the XJ13 symbolizes untapped potential—a supercar avant la lettre, blending art and engineering. Its story underscores racing’s unpredictability: superior tech felled by bureaucracy and timing. For collectors and historians, it’s automotive poetry, a reminder that some legends shine brighter unscarred by competition.

Frequently Asked Questions (FAQs)

Was the Jaguar XJ13 ever raced?

No, regulatory changes and lack of homologation prevented it from competing at Le Mans or elsewhere.

What engine powered the XJ13?

A 5.0-litre DOHC V12 producing up to 503 bhp with fuel injection.

Did the original XJ13 survive its crash?

Yes, rebuilt by Jaguar in 1971 using surviving components, now at the Jaguar Heritage Trust.

How fast was the XJ13 in testing?

David Hobbs set a 161.6 mph lap record at MIRA; top speed estimated over 180 mph.

Are there replicas of the XJ13 today?

Yes, including the Ecurie Ecosse LM69, a modern recreation of the prototype.
