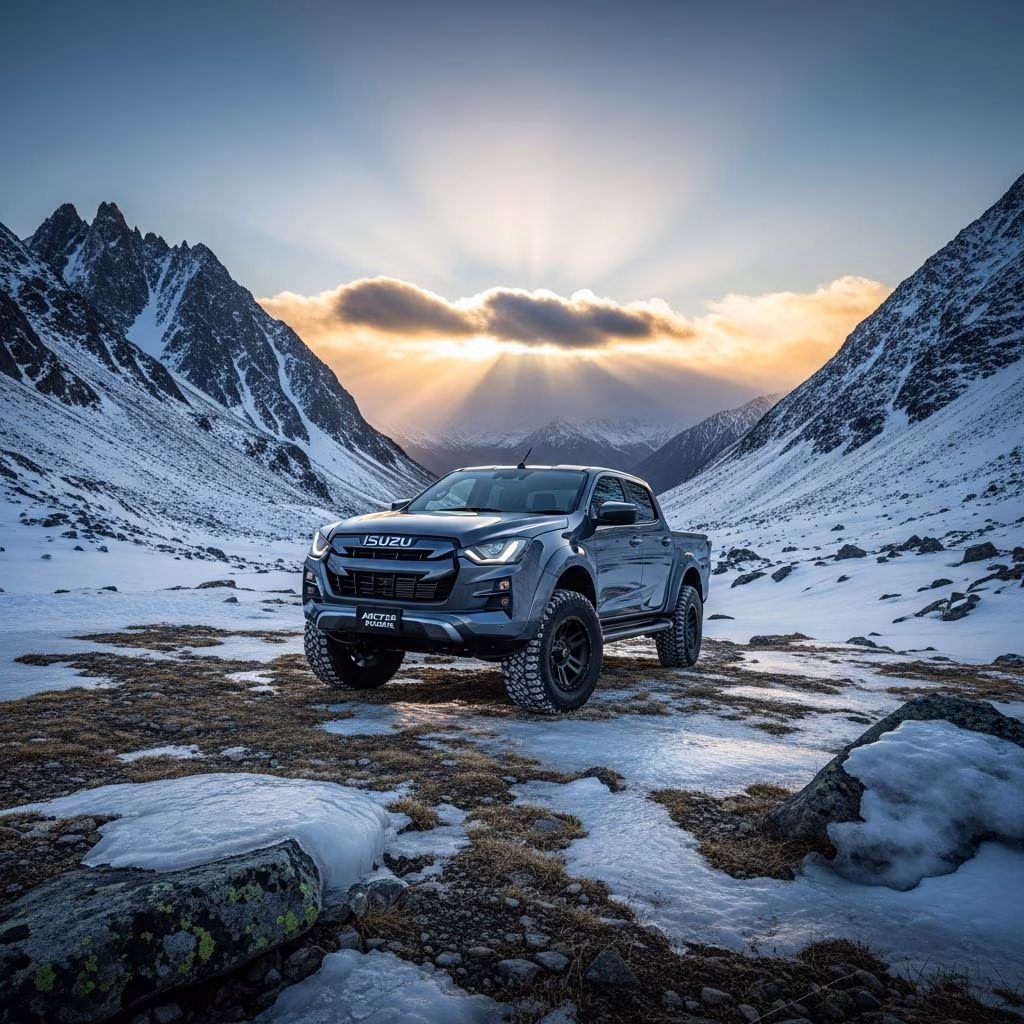

Isuzu D-Max AT35 Arctic Trucks: Extreme Terrain Performance

When Icelandic specialists Arctic Trucks undertake a project, the result is typically an extraordinary transformation. The D-Max AT35 represents precisely this philosophy—a meticulously engineered pickup designed to conquer the planet’s harshest landscapes. This isn’t merely a cosmetic upgrade; it’s a comprehensive reimagining of a capable workhorse into an expedition-grade instrument.

The Foundation: Understanding Arctic Trucks’ Vision

Arctic Trucks has earned international recognition for converting standard vehicles into machines capable of navigating some of Earth’s most unforgiving terrain. Their D-Max AT35 project embodies this expertise through extensive engineering and component selection. The transformation encompasses suspension geometry, tire specifications, and structural modifications that work synergistically to deliver unprecedented capability.

The designation “AT35” references the most distinctive feature: massive 35-inch diameter tires that fundamentally alter the vehicle’s interaction with challenging surfaces. These aren’t merely larger versions of standard tires; they represent a technological approach to terrain management that allows the vehicle to distribute weight differently across snow, ice, and soft ground.

Revolutionary Tire Technology and Ground Interaction

The 35-inch BFGoodrich All Terrain tires constitute the AT35’s most visually striking component. Their extraordinary dimensions create an increased surface contact area that Arctic Trucks engineers exploit to create flotation characteristics over snow and slush. Rather than penetrating soft snow layers, the vehicle essentially distributes its mass across a broader footprint, remaining at surface level rather than sinking.

This flotation principle transforms accessibility across terrain types that would immobilize standard vehicles. The tire compound itself combines flexibility with durability, maintaining grip across temperature extremes from mild conditions to extreme Arctic environments. The 315/70 specification provides both diameter and sidewall height that contributes to the AT35’s remarkable approach and departure angles.

Tire width has increased proportionally, requiring structural modifications to the vehicle’s bodywork. Arctic Trucks widened the body to accommodate these massive tires within the wheelarches, creating an imposing silhouette that announces the vehicle’s capabilities before it tackles any terrain.

Suspension Geometry and Off-Road Dynamics

Ground clearance improvements define much of the AT35’s enhanced capability. Raising the vehicle by more than 50 millimeters on each axle results in 266 millimeters of front clearance and 290 millimeters at the rear—substantial improvements over standard D-Max specifications. This elevation combines with modified suspension geometry to deliver angle measurements that separate real capability from mere appearance.

The approach angle reaches 35 degrees, departure angle spans 29 degrees, and the breakover angle achieves 34 degrees. These measurements directly translate to the vehicle’s ability to navigate obstacles without high-centering or sustaining underbody damage. A modern pickup with these angles can traverse terrain that would damage or disable less carefully engineered alternatives.

Arctic Trucks specified Bilstein suspension components rather than the Fox Performance dampers used previously. This choice reflects the team’s prioritization of durability and performance across varied terrain. Bilstein dampers provide progressive damping rates that absorb impact energy from glacial terrain, potholes, and boulder-strewn paths without compromising ride quality during highway travel.

The addition of a locking rear differential dramatically enhances traction when individual wheels encounter varying grip conditions. By mechanically linking both rear wheels, the differential ensures power delivery continues to tires maintaining contact even when terrain conditions vary between wheels. This represents a fundamental shift from standard open differential behavior and proves invaluable during challenging ascents and descents.

Engine Performance and Practical Capability

The AT35 relies on a 1.9-liter turbocharged diesel engine producing 121 kilowatts of power. While this output might appear modest relative to the vehicle’s size and visual presence, the engine’s torque characteristics provide more relevant performance metrics. Strong low-end torque delivery enables gradual acceleration from standstill—precisely what challenging terrain demands—rather than the aggressive throttle response inappropriate for precision driving in demanding conditions.

Real-world fuel consumption data demonstrates practical efficiency. Independent testing revealed fuel economy between 30 and 33 miles per gallon during mixed driving conditions, with some unladen highway travel exceeding 32 miles per gallon. For a vehicle of this size and capability, these figures represent genuinely competitive efficiency.

The 1,000-kilogram maximum payload capacity and 3,500-kilogram towing allowance position the AT35 as a genuine working vehicle rather than a styling exercise. These figures remain unchanged from standard D-Max specifications, confirming that Arctic Trucks’ modifications haven’t compromised the vehicle’s fundamental utility.

Transmission and Four-Wheel Drive Systems

The automatic transmission employed in the AT35 employs a laid-back shift character optimized for delivering torque progressively rather than aggressively. This calibration proves ideal for terrain driving where smooth power delivery prevents wheel spin and maintains traction across challenging surfaces. Kickdown response remains immediate when drivers request additional performance during highway merging or passing scenarios.

The four-wheel drive system includes two distinct engagement modes. High-range all-wheel drive can be selected while driving at speeds up to 60 miles per hour, engaging automatically when road surface grip demands maximum traction during wet or icy highway conditions. Low-range four-wheel drive requires the vehicle to be stationary, engaging mechanical advantage for extreme terrain work.

Hill Descent Control, newly introduced to the AT35 generation, manages brake pressure during steep downhill travel, allowing drivers to concentrate on steering rather than brake modulation. Combined with the Trailer Sway Control standard across D-Max models, these systems enhance safety across varied driving conditions.

Interior Design and Practical Accommodation

The cabin layout prioritizes functionality over technological complexity. Physical switches govern primary controls rather than excessive touchscreen integration, reducing distraction during challenging driving scenarios. Supportive seats provide proper lateral support during dynamic off-road maneuvers while remaining comfortable during extended highway travel.

Interior storage solutions appear throughout the cabin, eliminating loose items that could become projectiles during rough terrain travel. The leather interior choice provides durability and easier cleaning than fabric alternatives after muddy expeditions.

Accommodation spans five occupants in double-cab configuration. Rear passenger space proves adequate rather than spacious, particularly for the middle seat position which offers a somewhat restricted forward view. For expedition purposes where two front occupants represent primary travel, this spatial arrangement proves perfectly functional.

Load and Cargo Capabilities

The cargo bed maintains the standard D-Max’s substantial dimensions, measuring approximately 5.3 meters in overall length. The sturdy drop-down tailgate can only retract to horizontal positioning due to the chunky rear bumper, but this limitation barely impacts practical loading scenarios.

The elevated ride height does increase loading effort for heavier items, requiring more dramatic lifting motions to clear the higher cargo bed sidewalls. However, this trade-off proves acceptable given the terrain accessibility gained through the raised suspension. The cargo bed width accommodates standard industrial equipment and expedition gear without difficulty.

On-Road Handling and Ride Characteristics

The massive tires create steering characteristics that drivers familiar with standard D-Max models will immediately notice. The increased sidewall height and weight slightly increase steering effort and reduce feedback precision compared to smaller tire specifications. This represents a trade-off between on-road refinement and off-road capability that Arctic Trucks engineers consciously prioritized toward extreme terrain performance.

The ride quality over rough pavement reveals the suspension tuning; occupants remain aware of significant bumps and surface irregularities without harsh impacts. The suspension absorbs energy progressively, preventing the jarring sensations that can result from overly stiff off-road setups. This balanced approach proves suitable for vehicles intended to cover both highways and challenging terrain during expedition travel.

Safety Features and Modern Conveniences

The AT35 incorporates modern safety technologies including automatic emergency braking, collision detection, and parking sensors. These additions contrast sharply with traditional expedition vehicles, combining contemporary protection with extreme capability. Automatic light adjustment and rain-sensing wipers reduce driver workload during extended travel through variable weather conditions.

The bonnet slope design enhances forward visibility from the elevated driving position, an important consideration when traversing boulder fields and glacial crevasses where early obstacle identification proves critical. Interior lighting innovations and improved sightlines reflect the reality that modern extreme vehicles serve expedition companies and adventure travelers who value safety integration with capability.

Pricing and Value Proposition

The AT35 commands a premium of approximately £16,500 over standard D-Max specifications, representing a substantial investment. While the modification list—enhanced ground clearance, massive tires, specialized suspension, and Arctic Trucks engineering—justifies this increase from a technical standpoint, buyers must evaluate whether the visual impact and capability genuinely match their intended use.

For expedition companies, Arctic tourism operators, and serious off-road enthusiasts, this investment yields capability unavailable through standard pickup trucks. For buyers primarily seeking attention-getting styling, significantly cheaper alternatives might prove equally satisfying. The critical evaluation hinges on realistic usage patterns and genuine terrain demands.

Comparative Perspective

The AT35 occupies a unique market segment. Relative to standard D-Max pricing, the modification investment appears substantial. Relative to purpose-built expedition vehicles and specialized overland trucks, the AT35 represents excellent value, combining proven pickup truck reliability with extreme terrain engineering at a fraction of bespoke alternative costs.

Practical Expedition Readiness

Beyond specifications and performance figures, the AT35 demonstrates genuine expedition capability. The robust ladder-frame chassis tolerates the stresses of extreme terrain without the reliability concerns that plague less carefully engineered vehicles. Components undergo verification testing across temperature extremes, proving functionality in the Arctic conditions that inspired the design.

Real-world expedition reports consistently highlight the AT35’s ability to traverse terrain that immobilizes standard vehicles, navigate soft snow and glacial surfaces through tire flotation characteristics, and maintain occupant comfort during extended exposure to challenging conditions. These practical outcomes validate the engineering philosophy underlying the design.

Key Performance Specifications Summary

• Ground Clearance: 266mm front, 290mm rear
• Tire Specifications: 35-inch diameter BFGoodrich All Terrain
• Engine: 1.9-liter turbocharged diesel, 121kW power
• Payload Capacity: 1,000kg maximum
• Towing Capacity: 3,500kg braked trailer
• Fuel Economy: 30-33 mpg mixed driving
• Approach Angle: 35 degrees
• Departure Angle: 29 degrees

Conclusion: Purpose-Built Excellence

The Isuzu D-Max AT35 Arctic Trucks represents purposeful engineering rather than arbitrary modification. Every change directly contributes to extreme terrain capability, from tire selection through suspension geometry to differential locking mechanisms. For buyers requiring genuine expedition capability combined with pickup truck practicality, the AT35 delivers comprehensive solutions to demanding terrain challenges.
