Installing Fairey Overdrive on Series Land Rovers

Adding a Fairey overdrive to a Series Land Rover transforms its driving dynamics, allowing higher cruising speeds and less engine stress on long journeys. This auxiliary gearbox unit mounts directly to the transfer box, providing a gear ratio reduction that makes road travel more efficient and comfortable.

Why Choose a Fairey Overdrive for Your Land Rover?

The Fairey overdrive stands out as a popular upgrade for Series I, II, and III models due to its compatibility and proven durability when properly maintained. It enables the vehicle to maintain speeds above 50 mph without over-revving, addressing a common limitation of these classic 4x4s originally designed for off-road prowess rather than highway efficiency.

Owners report significant improvements in fuel economy and reduced fatigue on motorways, as the engine operates at lower RPMs in overdrive mode. Safety benefits include better overtaking capability and less vulnerability to faster traffic, which is crucial for vintage vehicles. However, note that this modification precludes fitting a power take-off (PTO) unit, as both occupy the same mounting position on the transfer box.

Understanding the Fairey Overdrive Unit

This compact gearbox features a simple engagement mechanism operated by a cab-mounted lever, requiring clutch depression to shift in or out of overdrive. It functions across most gears but is not recommended for first or second due to high torque loads that could accelerate wear.

Internally, it relies on a small sump for lubrication, making regular oil checks essential to prevent premature failure. Neglect here leads to whining noises and gear damage, with replacement parts becoming scarce for these vintage units. Second-hand Fairey overdrives typically range from £450 to £550, so sourcing a quiet, well-maintained example is advisable—ideally one tested in operation.

Essential Tools and Materials

Installation demands basic mechanical skills and hand tools, keeping the process accessible for weekend mechanics. Here’s a comprehensive list:

• Socket set (including 1-inch or 25mm for mainshaft nut)
• Spanners and wrenches for 6mm to 12mm nuts/bolts
• Torque wrench (up to 150 ft-lbs)
• Special tool or hammer/drift for castellated nut
• Grease (LM grease or Rocol Anti-Scuff Paste)
• Gaskets and tab washers (new recommended)
• Crane, jack stands, or assistant for lifting heavy unit
• Drill with 3mm bit for lever bracket
• Eye protection, gloves, and rags for cleanup

Prepare a level workspace to avoid rolling risks, and park on firm ground.

Pre-Installation Preparation

Begin by securing the vehicle: engage the parking brake, chock wheels, and support on axle stands if working from below. Drain any excess oil from the transfer box to minimize mess.

Inside the cab, remove seat cushions and the center panel atop the seat box to access the transmission tunnel. This exposes the rear of the gearbox mainshaft and transfer box input gear.

Shift both gearbox and transfer box to neutral. Rotate the mainshaft until a tab on the lock washer aligns with a slot in the castellated nut at the 12 o’clock position. Select first gear to lock the shaft for nut removal.

Step-by-Step Disassembly

1. Remove Rear Extensions: Unscrew the carrier plate and any rear extension housing bolts from the gearbox/transfer box interface. This provides clearance for overdrive access.

2. Extract Mainshaft Nut: Release the tab washer securing the castellated nut on the mainshaft. Using first gear to lock rotation, loosen and remove the nut, special tab washer, spacer, and clutch sleeve. Clean all components thoroughly.

3. Inspect Components: Check the transfer box intermediate gear cluster and mainshaft splines for wear. Grease the clutch sleeve externally and internally, packing the bearing generously as it receives limited lubrication post-install.

Overdrive Assembly and Fitting

Reassemble the mainshaft in reverse order: slide the greased clutch sleeve (splines rearward), spacer washer, tab washer, and new castellated nut. Tighten firmly in first gear, aligning tabs and slots—adjust nut position slightly if needed by tapping with a drift.

Prepare the overdrive: apply heavy grease to the input shaft splines and bearing recess. Smear gasket surfaces with grease on both sides.

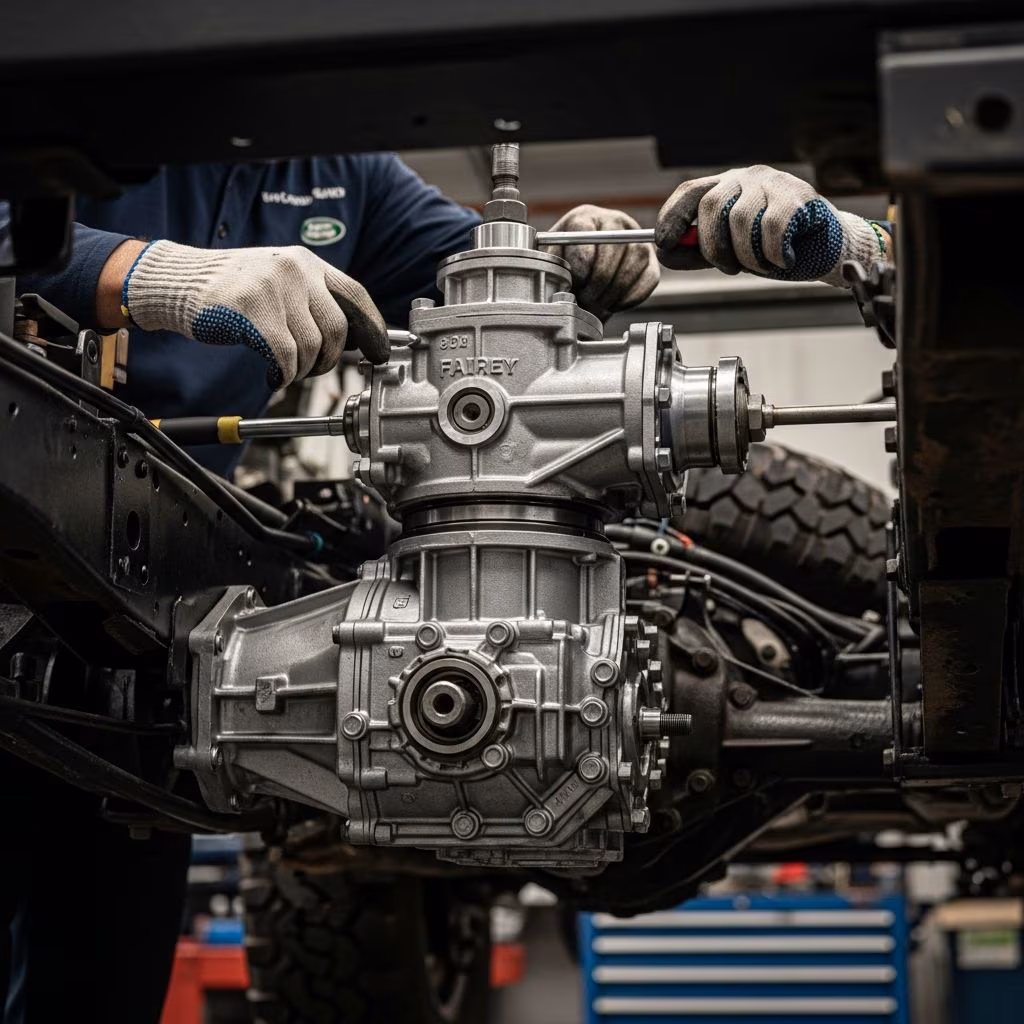

Lift the unit (approximately 40-50 lbs) from below using a crane or helper. Align the output shaft gears with the transfer box cluster and input shaft with the clutch sleeve splines. It should slide in smoothly; if resistance occurs, rotate shafts to mesh gears.

Secure temporarily with top nuts and lock washers (finger-tight), then slide unit out slightly to access lower studs. Reinstall fully and torque all six nuts in opposing pairs to specifications (typically 40-50 ft-lbs).

Installing the Control Lever

Mount the selector bracket to the gearbox housing using existing bolts. Measure precisely: 108mm above the footwell floor and 54mm (4-cyl) or 41mm (6-cyl) forward from the rear tunnel corner. Drill a pilot hole through the tunnel cover into the bracket.

Fit the lever assembly, ensuring smooth operation without binding. Test engagement in neutral with clutch depressed.

Post-Installation Checks and Testing

Refit all panels, seats, and covers. Fill the overdrive sump with recommended oil (e.g., EP90 gear oil) to the correct level—critical for longevity.

Lower the vehicle and perform a bench test: engage/disengage overdrive in various gears (avoiding 1st/2nd), listening for unusual noises. Road test at low speeds, monitoring temperatures and leaks.

Safety Protocols During Installation

Prioritize safety: work on level ground, use stands rated for the vehicle’s weight, and wear PPE. The overdrive’s heft demands mechanical assistance to prevent strains or drops. Avoid loose clothing near rotating parts, and clean spills immediately to prevent slips.

Maintenance for Longevity

After fitting, inspect oil levels monthly, especially post-off-road use. Change oil annually or every 5,000 miles. Listen for whines indicating wear—early intervention extends unit life. Avoid prolonged low-gear use in overdrive.

Benefits vs. Drawbacks

• Pros: Higher top speeds, better economy, relaxed cruising.
• Cons: No PTO compatibility, maintenance-sensitive, parts scarcity.

For Series Land Rover enthusiasts, the Fairey overdrive delivers substantial returns on modest investment and effort.

Frequently Asked Questions (FAQs)

Is the Fairey overdrive compatible with all Series models?
Yes, it fits Series I to III without major adaptations.

How long does installation take?
4-8 hours for experienced mechanics; longer for first-timers.

Can I fit it myself?
With basic tools and caution, yes—no welding or fabrication needed.

What oil should I use?
EP90 or manufacturer-spec gear oil; check capacity (about 0.5 liters).

Does it affect off-road performance?
Minimal impact if disengaged; enhances versatility.
