Install Heated Windscreens On Land Rovers: DIY Guide

Upgrading your Land Rover with heated windscreens eliminates the frustration of frozen or misted glass during winter drives. These modern laminated screens heat up rapidly to clear ice, snow, and condensation, improving safety and convenience on Series models and Defenders.

Why Choose Heated Windscreens for Your Land Rover

Classic Land Rovers like the Series II, III, and Defenders often struggle with poor demisting due to basic heater systems. Cold mornings mean scraping ice from both sides of the glass and dealing with frozen wipers. Heated windscreens use thin embedded wires to generate warmth, demisting in minutes without cabin heat reliance.

Laminated designs add strength, reducing shatter risk compared to toughened glass. They match original thickness, ensuring compatibility with existing frames and seals. Expect costs around £80-£260 per screen plus wiring kits, with DIY fitting saving labor fees[10].

Essential Tools and Materials

Gather these items before starting to ensure smooth installation:

• Wire strippers and crimpers for secure connections
• Heat-shrink sleeving and heat gun for waterproof wiring
• Spanners, screwdrivers, and drill for frame work
• Butyl or mastic sealing strip from caravan suppliers
• Gloves, workshop paper, and washing-up liquid for handling glass
• 25-amp relays, fuses, self-illuminating switch, and 25-amp rated wire
• Glazing seal (e.g., GT106) and primer for bonded screens

Total time: 6-8 hours. Budget: £150-£300 depending on kit.

Preparing Your Vehicle

Safety first: Disconnect the battery to avoid shorts. Park on a level surface with good lighting. For off-road frames with pronounced corner welds, lightly grind them to prevent glass stress during flexing. Clean the frame thoroughly, removing old sealant residue.

Inspect the existing windscreen for damage. Heated kits replace it entirely, so note wire positions— they face inward with corner cut-outs visible inside.

Removing the Old Windscreen

Follow these steps methodically to avoid breakage:

1. Remove sun visors, rear-view mirror, and fascia top rail (hard tops) or headlining strip.
2. Unscrew glass retaining angle strips along the frame edges.
3. Gently pry the glass free, using picks or hooks if rope-threaded seals are present.
4. Clean all traces of old sealant from frame and strips with solvent.

For soft tops, detach the windscreen from the body. Wear gloves to protect hands and glass.

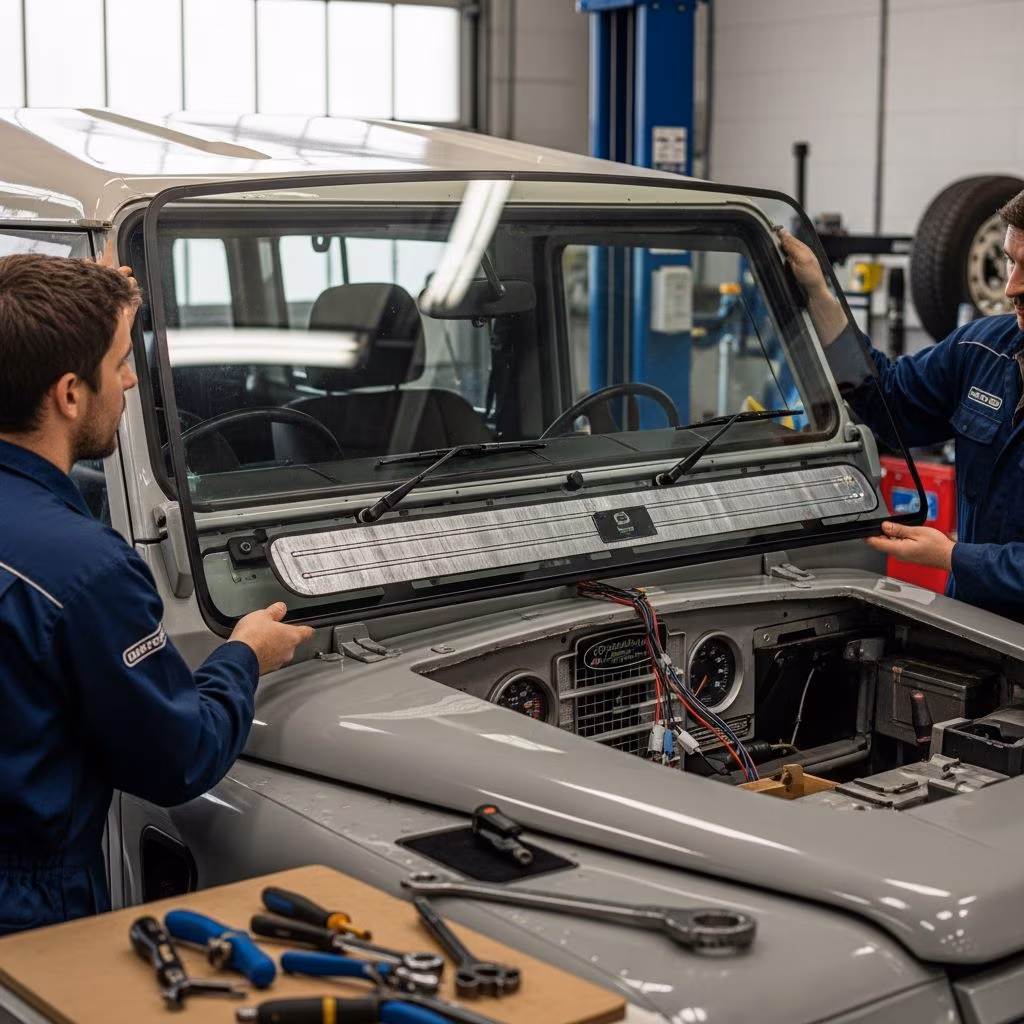

Fitting the New Heated Glass

New screens arrive with embedded heating elements and wiring pigtails. Prime bonded edges if specified.

1. Apply glazing seal (e.g., GT106) inside the frame interior.
2. Position the new glass firmly into the seal, wires inward.
3. Encircle glass edges with additional seal for angle strips.
4. Secure strips with original screws; trim excess sealant.
5. Reattach to vehicle: fascia rail, headlining, visors for hard tops; body mounts for soft tops.

Test fit ensures no glass-to-frame contact, allowing flex without cracking. Use rope and liquid soap for stubborn seals.

Wiring the Heating System

Separate task from glass fitting. Use 25-amp wire for feeds, proper crimps, and moisture-proofing.

Steps:

1. Route harness from screen wires (two or three per side) along A-pillars, avoiding pedals.
2. Connect positives via relays to fused battery positive.
3. Ground blacks securely.
4. Mount fuse box, relay, switch.
5. Secure loom with ties, test before final routing.

Optional timer relay limits to 10 minutes. Piggyback heated mirrors by linking positives.

Advanced Tips for Defender Models

Defenders use similar processes but check for OEM-style connectors. Replace cracked seals during upgrade. Thread rope through rubber channels with knots and soap for easier fitment. Run mirror wires over windscreen top, tucking neatly.

For negative-earth 12V systems only. Verify battery security post-wiring.

Troubleshooting Common Issues

• Slow heating: Check 25-amp wire gauge and relay function.
• Glass cracks: Ensure weld grinding and cushioning seal.
• Intermittent power: Inspect crimps, earth points, fuses.
• Moisture failure: Apply heat-shrink liberally.

Test full cycle after battery reconnect: screen warms evenly without hotspots.

Benefits Beyond Winter

Heated screens reduce wiper wear from ice, improve visibility in heavy rain, and add resale value. Laminated safety exceeds originals. Pair with heated mirrors for complete setup.

Cost Breakdown

DIY avoids £100+ fitting fees[10].

FAQs

Are heated windscreens compatible with all Land Rovers?

Primarily Series II-III (negative earth) and Defenders; confirm kit specs.

How long do they take to demist?

Typically 2-5 minutes to full clarity.

Can I fit them myself?

Yes, with basic tools; 6-8 hours for novices.

Do I need professional wiring?

No, but use rated components and test thoroughly.

What if my frame has welds?

Grind lightly for clearance.
