Hybrid Cars: 7 Essential Components And How They Work

Hybrid cars represent a pivotal advancement in automotive technology, merging traditional gasoline engines with electric propulsion systems to deliver enhanced fuel economy and lower environmental impact. These vehicles intelligently manage power sources based on driving demands, optimizing performance while minimizing fuel consumption.

Core Principles of Hybrid Propulsion

At their foundation, hybrid vehicles integrate an internal combustion engine (ICE) with one or more electric motors, drawing energy from a battery pack. The ICE burns gasoline to generate power, while electric motors provide instant torque for efficient low-speed operation. This dual setup allows the vehicle to switch or combine power sources dynamically, improving overall efficiency.

Unlike fully electric vehicles, standard hybrids do not require external charging. Instead, the battery recharges through the ICE and regenerative braking, where kinetic energy from deceleration converts into electrical energy. This process extends brake life and recaptures energy that would otherwise be lost as heat.

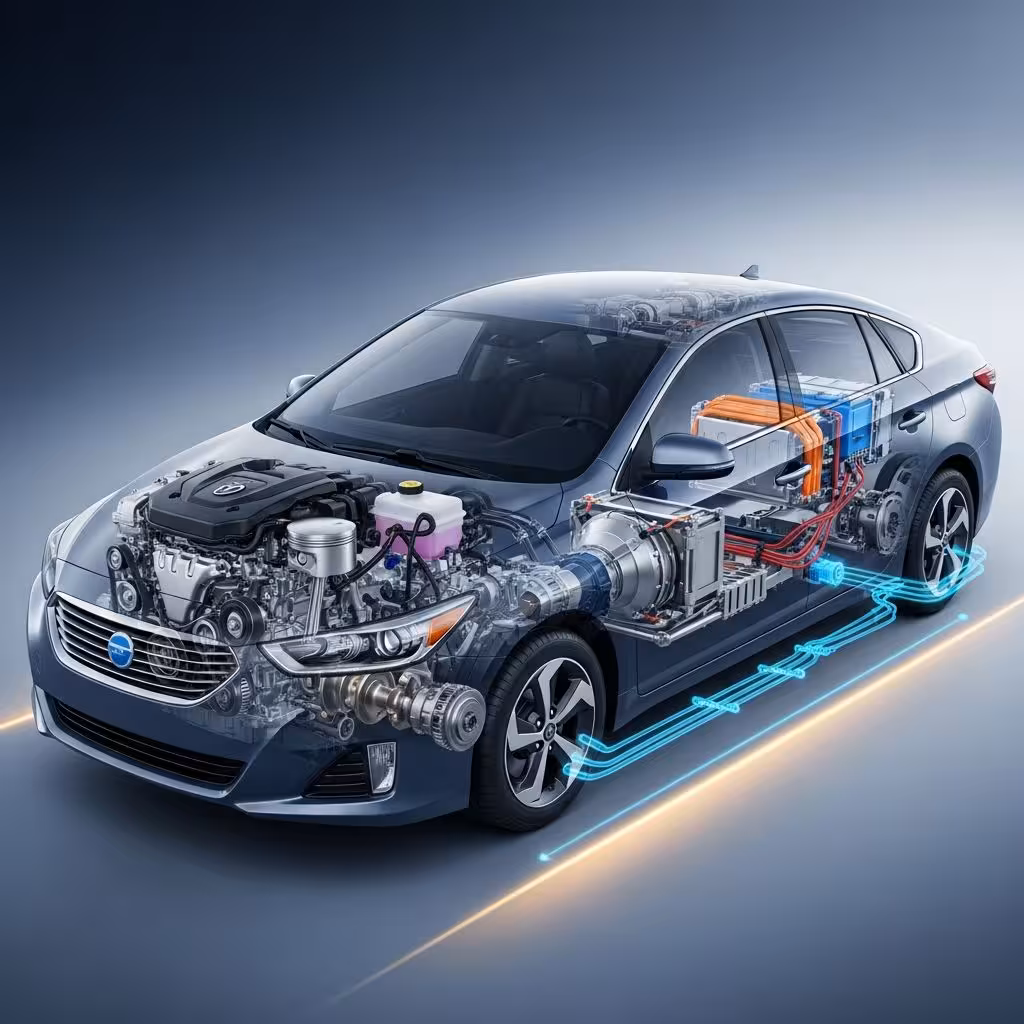

Essential Components in Hybrid Systems

Hybrid cars feature specialized parts working in unison. Key elements include:

• Traction Battery Pack: High-voltage batteries store electricity for the electric motor, recharged via the engine or braking.
• Electric Traction Motor: Delivers power to the wheels, often doubling as a generator during regen.
• Power Electronics Controller: Regulates energy flow, motor speed, and torque for smooth transitions.
• Internal Combustion Engine: Provides primary propulsion at higher speeds and recharges the battery.
• Transmission: Handles power from both sources to the wheels, often using a planetary gear system.
• DC/DC Converter: Steps down high-voltage power for accessories like lights and infotainment.
• Thermal Management System: Cools the engine, motor, and electronics to maintain optimal temperatures.

These components enable hybrids to achieve fuel economies often exceeding 40-50 mpg in city driving, far surpassing conventional cars.

Power Delivery and Driving Modes

Hybrids adapt power delivery to conditions. At low speeds or stop-and-go traffic, the electric motor propels the vehicle silently, eliminating engine idling. During acceleration, both systems engage for robust performance. On highways, the ICE takes over for sustained cruising.

This table illustrates how hybrids prioritize electric power for efficiency, with the ICE supporting as needed.

Regenerative Braking: Energy Recovery Mechanism

Regenerative braking is a hallmark of hybrid efficiency. When slowing, the electric motor reverses to act as a generator, converting the vehicle’s momentum into electricity that recharges the battery. A computer modulates this based on brake pedal input, blending with friction brakes for hard stops.

This system boosts city fuel economy by recapturing up to 30% of braking energy, reducing wear on pads and rotors. In practice, it allows electric-only driving post-stop until speeds reach 25-30 mph.

Types of Hybrid Architectures

Hybrids vary by power integration:

• Parallel Hybrids: Both ICE and electric motor connect directly to the transmission, enabling simultaneous or individual use. Common in models like Toyota Prius, offering versatility.
• Series Hybrids: ICE generates electricity solely for the battery and motor; it never directly drives wheels. Ideal for low-speed efficiency, gaining traction.
• Series-Parallel (Power-Split): Flexibly switches between series and parallel modes via planetary gears, maximizing efficiency across speeds.

Each type suits different priorities, with power-split dominating due to balanced performance.

Benefits Beyond Fuel Savings

Hybrids excel in multiple areas:

• Fuel Efficiency: Up to 50% better than gas-only cars, especially urban.
• Emissions Reduction: Lower CO2 via less ICE runtime and regen.
• Performance: Electric torque fills low-end gaps, quicker acceleration.
• Brake Longevity: Regen reduces pad wear by 50-70%.
• Quiet Operation: EV mode minimizes noise and vibration.

Owners report lower lifetime costs despite higher upfront prices, thanks to savings on fuel and maintenance.

Hybrid vs. Plug-In Hybrid vs. Electric

HEVs suit those without charging access, bridging to full electrification.

Maintenance Considerations for Hybrids

Hybrids require standard services like oil changes, but electric components lower overall needs. Batteries last 150,000+ miles with warranties. Technicians need hybrid-specific training for high-voltage systems.

Regen extends brake life, but monitor battery health via diagnostics. Fuel filters and spark plugs see less wear due to reduced ICE hours.

The Evolution and Future of Hybrids

Since Toyota’s 1997 Prius, hybrids have proliferated, with millions on roads. Advances include larger batteries, faster charging, and integration with autonomy. By 2026, hybrids comprise 20-30% of sales amid electrification pushes.

Emerging mild hybrids add small electric assist to traditional engines, cutting fuel 10-20%. Full hybrids pave the way for PHEVs and BEVs.

Frequently Asked Questions (FAQs)

Can hybrid cars drive on electricity alone?

Yes, for short distances (1-2 miles) at low speeds, using battery power.

Do hybrids need special gasoline?

No, regular unleaded suffices; premium optional for some high-performance models.

How long do hybrid batteries last?

Typically 10-15 years or 150,000-200,000 miles, with replacements costing $2,000-$4,000.

Are hybrids more expensive to insure?

Slightly higher due to repair costs, but savings offset via fuel efficiency.

Can I tow with a hybrid?

Many can, but check ratings; electric assist aids low-speed towing.

Choosing Your First Hybrid

Consider commute, budget, and charging. Test drive for seamless transitions. Popular models offer 45-60 mpg, proving hybrids’ practicality.
