Honda VTEC Engine Explained: How It Works And Why It Matters

Since its introduction in the late 1980s, Honda’s Variable Valve Timing and Lift Electronic Control system—commonly known as VTEC—has fundamentally transformed how modern engines balance power generation with fuel efficiency. This innovative technology represents one of the most significant advancements in internal combustion engine design, allowing a single engine to operate across multiple performance profiles without requiring different physical engines or complex mechanical compromises. By intelligently switching between different camshaft profiles based on engine speed and load conditions, VTEC delivers the best characteristics of both low-speed and high-speed engines simultaneously.

The Foundation: What Makes VTEC Revolutionary

At its core, VTEC is an electronic and mechanical system that fundamentally changes how an engine controls its intake and exhaust valves. Traditional engines use a single camshaft profile that represents a compromise between low-RPM efficiency and high-RPM performance. Honda’s engineers recognized that this one-size-fits-all approach inherently sacrifices performance in one operating range to optimize another. VTEC eliminates this compromise by giving engines the ability to effectively operate with multiple camshafts simultaneously.

The system operates through hydraulic pressure-operated pins that lock and unlock different rocker arms, allowing the engine to switch between distinct cam profiles. This technology was first conceptualized and developed by Honda engineer Ikuo Kajitani and made its world debut on the 1989 Honda Integra, marking a watershed moment in automotive history. Unlike conventional variable valve timing systems that only adjust the timing of valve opening without changing lift or duration, VTEC modifies three critical variables simultaneously: valve timing, valve lift, and valve duration.

How VTEC Operates Across Different Engine Speeds

The VTEC system functions through a sophisticated three-stage operation that corresponds to different engine RPM ranges. Understanding these stages reveals why the technology delivers such impressive performance gains across the entire operating spectrum.

Low-RPM Operation: The Efficiency Phase

From idle through approximately 2500 to 3000 RPM, depending on engine load conditions, VTEC operates in what engineers call 12-valve mode. In this configuration, only one of the two intake valves fully opens, while the second valve opens just slightly—barely enough to prevent fuel from pooling behind the closed valve. This asymmetrical valve operation creates deliberate swirl patterns within the combustion chamber, which significantly enhances combustion efficiency.

This controlled swirl provides multiple benefits to engine operation at lower speeds. The improved combustion efficiency generates better low-end torque, giving drivers responsive acceleration from a standstill. Simultaneously, the restricted intake flow reduces pumping losses and optimizes the air-fuel mixture, resulting in measurably better fuel economy during city driving and low-speed cruising. Cold-start emissions also improve substantially because the enhanced combustion efficiency means more complete fuel burning with fewer unburned hydrocarbons exiting the exhaust system.

Mid-Range Operation: The Transition Phase

As engine RPM climbs between 3000 and 5400 (varying by load conditions), the first VTEC solenoid engages through hydraulic pressure directed by the engine’s computer. This engagement causes a locking pin to secure the second rocker arm to the first rocker arm’s camshaft lobe. Both intake valves now follow the same low-rpm camshaft profile, effectively creating a 16-valve mode operation identical to conventional engines.

This mid-range transition phase optimizes the engine’s power delivery where most drivers spend the majority of their driving time. The switch to full dual-valve operation provides a smooth power curve that feels linear and responsive without the abrupt power surge that might otherwise occur during acceleration. The engine maintains the combustion efficiency benefits while beginning to deliver increased breathing capacity for improved horsepower generation.

High-RPM Operation: The Performance Phase

At 5500 RPM and climbing toward the engine’s redline (typically around 7000 RPM), the second VTEC solenoid engages in addition to the first. Both solenoids now work in concert to lock both rocker arms onto a middle, third camshaft lobe that was specifically designed for high-performance operation. This third lobe features dramatically higher valve lift and extended duration compared to the low-RPM profile, allowing maximum air intake and aggressive exhaust scavenging.

The higher lift allows intake valves to open wider and remain open longer, permitting significantly more air to enter the cylinders at higher velocities. This enhanced breathing capacity enables the engine to consume more fuel and produce peak horsepower in the upper RPM range where maximum performance is desired. For performance enthusiasts, this audible and physical transition represents the moment when VTEC fully engages—a sensation often described as the engine “waking up” or “coming alive.”

The Mechanical Architecture Behind VTEC

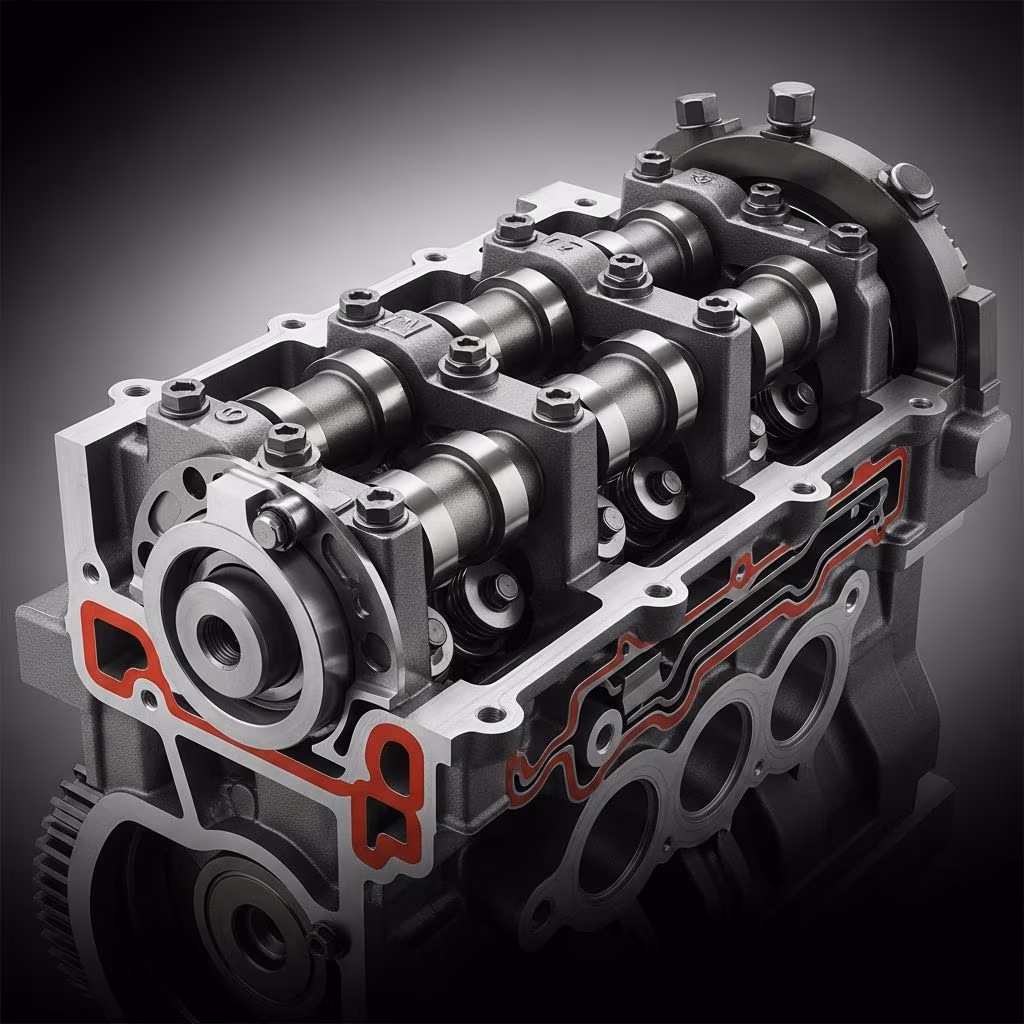

The physical design of a VTEC engine reveals the ingenious engineering required to accomplish such rapid switching between operating modes. Rather than using a conventional single camshaft, VTEC engines employ multiple cam lobes per valve—typically arranged with two lower-speed lobes and one higher-speed lobe. The rocker arm assembly includes corresponding followers that can engage different lobes depending on solenoid activation.

Hydraulic pressure serves as the medium for actuation. When the engine’s computer signals the VTEC solenoids to engage, pressurized oil flows through passages in the rocker shaft. This oil pressure moves a sliding pin mechanism that locks the rocker arms together, transferring control from the low-RPM lobes to the high-RPM lobe. The entire process occurs seamlessly in milliseconds, with modern engine management systems perfectly timing the transition to match engine characteristics and driver demand.

The intake and exhaust sides may operate independently, with some engines featuring VTEC only on the intake side or featuring different arrangements on each side. This modular approach allows Honda engineers to optimize each engine’s design for its intended purpose, whether prioritizing emissions control, fuel efficiency, or maximum performance.

Evolution: From VTEC to i-VTEC

While the original VTEC system represented a tremendous leap forward, Honda continued refining the technology. The introduction of i-VTEC (intelligent-VTEC) in 2001 combined traditional VTEC with Variable Timing Control (VTC), a continuously variable camshaft phasing system. This enhancement expanded VTEC’s capabilities significantly.

i-VTEC adds a computer-controlled, oil-driven adjustable cam sprocket that can advance or retard the intake camshaft position between 25 and 50 degrees depending on engine configuration. Rather than simply switching between discrete profiles, the system now continuously adjusts camshaft timing throughout the entire RPM range. This allows even more precise optimization of the intake charge, further improving torque delivery across the power band and reducing emissions. Both engine speed and load conditions inform the VTC adjustment, enabling the system to respond dynamically to instantaneous driving conditions.

Performance and Efficiency Benefits

The advantages delivered by VTEC technology span multiple dimensions of engine performance:

• Enhanced Fuel Economy: Low-RPM efficiency improvements translate to measurably better fuel consumption during typical driving cycles
• Reduced Emissions: Improved combustion efficiency and optimized valve overlap reduce unburned hydrocarbons and other pollutants
• Increased Power Output: The high-RPM profile unleashes maximum horsepower potential from a compact engine displacement
• Wide Usable Power Band: Unlike engines optimized for either low-end or high-end performance, VTEC delivers excellent characteristics throughout the entire RPM range
• Responsive Acceleration: The multiple operating profiles provide intuitive performance response to varying driving conditions
• Engine Longevity: Optimized combustion patterns and reduced stress cycles extend engine life compared to conventionally-designed engines

Comparing VTEC to Other Variable Valve Technologies

Why VTEC Matters for Modern Engines

In an era where environmental regulations continue tightening and consumer demand for both performance and efficiency intensifies, technologies like VTEC provide elegant solutions to seemingly contradictory requirements. A high-performance engine typically requires large displacements, aggressive cam profiles, and specialized tuning—all characteristics that harm fuel economy. Conversely, an efficient economy engine sacrifices performance and driver engagement. VTEC allows manufacturers to deliver compact, fuel-efficient engines that still provide engaging performance when desired.

This balance has become increasingly important as regulations worldwide mandate lower emissions and better fuel economy. Rather than resorting to complex hybrid or turbocharger systems exclusively, engines incorporating VTEC technology achieve efficiency targets through intelligent mechanical design. The technology exemplifies how thoughtful engineering can satisfy multiple objectives simultaneously.
