Freelander 1 Sunroof Repair: Step-By-Step DIY Guide

The Land Rover Freelander 1, a compact SUV from the late 1990s and early 2000s, features a popular electric sunroof that enhances open-air driving. However, exposure to harsh weather often leads to common problems like water ingress, rusty frames, stiff mechanisms, and motor failures. This guide provides a thorough, original approach to diagnosing and resolving these issues, drawing on proven techniques to restore functionality without professional help. Whether your sunroof sticks, leaks, or refuses to operate, these steps will get it working smoothly again.

Understanding Common Sunroof Problems in Freelander 1

Sunroofs on the Freelander 1 are prone to several failures due to their design and environmental exposure. Water leaks top the list, often stemming from clogged drain tubes, deteriorated seals, or corroded glass frames. Mechanisms can seize from rust buildup on tracks and gears, while electric motors wear out from constant use or internal gear slippage. Ignoring these can damage the headlining, electronics, and even structural components inside the vehicle.

• Leak sources: Blocked drains, cracked glass bonds, or perished rubber seals allow water to pool and drip inside.
• Operational failures: Stiff sliders, broken plastic components in the drive cables, or slipping motor gears prevent opening or closing.
• Structural issues: Rust on the steel underframe loosens the glass, compromising the seal’s effectiveness.

Early detection prevents escalation. Regular inspections during routine maintenance can extend the sunroof’s life significantly.

Diagnostic Steps: Pinpointing the Fault

Before diving into repairs, accurately identify the problem. Start with a visual and functional check.

1. Test operation: Cycle the sunroof through open, close, and tilt modes. Listen for unusual noises like grinding or slipping, which indicate gear or track issues.
2. Leak test: With the sunroof tilted, gently pour water near each corner drain. Water should exit via tubes under the vehicle. If it doesn’t, clears blockages with compressed air.
3. Inspect glass and frame: Check for movement in the glass panel, rust on the metal frame, or delamination where glass bonds to steel.
4. Mechanism check: Remove the interior cover to view tracks. Look for rust, broken rollers, or frayed cables.

Use a flashlight and mirror for hard-to-reach areas. Document findings with photos for reassembly reference.

Gathering Tools and Parts for the Job

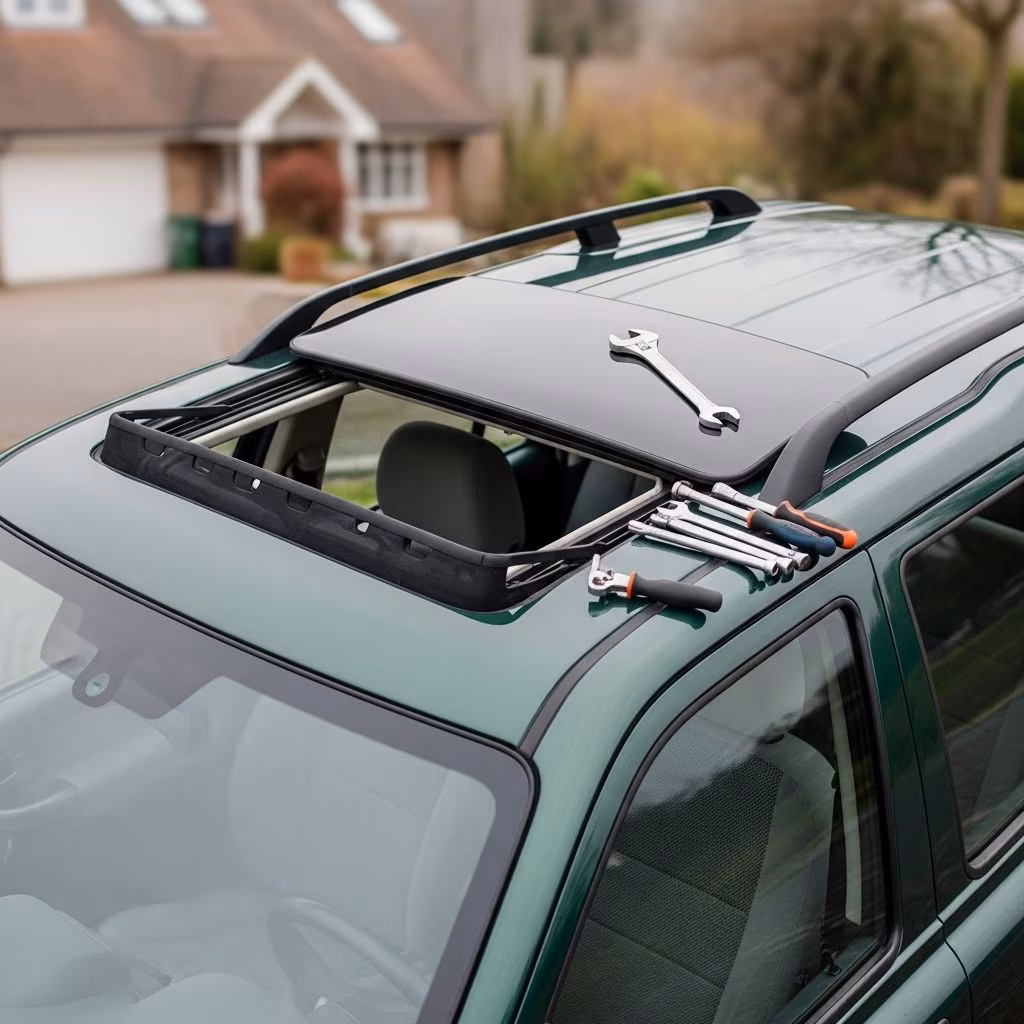

A well-equipped workspace ensures efficiency. Essential tools include Torx bits (T8, T20, T30), screwdrivers, pliers, socket set, trim removal tools, lubricant (silicone-based for tracks), rust remover, and sealants.

Source parts from reputable suppliers like Britpart for OEM quality. Always verify compatibility with your Freelander 1 model year (1997-2006).

Step-by-Step Sunroof Removal Process

Safe removal requires care to avoid damaging interior trim or glass. Park on a level surface and disconnect the battery.

1. Interior Preparation: Lower the headlining slightly if needed for motor access. Remove A-pillar trim and any obstructing panels using plastic pry tools.

2. Glass Panel Release: Tilt the sunroof fully. Locate and press the red release button (visible when half-open) to detach the glass from the mechanism. Lift it out carefully, weighing about 10-15kg.

3. Mechanism Disassembly: Unscrew track covers. Disconnect drive cables by releasing tension. Remove motor via three Torx screws from below; it lifts through the headlining after unplugging connectors.

4. Track and Frame Extraction: Slide out rails after loosening end stops. Clean the aperture thoroughly.

Tip: Mark positions with tape to aid reassembly.

Addressing Rust and Frame Restoration

Rust on the steel underframe is a primary culprit for leaks. Inspect the bond between glass and frame—if compromised, replace the entire assembly (EFT500070).

For minor corrosion:

• Wire brush rust away.
• Apply rust converter and primer.
• Repaint with black chassis paint.

If the frame is severely pitted, a new bonded glass unit is essential. Test the bond by pressing edges; any flex indicates failure. Cleaning drains is crucial—use an airline to blast debris from tubes exiting under the sills.

Rebuilding the Mechanism: Tracks, Gears, and Cables

Disassembled mechanisms often reveal worn plastic sliders, broken tabs, or rusted shafts. Repair kits provide replacements.

Cleaning and Lubrication:

1. Degrease all parts with brake cleaner.
2. Replace broken plastic ends on drive cables and gears.
3. Polish shafts and rollers; lubricate with silicone grease.
4. Inspect cables for fraying—wind them evenly during reassembly.

For gear issues inside the motor, drill out rivets, swap worn plastic gears for new ones, and secure with screws. Turn the motor gear slot to align teeth with cables.

Test manually before reinstalling: Ensure smooth sliding without binding.

Motor Maintenance and Replacement

The sunroof motor engages via a gearwheel into the gearbox. If it whines or slips:

Removal: Unplug connectors, remove three screws, lift out.

Repair: Open casing, replace internal plastic gear (common failure point), reassemble.

Replacement: Align new motor’s gear with cables using the screwdriver slot. Refit and test electrically.

Pro Tip: Operate rails manually first to confirm mechanism alignment.

Reassembly and Sealing for Waterproofing

Reverse disassembly with precision.

Tracks and Cables: Slide in rails, connect cables, tension evenly.

Glass Installation: Fit new seal (EEQ100340) starting from center rear. Position glass, engage clips.

Motor and Covers: Reinstall motor, trim panels.

Final leak test: Pour water liberally and cycle the sunroof. No drips should enter the cabin.

Preventive Maintenance Schedule

Keep your sunroof trouble-free:

• Monthly: Clean drains, lubricate tracks.
• Annually: Inspect seals and bonds; test full operation.
• Every 2 years: Replace seals proactively.

Park under cover when possible to minimize UV and water exposure.

Frequently Asked Questions (FAQs)

Can I drive with a leaky sunroof?

No—water damages electronics and headlining. Fix promptly to avoid £500+ repairs.

How long does a rebuild take?

4-8 hours for DIYers, depending on rust extent and experience.

Are aftermarket kits reliable?

Yes, for mechanisms, but use OEM for glass/frame to ensure fit and durability.

What if the headlining is water-damaged?

Dry thoroughly; replace if sagging. Use absorbent packs during repairs.

Does this apply to Freelander 2?

No—different mechanisms; consult model-specific guides.
