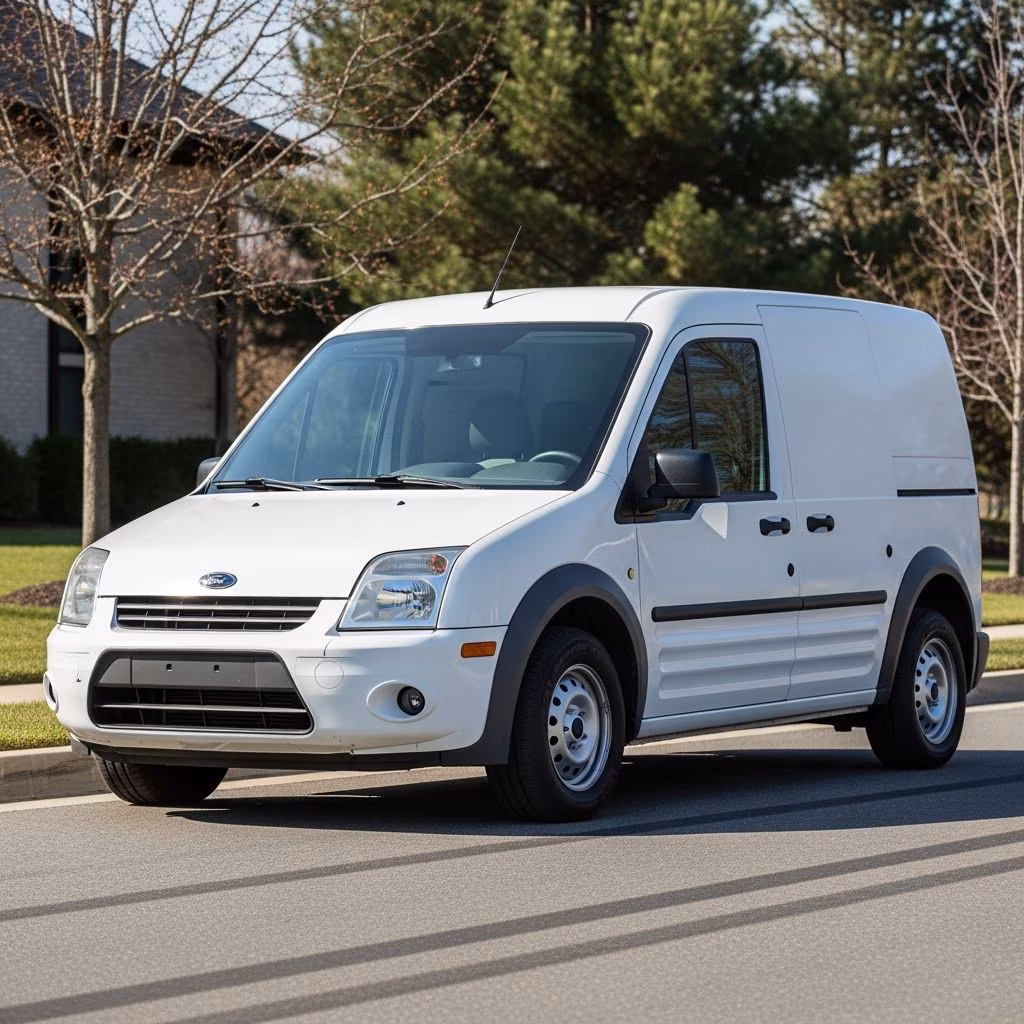

Ford Transit Connect 2003-2014: 3 Engine Options, Used Guide

The Ford Transit Connect from 2003 to 2014 marked a pivotal shift in compact commercial vehicles, introducing a purpose-built platform that outshone converted passenger cars. Launched in Europe in late 2002, this first-generation model filled the gap between smaller courier vans and larger Transits, offering businesses a blend of car-like drivability, impressive payload, and versatile body styles.

Design and Body Configurations

Available in short wheelbase (SWB) with low roof or long wheelbase (LWB) with high roof, the Transit Connect catered to diverse needs. The SWB version measured around 4.2 meters long, while the LWB extended to about 4.6 meters, providing load volumes of 2.8 to 3.7 cubic meters. Panel van and crew cab variants included options for one or two sliding side doors, enhancing access in tight urban spaces. A passenger-focused Tourneo Connect added windows and rear seats for leisure use.

Payload capacity reached up to 800kg, with gross vehicle weight around 2,160kg, making it suitable for tools, materials, or light deliveries. The fold-flat passenger seat and bulkhead allowed load extension beside the driver, maximizing flexibility without compromising cab space.

Engine Lineup and Performance

Power came exclusively from 1.8-liter Duratorq TDCi diesel engines in three outputs: 75bhp, 90bhp (later badged as 100bhp in some markets), and 110bhp. These turbo-diesel units delivered strong low-end torque—up to 185lb-ft—ideal for loaded starts and hill climbs. A five-speed manual gearbox was standard, paired with front-wheel drive for nimble handling.

Performance suited urban and motorway use, with the 110bhp variant offering the best balance for heavier loads. Later models gained refinements like electronic stability control.

Fuel Efficiency and Running Costs

Official figures promised 47.1mpg for the 75bhp model and 46.3mpg for higher outputs under combined cycles, with CO2 emissions at 159-162g/km—competitive for the era. Real-world economy often hit 40-45mpg, depending on load and driving style. Low power demands kept road tax modest, around £200-250 annually in the UK.

• Pros: Excellent diesel economy reduces fuel bills for high-mileage users.
• Cons: Some owners noted lower real-world mpg from base engines, especially when laden.

Service intervals were 12,500 miles, with parts commonality from Ford’s passenger lineup keeping costs down. Insurance groups were low (typically 5-10), appealing to small operators.

Practicality and Load Area

Load lengths measured 1.8m (SWB) to 2.4m (LWB with seat folded), widths between wheel arches at 1.2m, and heights up to 1.4m in high-roof models. Roof rails and tie-down points were standard, with optional ply-lining protecting interiors. Crew vans seated five, folding rear benches for extra cargo when needed.

Access via rear doors (180-degree opening) or sliding sides made loading straightforward. Towing capacity reached 1,200kg braked, useful for trailers.

Cab Comfort and Features

The cab felt dated by 2014 but remained functional, with adjustable steering, decent legroom, and storage cubbies. Base models included electric windows, CD audio with aux input, and a fold-flat passenger seat. Trend trim added Bluetooth, six-way driver seat, and overhead shelves. Top Limited spec brought parking sensors, auto air-con, and leather accents.

Visibility was strong, aided by options like quick-clear windscreens and heated mirrors. Ride quality absorbed potholes well, thanks to independent front suspension and a leaf-spring rear.

Safety and Reliability Insights

Standard driver’s airbag, anti-submarining seats, and ESC (post-facelift) provided basic protection. Optional passenger/side bags and remote central locking enhanced security. Euro NCAP rated it three stars, typical for vans then.

Reliability was solid overall, though wiring issues mimicked alternator faults, and front tire wear accelerated on poorly aligned units. Regular maintenance mitigated these, with many exceeding 150,000 miles.

Used Market Guide (2026 Perspective)

By 2026, low-mileage 2003-2014 Connects trade for £3,000-£8,000, depending on spec and condition. Prioritize 2009+ facelifts with 110bhp engines and full service history. Check for rust on sills, turbo health, and EGR valve clogs. Values hold due to demand from tradespeople.

Pros and Cons Summary

• Strengths: Maneuverable, frugal diesels, versatile loads, cheap to run.
• Weaknesses: Dated interior, potential wiring/tyre issues, basic safety by modern standards.

Frequently Asked Questions (FAQs)

What is the fuel economy of the 2003-2014 Ford Transit Connect?

Expect 46-47mpg officially, 40+mpg real-world for 1.8 TDCi engines.

How much can a Transit Connect carry?

Up to 800kg payload, 3.7m³ volume in LWB high-roof.

Is the Transit Connect reliable?

Generally yes, but watch for wiring and tire wear; service regularly.

What’s the difference between SWB and LWB?

SWB: 2.8m³, compact; LWB: 3.7m³, taller roof for bulkier items.

Can it tow?

Yes, up to 1,200kg braked.

Why Choose a Used Transit Connect Today?

In 2026, this van remains a budget-friendly choice for startups or solo traders. Its compact size navigates cities effortlessly, while diesel efficiency combats rising fuel costs. Compared to newer rivals, it lacks advanced tech but excels in simplicity and parts availability.
