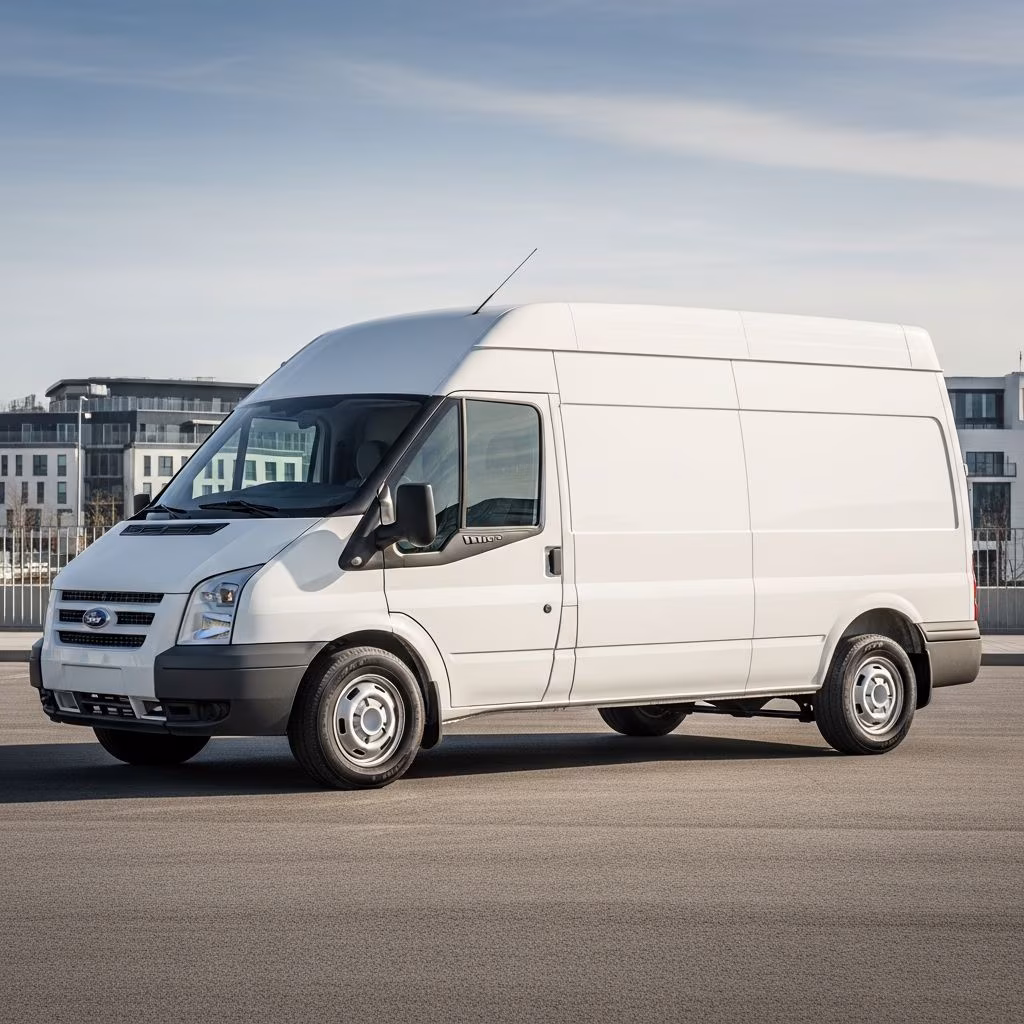

Ford Transit 2003-2014: 15 Styles, Payloads To 2,238kg

The Ford Transit from 2003 to 2014 redefined versatility in the light commercial vehicle segment, offering businesses an array of configurations tailored to diverse operational demands. With payloads reaching up to 2,238kg across 15 different styles, this model balanced robust load-carrying ability with engaging on-road manners and economical operation. Front-wheel-drive (FWD), rear-wheel-drive (RWD), and all-wheel-drive (AWD) options catered to various terrains and usage scenarios, powered primarily by efficient 2.2-litre diesel engines.

Extensive Model Lineup and Configurations

Ford engineered the Transit to accommodate a wide spectrum of commercial needs through multiple wheelbase lengths—short, medium, and long—combined with varying roof heights: low, medium, and high. This flexibility allowed for panel vans, crew cabs, Luton bodies, minibuses, and tippers, ensuring no business was left without a suitable option. The double-cab-in-van variants extended seating to six passengers, blending passenger comfort with cargo space.

Key body configurations included:

• Short wheelbase (SWB): Low or medium roof, ideal for urban deliveries with payloads around 764-1,200kg.
• Medium wheelbase (MWB): Low, medium, or high roof options, popular for general trade work with payloads up to 1,665kg on 3.5-tonne models.
• Long wheelbase (LWB) Jumbo: High roof only, boasting a cavernous 4,122mm load length for bulk transport.

Dimensions varied significantly: overall lengths ranged from 4,884mm to 5,902mm, heights from 1,992mm to 2,580mm, and widths around 1,974mm, making it adaptable for tight streets or expansive sites. FWD models featured lower load floors for easier manual loading, while RWD versions excelled in heavy-duty applications.

Powertrain Options and Performance

At the heart of the 2003-2014 Transit lay the 2.2-litre Duratorq TDCi diesel engine, available in multiple power outputs to match workload intensity. FWD variants offered 100bhp, 125bhp, or 140bhp; RWD models extended to 100bhp, 125bhp, 135bhp, or 155bhp; and the AWD option stuck to 125bhp. All paired with a standard six-speed manual gearbox for precise control and efficiency.

Higher-spec models like the 3.2-litre TDCi delivered 200PS in select RWD configurations, while a 2.3-litre petrol option catered to non-diesel preferences, though diesels dominated for torque-heavy duties. Fuel economy shone in ECOnetic trims, incorporating stop-start technology, low-rolling-resistance tyres, and a 70mph limiter. The 100bhp SWB low-roof ECOnetic achieved 43.5mpg (EU combined) and 173g/km CO2, while the 125bhp LWB version managed 39.8mpg and 189g/km. Real-world figures hovered around 8.1-9.1L/100km depending on load and driving style.

Service intervals were set at 15,000km or 12 months, backed by a 3-year/100,000km warranty from new.

Cargo Capacity and Practical Features

Payloads impressed, peaking at 2,238kg in heaviest configurations, outpacing many peers, though rivals like Nissan NV400 edged higher in some metrics. Load volumes scaled with body size: SWB offered around 2.8-3.7m³ (comparable to Transit Connect), while Jumbo models provided substantially more. A full-steel bulkhead separated cab from load area, enhancing security and safety.

Practical touches included fold-flat passenger seats for extended load lengths, multiple tie-down points, and optional shelving. FWD’s lower floor height eased frequent loading, vital for manual handlers. All-wheel-drive rarity added off-road prowess for construction or rural use.

Cab Comfort and Interior Quality

The cab prioritized driver ergonomics with improved seat adjustments over predecessors, though steering wheel height adjustment remained absent. Dash layouts were logical, with steering-column audio controls, aux-in, and electric windows standard on higher trims. Materials endured daily abuse, and space accommodated three abreast in double-cab setups.

While interiors dated by 2014, they offered comfort for long hauls, with optional upgrades like air conditioning and cruise control enhancing appeal. Security featured immobilisers, shielded locks, and key-required bonnet access.

Safety, Reliability, and Durability

Safety standards included load-sensing ESP stability control across the board—rarer in FWD rivals—plus driver’s airbag standard and optional passenger/side curtains. Zinc galvanising and a 12-year anti-corrosion warranty underscored build quality.

Reliability proved strong, with few major issues reported. Common checks for used buyers: wiring loom faults (often misdiagnosed as alternator), front tyre wear sensitivity, and verifying accident damage. Overall, owners praised longevity, especially with regular maintenance.

Driving Dynamics and Handling

Renowned for car-like agility, the Transit handled twisty roads better than most vans, though laden payloads demanded caution. Precise steering and six-speed gearing made motorway cruises effortless. FWD models felt nimbler in cities, RWD steadier under load.

Running Costs and Ownership

Low CO2 and mpg in ECOnetic variants minimized tax and fuel bills. Residual values held firm due to demand. Insurance groups were competitive, and parts availability excelled given Ford’s network. Used prices varied by condition, but versatility kept values buoyant.

Common Issues and Buying Tips

Prospective owners should inspect:

• Clutch and dual-mass flywheel wear on high-mileage units.
• Turbo and injector health on 2.2 TDCi.
• Underbody corrosion despite warranty.
• Full service history verification.

Test drive laden if possible to assess handling.

Market Position and Legacy

The 2003-2014 Transit secured International Van of the Year nods, blending innovation like CAN bus electronics with proven durability. It paved the way for successors, cementing Ford’s dominance in Europe and beyond.
