Fixing Water Damage on Nintendo Switch

Water damage can strike any Nintendo Switch unexpectedly, whether from a spill, drop in liquid, or exposure to humidity. Acting swiftly with the right methods increases the chances of saving your device without professional intervention or replacement. This guide draws from official Nintendo recommendations and proven repair practices to walk you through detection, initial response, thorough cleaning, and advanced troubleshooting.

Recognizing the Signs of Liquid Exposure

Liquid ingress often manifests subtly at first. Common indicators include the console failing to power on, distorted audio, intermittent WiFi connectivity, or unusual charging behavior. Corrosion may develop rapidly, creating unintended electrical paths that harm components like the motherboard or battery. Even if the Switch appears functional initially, hidden damage can emerge later, emphasizing the need for prompt action.

Critical First Steps After a Spill

Time is critical when liquid contacts your Switch. Follow these immediate protocols to minimize harm:

• Unplug everything: Disconnect the USB-C charger, Joy-Cons, and any accessories right away to prevent short circuits.
• Power down manually: Press and hold the POWER button for at least three seconds, then select Power Options > Turn Off. Avoid using the console while wet to eliminate electrical shock risks.
• Remove peripherals: Detach Joy-Cons and SD cards to isolate potential damage paths.
• Disconnect the battery if possible: For advanced users, opening the console to disconnect the battery halts further corrosion.

These steps, recommended by Nintendo, buy time for drying and inspection. Delaying can lead to irreversible component failure.

Safe Drying Procedures

Resist the temptation to rush drying with heat sources like hairdryers or ovens, as they can warp internals or melt adhesives. Instead:

• Wipe the exterior with a soft, dry microfiber cloth to remove surface liquid.
• Position the console upright in a well-ventilated, dry area for at least 48-72 hours. Silica gel packets or uncooked rice can absorb moisture, though rice is less effective for deep penetration.
• Avoid direct sunlight or enclosed spaces like plastic bags, which trap humidity.

After drying, test by powering on. If no response, liquid likely penetrated internals, requiring deeper intervention.

Disassembling the Console Safely

For thorough recovery, disassembly is often necessary. Nintendo advises against user repairs under warranty, but for out-of-warranty units, proceed cautiously. Tools needed include a Tri-wing screwdriver (Y00), Phillips #00, plastic opening tools, and tweezers. Reference iFixit guides for model-specific steps, such as Switch Lite or OLED variants.

1. Remove back screws and pry open the shell.
2. Disconnect the battery ribbon cable first to de-energize the board.
3. Extract the motherboard, fan, game card reader, and shields.

Handle components gently to avoid static damage or dislodging tiny parts.

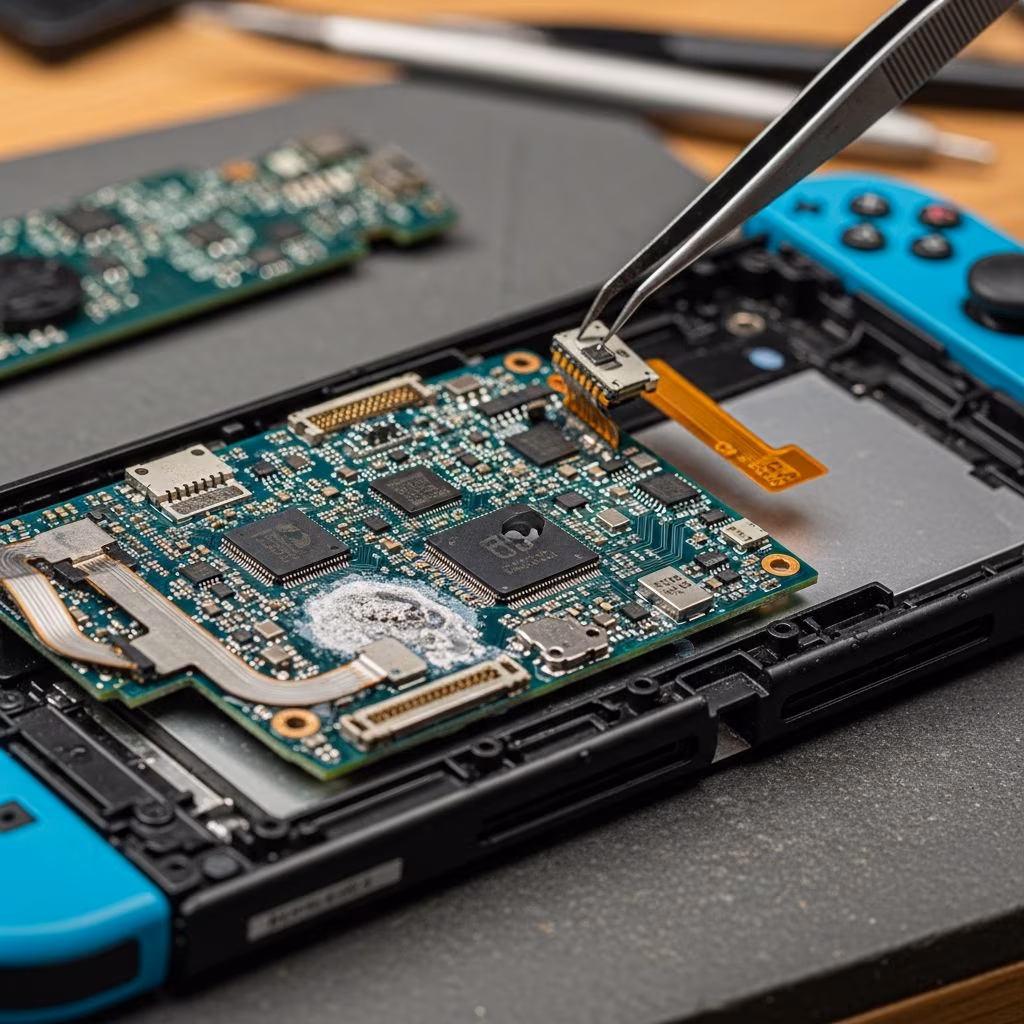

Identifying and Cleaning Corrosion

Corrosion appears as white, green, or powdery residue on circuit boards, often near ports, IC chips (e.g., WiFi, audio), or traces. Use 99%+ isopropyl alcohol (IPA) for cleaning—avoid lower concentrations or rubbing alcohol with additives, as they leave residues.

Cleaning Process:

• Apply IPA with a soft brush or cotton swab to affected areas. Let it dissolve corrosion for 5-10 minutes.
• For stubborn buildup, submerge in an ultrasonic cleaner with IPA (10-15 minutes at low heat).
• Rinse with fresh IPA, then compressed air to dry. Inspect under magnification for damaged traces or lifted pads.

Common problem zones include the USB-C port, WiFi IC, fuel gauge IC, and game card reader.

Advanced Diagnostics and Fixes

Post-cleaning, test continuity with a multimeter. Look for shorts (low resistance between power/ground) or open traces. Specific issues from repair cases:

Reflowing involves heating chips with hot air to reattach solder balls, but requires skill to avoid further damage. Trace repairs may need solder mask or jumper wires.

Reassembly and Functionality Testing

Reverse disassembly steps, ensuring all ribbons seat properly. Bake the board at low heat (e.g., 60°C oven for 30 minutes) to evaporate residual moisture before full assembly. Test:

• Power cycle and check display/audio.
• Charge via USB-C.
• Connect WiFi, test Joy-Cons, and play a game.

If issues persist, components like the battery may need replacement—a simple fix in some no-power cases.

Prevention Strategies for Future Spills

Protect your Switch proactively:

• Use a waterproof case or skin.
• Attach a lanyard to chargers near liquids.
• Enable auto-sleep and avoid docked play near sinks.
• Store in a dry, padded bag.

Regular maintenance, like cleaning ports, reduces vulnerability.

When to Seek Professional Repair

DIY suits confident users, but complexities like IC replacement demand expertise. Nintendo’s service excludes liquid damage from warranty, often deeming wet units irreparable due to reconstruction costs. Third-party shops experienced in console liquid damage offer diagnostics (free or low-cost) and fixes, potentially cheaper than a new console (~$300 USD).

Compare options:

Frequently Asked Questions (FAQs)

Can a water-damaged Switch be saved?

Yes, many recover fully with prompt cleaning, especially if addressed within hours.

Is rice effective for drying?

It’s better than nothing but inferior to IPA cleaning and air drying; it can leave dust.

Does Nintendo repair liquid damage?

Liquid damage voids warranty, and affected units may be deemed irreparable.

How long to dry before testing?

Minimum 2-3 days; longer for sugary liquids like soda.

What if only the screen is black?

Try battery replacement first, a common fix post-spill.
