EPC Fundamentals: 2025 Guide To LTE Core Architecture Explained

The Evolved Packet Core, commonly known as EPC, represents a pivotal advancement in mobile telecommunications infrastructure. Designed specifically for 4G Long-Term Evolution (LTE) networks, EPC serves as the central nervous system that orchestrates the delivery of both voice and data services over a unified IP-based platform. This innovation marked a significant departure from earlier generations of mobile networks, which relied on separate circuit-switched and packet-switched domains. By consolidating everything into an all-IP environment, EPC has enabled service providers to streamline operations, reduce costs, and deliver enhanced user experiences characterized by lower latency and higher throughput.

At its heart, EPC facilitates the convergence of diverse services, allowing operators to manage voice calls, video streaming, web browsing, and other applications through a single, efficient packet-switched architecture. This shift not only simplifies network management but also paves the way for future-proof scalability, making it compatible with emerging technologies like 5G. Understanding EPC is crucial for network engineers, telecom professionals, and anyone interested in the evolution of wireless communications.

The Architectural Foundation of EPC

EPC’s architecture is engineered for flatness and efficiency, minimizing the number of nodes involved in data processing to reduce delays and operational complexity. Unlike the hierarchical structures of previous core networks, such as those in 3G systems, EPC employs a streamlined design that directly connects the radio access network (RAN) to the core, bypassing unnecessary intermediaries. This flat topology ensures that user data travels the shortest possible path, optimizing performance for real-time applications.

Key to this design is its all-IP nature, where both signaling and user traffic are handled as IP packets. This unification eliminates the need for protocol translations between circuit and packet domains, a common bottleneck in legacy systems. EPC supports multiple access technologies, including LTE, WiMAX, and even fixed broadband, allowing operators to create hybrid networks that leverage existing infrastructure while rolling out new capabilities.

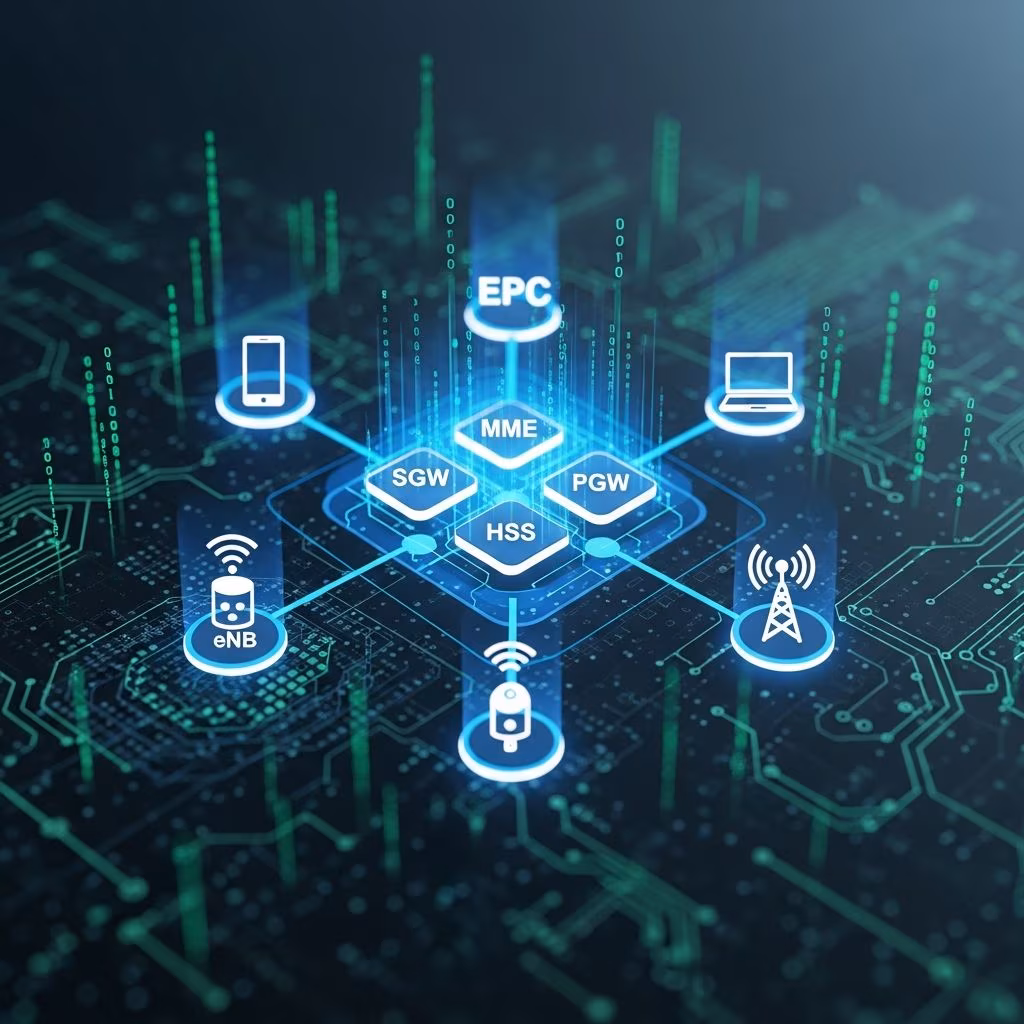

Core Components Driving EPC Functionality

EPC comprises several interconnected nodes, each with specialized roles to ensure seamless connectivity and service delivery. These elements work in concert to manage user sessions, route traffic, enforce policies, and maintain security.

• Mobility Management Entity (MME): Positioned as the control plane powerhouse, the MME oversees critical functions like user authentication, tracking device locations, and managing handovers between base stations. It interacts with the Home Subscriber Server (HSS) to verify subscriber credentials and maintains session states, ensuring uninterrupted service as users move across cells.
• Serving Gateway (S-GW): Focused on the user plane, the S-GW anchors user data traffic within the LTE network. It routes packets between the eNodeB (LTE base stations) and the core, handles incoming and outgoing flows during mobility events, and gathers usage data for billing purposes. Its role is vital for maintaining continuity during cell transitions.
• Packet Data Network Gateway (P-GW): Acting as the gateway to external networks, the P-GW connects the EPC to the internet and other IP domains. It assigns IP addresses to devices, enforces quality of service (QoS) policies, performs deep packet inspection for security and traffic management, and supports features like content filtering and parental controls.

Additional supporting elements include the Policy and Charging Rules Function (PCRF), which dynamically applies charging rules and QoS based on service levels, and the HSS, a centralized database for subscriber profiles.

How EPC Enables Seamless Mobility and Connectivity

Mobility is a cornerstone of modern mobile networks, and EPC excels in this area by providing robust mechanisms for handovers and session continuity. When a device moves from one cell to another, the MME coordinates with S-GW and P-GW to transfer session contexts without interrupting ongoing communications. This idle mode signaling reduction and tracking area updates minimize battery drain and signaling overhead.

EPC’s always-on paradigm keeps devices connected efficiently, supporting features like fast dormancy to conserve power. For voice services, it leverages IP Multimedia Subsystem (IMS) integration for Voice over LTE (VoLTE), delivering HD voice quality over packet networks. Data bearers are established dynamically, with dedicated bearers for high-priority traffic like gaming or video calls, ensuring prioritized QoS.

Overload Protection and Scalability Features

To handle peak loads, EPC incorporates intelligent load balancing. Each MME advertises its capacity via a relative weight to connected eNodeBs, which then distribute incoming connections proportionally. This prevents any single node from becoming overwhelmed, maintaining network stability even during surges in traffic.

Scalability is inherent in EPC’s design, supporting massive concurrent users through horizontal scaling—adding more instances of MME, S-GW, or P-GW as needed. Virtualization via Network Function Virtualization (NFV) further enhances this, allowing deployment on commercial off-the-shelf hardware.

EPC’s Role in the Broader LTE Ecosystem

As part of the System Architecture Evolution (SAE) defined by the 3rd Generation Partnership Project (3GPP), EPC forms the core of LTE’s end-to-end architecture. It bridges legacy 2G/3G networks via interworking functions, enabling smooth migrations. For instance, the S-GW serves as an anchor point for handover from non-LTE accesses.

In 5G contexts, EPC continues to play a role in Non-Standalone (NSA) deployments, where 5G radio layers atop LTE core before full 5G Core (5GC) transitions. This backward compatibility ensures operators can evolve incrementally.

Benefits and Challenges of Deploying EPC

Adopting EPC brings numerous advantages: cost savings from consolidated infrastructure, improved spectral efficiency, and support for innovative services like multimedia broadcasting. Operators report up to 50% reductions in operational expenses due to simplified maintenance.

However, challenges include the need for skilled personnel, high initial investments in upgrades, and ensuring interoperability across multi-vendor environments. Security remains paramount, with EPC incorporating robust authentication like EPS-AKA and encryption protocols.

Future Directions: EPC in 5G and Beyond

While 5GC introduces service-based architecture with cloud-native functions, EPC’s principles influence its design. Standalone 5G shifts to 5GC for ultra-reliable low-latency communications (URLLC), but EPC persists in hybrid scenarios. Edge computing integrations via Multi-access Edge Computing (MEC) extend EPC capabilities, bringing processing closer to users.

Frequently Asked Questions (FAQs)

What is the main purpose of EPC in LTE networks?

EPC provides an all-IP core for converging voice, data, and multimedia services, enabling high-speed, low-latency connectivity across 4G networks.

How does MME differ from S-GW in EPC?

MME handles control signaling like authentication and mobility, while S-GW manages user data routing without processing signaling.

Can EPC support 5G devices?

Yes, in NSA mode, 5G utilizes EPC alongside LTE RAN for initial deployments.

What QoS mechanisms does EPC use?

EPC employs bearer-level QoS with PCRF enforcing policies for traffic prioritization and charging.

Why is EPC considered flat architecture?

It reduces node hops between RAN and external networks, minimizing latency and complexity.
