Dual Clutch Gearbox: Complete Guide To How DCTs Work

Dual-clutch transmissions (DCTs), also known as dual-clutch gearboxes, represent a revolutionary step in automotive engineering, merging the responsiveness of a manual gearbox with the convenience of an automatic system. These transmissions use two separate clutches to manage odd and even gears, enabling near-instantaneous shifts without power loss.

The Core Mechanics of Dual-Clutch Systems

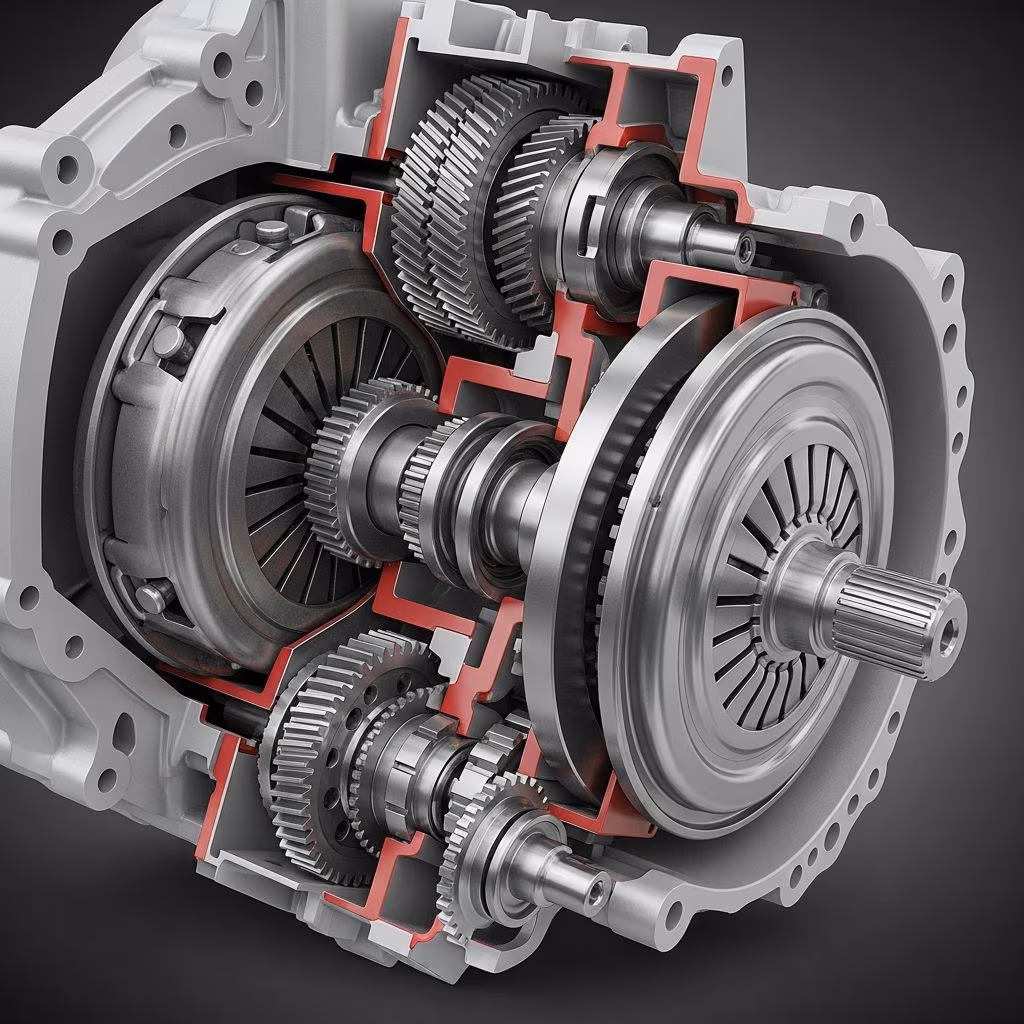

At the heart of a DCT lies a sophisticated arrangement of dual clutches and concentric shafts. One clutch handles odd-numbered gears (1st, 3rd, 5th, and reverse), while the other manages even-numbered gears (2nd, 4th, 6th). This setup allows the system to pre-select the next gear while the current one is engaged, ensuring continuous power delivery to the wheels.

Unlike traditional manuals that rely on a single clutch pedal operated by the driver, DCTs employ electronic controls and hydraulic actuators to manage clutch engagement. The transmission features a hollow outer shaft surrounding a solid inner shaft. The outer shaft connects to even gears, and the inner to odd ones, with synchronizers ensuring smooth meshing.

When accelerating from a stop, the first gear on the outer clutch engages. Simultaneously, the inner clutch pre-selects second gear. Upon shift command, the outer disengages and inner engages in milliseconds, propelling the vehicle forward without interruption. This process repeats through the gears, with reverse typically tied to the odd clutch set.

Key Components and Their Functions

• Clutch Packs: Multi-plate wet or dry clutches, hydraulically operated for rapid response.
• Concentric Shafts: Nested design maximizes space and enables parallel gear preparation.
• Synchronizers and Shift Forks: Match speeds and slide gears into place, powered by electric or hydraulic motors.
• Mechatronic Unit: Brain of the system, integrating sensors, valves, and an electronic control unit (ECU) for precise timing.
• Hydraulic System: Provides pressure for clutch actuation, cooling, and lubrication.

This modular design mimics two manual transmissions operating in tandem within one housing, controlled seamlessly by computers.

Performance Advantages Over Traditional Transmissions

DCTs excel in delivering **blistering shift speeds**, often under 100 milliseconds, far quicker than manual or torque-converter automatics. This minimizes torque interruption, enhancing acceleration and driver thrill.

Fuel efficiency improves due to direct mechanical power transfer, avoiding the slippage inherent in torque converters. Manufacturers report 5-15% better economy in DCT-equipped models compared to equivalents.

In performance cars, DCTs shine during aggressive driving, maintaining momentum through corners and launches.

Types of Dual-Clutch Gearboxes

DCTs come in two primary variants:

• Dry Clutch DCTs: Lighter and more efficient for lower-torque applications (up to ~250 Nm). Used in economy cars for superior MPG but prone to overheating in traffic.
• Wet Clutch DCTs: Oil-immersed plates handle higher torques (400+ Nm), ideal for sports cars and SUVs. They offer better cooling and durability but add weight and complexity.

Advanced versions include powershift systems with launch control and paddle shifters for manual override.

Real-World Applications Across Automakers

Pioneered by Porsche with the PDK in the 1980s (racing) and Volkswagen’s DSG in 2003 (production), DCTs now dominate high-performance segments. Volkswagen Group’s DQ-series powers Golf GTIs and Audis; Porsche refines PDK for 911s; BMW uses it in M cars; Hyundai integrates in Velosters.

Motorcycles benefit too, as Honda’s DCT automates shifts while preserving manual feel, with modes for automatic or rider control.

Common Challenges and Reliability Concerns

Despite strengths, DCTs face hurdles. **Heat buildup** in dry clutches causes shuddering during stop-start driving. Mechatronic failures—valve body or solenoid issues—demand costly repairs, often $3,000-$5,000.

Wet systems fare better but require regular fluid changes every 40,000 miles. Early DSG units suffered recalls for overheating; modern iterations include enhanced cooling.

Maintenance tips:

• Monitor for hesitation or harsh shifts.
• Avoid prolonged idling in traffic with dry DCTs.
• Service per manufacturer schedule.

Pros and Cons at a Glance

The Future of DCT Technology

As electrification rises, DCTs adapt for hybrids, pairing with electric motors for seamless EV-manual blends. Nine- and ten-speed units push efficiency further, while AI-enhanced ECUs predict shifts based on driving style.

Though CVTs and advanced automatics compete, DCTs remain favored for performance, likely evolving with 48V mild-hybrids.

Frequently Asked Questions (FAQs)

What is a dual-clutch gearbox?

A DCT uses two clutches for odd/even gears, enabling pre-selection and power-on shifts without a pedal.

Are DCTs reliable?

Modern wet DCTs are durable with maintenance; dry ones suit light use but may falter in heavy traffic.

Can I drive a DCT manually?

Yes, via paddles or sequentials in most cars, blending auto ease with manual control.

How do DCTs compare to CVTs?

DCTs offer faster, more direct shifts; CVTs prioritize smoothness and economy but feel less engaging.

Which cars have DCTs?

Examples: VW Golf GTI (DSG), Porsche 911 (PDK), Hyundai i30 N, BMW M3.
