DSG Gearbox Explained: Dual-Clutch Guide For Drivers

The Direct Shift Gearbox, commonly known as DSG, represents a pivotal advancement in automotive transmission technology. This dual-clutch system combines the rapid shifts of a manual gearbox with the convenience of an automatic, delivering uninterrupted power flow and enhanced performance. Pioneered by Volkswagen Group, DSG has become a benchmark for modern driving experiences across various vehicle types.

Core Principles of Dual-Clutch Operation

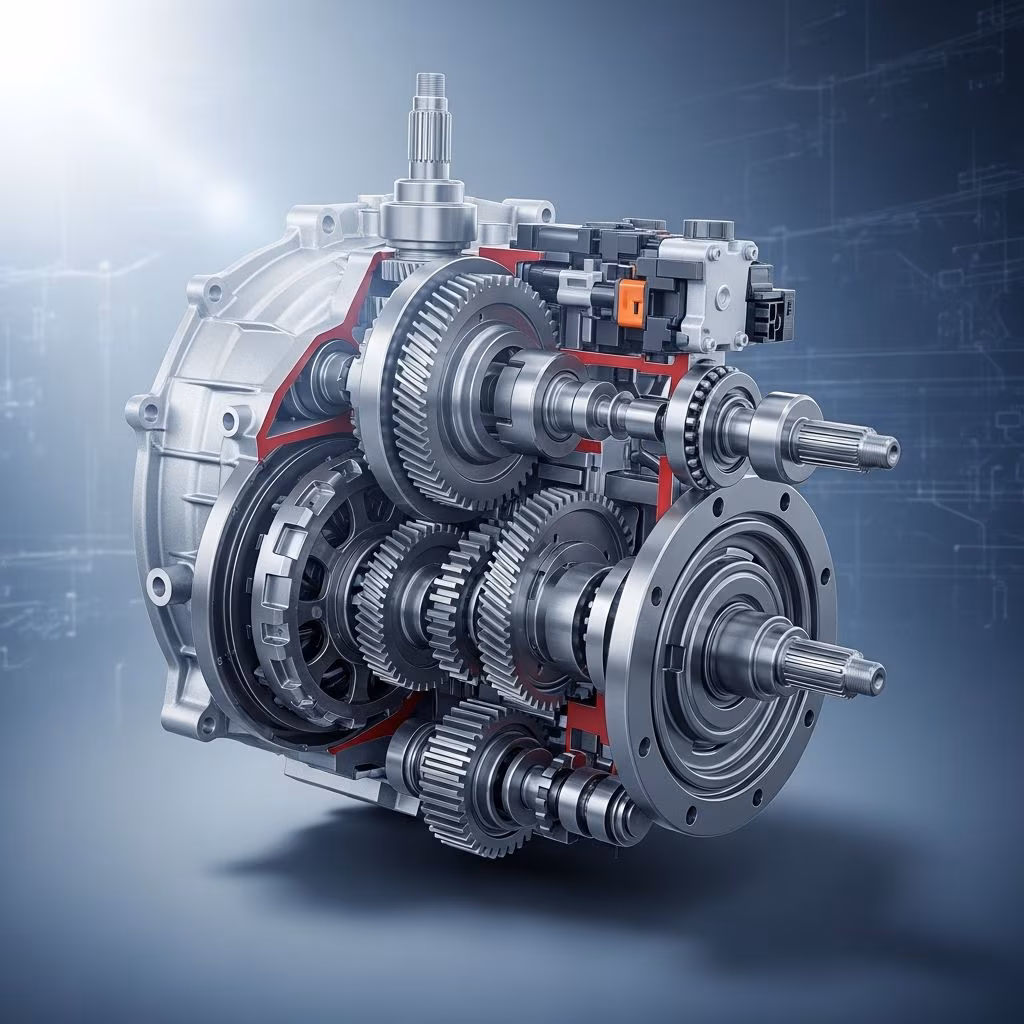

At its heart, a DSG gearbox functions as two parallel manual transmissions integrated into a single housing. Each sub-gearbox manages a distinct set of gears: one for odd numbers (1st, 3rd, 5th, and reverse in many configurations) and the other for even numbers (2nd, 4th, 6th). This separation allows for pre-selection of the next gear while the current one remains engaged, minimizing shift interruptions to mere milliseconds.

Dual multi-plate clutches, often operating in oil (wet clutches) for larger engines or dry for efficiency in smaller units, connect the engine to these input shafts. The outer clutch typically handles even gears and reverse, while the inner one manages odds. Sensors continuously monitor parameters like engine RPM, vehicle speed, throttle position, and driver inputs to orchestrate flawless transitions.

Key Components Driving DSG Performance

Several sophisticated elements enable the DSG’s precision:

• Mechatronic Unit: This electro-hydraulic brain integrates an electronic control unit (ECU) with hydraulic actuators. It processes data in real-time, positioning shift forks and modulating clutch pressure for optimal engagement.
• Concentric Input Shafts: Nested shafts deliver torque to respective gear sets, with the output shaft linking to the driveshaft for propulsion.
• Sensors and Actuators: Wheel speed, throttle, and position sensors feed the ECU, while actuators execute gear selections and clutch operations with sub-100ms accuracy.
• Housing and Lubrication: Compact aluminum casings house wet clutches in transmission fluid for cooling and durability, contrasting dry setups in 7-speed variants for fuel savings.

These components work in harmony, adapting to driving styles via fuzzy logic algorithms that learn user patterns over time.

Step-by-Step: How DSG Executes Gear Changes

Shifting in a DSG occurs seamlessly, often imperceptibly. Consider acceleration from a stop in Drive (D) mode:

1. Vehicle stationary: Neutral (N) selected; brake applied. ECU pre-engages 2nd gear on the even clutch (K2) at bite point, with reverse ready on odd clutch (K1).
2. Brake release and throttle input: K2 fully clamps, propelling forward in 2nd. Simultaneously, 1st or 3rd pre-selects on K1 shaft.
3. Shift to next gear: ECU detects optimal RPM/speed. K2 disengages as K1 engages instantly—no torque dip.
4. Progression: Pattern repeats, pre-selecting ahead (e.g., from 2nd, 3rd ready). Kick-down skips gears for overtakes.

In deceleration or manual paddle-shift mode (+/-), the system mirrors this logic bidirectionally. Total shift time: under 0.4 seconds, far quicker than torque-converter automatics.

This table illustrates typical sequences, highlighting minimal downtime.

Performance and Efficiency Gains

DSG excels in responsiveness, outpacing traditional automatics by eliminating torque converters’ slip. Acceleration feels punchier due to sustained torque; for instance, Volkswagen Golf GTI variants hit gears at optimized RPMs for peak power.

Fuel economy improves 5-15% over manuals/automatics, thanks to dry clutches in 7-speed units and early upshifts in Eco modes. Adaptive programming tailors shifts: sporty driving delays upshifts for higher revs, while economical styles prioritize MPG.

• 0-60 mph: Often 0.5-1s quicker than equivalents.
• Fuel Savings: Up to 10% in hybrids via precise control.
• Drivability: Smooth in traffic, razor-sharp in corners.

Comparing DSG to Other Transmissions

DSG bridges manual precision and auto ease, though CVTs edge in pure MPG.

Real-World Applications and Vehicle Examples

Volkswagen Group dominates DSG use: Golf, Passat, Audi A3/S3, Porsche 911 (PDK variant), Seat Leon Cupra. 6-speed wet-clutch for torquey engines (>250Nm), 7-speed dry for efficient hatches (<250Nm).

Beyond VW: Hyundai’s DCT in i30N, Ford’s PowerShift (discontinued due to issues). Hybrids like Golf GTE leverage DSG for EV-gas blending.

Potential Drawbacks and Reliability Insights

Despite strengths, DSG isn’t flawless. Low-speed jerkiness plagues early dry-clutch models, especially in stop-start traffic. Wet units fare better but demand fluid changes every 40k miles.

Mechatronics failures—valve body or solenoid issues—can cost $2k+, higher than automatics. Overheating in track use requires coolers. Software updates often resolve shift harshness.

• Common Fixes: Clutch packs (~$1.5k), mechatronic rebuilds.
• Maintenance: Fluid/filter every 40k km; avoid aggressive launches.

Later generations (DQ381 8-speed) address prior woes with reinforced components.

Owner Experiences and Driving Modes

DSG shines in Dynamic/S modes: holds gears longer, enables launch control (e.g., Golf R: 0-62mph in 4.6s). D mode optimizes economy, upshifting early (6th by 32mph initially).

Paddles offer manual control, with auto-revert for safety. Adaptive learning personalizes over 100 miles.

Future of DSG and Evolving Tech

As electrification rises, DSG integrates with e-motors in PHEVs. 8/10-speed evolutions promise broader torque handling. Rivals like Honda’s DCT evolve similarly.

Frequently Asked Questions (FAQs)

What makes DSG faster than regular automatics?

Pre-selected gears on dual clutches enable near-instant swaps without torque converter slip.

Is DSG reliable for daily driving?

Yes, with maintenance; wet-clutch versions excel, but check service history.

Can I drive DSG in manual mode?

Absolutely—use paddles or stick for full control, with kick-down override.

DSG vs. PDK: Any difference?

PDK is Porsche’s refined DSG variant, optimized for sports cars.

How often to service DSG?

Fluid/filter every 40,000 miles; inspect clutches at 100k.
