DPF Guide: Diesel Particulate Filter Essentials

Diesel particulate filters (DPF) are critical components in modern diesel engines, designed to trap harmful soot particles from exhaust gases, significantly reducing air pollution and meeting stringent emission standards.

The Role of DPF in Modern Diesel Engines

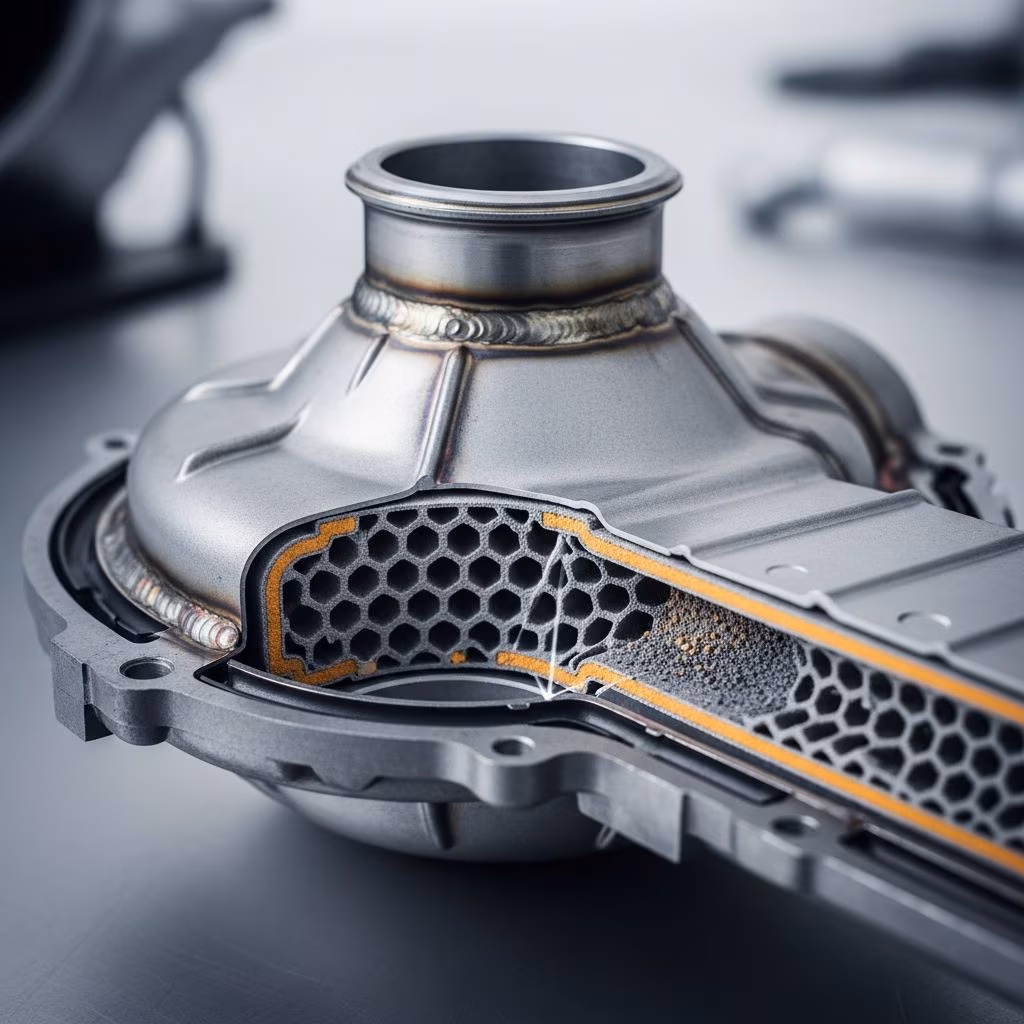

Diesel engines produce soot through incomplete fuel combustion, releasing fine particles that contribute to respiratory issues and environmental degradation. A DPF acts as an exhaust after-treatment device, positioned between the engine and tailpipe, capturing these particulates before they exit into the atmosphere. Constructed from durable ceramics like cordierite or silicon carbide, the filter features a honeycomb structure with porous walls that force exhaust through microscopic channels, trapping soot while allowing cleaner gas to pass.

Since Euro 5 standards in 2009, DPFs have become mandatory for new diesel vehicles, achieving filtration rates up to 95% or more, reducing soot emissions to as low as 0.001 g/km. This technology not only complies with regulations but also improves fuel efficiency by recycling captured soot.

How Diesel Particulate Filters Operate

Exhaust gas enters the DPF’s inlet channels, which alternate between open and plugged ends, creating a wall-flow design. Soot-laden gas flows into open channels, hits the blocked end, and diffuses through porous walls into adjacent outlets, depositing particles on the filter media. This setup provides immense surface area—equivalent to several football fields—for efficient trapping.

Unlike catalytic converters, which allow flow-through, DPFs physically retain larger particulates. Smaller nanoparticles may pass, but overall mass and count drop dramatically. The system withstands temperatures over 1100°C, ensuring durability during high-heat operations.

Regeneration: Keeping the Filter Clean

DPFs have finite capacity; soot buildup increases backpressure, potentially harming engine performance. Regeneration burns off accumulated soot, restoring capacity. Two primary types exist:

• Passive Regeneration: Occurs naturally during high-speed highway driving when exhaust temperatures exceed 600°C, oxidizing soot via catalysts like platinum without electronic intervention.
• Active Regeneration: Triggered by engine control units (ECU) when soot levels hit thresholds, injecting extra fuel to raise temperatures to 550-650°C, even at low loads.

Some systems use partial-flow designs for continuous separation via gas deflection, achieving 30-40% efficiency with lower clogging risk, though less effective than full wall-flow filters.

Signs Your DPF Needs Attention

Monitor these indicators of DPF issues:

• Dashboard warning lights for DPF or emissions.
• Reduced power or limp mode activation.
• Increased fuel consumption.
• Dark exhaust smoke, especially on acceleration.
• Frequent regeneration cycles or failure codes.

Backpressure buildup from clogged filters strains the engine, leading to turbo damage or efficiency loss if ignored.

Maintenance Strategies for Longevity

Regular upkeep prevents failures:

• Drive at highway speeds weekly (30+ minutes at 60 km/h) to enable passive regeneration.
• Use high-quality low-ash oil and fuel meeting manufacturer specs.
• Avoid short trips that prevent full warm-up.
• Schedule professional diagnostics during services.

Cleaning involves off-vehicle processes like air blasting or chemical washes, but replacement costs £500-£2000 make prevention key. Ash residue from oil additives accumulates over time, requiring periodic inspection.

DPF vs. Other Emission Controls

DPFs complement SCR and DOC (Diesel Oxidation Catalysts) in aftertreatment systems for comprehensive emission control.

Common Myths and Facts

• Myth: DPFs eliminate all particulates. Fact: They target larger soot; ultrafine particles may pass.
• Myth: Deleting DPF is legal and cheap. Fact: Illegal in most regions, voids warranties, risks fines.
• Myth: Only for cars. Fact: Used in trucks, generators, heavy machinery.

DPF in Heavy-Duty Applications

Beyond passenger cars, DPFs suit commercial vehicles and generators. Active systems with fuel injectors or heaters ensure regeneration under varying loads. Continuous Regeneration Traps (CRT) passively oxidize soot, ideal for steady operations.

Future of DPF Technology

Advancements include hybrid filters integrating NOx control and improved materials for lower backpressure. As electrification grows, DPFs persist in non-electric diesels, evolving for Real Driving Emissions (RDE) tests.

Frequently Asked Questions (FAQs)

What happens if DPF fails?

Engine enters limp mode, emissions rise, potential damage to turbo/EGR. Seek diagnostics immediately.

Can I drive with DPF light on?

Short distances only; prolonged driving risks severe blockages.

How often does regeneration occur?

Every 200-500 miles, depending on driving style and conditions.

Is DPF cleaning DIY possible?

Not recommended; professional tools ensure thoroughness without damage.

Do petrol cars have DPFs?

GPFs are emerging in direct-injection petrol engines, functioning similarly.

Troubleshooting DPF Problems

Steps for owners:

1. Scan for OBD codes (P2002, P242F common).
2. Check soot load via diagnostics.
3. Perform forced regeneration if serviceable.
4. Inspect for leaks or sensor faults.
5. Replace if ash-loaded beyond limits.

Tools like Snap-on scanners aid precise fault isolation.
