Discovery 3 Lower Steering Shaft Replacement Guide

The Land Rover Discovery 3, known for its rugged capabilities, often faces steering issues stemming from the lower steering shaft assembly. This component links the steering column to the rack, and when its universal joint seizes due to corrosion or wear, it leads to stiff handling and potential MoT failures. Replacing it restores precise control and safety.

Understanding Steering System Components in the Discovery 3

The steering mechanism in the Discovery 3 consists of multiple shafts: an upper column, an intermediate shaft, and the critical lower collapsible shaft. The lower shaft features a universal joint (UJ) at the bottom that connects directly to the power steering rack input. This exposed joint is prone to rust from road salt, water, and debris, causing binding and notchy feel during turns.

Over time, the three internal tabs within the shaft can dislocate, producing rattles and vibrations, especially noticeable at low speeds or over bumps. Ignoring these signs risks complete seizure, compromising vehicle safety and failing emissions or mechanical inspections.

Common Symptoms Indicating Lower Steering Shaft Failure

• Stiff or notchy steering: Resistance when turning the wheel, particularly from straight ahead.
• Knocking or clunking noises: Heard from under the vehicle during steering inputs.
• Vague handling: Play or wander in the steering response.
• Steering wheel vibration: Felt through the wheel, often linked to tab misalignment.
• MoT advisory or failure: Loose or seized joints are clear inspection red flags.

Early detection prevents escalation. A simple under-vehicle check after removing the engine under-tray reveals joint movement or binding.

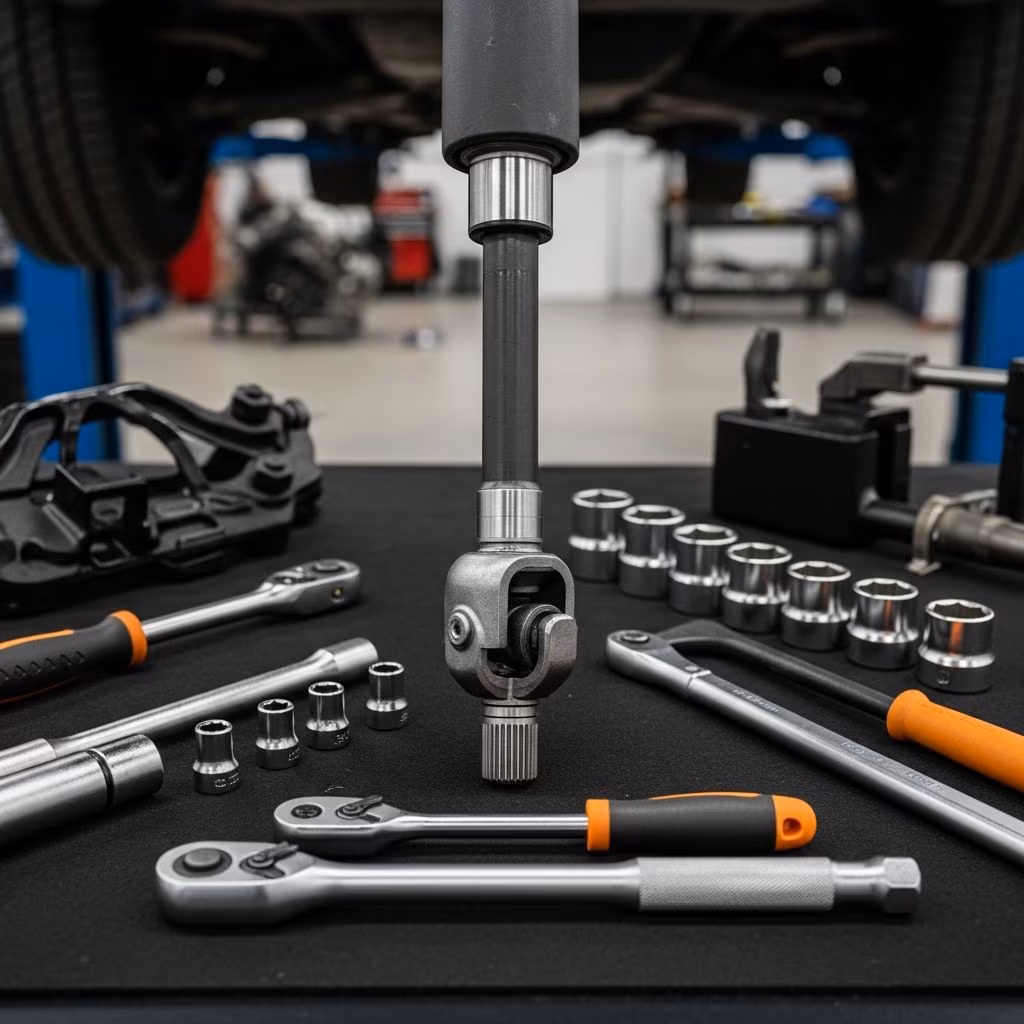

Essential Tools and Parts for the Job

Preparation is key for a smooth replacement. Budget around £66 for core parts, plus tools you likely already own.

Required Tools:

• 13mm socket and ratchet (for filler panel bolts)
• Torx E10 bit (for shaft clamp)
• Standard socket set (10mm-17mm)
• Trolley jack, axle stands, and wheel chocks
• Plastic trim removal tools
• Marking pen or paint for alignment
• Chassis grease (for tabs)
• Torque wrench (essential for bolts)

Always verify parts compatibility with your VIN via official Land Rover sources.

Safety Protocols Before Starting Work

Steering repairs demand caution to avoid injury or misalignment.

• Park on level ground, engage parking brake, and chock wheels.
• Disconnect the battery to prevent electrical issues in the engine bay.
• Support the vehicle securely with rated stands; never rely on jacks alone.
• Lock the steering wheel using the ignition key to maintain straight-ahead position—crucial to avoid airbag or switch damage.
• Wear gloves and eye protection; expect grease and rust.

Follow Land Rover’s prescribed procedures to safeguard components.

Step-by-Step Removal Process

This job takes 1-2 hours for experienced DIYers. Work methodically from top to bottom.

1. Access the Engine Bay Top: On the right side, release clips on the brake servo cover and remove it. Shift the secondary battery tray section for visibility.

2. Expose the Shaft Upper Connection: Remove the 13mm bolts securing the filler panel near the pipes—a hidden screw lurks here too. Pop out any clips.

3. Mark for Alignment: With steering straight, mark the intermediate shaft and lower shaft mating surfaces. Rotate the wheel if needed to access the U-bolt head, but lock immediately after.

4. Loosen Upper Clamp: Use E10 Torx to remove the single bolt at the top joint. Wiggle to separate.

5. Under-Vehicle Access: Jack up the front, remove the engine under-tray. Inspect the lower UJ for seizure.

6. Detach Lower Joint: Loosen the rack bolt (do not fully remove initially). Pry the UJ slit open top and bottom to slide the shaft upward off the input spline.

7. Extract Shaft: Maneuver the assembly out from the top, avoiding rotation.

Inspect the old shaft: corroded UJs or loose tabs confirm the diagnosis.

Installation of the New Lower Steering Shaft

Reverse the removal with precision for proper alignment.

8. Prepare New Shaft: Apply thick chassis grease to the three internal tabs to prevent future rattle. Verify keying matches the rack spline.

9. Insert from Top: Slide the shaft down, guiding the lower UJ onto the rack input. Rotate as needed for fit, keeping steering locked.

10. Secure Lower Bolt: Align marks, hand-tighten the flanged bolt (QY000030). Add blue Loctite if reusing.

11. Tighten Upper Clamp: Install new bolt (QYG10016L), torque to spec (consult manual, typically 25-30 Nm).

12. Reassemble Covers: Refit panels, tray, servo cover, and under-tray. Reconnect battery.

13. Test: Turn wheel lock-to-lock; check for smooth operation and no noises. Road test gently.

Torque specs: Upper bolt 25 Nm, lower 58 Nm—always confirm with official docs.

Troubleshooting Post-Installation Issues

If steering feels off:

• Vibration persists: Regrease tabs and realign.
• Bolt won’t seat: Ensure spline keying; partial rack bolt removal aids sliding.
• Alignment mismatch: Remake alignment marks before final torque.
• Rattle returns: Tabs may have slipped; disassemble and regrease generously.

For Stop/Start models, extra battery access steps apply.

Preventive Maintenance for Steering Longevity

Extend shaft life beyond replacement:

• Regular under-tray cleaning: Remove debris quarterly.
• Grease UJs annually: Use marine-grade lubricant for corrosion resistance.
• Check during services: Inspect joints for play or binding.
• Off-road prep: Fit protective shields if frequent mud exposure.

Owners report rattle-free steering for 40,000+ km post-grease.

Cost Analysis: DIY vs. Professional Service

DIY saves significantly, ideal for capable owners.

Frequently Asked Questions (FAQs)

Do I need to fully remove the lower bolt to detach the shaft?

No, loosen sufficiently to slide the UJ off the spline; prying helps.

Can I reuse the old bolts?

Possible if not rusted, but replace for safety—new ones are cheap.

What if my steering wheel moves during the job?

Lock it immediately to prevent switch/airbag damage.

Is this a common issue on Discovery 3?

Yes, due to exposed UJ; many report fixes resolving knocks and stiffness.

Applies to LHD models?

Process similar; confirm part number for your market.
