Catalytic converters are key components in a vehicle’s exhaust system, designed to transform toxic pollutants from engine combustion into less harmful substances, significantly reducing environmental impact and ensuring compliance with emission standards.
The Essential Role in Emission Control
Every gasoline or diesel internal combustion engine produces harmful byproducts during fuel burning, including carbon monoxide, hydrocarbons, and nitrogen oxides. These gases contribute to air pollution, smog formation, and health issues like reduced lung function if released untreated. The catalytic converter acts as an emissions control device, positioned in the exhaust line between the engine and muffler, where it uses chemical reactions catalyzed by precious metals to neutralize up to 90% of these pollutants.
By converting carbon monoxide to carbon dioxide, unburnt hydrocarbons to water and carbon dioxide, and nitrogen oxides to nitrogen and oxygen, the device plays a crucial part in cleaner air. This process occurs as hot exhaust gases pass through a honeycomb-like ceramic structure coated with catalysts such as platinum, palladium, and rhodium. Efficiency peaks at high temperatures, typically above 400°C, making it vital for vehicles to reach operating temperature during drives.
Inside the Catalytic Converter: Design and Chemistry

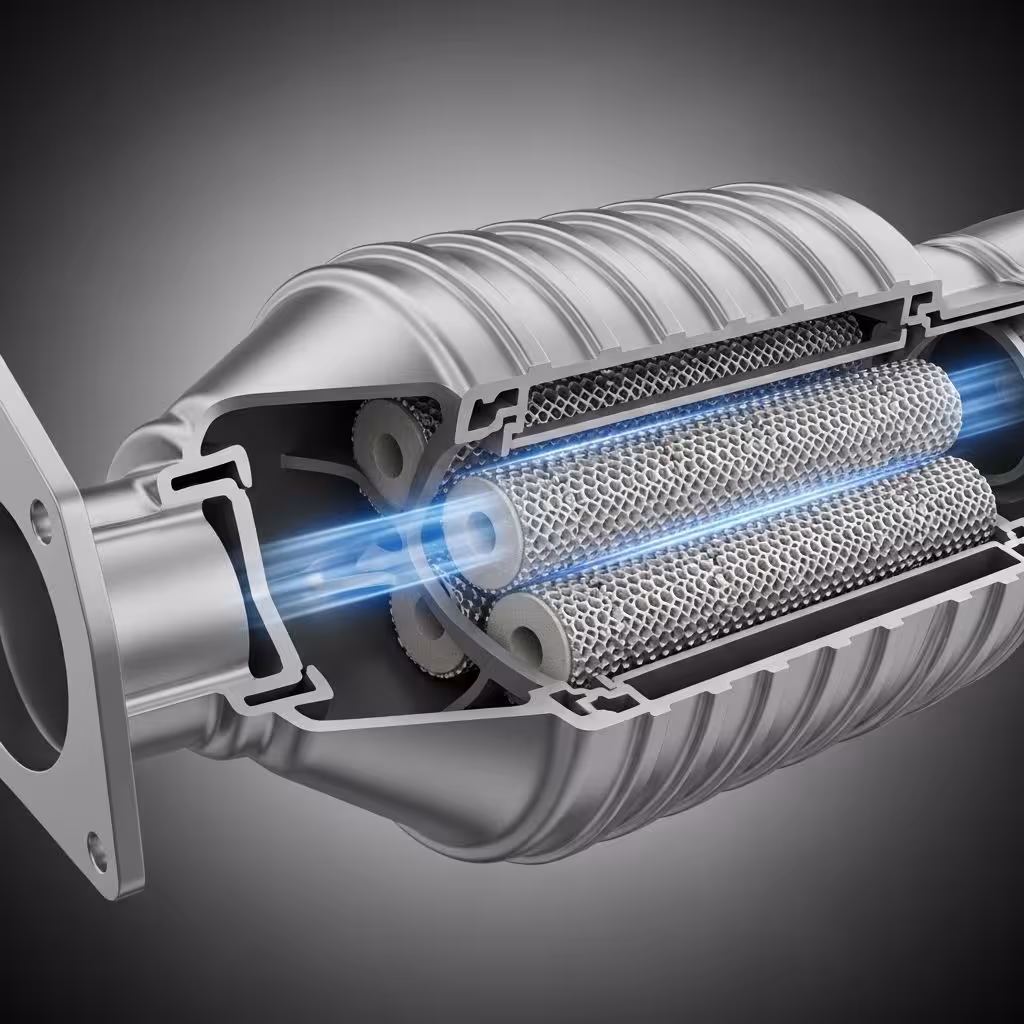

The core of a catalytic converter features a substrate—often a ceramic monolith with thousands of tiny channels in a honeycomb pattern—that maximizes surface area for reactions without restricting exhaust flow. This substrate is coated with a washcoat containing the active catalysts: platinum and palladium for oxidation tasks, and rhodium for reduction.
Exhaust gases enter hot, around 500-900°C, triggering redox reactions. For instance, the oxidation process handles carbon monoxide (2CO + O₂ → 2CO₂) and hydrocarbons (CₓH₂ₓ₊₂ + (3x+1)/2 O₂ → xCO₂ + (x+1)H₂O), while reduction breaks down nitrogen oxides (2NO → N₂ + O₂). This dual action ensures comprehensive pollutant management, with three-way converters handling all major emissions simultaneously.
- Substrate materials: Ceramic for most cars, metallic for high-performance applications.
- Catalyst loading: Thin layer to optimize reactions without clogging.
- Heat shield: Protects underbody components from extreme temperatures.
Types of Catalytic Converters Explained
Not all catalytic converters are identical; they vary by vehicle age, fuel type, and emission regulations. Understanding these differences helps owners select replacements and appreciate technological evolution.
| Type | Primary Function | Target Pollutants | Common Use |
|---|---|---|---|
| Two-Way (Oxidation) | Oxidizes CO and HC | Carbon monoxide, hydrocarbons | Older vehicles pre-1980s |
| Three-Way | Reduces NOx, oxidizes CO and HC | CO, HC, NOx | Modern gasoline cars |
| Four-Way (Diesel) | Three-way + particulate filter | CO, HC, NOx, particulates | Diesel engines post-2007 |
Two-way converters, common in early models, focus solely on oxidation, converting CO to CO₂ and HC to CO₂ and H₂O. Three-way versions, mandatory for stricter standards, add a reduction stage using rhodium to split NOx into harmless N₂ and O₂ before oxidation. Diesel-specific units often integrate particulate traps to capture soot.
How Catalytic Converters Fit into the Exhaust System
Typically mounted close to the engine for quick heating, the converter integrates with oxygen sensors upstream and downstream to monitor efficiency via the engine control unit (ECU). The ECU adjusts air-fuel ratios for optimal lambda (around 1) to maximize conversion—rich mixtures aid NOx reduction, lean ones boost oxidation.
Primary converters handle main flow, while secondary or mini-cats in close-coupled setups target cold-start emissions when the main unit is still warming up. In performance cars, high-flow variants maintain backpressure limits to preserve engine power.
Recognizing Failure: Symptoms and Diagnostic Checks
A failing converter restricts flow or loses catalytic activity, triggering check engine lights via O2 sensor readings (code P0420 common). Key symptoms include:
- Rattling noises from a broken substrate.
- Sulfur or rotten egg smells from incomplete reactions.
- Reduced acceleration and power due to backpressure.
- Failed emissions tests showing high pollutant levels.
Diagnosis involves temperature checks (inlet hotter than outlet indicates clogging), backpressure tests, or endoscopy for internal inspection. Short trips preventing full warmup accelerate degradation.
Reasons for Premature Wear and Preventive Measures
Several factors shorten lifespan (typically 100,000-160,000 km):
- Contamination: Oil or coolant leaks fouling catalysts.
- Misuse: Untreated fuel, leaded gas, or ignition misfires.
- Overheating: Lean mixtures or oil burning exceeding 1000°C.
- Physical damage: Road debris or improper installation.
To extend life, use quality fuel, fix misfires promptly, allow warmup drives, and replace O2 sensors as needed. Regular maintenance prevents 80% of failures.
Costs and Processes for Replacement
Replacements range $500-$3000 depending on vehicle, with aftermarket units cheaper but OEM preferred for fit. Labor adds $200-500. Process: Lift vehicle, cut out old unit, weld new one, reset ECU, and test drive. Direct-fit bolts simplify DIY, but welding requires pros.
High precious metal prices drive theft risks; etch IDs and park securely. Recycling recovers 95% of metals, reducing environmental impact.
Legal Requirements and Environmental Impact
Tampering is illegal under EPA Clean Air Act, with fines up to $4,500. States mandate emissions tests checking converter function. Globally, Euro 6/ULEV standards demand 99% NOx reduction in diesels.
Converters cut urban smog precursors by 90%, improving public health and aiding climate goals by lowering CO₂ indirectly through efficiency.
Future Innovations in Emission Technology
Advancements include electrically heated converters for instant warmup, nanostructured catalysts for better efficiency, and lean-burn NOx traps. Hybrids and EVs reduce reliance, but ICE vehicles will need upgraded cats for tightening regs.
Frequently Asked Questions (FAQs)
What happens if I remove my catalytic converter?
Expect power loss in some cars, failed inspections, fines, and increased emissions harming air quality.
Can I drive with a bad catalytic converter?
Short-term yes, but risks engine damage from backpressure; address promptly.
How long do catalytic converters last?
100,000+ miles with proper care; varies by driving conditions.
Are aftermarket converters legal?
Yes, if EPA/CARB-approved and match OEM specs.
Why are catalytic converters stolen?
Valuable metals like platinum fetch high scrap value.
