Carburetor: What It Is, How It Works, And 4 Types

A carburetor is a mechanical device in gasoline engines that blends air and fuel into a combustible mixture for delivery to the cylinders. Positioned atop the engine intake manifold, it relies on airflow dynamics to meter fuel precisely, powering vehicles from the late 19th century until the fuel-injected era of the 1980s and beyond.

The Fundamental Role in Engine Operation

At its core, the carburetor serves as the engine’s fuel metering heart, ensuring the ideal air-to-fuel ratio—typically around 14.7:1 for complete combustion. Without this precise mix, engines suffer inefficient burning, power loss, or damage. Air enters from the filter, accelerates through a narrowed passage, and draws fuel via pressure differential, creating a vaporized mist ready for ignition.

This process hinges on vacuum created by the piston’s downward stroke during intake. As the throttle opens via accelerator linkage, more air flows, pulling additional fuel for increased power. In classic cars, motorcycles, and small engines like lawnmowers, carburetors remain iconic for their simplicity and tunability.

Core Principles: Venturi Effect and Bernoulli’s Principle

The magic lies in the **Venturi effect**, where air speeds up through a constricted tube (venturi), dropping pressure below atmospheric levels. This low-pressure zone siphons fuel from a reservoir into the airstream, atomizing it into fine droplets for optimal mixing.

Bernoulli’s principle underpins this: faster fluid speed equals lower pressure. Fuel jets calibrated to engine needs release gasoline, emulsified by air bleeds for even distribution. Throttle valves (butterfly plates) modulate flow, from idle to wide-open throttle (WOT).

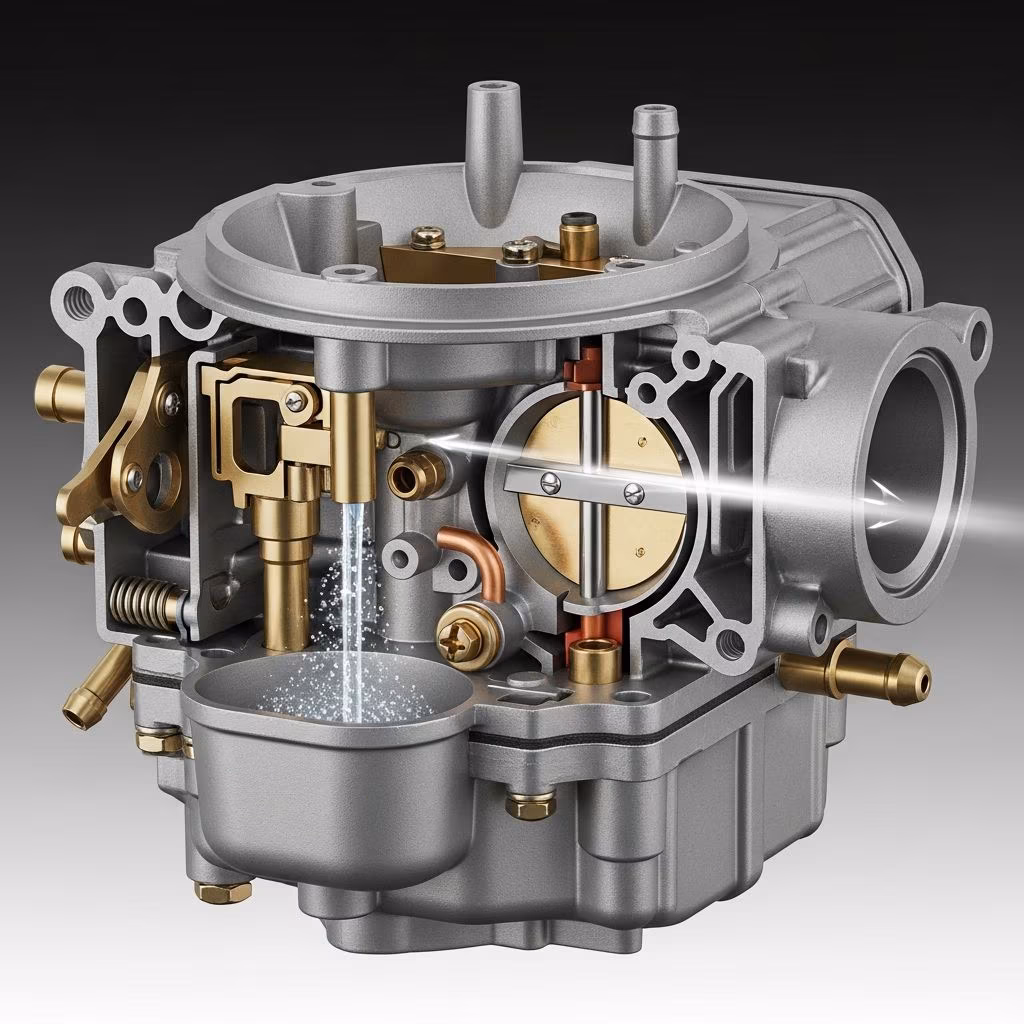

Dissecting the Anatomy: Key Components

Carburetors pack intricate parts into a compact housing. Here’s a breakdown:

• Float Chamber: A reservoir maintaining constant fuel level via a buoyant float and needle valve, preventing overflow or starvation.
• Venturi: Narrowed throat accelerating air, the pressure-drop epicenter for fuel draw.
• Jets: Precision orifices (main, idle, power) dosing fuel; main jet handles cruising, idle jet low-speed.
• Throttle Valve: Butterfly plate linked to the pedal, controlling air volume and thus fuel.
• Choke: Restricts air on cold starts, enriching mixture for easier ignition.
• Air Bleeds and Emulsifiers: Mix air with fuel pre-venturi for finer mist, improving efficiency.

These elements harmonize: fuel enters the chamber, floats regulate supply, jets meter it, and venturi integrates with air.

Types of Carburetors: Matching Engine Demands

Not all carburetors are equal; designs vary by application. Common types include:

Fixed-venturi suits steady loads, while multi-barrel deliver surge power by opening circuits progressively.

Step-by-Step: How a Carburetor Functions

1. Idle: Minimal air via idle circuit; slow jet feeds lean mix.
2. Part-Throttle: Accelerator pump squirts extra fuel; main jet engages as vacuum strengthens.
3. Full Throttle: Power valve enriches mix; all jets contribute for max output.
4. Cold Start: Choke closes, fattening mixture until warm.

Throughout, float chamber replenishes via gravity feed or pump, maintaining level. Vacuum diaphragms assist accelerator response.

Carburetors vs. Fuel Injection: The Evolution

Invented by Karl Benz in 1888, carburetors dominated until electronic fuel injection (EFI) in the 1980s. EFI uses sensors, ECU, and injectors for precise, variable ratios adapting to load, temperature, and altitude—carburetors struggle here.

Emissions regs favored EFI’s cleanliness; carbs linger in classics, racing for raw response.

Throttle Body Injection: The Hybrid Middle Ground

Throttle body injection (TBI) bridges eras: single-point injector atop throttle body mimics carb placement but electronically meters fuel. No mixing chamber—injectors spray directly into airstream. Simpler than multi-point EFI, it phased out carbs in 1980s U.S. vehicles.

Common Issues and Troubleshooting

Carbs demand care:

• Flooding: Stuck float/needle; check gasket.
• Lean/Rich Running: Clogged jets; clean with solvent.
• Hesitation: Weak accelerator pump.
• Stalling: Idle mixture screws misadjusted.

Regular rebuilds (gaskets, jets) and fuel additives prevent varnish. For classics, rejetting for modern fuels boosts reliability.

Maintaining and Tuning for Peak Performance

Tuning involves:

1. Synchronize multiples on V8s.
2. Set idle speed/mixture via screws.
3. Adjust float level.
4. Verify vacuum/choke operation.

Tools: vacuum gauge, tachometer. Pros use flow benches for jet sizing. Ethanol fuels corrode; stabilizers help.

Carburetors in Modern Contexts

Though obsolete in passenger cars, they thrive in off-road, vintage racing, and small engines. Aftermarket units like Holley/Weber offer emissions-compliant options. Electric chokes and vacuum secondaries enhance drivability.

Why Carburetors Endure Among Enthusiasts

Their tactile feedback—no “drive-by-wire” lag—charms restorers. Visual spectacle of stacks on hot rods captivates. Simplicity aids DIY fixes, unlike EFI’s computers.

Frequently Asked Questions (FAQs)

What does a carburetor do?

It mixes air and fuel mechanically for engine combustion using venturi vacuum.

Why were carburetors replaced?

Fuel injection provides better precision, efficiency, and emissions control via electronics.

Can I convert EFI to carburetor?

Yes, for classics; requires manifold adapter, fuel pump tweaks, but loses modern efficiency.

How do I clean a carburetor?

Disassemble, soak in cleaner, blow jets, reassemble with new gaskets.

What’s the difference between 2-barrel and 4-barrel?

2-barrel: economy/low-end; 4-barrel: high-RPM power via progressive circuits.
