Car AC Complete Guide: How It Works And How To Fix It

Your car’s air conditioning system is a marvel of engineering that transforms hot, humid cabin air into cool, refreshing comfort. By cycling refrigerant through precise pressure and temperature changes, it removes heat and moisture effectively. This guide delves into the science, parts, troubleshooting, and care needed to keep it running smoothly.

The Fundamental Principles of Automotive Cooling

At its core, a car AC operates on thermodynamics, specifically the refrigeration cycle. Refrigerant—a specialized fluid—alternates between liquid and gas states to absorb and expel heat. When compressed, it heats up; when expanded, it cools dramatically. This phase-shifting property allows the system to transfer warmth from inside the vehicle to the outside.

The process begins when you activate the AC via the dashboard controls. An electrical signal engages the compressor clutch, linking it to the engine’s power. From there, low-pressure gas refrigerant enters the compressor, where mechanical force squeezes it into a high-pressure, superheated vapor. This step is crucial, as it prepares the refrigerant to release heat efficiently.

Core Components and Their Roles

Understanding each part helps demystify repairs and maintenance. Here’s a breakdown:

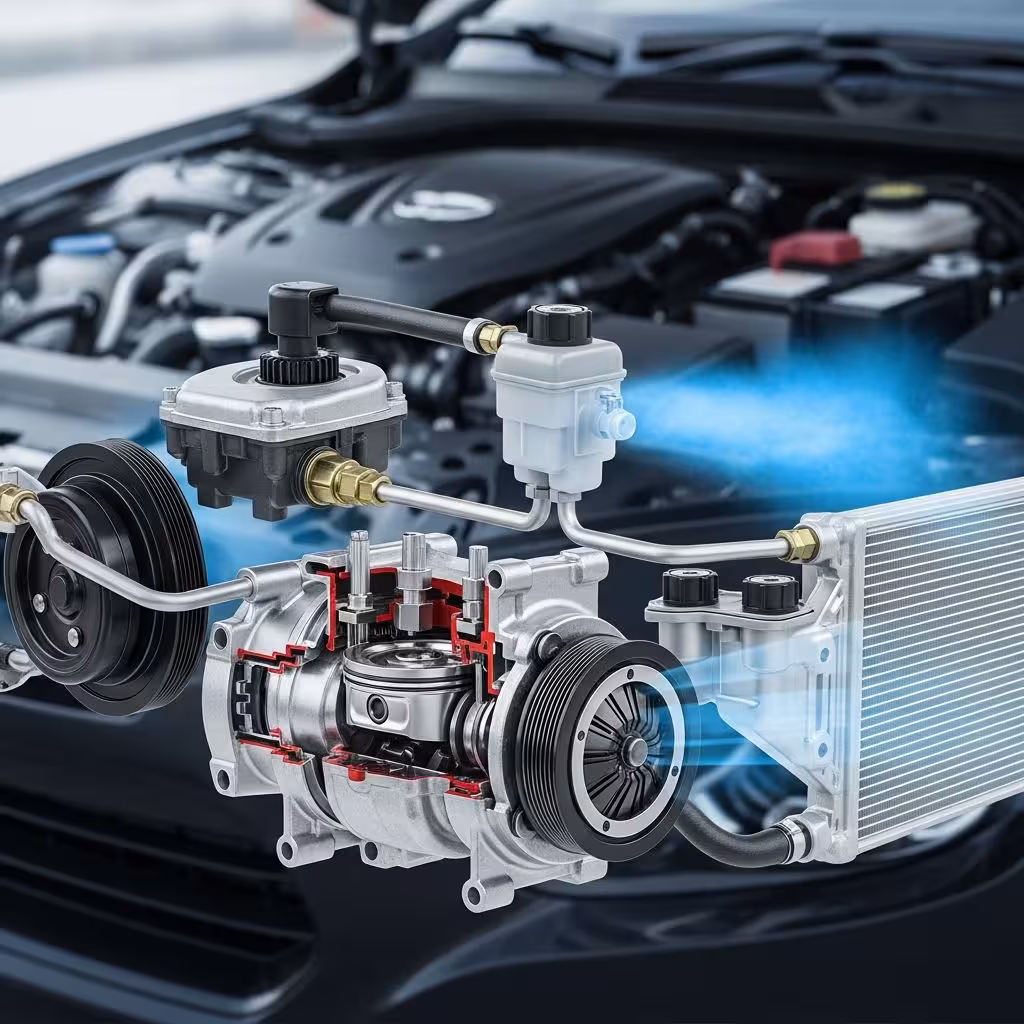

• Compressor: Often called the heart of the system, this belt-driven pump pressurizes refrigerant. Powered by the engine’s serpentine belt, it creates the high-pressure side of the cycle. Without it, no cooling occurs.
• Condenser: Positioned in front of the radiator, this heat exchanger resembles a mini radiator. Outside air, aided by the vehicle’s fan, cools the hot refrigerant vapor, condensing it into a high-pressure liquid.
• Receiver-Drier or Accumulator: These moisture traps prevent water from freezing in the system. The receiver-drier sits on the high-pressure side, filtering contaminants; the accumulator, on the low-pressure side, does the same while metering refrigerant flow.
• Expansion Device: Either an orifice tube or thermal expansion valve (TXV), it acts as a bottleneck. Dropping pressure causes the liquid refrigerant to expand into a cold mist, ready for evaporation.
• Evaporator: Hidden behind the dashboard, this coil absorbs cabin heat. A blower fan pushes air over its cold fins, chilling and dehumidifying it before distribution through vents.
• Blower Motor and Fans: The interior blower circulates cooled air; exterior fans enhance condenser efficiency during low-speed or idling conditions.

These elements form a closed loop, with hoses and sensors ensuring safe operation. Sensors monitor pressure, temperature, and flow, preventing damage like evaporator freeze-up via the clutch cycling switch.

Step-by-Step Refrigerant Journey

Visualize the cycle as a continuous loop:

1. Compression: Low-pressure gas sucked into compressor; output is hot, high-pressure gas.
2. Condensation: Gas flows to condenser, releases heat to ambient air, becomes high-pressure liquid.
3. Expansion: Liquid passes through expansion valve/tube, pressure drops sharply, turning into cold low-pressure mist.
4. Evaporation: Mist enters evaporator, absorbs interior heat, evaporates to low-pressure gas.
5. Return: Gas heads back to compressor, repeating the process.

This cycle runs tirelessly, often 2-3 times per minute under load. Efficiency hinges on refrigerant type: older R-12 gave way to R-134a, now phasing to eco-friendlier R-1234yf, which has lower global warming potential.

Variations in AC System Designs

Not all cars use identical setups. Two primary configurations exist:

CCOT systems cycle the compressor on/off for control; valve systems modulate flow precisely. Hybrids and EVs adapt this with electric compressors for silent, efficient operation.

Common Problems and Diagnostic Signs

AC failures disrupt summer drives. Key issues include:

• Refrigerant Leaks: Evident by weak cooling or hissing. UV dye or electronic sniffers locate them.
• Compressor Failure: Clutch won’t engage; grinding noises signal wear. Belt slippage common.
• Clogged Condenser/Evaporator: Debris blocks airflow, raising temperatures.
• Electrical Faults: Faulty relays, sensors, or blown fuses prevent activation.
• Moisture Contamination: Causes acidic corrosion, compressor seizure.

Warning signs: warm air output, unusual odors, or frost on vents. Low refrigerant triggers pressure switches to protect the compressor.

Seasonal Maintenance Best Practices

Proactive care extends system life:

• Clean condenser fins annually; use low-pressure water or compressed air.
• Replace cabin air filter every 15,000 miles for optimal airflow.
• Run AC weekly, even in winter, to lubricate seals.
• Professional recharge every 2-3 years; check for leaks.
• Inspect belts and hoses for cracks.

DIY tip: Use a gauge set to verify pressures—low side 25-45 psi, high side 150-250 psi at 80°F ambient. Never overcharge.

Advanced Features in Modern Vehicles

Today’s AC integrates with climate control: dual-zone, auto humidity sensors, and solar load calculators adjust output. Variable displacement compressors match engine load, boosting fuel economy. In EVs, heat pumps reverse the cycle for heating, maximizing range.

Refrigerant evolution addresses environmental concerns—R-1234yf reduces GWP by 99% vs. R-134a, mandated in new EU/Japan models.

FAQs

Why does my AC blow cold then warm?
Cycling clutch switch or low refrigerant causes intermittent operation to prevent freezing.

Can I add refrigerant myself?
Yes, but evacuate air first and use proper gauges. Overfilling damages compressor.

How often should I service AC?
Annually inspect; recharge if cooling weakens.

Does AC affect fuel economy?
Expect 3-5% MPG drop at highway speeds; minimal in city.

Why use AC in winter?
Prevents seal drying; aids defogging by dehumidifying.
