Capture Cards: Console to PC Guide

Capture cards enable gamers to transfer high-quality video from consoles like PlayStation 5 or Xbox Series X to a PC for streaming or recording without interrupting gameplay. These devices bridge the gap between console output and computer processing, supporting resolutions up to 4K while maintaining low latency through pass-through technology.

Understanding Capture Card Fundamentals

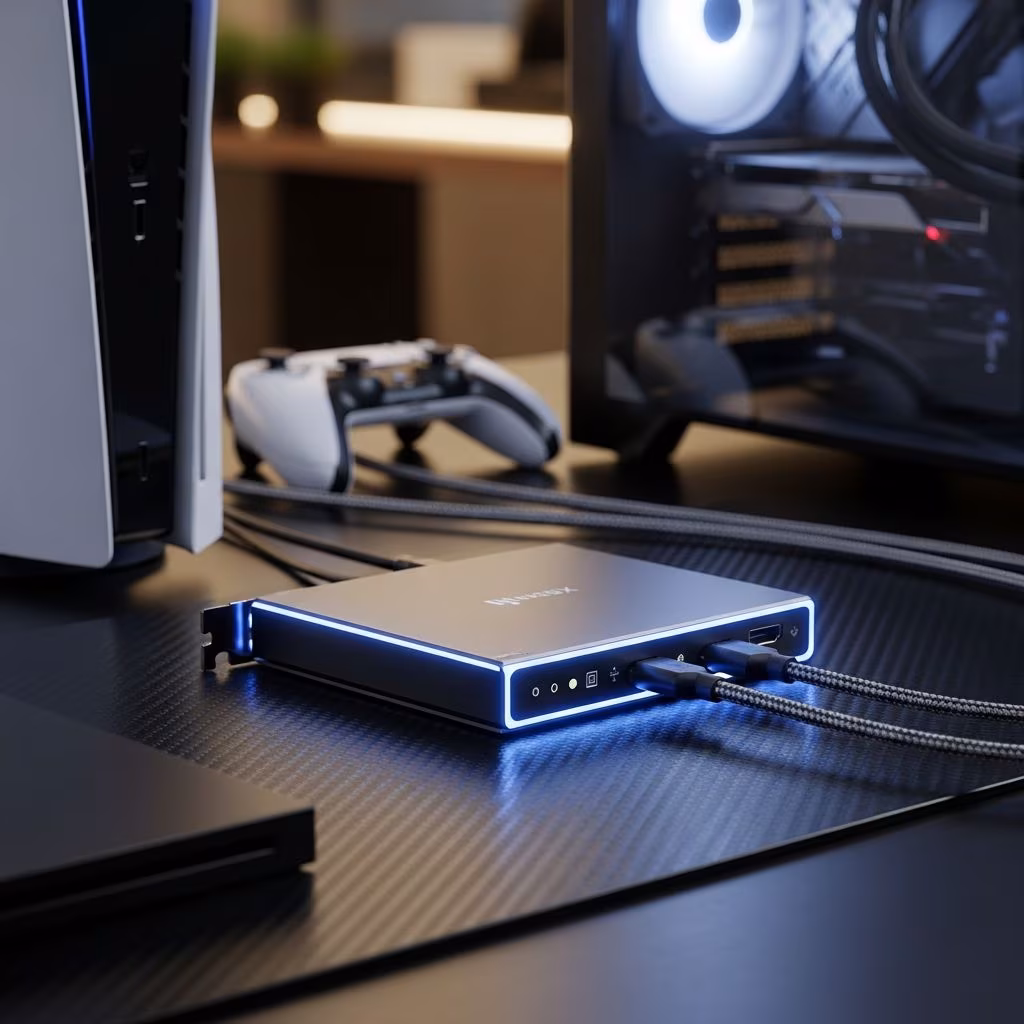

A capture card acts as an intermediary that digitizes analog or digital video signals from gaming consoles into a format compatible with PC software. It receives HDMI input from the console, processes the signal, and outputs it via USB to the computer while simultaneously passing the unaltered feed to a display for lag-free play.

Key components include HDMI input for console connection, HDMI pass-through output for monitors, and USB for PC linkage. Internal models install into PCIe slots for superior bandwidth, whereas external USB versions offer portability and ease of setup across devices.

Types of Capture Cards for Gamers

• External USB Capture Cards: Plug directly into USB 3.0 or Thunderbolt ports, ideal for beginners and mobile setups. They support 1080p60 or 4K30 capture with minimal CPU load.
• Internal PCIe Cards: Mount inside desktop PCs for higher frame rates like 4K60, suited for professional streaming rigs with dedicated GPUs.
• Portable HDMI Devices: Compact options for laptops, often including software bundles for instant OBS integration.

Choose based on your setup: USB for versatility, PCIe for performance.

Essential Hardware Requirements

Before purchasing, verify compatibility:

• Console with HDMI output (all modern PS4/PS5, Xbox One/Series).
• PC with USB 3.0+ port (avoid 2.0 for bandwidth issues).
• Two HDMI cables: one console-to-card, one card-to-display.
• Monitor/TV supporting at least 1080p60.

Step-by-Step Physical Connection Process

Follow these steps for a reliable setup:

1. Power off all devices to prevent signal damage.
2. Connect HDMI cable from console’s HDMI OUT to capture card’s HDMI IN.
3. Attach second HDMI from card’s HDMI OUT (pass-through) to TV/monitor for direct viewing.
4. Plug USB cable from card to PC’s USB 3.0+ port. Use included USB-C to USB-A if provided.
5. Power on console first, then PC and monitor. Verify video on display (no PC dependency).

This pass-through ensures zero added latency during play.

Software Installation and Driver Setup

Most cards are plug-and-play, but install manufacturer software:

• Download from official site (e.g., Elgato Game Capture, AVerMedia RECentral).
• Run installer, restart PC if prompted.
• Test in standalone app: launch software, select device, preview feed.

Update firmware via app for latest features like HDR passthrough.

Integrating with OBS Studio for Capture

OBS Studio is the go-to free tool for streaming/recording. Add your card:

1. Open OBS, create new scene.
2. In Sources, click +, select Video Capture Device.
3. Name it (e.g., “PS5 Capture”), check “Make source visible”, OK.
4. Device dropdown: pick capture card (e.g., “Elgato Game Capture HD60”).
5. Configure: Resolution/FPS Type = Device Default, Video Format = MJPG or H.264 for efficiency.
6. Apply, preview in OBS. Adjust audio via Audio Input Capture if needed.

For audio, enable console headset monitoring or use PC mixers.

Optimizing Capture Quality and Performance

Achieve pro-level output:

• Resolution/FPS: Match console settings (e.g., 4K60 if card supports).
• Bitrate: 6000-8000 kbps for 1080p60 streams.
• Color Space: Enable HDR if available on card and display.
• CPU Usage: Use hardware encoding (NVENC/Quick Sync) in OBS.

Troubleshoot black screens: Check USB port, cables, drivers. Swap ports if needed.

Platform-Specific Tips: PlayStation and Xbox

PlayStation 5/4 Setup

PS5 requires HDMI 2.1 for 120Hz, but most cards cap at 60Hz passthrough. Disable HDCP in PS settings: Settings > System > HDMI > Enable HDCP (off).

Xbox Series X/S

Xbox auto-negotiates resolutions. Use Quick Resume compatible cards. Enable 4K capture via dashboard.

Advanced Features and Pro Configurations

Unlock more with multi-card setups or NDI:

• Dual PC Streaming: Capture PC1 streams to PC2 via second card.
• Overlay Integration: Add webcam, alerts in OBS scenes.
• 4K60 HDR: Premium cards like AVerMedia GC551G2 handle it via USB.

For laptops, prioritize Thunderbolt for stability.

Common Pitfalls and Fixes

Best Capture Cards for 2026 Budgets

• Budget (<$100): Basic 1080p60 USB cards.
• Mid-Range ($100-200): Elgato HD60 X for 4K30 passthrough.
• Premium ($200+): Internal PCIe for 4K144.

Streaming Platforms and Export Tips

After capture, stream to Twitch/YouTube via OBS RTMP. For edits, export MP4 in OBS or use DaVinci Resolve. Compress for YouTube: H.264, 50Mbps max.

FAQ

Do I need a second PC for capture cards?
No, a single PC handles capture, encoding, and streaming if specs suffice.

Can capture cards record internal PC games?
Yes, via window capture in OBS, but dedicated cards excel for consoles.

What’s pass-through latency?
Typically <1ms, unnoticeable in gameplay.

Mac compatible?
Most USB cards work with OBS on macOS.

Free alternatives to capture cards?
Console built-in streaming (PS Share, Xbox Broadcast), but lower quality/control.
